Product description:

· High linearity from 1A to 100kA

· Wide dynamic range

· Very useful with large size or awkward shaped conductors or in places with limited access

· No danger from open-circuited secondary

· Not damaged by large overloads

· Non-intrusive, no power drawn from the main

· Measurement uniformity at any position of the conductor inside the coil

· Excellent degree of rejection to the external current conductor

FCT is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. FCT coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight.

Due to its specific features, flexible Rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.

FCT coil is provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA. The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization. Our DIN-RAIL and panel meters can interface Rogowski coils directly without the need of the external integrators. This is an advantage because there is no external boxes or any power supply with consequent ease of use. The particular features of the Rogowski coils combined with the extremely flexible input programming of our portable meters, allow to carry out measurement by all applications.

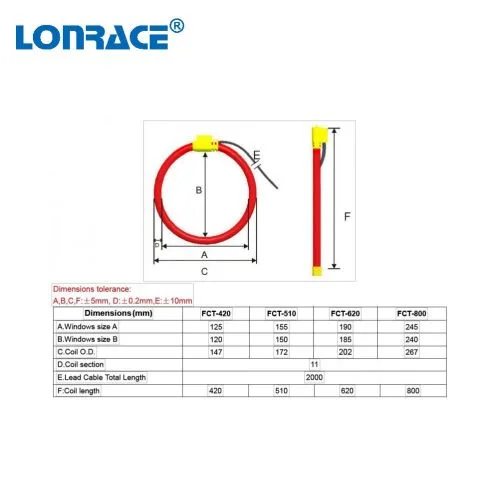

Common size:

MODEL

FCT-420

FCT-510

FCT-620

FCT-800

Coil length

420mm

510mm

620mm

800mm

Window size

120mm

150mm

185mm

240mm

Weight

105g

120g

135g

165g

Reference

Rated current

1000A

3000A

6000A

10kA

Coil Resistance

from 100 to 300 Ω

Coil Section

11mm

Lead length

2meter

Output (di/dt)

Uncalibrated

120mV/kA@50Hz

Calibrated

50mV/kA@50Hz

85mV/kA@50Hz

100mV/kA@50Hz

Read Accuracy

Calibrated<0.5% (central position, 25℃)

Uncalibrated < 5% tolerance (central position, 25℃)

Temperature

Uncalibrated 200ppm/C

Calibrated 300ppm/C

Position Error

±1% maximum

Output on 0A （zero drift）

≤0.05mV

Phase error

≤0.5°

Linearity

±0.2% of reading

Bandwidth

1Hz to 1MHz(-3dB)

Operating temperature

-30℃ to 80℃

Storage temperature

-40℃ to 90℃

Other requirements, please contact us to OEM.
