About this product
- Size: support custom
- Color: metal color/tin plated/copper plated/as required
- Material: Chrome SteelOther
- Number of row: Other
- Precision rating: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: support custom
- Color: metal color/tin plated/copper plated/as required
- Material: Chrome SteelOther
- Number of row: Other
- Precision rating: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | support custom |
|---|---|
| Color | metal color/tin plated/copper plated/as required |
| Material | Chrome SteelOther |
| Number of row | Other |
| Precision rating | Other |
Product details
| Size | support custom |
|---|---|
| Color | metal color/tin plated/copper plated/as required |
| Material | Chrome SteelOther |
| Number of row | Other |
| Precision rating | Other |
From the supplier
1. Introduction

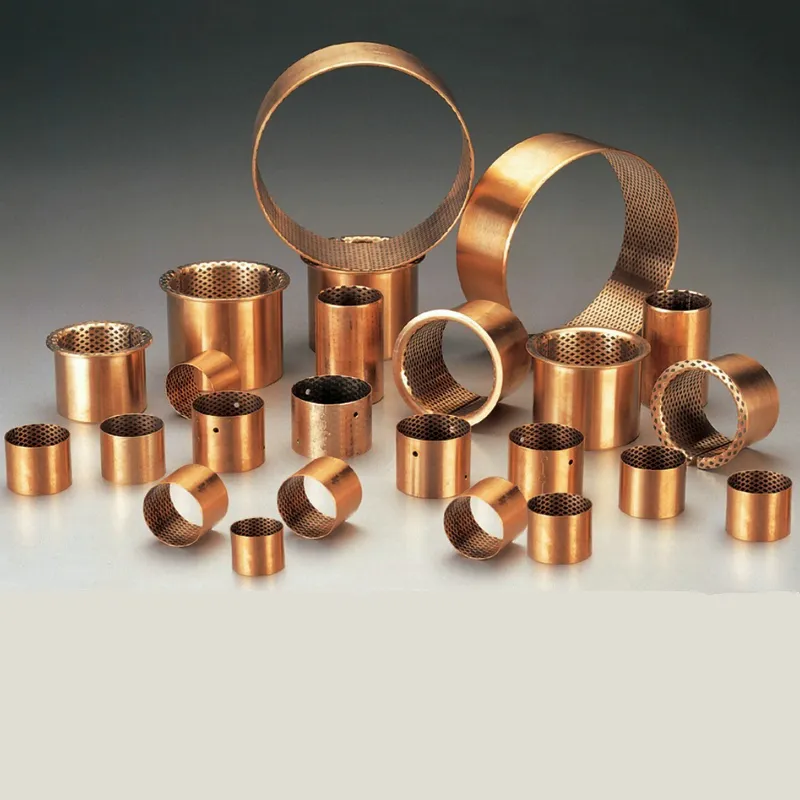

Bi-Metal bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear.
It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
2. Material&Specifications:
Material
JF-800
Steel+Bronze(CuSn10Pb10)
JF850
Steel+ Bronze(CuSn6Zn6Pb3)
JF-720
Steel+ Bronze(CuSn4Pb24)
JF-20
Steel+ Bronze(AlSn20Cu)
JF700
Steel+ Bronze(CuPb30)
Load capacity
150N/mm2
Speed limit
Oil lubricating
2.5m/s
Dry Friction
0.4m/s
PV value limit
Oil lubricating
10N/mm2.m/s
Dry friction
2.8 N/mm2.m/s
Mating axis required
Hardness
>=48~53HRC
Roughness
Ra=0.16~0.63
Friction coef
0.05-0.22
Working temperature max.
200°C
4. Size List
5. Other busings:
bronze bushing/Sintered bushing/composit bushing /Wrapped bushing/DX bushing/graphite bushing
Also we can make customized bushings as per your drawings or samples.
Welcome inquiry us for details so that we can offer you related information at the first time!
Doreen Tan Email:doreen@bushing.com.cn Tel&Whatspp:+86-13548684698 Hunan Jintai Hardware and Machinery Co.,Ltd. www.slide-bearing.com
From the supplier
1. Introduction
Bi-Metal bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear.
It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
2. Material&Specifications:
Material
JF-800
Steel+Bronze(CuSn10Pb10)
JF850
Steel+ Bronze(CuSn6Zn6Pb3)
JF-720
Steel+ Bronze(CuSn4Pb24)
JF-20
Steel+ Bronze(AlSn20Cu)
JF700
Steel+ Bronze(CuPb30)
Load capacity
150N/mm2
Speed limit
Oil lubricating
2.5m/s
Dry Friction
0.4m/s
PV value limit
Oil lubricating
10N/mm2.m/s
Dry friction
2.8 N/mm2.m/s
Mating axis required
Hardness
>=48~53HRC
Roughness
Ra=0.16~0.63
Friction coef
0.05-0.22
Working temperature max.
200°C
4. Size List
5. Other busings:
bronze bushing/Sintered bushing/composit bushing /Wrapped bushing/DX bushing/graphite bushing
Also we can make customized bushings as per your drawings or samples.
Welcome inquiry us for details so that we can offer you related information at the first time!
Doreen Tan Email:doreen@bushing.com.cn Tel&Whatspp:+86-13548684698 Hunan Jintai Hardware and Machinery Co.,Ltd. www.slide-bearing.com
