Factory direct sales Gaofu impact screen geological research and production laboratory screening equipment small vibrating screening machine
XINXIANG GAOFU MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Factory direct sales Gaofu impact screen geological research and production laboratory screening equipment small vibrating screening machine
XINXIANG GAOFU MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: carbon steel
- Size: 450*460*800（mm）
- Color: Blue,yellow
- After-sales service provided: No overseas service providedOther
- Function: Other
- Composition: Filtration EquipmentOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: carbon steel
- Size: 450*460*800（mm）
- Color: Blue,yellow
- After-sales service provided: No overseas service providedOther
- Function: Other
- Composition: Filtration EquipmentOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | carbon steel |
|---|---|
| Size | 450*460*800（mm） |
| Color | Blue,yellow |
| After-sales service provided | No overseas service providedOther |
| Function | Other |
| Composition | Filtration EquipmentOther |
| Power source | Other |
| Process | Other |
| Location | factory |
| Automatic grade | Semi-Automatic |
| Certification | CE |
| Processing material | Other |
| Material | Other |
Product details
| Materials | carbon steel |
|---|---|
| Size | 450*460*800（mm） |
| Color | Blue,yellow |
| After-sales service provided | No overseas service providedOther |
| Function | Other |
| Composition | Filtration EquipmentOther |
| Power source | Other |
| Process | Other |
| Location | factory |
| Automatic grade | Semi-Automatic |
| Certification | CE |
| Processing material | Other |
| Material | Other |
From the supplier

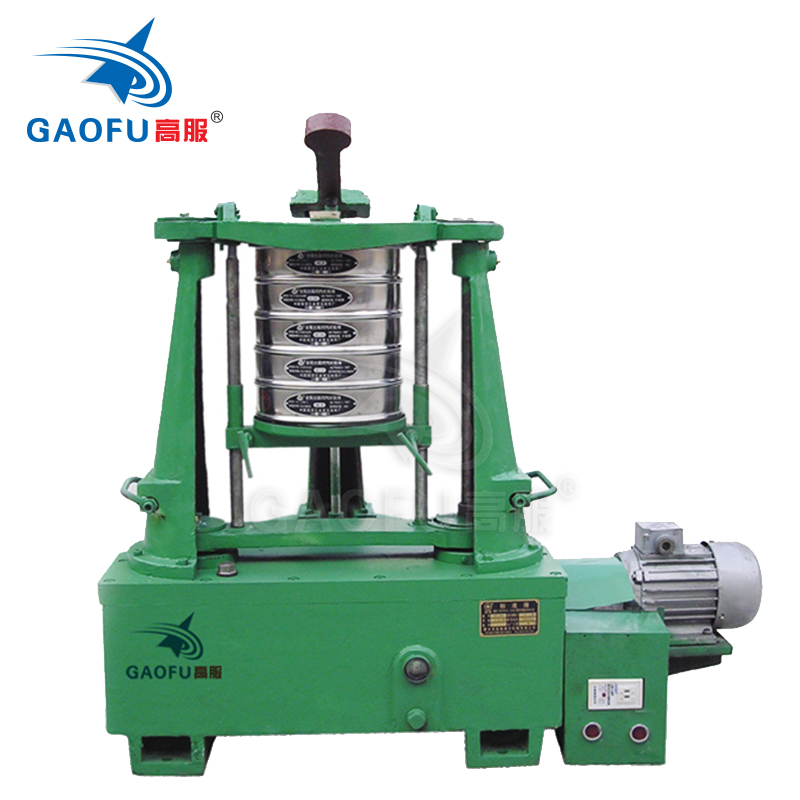

Gaofu vibrating screen,test sieve for powder
What does it do?It was widely used in geological, met-allurgical, chemical, construction, medicine, etc.
Principle of the structure of vibrating screen,test sieveIt is one of testing equipment used in lab, which is consist of baseplate, sieve, transmission parts, etc. with special folder ,the folder can be #200 standard screen,#75, #100 screen sets, flexible and easy setup, strong clamping and automatic shutdown.
The standard screen size as follow
2.63 mm ( 8#) 2.00 mm ( 10#) 1.70 mm ( 12#) 1.40 mm ( 14#) 1.18 mm (16#) 1.00 mm ( 18#) 0.85 mm ( 20#) 0.71 mm ( 25#) 0.60 mm ( 30#) 0.50 mm ( 35#) 0.425 mm ( 40#) 0.355 mm ( 45#) 0.30 mm ( 50#) 0.25 mm ( 60#) 0.212 mm ( 70#) 0.18 mm ( 80#) 0.15 mm ( 100#) 0.125 mm ( 120#) 0.106 mm ( 140#) 0.09 mm ( 230#) 0.075 mm (200# ) 0.063 mm ( 230#) 0.053 mm ( 270#) 0.045 mm ( 325#) 0.038 mm ( 400#) 0.025 mm ( 500#)
Product DescriptionItems
Name
unit
data
1Layers
layer1-8
2Diameter
mm
Φ200Φ100Φ75
3Granularity
mm
0.038-3
4Noise
dB
≤50
5Feeding capacity (once)
g
≤200
6Amplitude
mm
≤5
7Voltage
v
220
8Speed
r/min
1420
9Power
kW
0.125
10Overall dimension
mm
360×300×736
11weight
Kg
25
MORE PRODUCT SERIES
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Waiting your inquiry.
CertificationsCertificate
The company has passed the ISO9001:2008, CE, BV certification.
About Gaofu
Company Information
Gaofu company founded in 1982, 30 years of development history, gradually improve and integrated industrial chain;Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industries.With 56 national patents, is a design and production capacity of integrated machinery manufacturing company.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Booking hotel and ticket for customers and Free transportation during visit our factory.
4. Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help high-end customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will be always available.
Customer Visit
Our customers came from different countries every year.
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every macchine before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
Contact us
Tell me the following questions, Then I can send you accurate quotation soon, including additional discount!
Your email address and telephone will not be shared or published!
The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input, abrasiveness of the material etc:
1. Material : _____
2. Moisture:_____%
3. Capacity: :________kg/ hour
4. Screen layer:_______
5. Screen mesh size:______ mesh . ______ mesh. ______ mesh
6. Voltage:______V, Frequency:______HZ, 3 phase
7. SS304/316L stainless steel or Q235A carbon steel?
Contact a GAOFU professional-Amy Zhang today.
