F3000 Enhanced Dump Truck/6×4, SX3255DT384 (WP10.380E22/Euro II)/SX3255DU384 (WP12.375E50/Euro V), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery ( Cummins models with180Ah maintenance-free battery ), 10JSD180+QH50, 9.5T MAN front Axle, 16T MAN double reduction axle, 850×300 (8+7) double-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 300L aluminum alloy fuel tank, 12.00R20 tires, front lift 5600x2300x1500, suitable for muddy, pothole roads, and roads with large slopes.

F3000 Enhanced Dump Truck/8×4, SX3318DT366 (WP12.375E50/Euro V)/SX3315DT366 (WP10.380E22/Euro II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery (Cummins models with180Ah maintenance-free battery ), 10JSD180+QH50, 9.5T MAN front Axle, 16T MAN double reduction axle, 850×300 (8+7) double-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 300L aluminum alloy fuel tank, 12.00R20 tires, front lift 7400×2300× 1500, suitable for muddy, pothole roads, and roads with large slopes.

F3000 Super Dump Truck/8×4, SX3315DT366 (WP10.380E22/Euro II)/SX3318DT366 (WP12.375E50/Euro V), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery (Cummins models with180Ah maintenance-free battery), 10JSD180+QH50, 9.5T MAN Front axle, 16T MAN double reduction axle, 850×320 (8+7+8) three-layer frame, front and rear multi-leaf springs, four main springs + four U- bolts, 300L aluminum alloy fuel tank, 12.00R20 tires, front lift 7400 ×2300×1500, suitable for muddy, pothole roads, and roads with large slopes.

Power

1.The project "Key Technologies and Applications of Power Assembly for Heavy Commercial Vehicles" won the first prize of National Award for Science and Technology Progress. Weichai is the largest power assembly group in China and the world's largest manufacturer of high-speed high-power engines, and currently has more than 3.5 million units worldwide. FAST is the world's largest manufacturer and distributor of heavy-duty transmission, and the annual production and sales of heavy-duty vehicle transmission rank first in the world for twelve consecutive years, with more than 7 million units in the global market. HANDE axle is an important heavy-duty axle production base in China. It has produced more than 3.9 million axles, ranking first in the export of domestic axle assemblies for many years.

（1）Weichai four-valve engine has strong power with large output torque, at lower engine speed. It is the best power and explosive force in the industry. Wedge suspension is equipped in engine, The NVH performance (noise, vibration and roughness of acoustic vibration), anti-loosening performance, comfort and vehicle reliability is greatly improved.

（2）Fast transmission has dual intermediate shafts with high reliability. Large speed ratio range is suitable for different working conditions. And has strong climbing ability. The small speed ratio differential guarantees high fuel economy.

（3）The fatigue life of HANDE axle is 1318,000 times with strong bearing capacity. The axle adopts the European synchronous FAG low resistance maintenance-free bearing technology with independent lubrication system, lower fuel consumption.

2. Cummins, the worldwide largest independent engine manufacturer, is the only company in the global engine industry with all five key engine subsystems. Cummins ISM engine, ECM electronic control system can provide intelligent protection, and multi-level fuel filtration system has great fuel adaptability and low fuel consumption.

Chassis

1. It adopts 9.5T front suspension plate spring with large carrying capacity and high stiffness.

2.The integral balance shaft and straight propelling rod are applied to guarantee the driving-stability.

3.The maximum turning angle of the front wheel is 46 degrees, the turning radius is small and the head is well-adjusted.

4.The approach angle and departure angle are 30 degrees and 28 degrees respectively, the road conditions are adaptable and the trafficability is enhanced.

5.The use of flat tank （ground clearance is 560mm）improves the ground clearance with better trafficability.

6.The rim has a large offset (183 mm) and a rim thickness of 16 mm, which reduces the wear risk of twin tires.

Upper parts

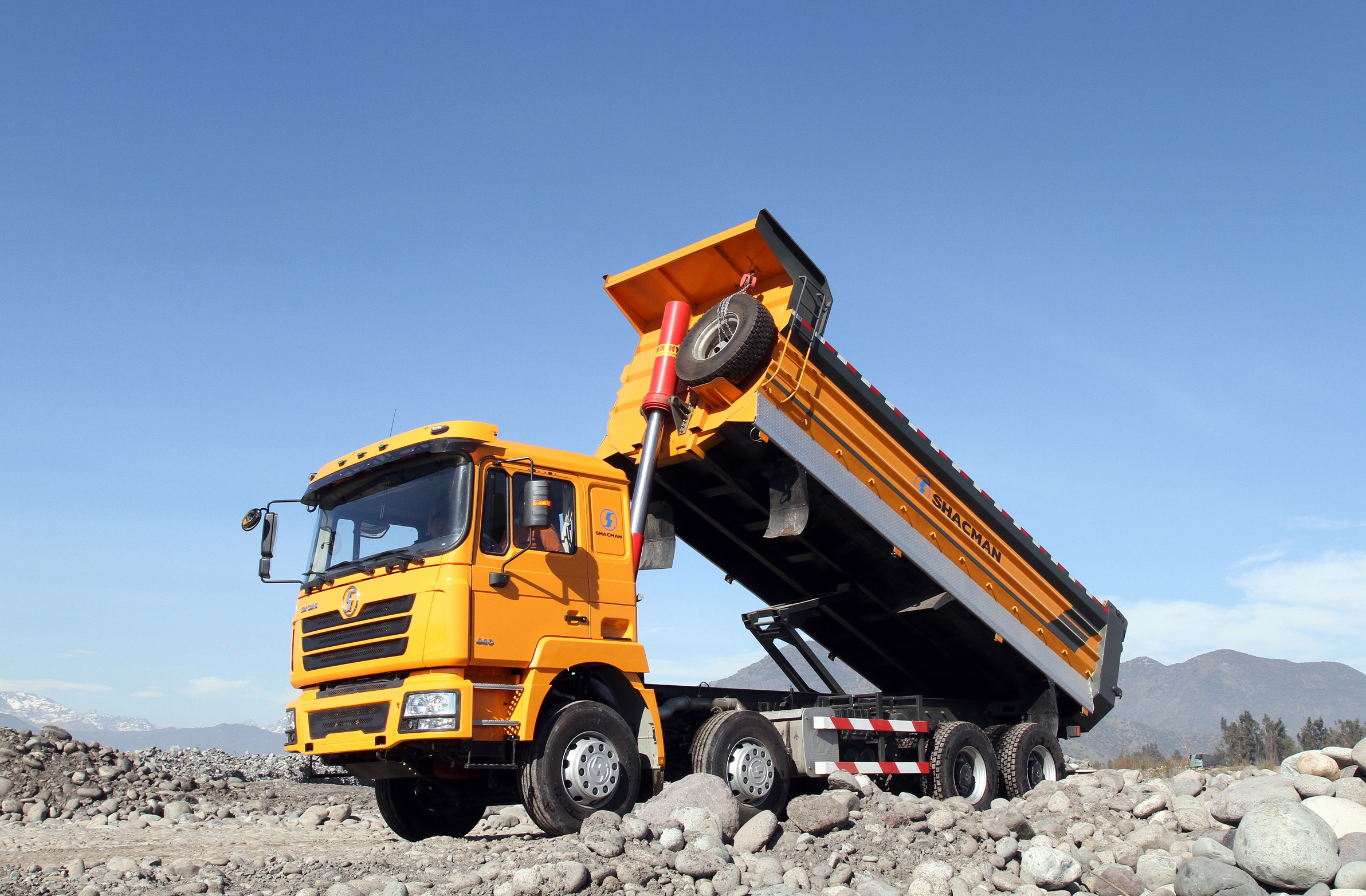

1. A variety of lifting cylinders are available (domestic, DeppKaler, Hyva). Lifting capacity is up to 100T and lifting time is between 14-45 seconds. The front lifting mechanism has the advantages of high efficiency, simple structure, great lifting stability, large lifting capacity and great oil pressure.

2.Low alloyed steel with the type of Q135、Q345、Q700 and T700 of high strength-low carbon easily welded steel, the strength, density, plasticity of these material were performed well, the body can withstand the impact of mass rock with long service life.
