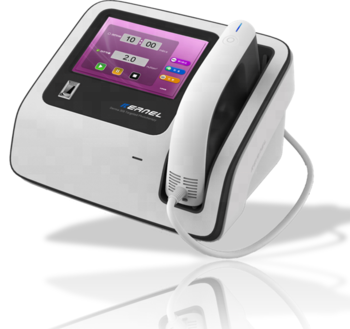

Features of KN5000C Excimer 308 Targeted Phototherapy

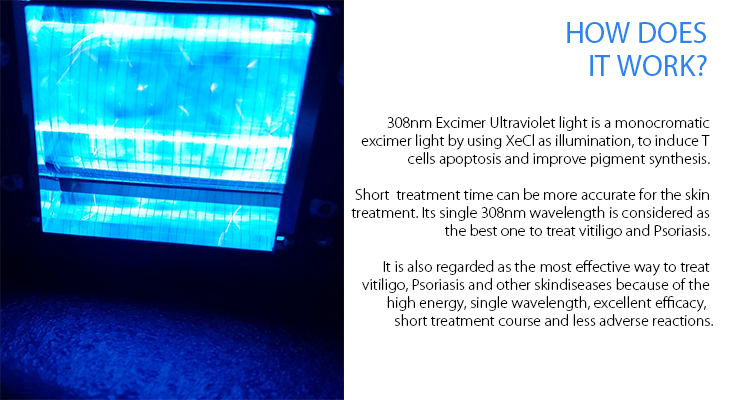

• 1) Xenon chloride light source, high energy, less side effects, reduce the treatment cycles
  2) Targeted and no harmless, easy to treat the lesions places where the traditional ones can not reach
  3) The light port is designed with special filters to screen out the useless stray lights, ensure safety and reliability as well
  as easy observation of operator
  4) Treatment handle works with multi-specification-available shading sheets, realized a precise control of the irradiation range,
  suitable for different sizes of lesion treatment

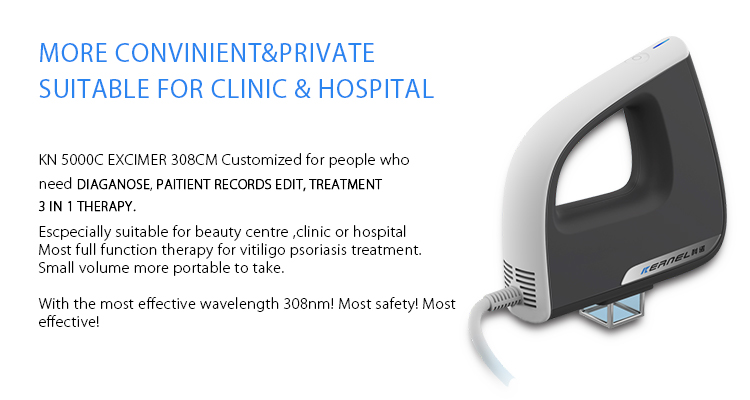

  5) Treatment handle and the machine body split design, to minimize the weight of the treatment handle to the maximum
  6) 8'' touch screen with user-friendly GUI design, make the operation more concise and fluent
  7) Built-in minimum erythema dose (MED) test function, one machine for multiple use

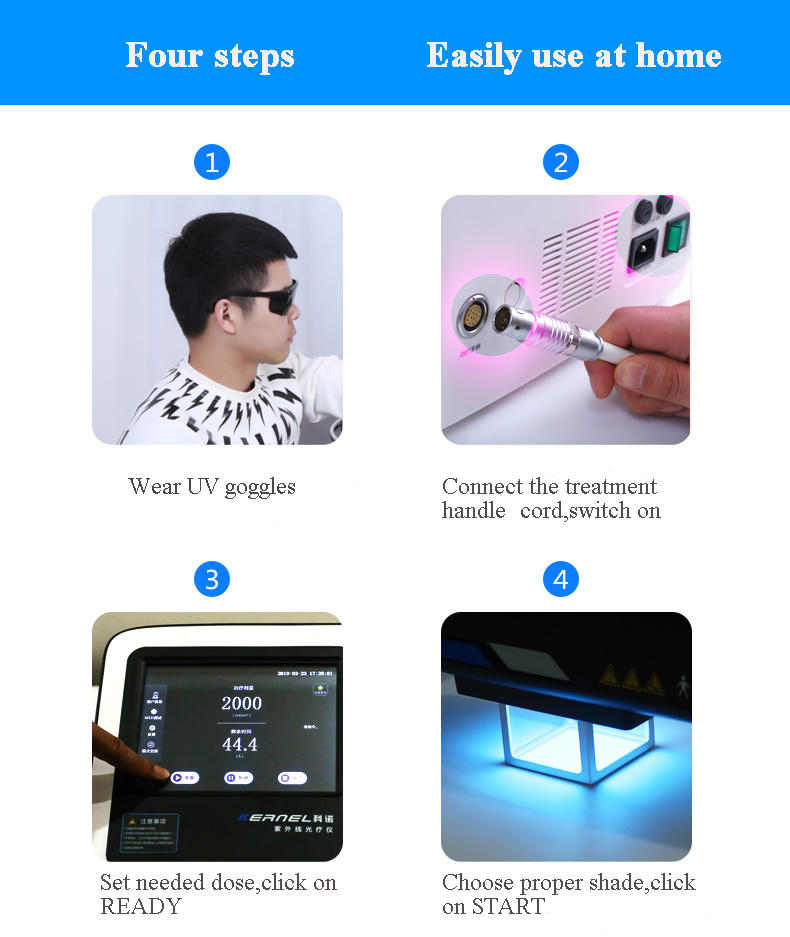

  8) Quick start, one-key output, easy to operate
  9) Built-in patient information management, convenient for operator to manage patients' information and treatment records
  10) Take-away storage of patients' information
  11) Small size, low cost, more suitable for home use
  12) The optional timing chip gives multiple modes for selections of selling/cooperation on this product (optional function)

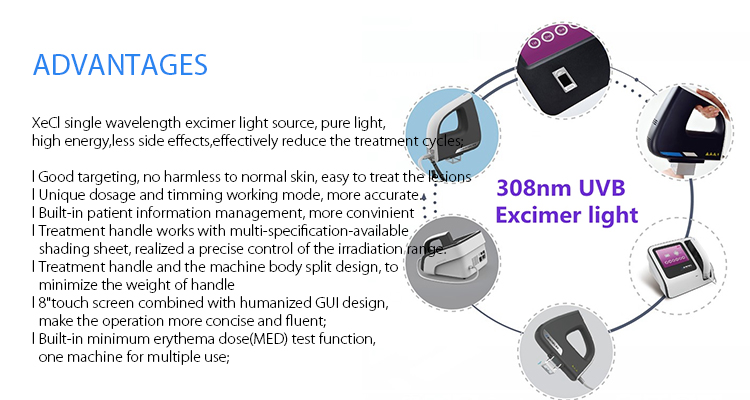

Advantage:

1.Targeted treatment
2. Strong intensity
3. short treatment time, suitable for all skin type

Specification

• 1.1 light source: Xenon chloride light lamp
  1.1. UVB wavelength range: UVB:290nm~320nm
  1.2. UVB output irradiation intensity range:UVB:20mW/cm2~200mW/cm2
  1.3. Spot area:20cm²±1cm²
  1.4. Illuminate way: hand-held
  1.5. Surface temperature of the irradiated Department not more than 45 °C
  1.6. The highest temperature for the outer surface of machine is not more than 60 °C

•
  Conditions of the working enviroment
  a) The range of the enviromental tempreture:5°C~40°C;
  b) Relative humidity range:≤85%;
  c) Atmospheric pressure range:700hPa~1060hPa;



Main security features of the product:
3.1. Classification by type of anti-shock:Ⅰ
3.2. Classification according to the degree of anti-shock:B
3.3. Classified by operating mode: continuous operation;
3.4. Equipment rated voltage and frequency:AC 220V±10%,50Hz±2%;
3.5.Equipment input power: no more than 160VA

Comparison before and after treatment：
