Electric Reach Truck, Forklift
NINGBO RUYI JOINT STOCK CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Electric Reach Truck, Forklift
NINGBO RUYI JOINT STOCK CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: STEEL+ IMPORTED H TYPE STEEL
- Size: LIGHT HEIGHT : 5-- 12M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: STEEL+ IMPORTED H TYPE STEEL
- Size: LIGHT HEIGHT : 5-- 12M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | STEEL+ IMPORTED H TYPE STEEL |
|---|---|
| Size | LIGHT HEIGHT : 5-- 12M |
| Color | YELLOW + DARK GREY |
Product details
| Materials | STEEL+ IMPORTED H TYPE STEEL |
|---|---|
| Size | LIGHT HEIGHT : 5-- 12M |
| Color | YELLOW + DARK GREY |
From the supplier

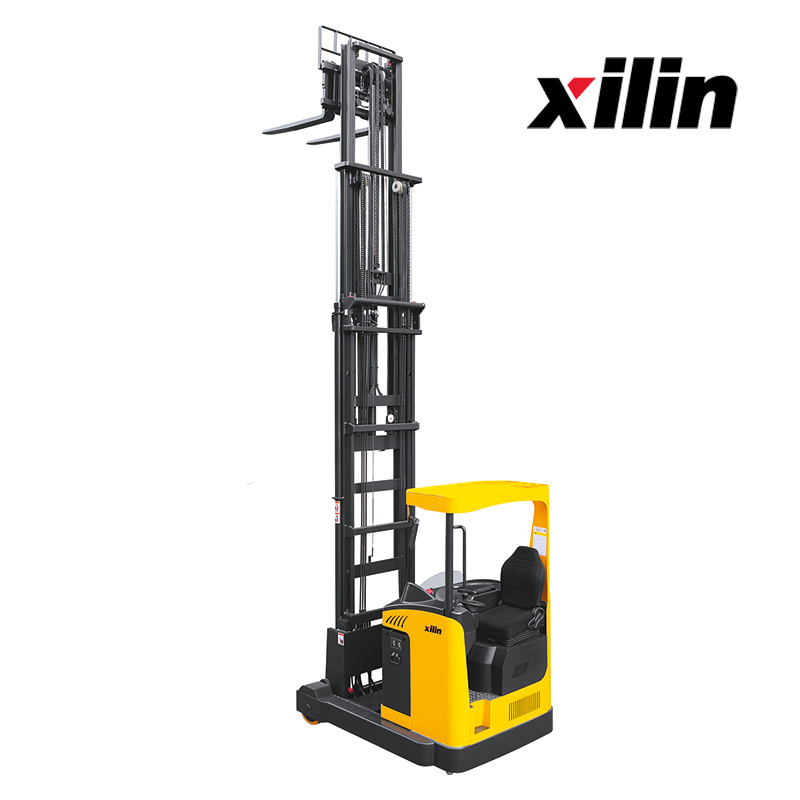

CQD20H is the Mast Reach type forklift , with load capacity 2000kg, and Lifting Height from 5M to 12M , this truck have heavy duty chassis with high stabilities , advanced AC driving system, offers powerful driving and high performance. with small turning radius 1820mm-1920mm, it is an ideal handling solution for narrow aisles storage applications, widely used in large warehouse with middle and high rack systems.
Max. lift height:12000mm
CQD20H Advantages:
Standard
● AC control system.
● Powering steering system (EPS). (standard for 10-12m, option for 8-9.5m)
● offers Magnetic type finger tip control or Joystick control ( options )
● Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
● Finger-tip control stick. (standard for 10-12m, option for 8-9.5m)
● Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
● German ZF brand gear box.
● Adjustable steering wheel.
● With traveling speed limited device when forks at high level.
● Electronic height limited device.
● Use "H" type mast steel is imported from Germany.
● Use double controllers to realize stepless speed regulation of sideshift , both lifting and traveling.
● Have safety traveling speed limited device in the mast.
Option
● Side shift.
● Height selection and height position system.
● LCD display and camera (LCD for cold storage are available).
● EX explosion proof type.
● Travel/back-up flashing lights.
CQD20 type Advantages:
● DC Motor , dual controller , with ZF GEAR box .
● The max lifting height can reach 9.5 metres.
● Use "H" type mast steel is imported from Germany enhance the use time and stability.
● Use double controllers to realize stepless speed regulation of both lifting and travelling.
● Have safety travelling speed limited device in the mast. Travelling speed will automatic lowering when forks height is up 5M.
● Full hydraulic steering system makes turning easy and flexible.
● Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor, offer simple operation for travelling and braking .
● Battery is EASY MAINTENANCE
1) Side way battery changing by a trolley.
2) Automatic push-out and pull-in function by a simple battery handle controller .
MODEL CQD20CQD20HREACH TYPE MAST REACH MAST REACH MOTOR DC TYPE AC TYPE CAPACITY 2000KG2000KGLOAD CENTER 600MM600MMLIFTING HEIGHT FORK ( MM ) 3000/5000/6200/ 74008000/8600/9500/ 10200/11100/12000REACH DISTANCE 600MM600MMAISLE WIDTH (1.2MX0.8M pallet) 2980MM2980MMFORK SIZE 1070MM1070MMTURNING RADIUS 1820MM1820MMBATTERY 48V/400AH 48V/500AH CHARGER 3PHASE 380V3PHASE 380V
From the supplier
CQD20H is the Mast Reach type forklift , with load capacity 2000kg, and Lifting Height from 5M to 12M , this truck have heavy duty chassis with high stabilities , advanced AC driving system, offers powerful driving and high performance. with small turning radius 1820mm-1920mm, it is an ideal handling solution for narrow aisles storage applications, widely used in large warehouse with middle and high rack systems.
Max. lift height:12000mm
CQD20H Advantages:
Standard
● AC control system.
● Powering steering system (EPS). (standard for 10-12m, option for 8-9.5m)
● offers Magnetic type finger tip control or Joystick control ( options )
● Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
● Finger-tip control stick. (standard for 10-12m, option for 8-9.5m)
● Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
● German ZF brand gear box.
● Adjustable steering wheel.
● With traveling speed limited device when forks at high level.
● Electronic height limited device.
● Use "H" type mast steel is imported from Germany.
● Use double controllers to realize stepless speed regulation of sideshift , both lifting and traveling.
● Have safety traveling speed limited device in the mast.
Option
● Side shift.
● Height selection and height position system.
● LCD display and camera (LCD for cold storage are available).
● EX explosion proof type.
● Travel/back-up flashing lights.
CQD20 type Advantages:
● DC Motor , dual controller , with ZF GEAR box .
● The max lifting height can reach 9.5 metres.
● Use "H" type mast steel is imported from Germany enhance the use time and stability.
● Use double controllers to realize stepless speed regulation of both lifting and travelling.
● Have safety travelling speed limited device in the mast. Travelling speed will automatic lowering when forks height is up 5M.
● Full hydraulic steering system makes turning easy and flexible.
● Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor, offer simple operation for travelling and braking .
● Battery is EASY MAINTENANCE
1) Side way battery changing by a trolley.
2) Automatic push-out and pull-in function by a simple battery handle controller .
MODEL CQD20CQD20HREACH TYPE MAST REACH MAST REACH MOTOR DC TYPE AC TYPE CAPACITY 2000KG2000KGLOAD CENTER 600MM600MMLIFTING HEIGHT FORK ( MM ) 3000/5000/6200/ 74008000/8600/9500/ 10200/11100/12000REACH DISTANCE 600MM600MMAISLE WIDTH (1.2MX0.8M pallet) 2980MM2980MMFORK SIZE 1070MM1070MMTURNING RADIUS 1820MM1820MMBATTERY 48V/400AH 48V/500AH CHARGER 3PHASE 380V3PHASE 380V
