About this product
- Size: 1
- Color: Blue
- Media: GasOilBaseAcid
- Temperature of media: Normal TemperatureMedium TemperatureLow Temperature
- Material: Other
- Structure: Butterfly
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1
- Color: Blue
- Media: GasOilBaseAcid
- Temperature of media: Normal TemperatureMedium TemperatureLow Temperature
- Material: Other
- Structure: Butterfly
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1 |
|---|---|
| Color | Blue |
| Media | GasOilBaseAcid |
| Temperature of media | Normal TemperatureMedium TemperatureLow Temperature |
| Material | Other |
| Structure | Butterfly |
| Standard or nonstandard | StandardNonstandard |
| Pressure | Other |
From the supplier

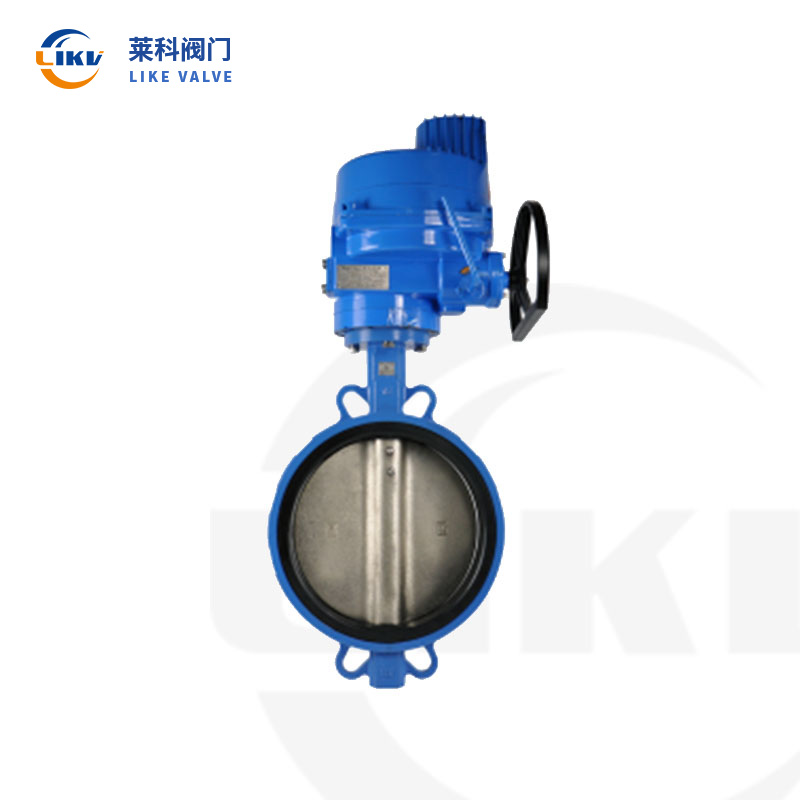

Electric gate-type butterfly valve
The electric compression rubber butterfly valve is designed innovatively and rationally, with a simple structure, small size and light weight. It can rotate 90 degrees for opening and closing quickly, with low operating torque, convenient operation and effortless operation. It can be installed at any position, is easy to maintain, and the sealing components can be replaced. The sealing performance is reliable, achieving zero leakage in both directions. The sealing material is resistant to aging, corrosion and has a long service life.
When the rubber flanged butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance for the medium to flow through the valve body. Therefore, the pressure drop generated by this valve is very small, and it has good flow control characteristics. The butterfly valve is not only widely used in general industries such as petroleum, gas, chemical engineering, and water treatment, but also applied in the cooling water system of thermal power stations.
product presentation
Product features
Small and lightweight, easy to disassemble and repair, and can be installed at any position.
2. Simple and compact structure, with 90° rotation, enabling quick opening and closing.
3. The operating torque is low, and it is effortless and lightweight.
4. Achieve complete sealing, with zero leakage in the gas test.
5. By choosing different materials for the components, it can be applicable to various media.
6. The flow characteristics tend to be linear, and the regulating performance is excellent.
7. The opening and closing test cycles can reach tens of thousands of times, and the service life is long.
Technical Specifications:
Electric Actuator Optional Features
Switch Type, Adjustable Type, Intelligent Integrated Type
Electric Actuator Optional Models
LikeSeries,like-QTSeries,like-QBSeries
Voltage
AC220V,AC110V,AC380V,DC12V,DC24V,DC110V
Nominal diameter
DN25-DN1400mm
Nominal pressure
PN1.0Mpa- PN1.6Mpa
Operating temperature
EPDM:-30-+100℃，PTFE-30-+120℃
Connection type
Wafer, Flange
Valve body material
Nodular Iron, Carbon Steel, Stainless Steel
Valve plate material
Ductile Iron,304,316,2507,1.4529, Copper Sheet, Nylon, Etc.
Valve seat liner
NBR,EPDM.PTFE
Working medium
Water, Gas, Slurry, Oil, etc.
Design drawing
Performance specification
Nominal diameter
50(2″) ~1000 (40")
50(2″) ~800 (32")
Nominal pressure
1.0
1.6
Test pressure
Housing
1.5
2.4
Seal
1.1
1.76
Applicable temperature
-15~+150
Applicable medium
Fresh Water, Wastewater, Seawater, Air, Steam, Food, Pharmaceuticals, Various Oils, Acids, Bases, Salts, etc.
