About this product
- Size: 1
- Color: blue
- Standard or nonstandard: Standard
- Pressure: Other
- Structure: Butterfly
- Media: GasOilBaseAcid
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1
- Color: blue
- Standard or nonstandard: Standard
- Pressure: Other
- Structure: Butterfly
- Media: GasOilBaseAcid
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1 |
|---|---|
| Color | blue |
| Standard or nonstandard | Standard |
| Pressure | Other |
| Structure | Butterfly |
| Media | GasOilBaseAcid |
| Temperature of media | Normal TemperatureMedium TemperatureLow Temperature |
| Material | Other |
Product details
| Size | 1 |
|---|---|
| Color | blue |
| Standard or nonstandard | Standard |
| Pressure | Other |
| Structure | Butterfly |
| Media | GasOilBaseAcid |
| Temperature of media | Normal TemperatureMedium TemperatureLow Temperature |
| Material | Other |
From the supplier

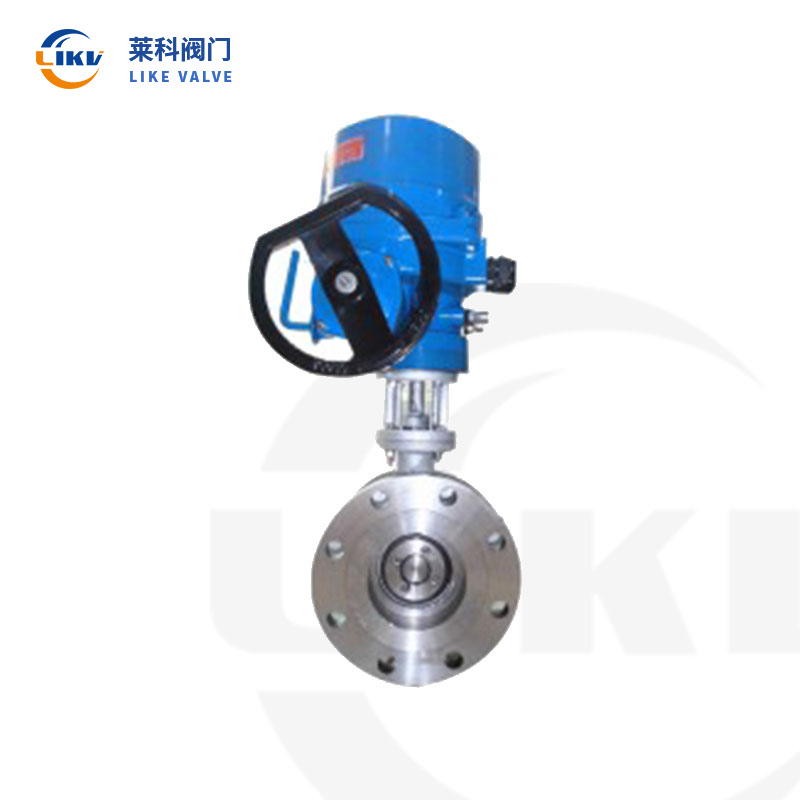

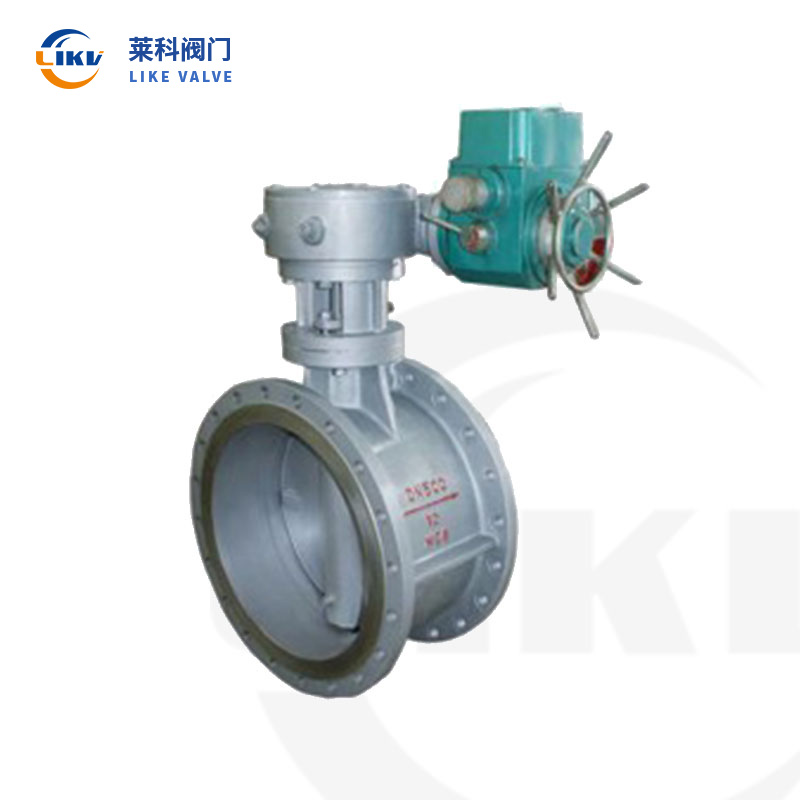

Electric flange hard-sealed butterfly valve
product presentation
Product Features
Work pressure: PN16 PN25 PN40
European standard: JB/T74-90 GB9113.1-9113.26 ANSI 150LB 300LB
Design standard: JB/T8527 API609 BG121238
Nominal diameter: DN50 - DN120
Valve body material: Cast steel, 304, 316
Valve plate material: Cast steel, 304, 316
Valve seat material: Alloy
Connection method: Clamp type, double flange type
Pressure rating: PN10/PN16/PN25/PN40
Temperature range: -29 to +420 degrees Celsius
Control methods: handle, turbine, electric, pneumatic, etc.
Pneumatic actuator: Double-acting, Single-acting (Normally closed, Normally open)
Pneumatic accessories: Electromagnetic valve, limit switch, electrical positioner, handwheel clutch, air filter and pressure reducing valve
Electric actuator: Switch type with passive signal, switch with 4-20mA feedback, intelligent regulating type input/output 4-20mA, wireless remote control, infrared remote control type
Options: Optional explosion-proof electric actuator; Explosion-proof rating: EX dⅡBT4 EX dⅡCT6
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Product parameters
Nominal pressure
PN 1.0/1.6Mpa
Applicable temperature
≤120℃
Applicable medium
Water, Air, Food, Oil
Main Components
Valve Body, Valve Disc, Valve Stem, Valve Seat, Rotating Shaft
Primary Material
Ductile Iron, Carbon Steel
From the supplier
Electric flange hard-sealed butterfly valve
product presentation
Product Features
Work pressure: PN16 PN25 PN40
European standard: JB/T74-90 GB9113.1-9113.26 ANSI 150LB 300LB
Design standard: JB/T8527 API609 BG121238
Nominal diameter: DN50 - DN120
Valve body material: Cast steel, 304, 316
Valve plate material: Cast steel, 304, 316
Valve seat material: Alloy
Connection method: Clamp type, double flange type
Pressure rating: PN10/PN16/PN25/PN40
Temperature range: -29 to +420 degrees Celsius
Control methods: handle, turbine, electric, pneumatic, etc.
Pneumatic actuator: Double-acting, Single-acting (Normally closed, Normally open)
Pneumatic accessories: Electromagnetic valve, limit switch, electrical positioner, handwheel clutch, air filter and pressure reducing valve
Electric actuator: Switch type with passive signal, switch with 4-20mA feedback, intelligent regulating type input/output 4-20mA, wireless remote control, infrared remote control type
Options: Optional explosion-proof electric actuator; Explosion-proof rating: EX dⅡBT4 EX dⅡCT6
Voltage: AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Product parameters
Nominal pressure
PN 1.0/1.6Mpa
Applicable temperature
≤120℃
Applicable medium
Water, Air, Food, Oil
Main Components
Valve Body, Valve Disc, Valve Stem, Valve Seat, Rotating Shaft
Primary Material
Ductile Iron, Carbon Steel
