3.5 Power wire connection

\n \n \n

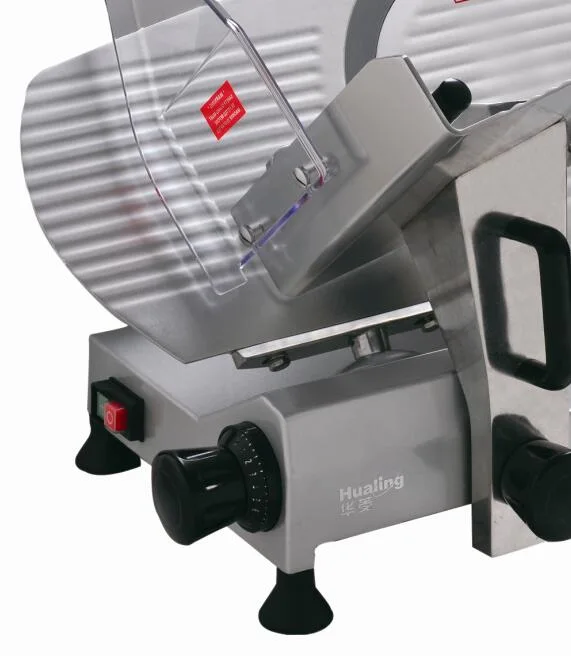

3.5.1 The switch locates on the left side of the machine. Turn the switch to “0”, the slicer is turned off.

\n \n







3.5.2 Insert the plug into the power socket, the rated current should not less than 10A.

3.5.3 When use a 2 phase plug, it should be reliably earthed.



3.6 Test-run the machine without loading

3.6.1 Before test-run the machine, you should carefully check the tightness and damage of

blade cover, carrier , blade and other parts and spread the oil on the surface of square orbit and circle orbit.

3.6.2 Press the button to exam if the blade works or not, to exam if there is something unusual happens.

3.6.3 If there is nothing unusual happens, you can use the machine after three minutes unloading work.



3.7 Blade grinding

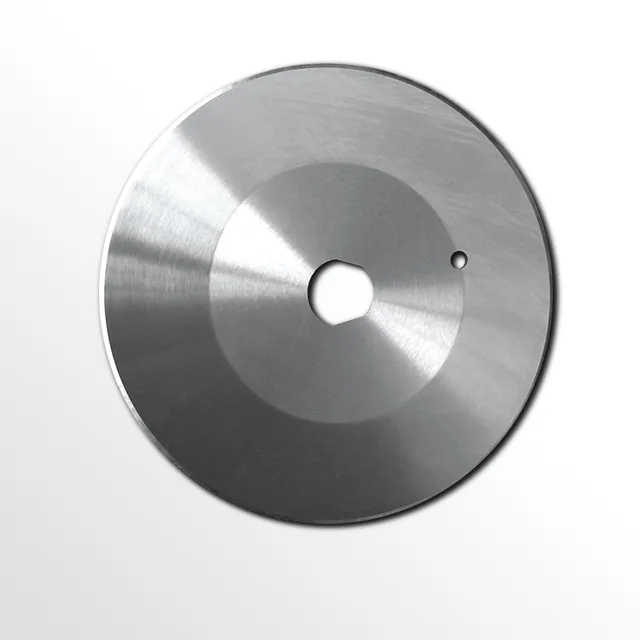

3.7.1The round blade of the meat slicer is made by high-quality wear-resistant tool steel , the edge of the blade has been sharpened by the manufacturer before-sale.                                                                                                                                                                                                                                                                      3.7.2 The round blade may turn dull after use and you can choose the grinding stone carried with the equipment to regrind, repeatedly and timely. Before sharpening the blade, you should clean the oil spill to avoid it stains on the wheel, If the wheel is stained by the oil, you can use brush and alkaline water to clean the grinding stone.

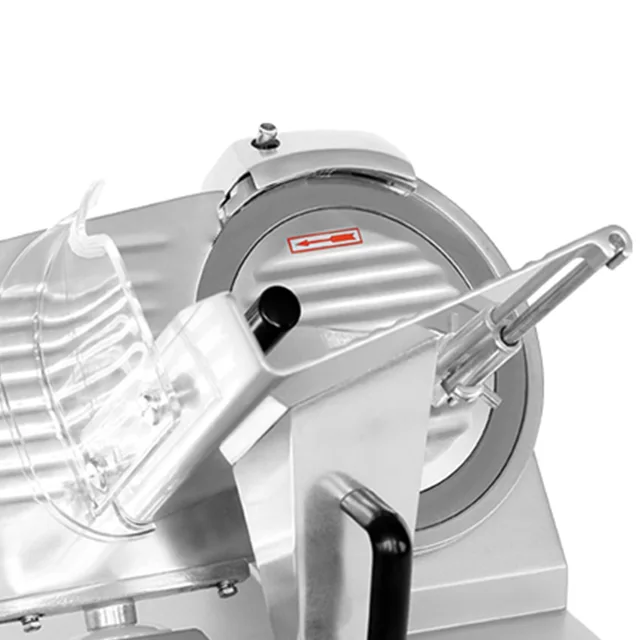

3.7.3 When the sharpen is not working, grinding stone should be kept away from blade, when it works, it should get close to the blade.

The method to change the position:

Hold the wheel cover to the proper height, rotate 180 ° and then press the locking knob .

Attention: The height of the sharpener is limited by a stud, and elongation of the stud can be adjusted.

Semi Automatic Meat Slicer Manual.pdf

"}
