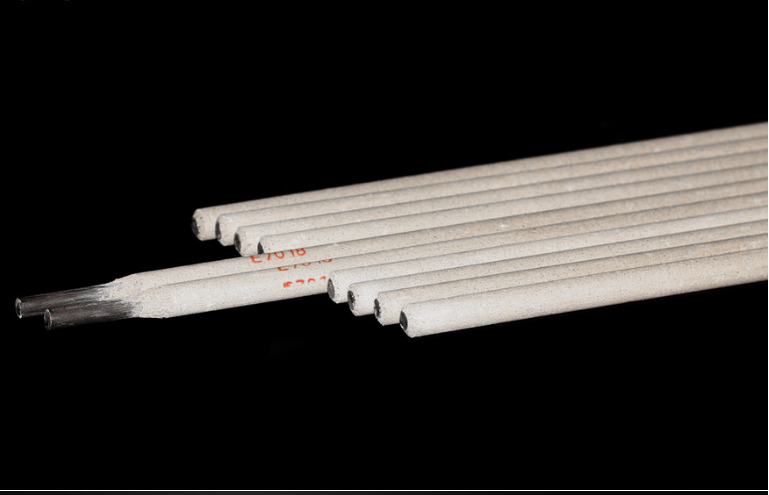

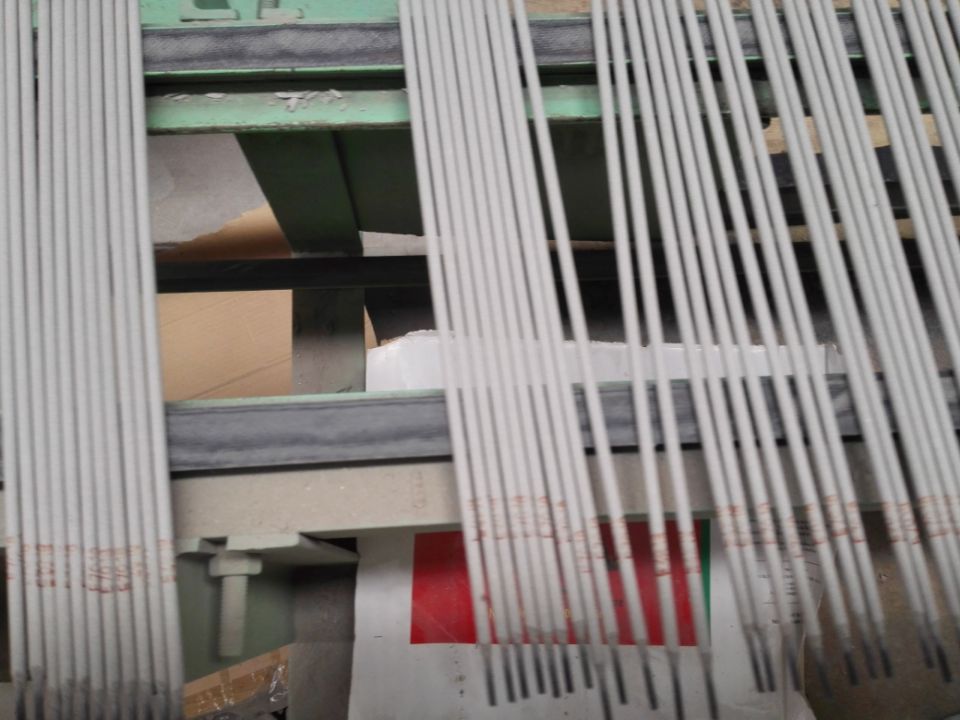

E309-16 Stainless steel weding electrode
See what’s includedHide breakdown
- FOB goods (200)
- $700
- Ocean freight + handling (0.60 CBM)
- $820
- US duty (3.0%)
- $21
- Section 301 tariff (25.0%)
- $175
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (200)
- $700
- Ocean freight + handling (0.60 CBM)
- $820
- US duty (3.0%)
- $21
- Section 301 tariff (25.0%)
- $175
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
E309-16 Stainless steel weding electrode
See what’s includedHide breakdown
- FOB goods (200)
- $700
- Ocean freight + handling (0.60 CBM)
- $820
- US duty (3.0%)
- $21
- Section 301 tariff (25.0%)
- $175
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (200)
- $700
- Ocean freight + handling (0.60 CBM)
- $820
- US duty (3.0%)
- $21
- Section 301 tariff (25.0%)
- $175
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Stainless steel
- Size: 2.0mm ,2.5mm, 3.2mm, 4.0mm, 5.0mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America
- Made in: Hebei, China
About this product
- Materials: Stainless steel
- Size: 2.0mm ,2.5mm, 3.2mm, 4.0mm, 5.0mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America
- Made in: Hebei, China
Product details
| Materials | Stainless steel |
|---|---|
| Size | 2.0mm ,2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Color | grey |
Product details
| Materials | Stainless steel |
|---|---|
| Size | 2.0mm ,2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Color | grey |
From the supplier
A302
GB：E309-16
AWS：E309-16
Applications：Used for welding the same types of stainless steel, stainless steel lining, dissimilar steel (Cr19Ni9 is the same as low-carbon steel), high-chrome steel, high-manganese steel, etc.
According with GB E309-16
Corresponding with AWS E309-16

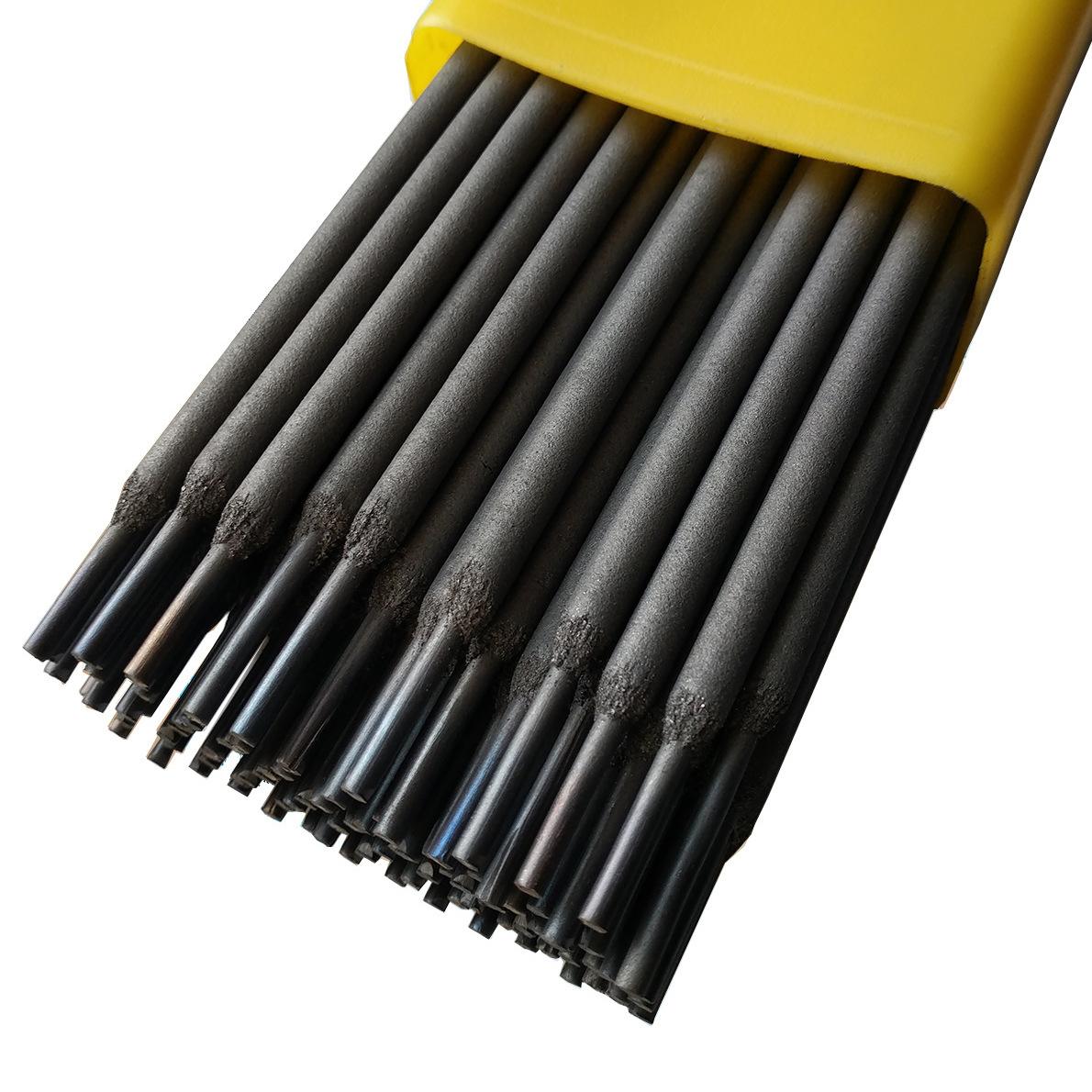

Introduction: A302 is a kind of Cr23Ni13 stainless steel electrode with lime-titania type coating. The deposited metal has excellent crack-resistance and oxidation-resistance. AC/DC. It has excellent welding performance. We add about 1% more Mo materials in order to increase the crack-resistance and corrosion-resistance of the deposited metal. All other elements keep equal with any international standard.
Applications: Used for welding the same types of stainless steel, stainless steel lining, dissimilar steel (Cr19Ni9 is the same as low-carbon steel), high-chrome steel, high-manganese steel, etc.
Chemical Composition of Deposited Metal (%)
Chemical Composition
C
Mn
Si
S
P
Cu
Ni
Mo
Cr
Guarantee Value
≤0.15
0.5~2.5
≤0.90
≤0.030
≤0.040
≤0.75
12.0~14.0
≤0.75
22.0~25.0
Mechanical Properties of Deposited Metal
Test Item
Rm(MPa)
A(%)
Guarantee Value
≥550
≥25
Reference Current (AC, DC+)
Electrode Diameter(mm)
φ2.0
φ2.5
φ3.2
φ4.0
φ5.0
Welding Current (A)
40~80
50~100
70~130
100~160
140~200
Instructions:
1.The electrodes should be baked under 200-250℃ for an hour before welding.
2. D/C is preferred and the current should not be too strong.

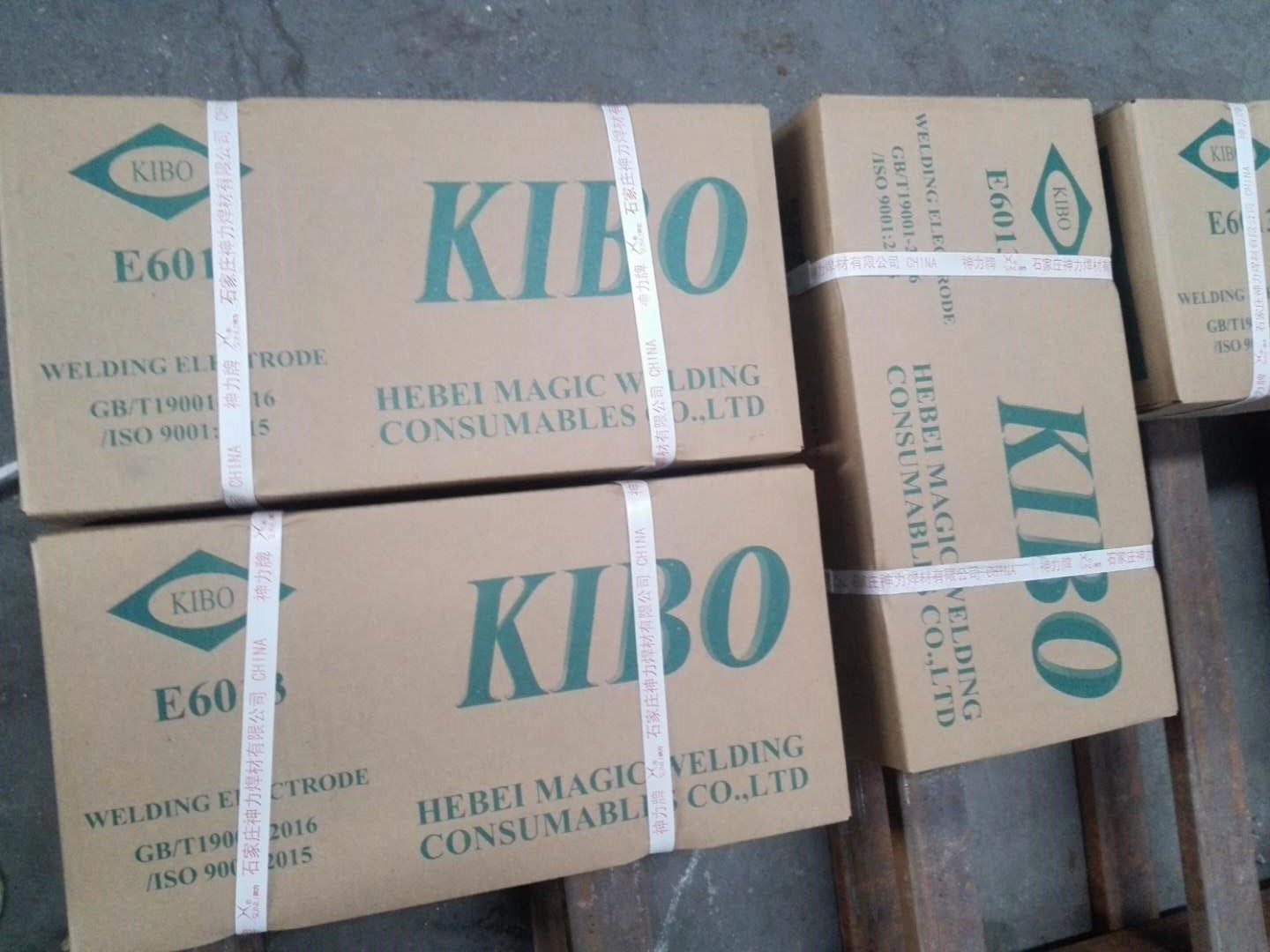

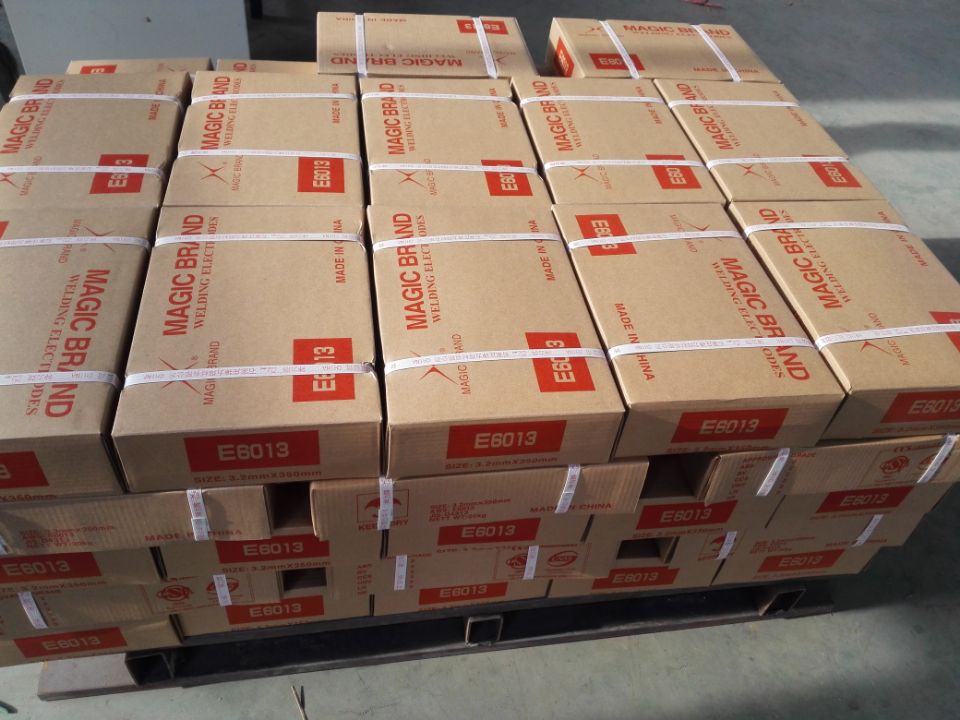

Packing details: In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x 5kgs for other sizes.

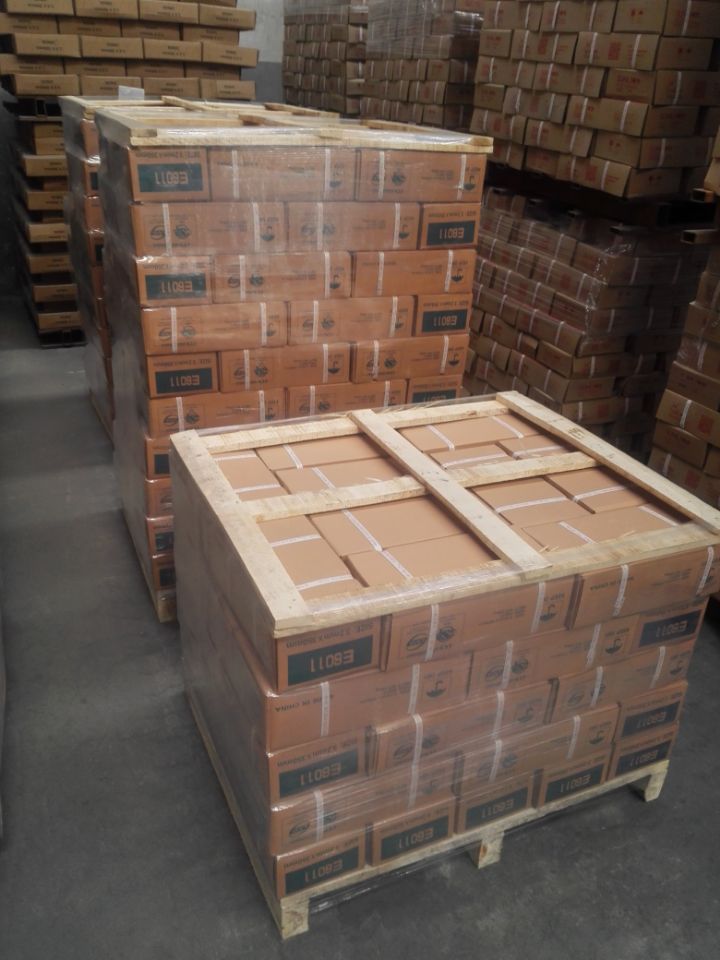

With/ without pallets (Fumigation-free pallets) upon customer’s request.
From the supplier
A302
GB：E309-16
AWS：E309-16
Applications：Used for welding the same types of stainless steel, stainless steel lining, dissimilar steel (Cr19Ni9 is the same as low-carbon steel), high-chrome steel, high-manganese steel, etc.
According with GB E309-16
Corresponding with AWS E309-16
Introduction: A302 is a kind of Cr23Ni13 stainless steel electrode with lime-titania type coating. The deposited metal has excellent crack-resistance and oxidation-resistance. AC/DC. It has excellent welding performance. We add about 1% more Mo materials in order to increase the crack-resistance and corrosion-resistance of the deposited metal. All other elements keep equal with any international standard.
Applications: Used for welding the same types of stainless steel, stainless steel lining, dissimilar steel (Cr19Ni9 is the same as low-carbon steel), high-chrome steel, high-manganese steel, etc.
Chemical Composition of Deposited Metal (%)
Chemical Composition
C
Mn
Si
S
P
Cu
Ni
Mo
Cr
Guarantee Value
≤0.15
0.5~2.5
≤0.90
≤0.030
≤0.040
≤0.75
12.0~14.0
≤0.75
22.0~25.0
Mechanical Properties of Deposited Metal
Test Item
Rm(MPa)
A(%)
Guarantee Value
≥550
≥25
Reference Current (AC, DC+)
Electrode Diameter(mm)
φ2.0
φ2.5
φ3.2
φ4.0
φ5.0
Welding Current (A)
40~80
50~100
70~130
100~160
140~200
Instructions:
1.The electrodes should be baked under 200-250℃ for an hour before welding.
2. D/C is preferred and the current should not be too strong.
Packing details: In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x 5kgs for other sizes.
With/ without pallets (Fumigation-free pallets) upon customer’s request.
