About this product
- Materials: carbon steel
- Size: 1100x2000
- Color: green
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Tianjin, China
About this product
- Materials: carbon steel
- Size: 1100x2000
- Color: green
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Tianjin, China
Product details
| Materials | carbon steel |
|---|---|
| Size | 1100x2000 |
| Color | green |
Product details
| Materials | carbon steel |
|---|---|
| Size | 1100x2000 |
| Color | green |
From the supplier

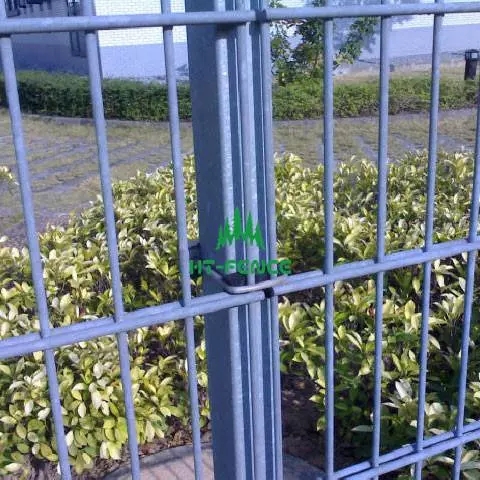

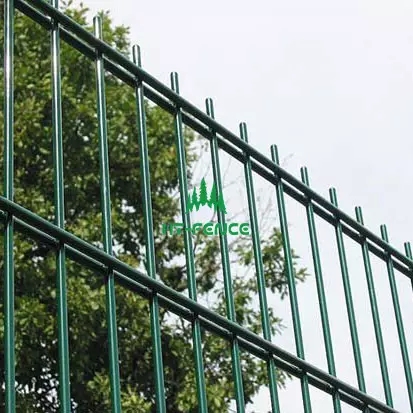

DOUBLE WIRE PANEL FENCE
GENERAL SPECIFICATION :
1.Double wire panel characteristic
1)Uniquely design of double horizontal wire welded panel have strong power to anti corrosion,High tensile strength. And Panel is flat and strong. It is one of the professional fence system for high security protected area.
2)Width of panel
From 2000 ------to 3000mm
Wire diameter:
From 3.0 ------to 8.0mm
2.Post system
Weldless steel quadrate post or peach type post
Installation manner
1)The post popular buried under the ground 300--400mm and pouring concrete when installation them.
2) Welded flange base under the post ,and use setscrews to install on the harded ground.
- 3. Popular Style Fence in Market.
Double wire panel fence
Height x Width
mm
Mesh size
Wire diameter
Post of Height
mm
Wire Dia
mm
Wire Dia
mm
Wire dia
mm
630x2500
50x200
8x2+6
6x2+5
6x2+4
1100
830x2500
50x200
8x2+6
6x2+5
6x2+4
1300
1030x2500
50x200
8x2+6
6x2+5
6x2+4
1500
1230x2500
50x200
8x2+6
6x2+5
6x2+4
1700
1430x2500
50x200
8x2+6
6x2+5
6x2+4
1900
1630x2500
50x200
8x2+6
6x2+5
6x2+4
2100
1830x2500
50x200
8x2+6
6x2+5
6x2+4
2400
2030x2500
50x200
8x2+6
6x2+5
6x2+4
2600
2230x2500
50x200
8x2+6
6x2+5
6x2+4
2800
2430x2500
50x200
8x2+6
6x2+5
6x2+4
3000
4.Surface treatment
Fence can be electro galvanized or hot dipped galvanized and after several clear procedure. We use famous international Powder ( AkzoNobel) sprayed. In that case can got strongly resist the corrosive and ultraviolet radiation.
5.Colour Range:
Polyester powder coated:RAL 6005,RAL9005,RAL9010,RAL5010,RAL7037,
RAL1006.
PVC coated :RAL6005,RAL9005,RAL9010.
Other colour is available as client request.
6.Range of Application
It is often used as a perimeter fence for industry or commercial premises and sports pitches where a strong mesh fencing system is required.
