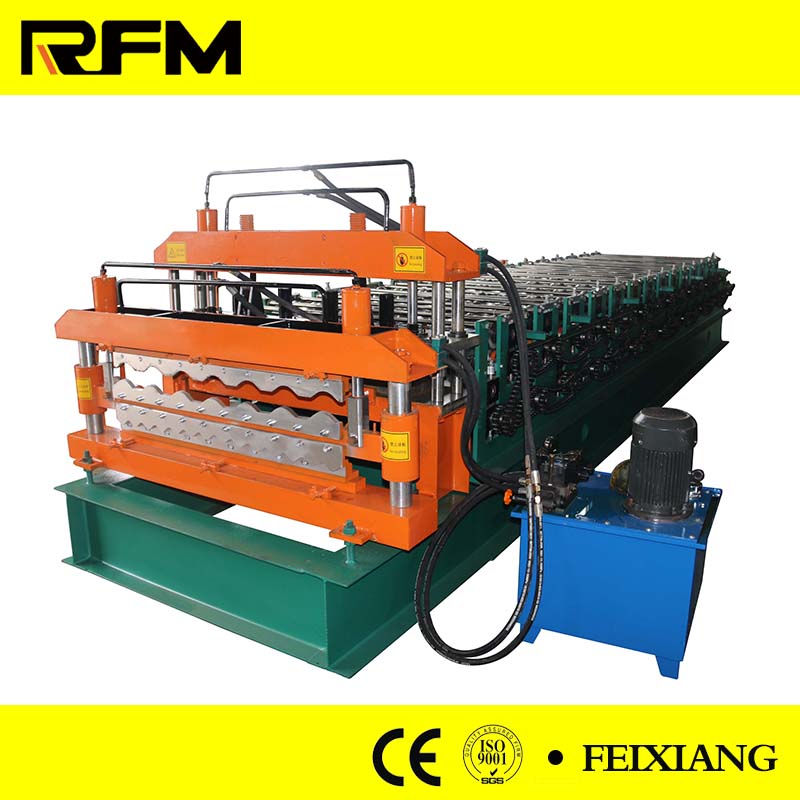

Double layer roof tile roll forming machine
- FOB goods (100)
- $1,750,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $61,250
- Section 301 tariff (25.0%)
- $437,500
- Customs fees (MPF/HMF)
- $2,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Double layer roof tile roll forming machine
- FOB goods (100)
- $1,750,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $61,250
- Section 301 tariff (25.0%)
- $437,500
- Customs fees (MPF/HMF)
- $2,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: steel
- Size: 5500*1350*1650mm
- Color: Blue
- Made in: Hebei, China
About this product
- Materials: steel
- Size: 5500*1350*1650mm
- Color: Blue
- Made in: Hebei, China
Product details
| Materials | steel |
|---|---|
| Size | 5500*1350*1650mm |
| Color | Blue |
From the supplier
1.Title:Double layer roll forming machine
2. Properties of processed material：
Material： galvanized steel or Aluminum
Material thickness：0.3 -0.8mm
Yield strength:235-450mpa

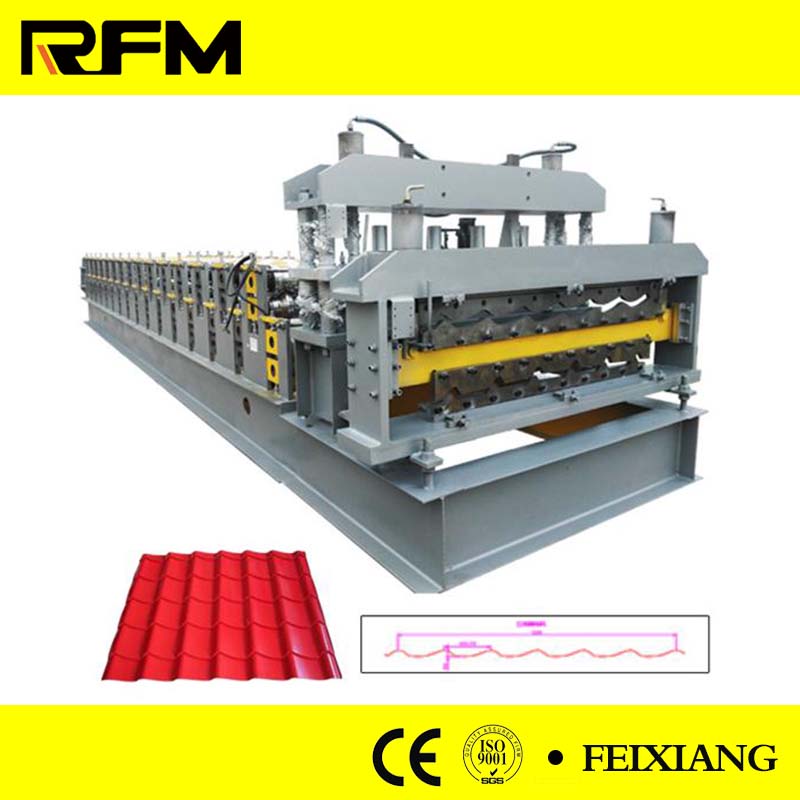

3. Profile drawing
Products after roll forming
4.Machine details
Brand: Feixiang
Machine size: 5500*1350*1650mm
Weight: 5.5T
Voltage requirement: 380v50hz3p or as your request
Working speed：0-12 m/min
Electric support wires: 8m²
Labor request:1-2 workers
5. Whole line components
No.
Item
Qty
1.
Decoiler
1set
2.
Main forming machine
1set
3.
Control panel
1pcs
4.
Hydraulic pump
1pcs
5.
Hydraulic cutting device
1pcs
6.
Manual holder
1pcs
6.Technical parameters
Machine base: steel plate welded
Frame: Media plate
Forming stations: 12steps and 12 steps
Roller: Cr15
Shaft: 45#steel,diameter 70mm
Transportation: chain
Motor:Siemens,5.5 kw
Pump: Yuken 4kw
Cutter: Cr12
7.Machine quick view
Decoiler：
Main forming machine：
Front View
Left side
Right side
Roller
Control panel
Hydraulic pump
Manual holder
Company website link:http://www.rollformingmachine.top
8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic
10.Client evaluation：
11.Contact information
Email：feitian88@chnroll.com
WhatsApp：+86-15732789882
