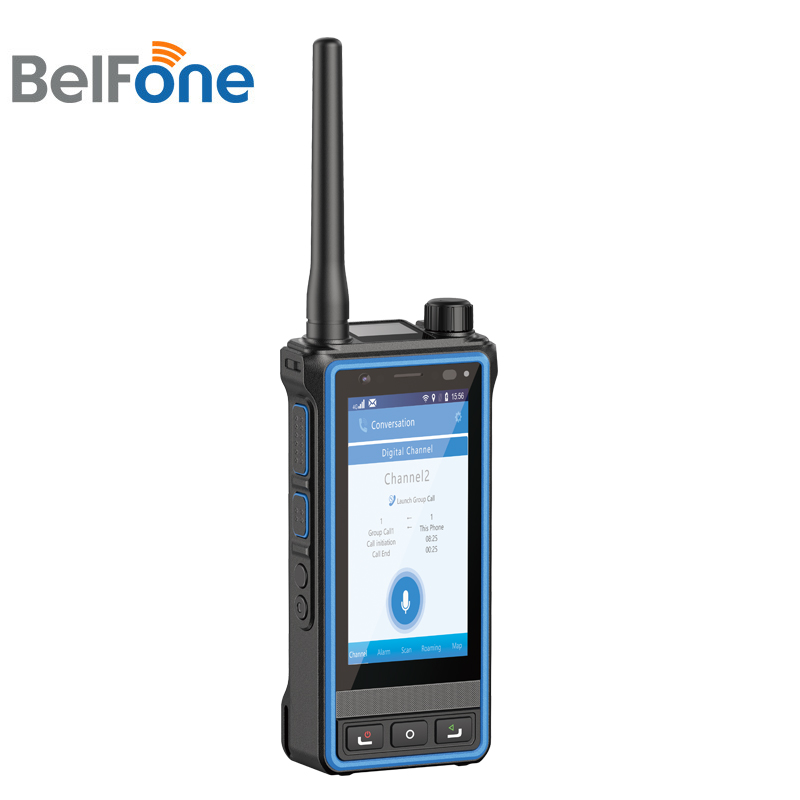

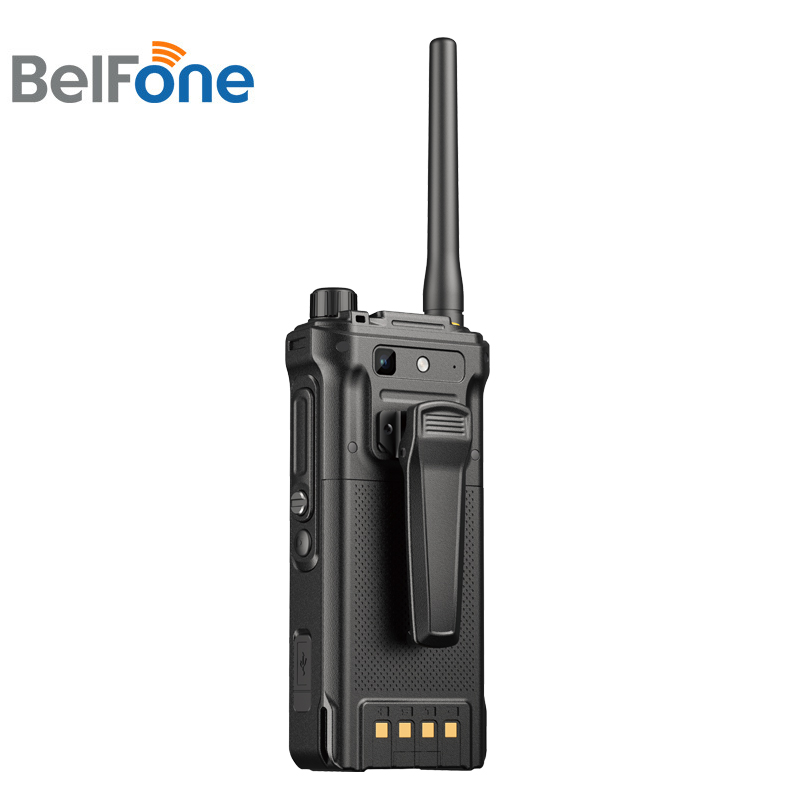

The BF-SCP860 is an all-in-one multimode radio that embraces broadband & narrowband communication and smartphone functionality. Allowing conventional communication, DMR Trunking, and PoC, this radio provides a reliable communication guarantee for critical voice communication.

Double Screen Display
BF-SCP860 incorporates a unique dual-screen interactive design. With a 4.0-inch 1080P screen, it brings a more intuitive visual effect and remains clear visibility even when operating in strong light. Its glove operation and wet-hand operation, made it more convenient for outdoor operations.

Integrated Broadband & Narrowband Communication
The BF-SCP860 featured an automatic public-private network switching. In private network mode, it can interconnect with DMR, Analog, and other narrowband terminals. In public network mode, it works with the BelFone ProChat IoT system and enables unlimited audio and video communication, which can extend narrowband coverage, and guarantee rapid network establishment.

Trunking Communication
BF-SCP860 multi-mode radio featured enhanced Trunking performance and wide system/terminal compatibility, providing reliable critical services for transportation, communication, power cut-off and other disconnecting areas.

Dual-Transmission
The BF-SCP860 adopts a dual PTT design, allowing users to customize public-private network priority, bring seamless broadband and narrowband communication. With a 5W transmission power and advance audio processing technology, it further extends private network coverage and enhance audio quality.

Comprehensive Positioning
BF-SCP860 supports GPS/GLONASS/Galileo, cellular-based positioning, and WIFI assisted positioning, catering positioning demands in outdoor, indoor, underground, and tunnel environments.
Note: Factory default GPS.

Front and Rear Dual Camera
Equipped with 13MP and 8MP dual HD cameras, the BF-SCP860 delivers 1080P clear images, capturing every critical moment. Its VoLTE feature provides high-definition audio/video call services for better audio and video integration.

Rugged and Durable
Designed with durable industrial-grade plastic material and certificate IP68 protection, the BF-SCP860 is a rugged radio with all-round protection that can withstand a 1.5m drop without damage and endures operating environments ranging from -30ºC-60ºC. It provides stable and seamless communications even in complex environments such as rain, snow, heat, and humidity.

Rich Applications
The BF-SCP860 comes with the Android 11 operating system, providing increased security, stability, and compatibility. It can flexibly adapt to third-party applications, effectively expand data, video, and IoT smart applications, catering to various communications demands and enhancing business processing capabilities.

Specifications

Private Network Frequency Range VHF:136-174MHZ; UHF:400-470MHZ/UHF:350-400MHZ Channel Spacing 12.5KHz/25KHZ Frequency Stability ±1.5ppm Antenna Impedance 50Ω Output Power H:<5W L:1 W 4FSK Modulation Only data:7K60FXD,Voice and data: 7K60FXE FM Modulation 12.5 KHZ:8K50F3E;25 KHz:16KФF3E; Modulation Limitation +/-2.5kHz @ 12.5kHz;+/- 5kHz @ 25kHz FM Emission Noise -40dB Spurious Emission -36dBm<1GHz/-30dBm≥1GHZ Adjacent Channel Power <-60dB Frequency Response +1/-3 dB Emission Audio distortion 3% Digital vocoder AMBE+2™/SELP Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.28 uV(12 dB SINAD) Intermodulation 65dB Adjacent Channel Selection 60dB Spurious Suppression 70dB FM Noise 40dB Receiving Response +1/-3dB Receiving Audio Distortion 3% Conducted Radiation -57dBm General Public Network Frequency Band 3G:WCDMAB1//5/8;+CDMA20001X/EVDOBCO; 4G:FDD-LTEB1/3/5/8; TDD-LTE B38/39/40/41 Display 4.0”,1080*540dpi, supports glove operation Camera Front:800MP/Rear:1300MP Storage 4GB+64GB TF Card Supports up to 256G expansion Network Mode China Mobile/Unicom/Telecom Bluetooth BT4.2, supports BLE Charging Mode Type-C Desktop charge Positioning BDS, GPS, GLONASS, Galileo WLAN 802.1l b/g/n/ac/2.4GHZ,5GHZ5G Sensor Earth inductor/compass, gyroscope, proximity sensor, opto-sensor Working Voltage 7.6V Battery Capacity Standard: 2400mAh(Thin Battery); Optional: 3500(Thick Battery) Operating System Android11 Language Chinese/English Dimensions 155.6(H)x69.8(W)x26.5(D)mm(Antenna not included) Environmental Working Temperature -20℃—+60℃ Storage Temperature -30℃—+70℃ Shock & Vibration MIL-STD-810C/D/E/F Protection Grade IP68
