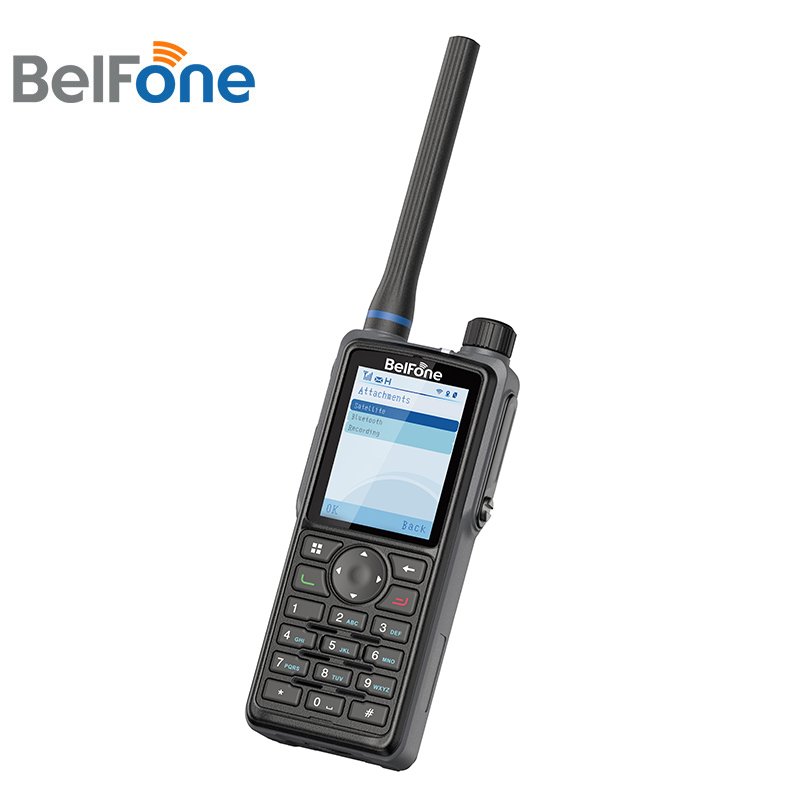

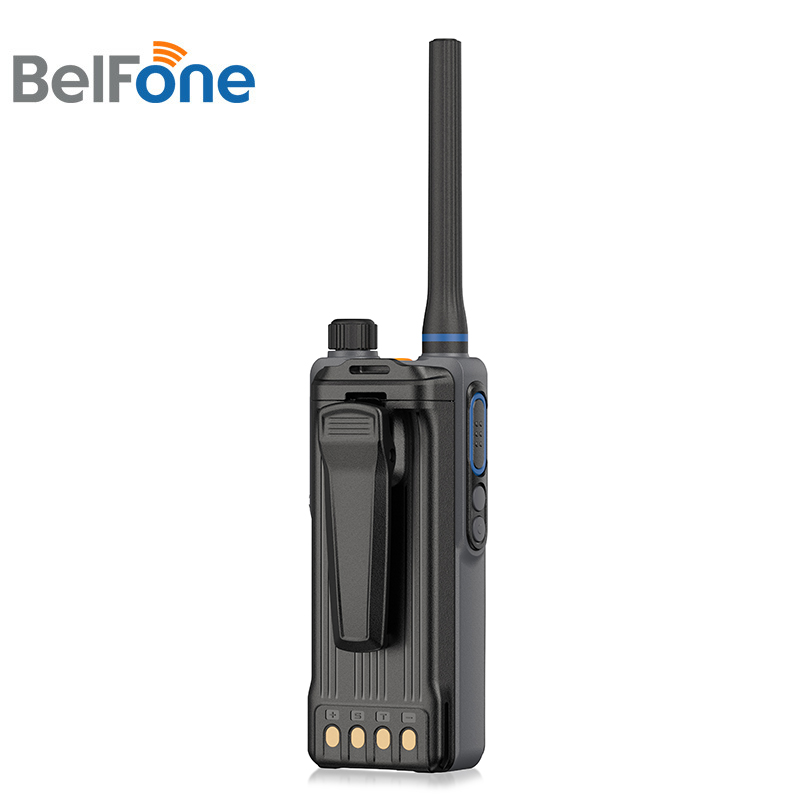

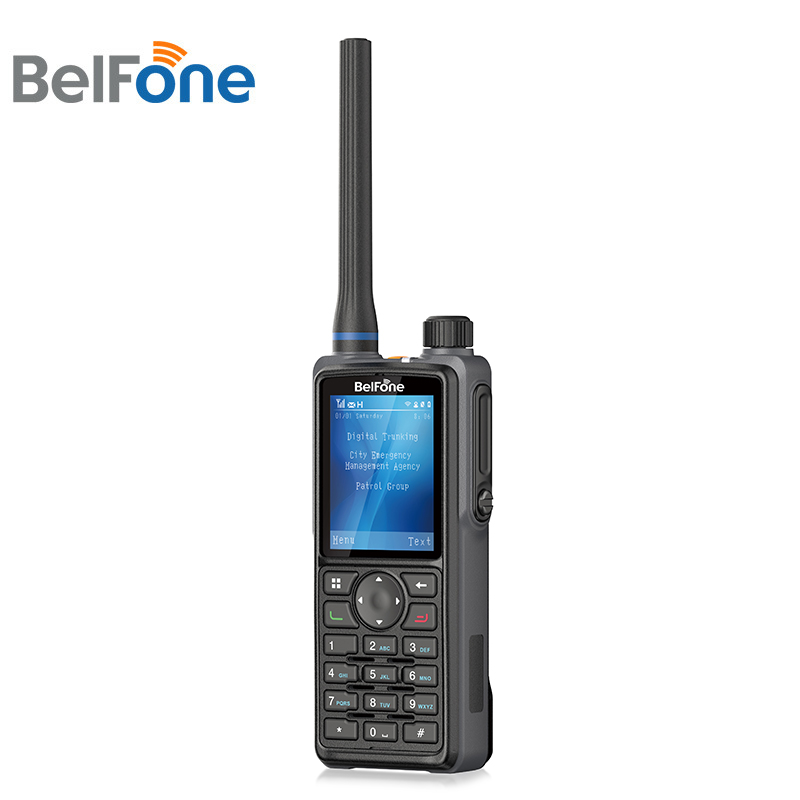

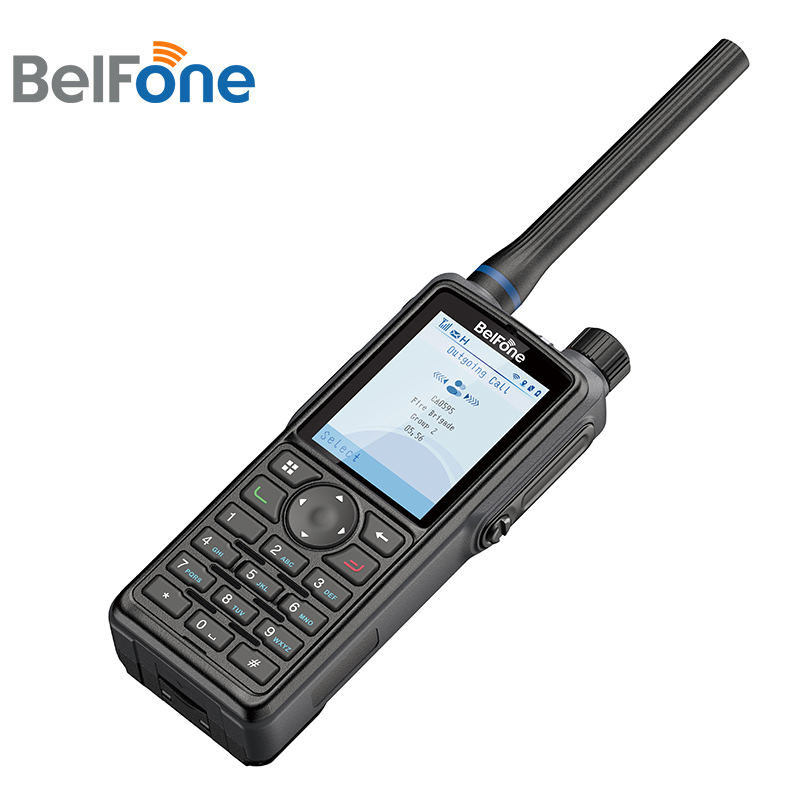

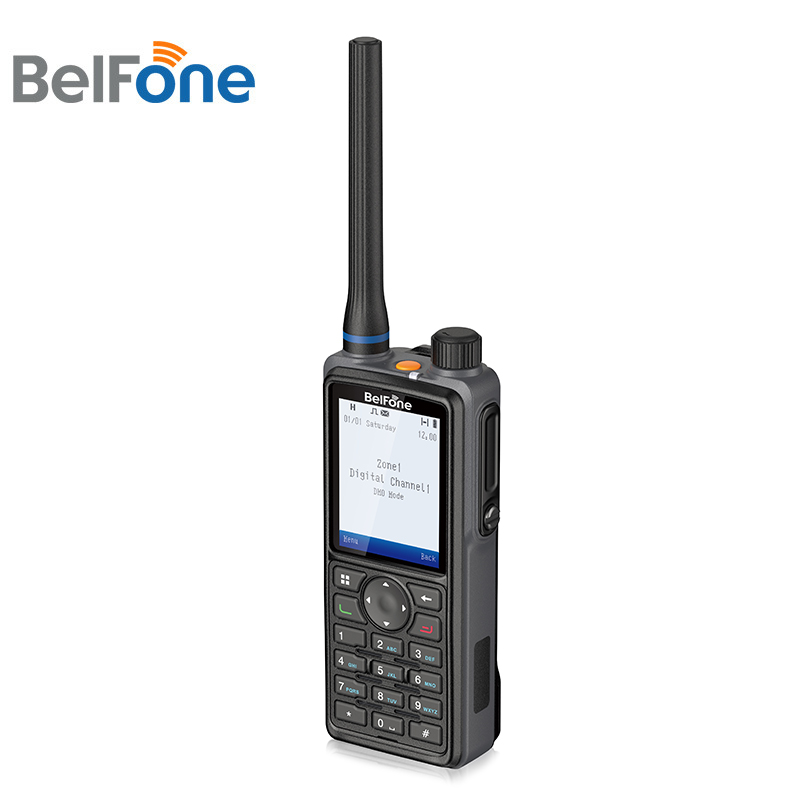

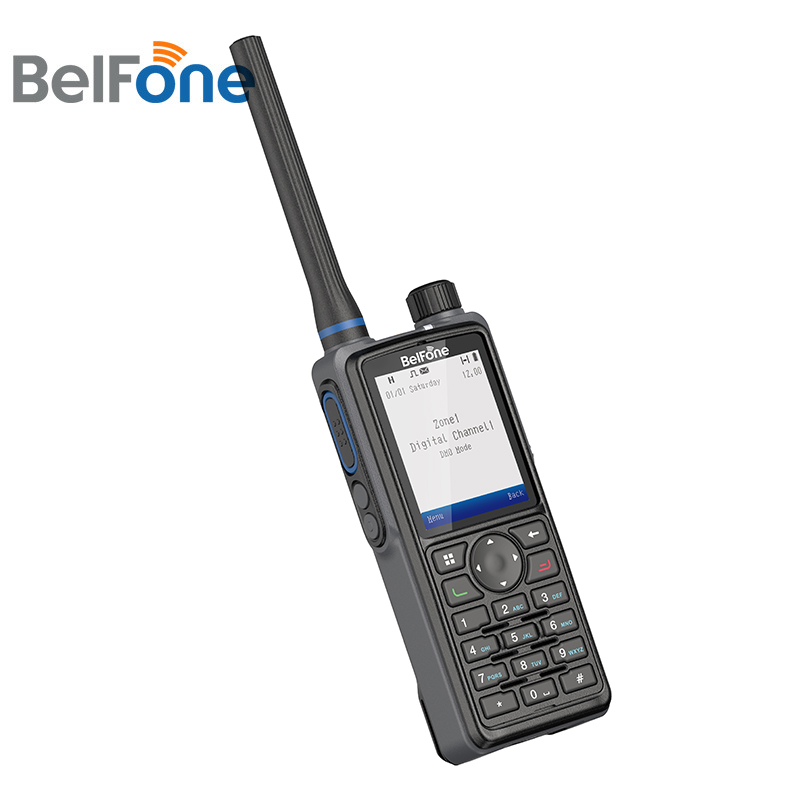

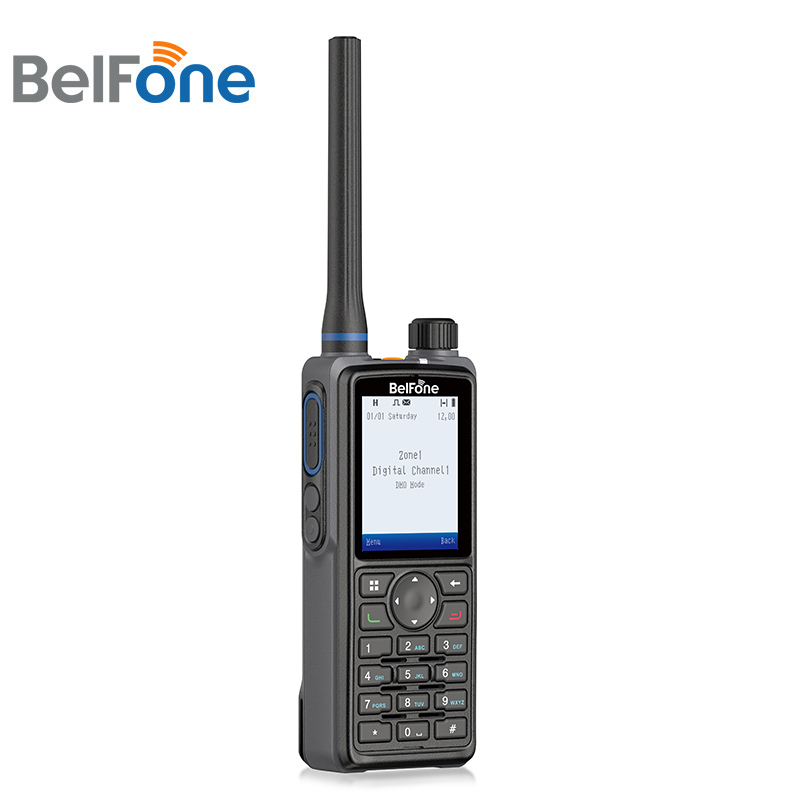

BP860 is a new designed DMR radio with breakthrough advancements to cover a wider communication range, better audio effect, and quicker response. With user-friendly interactive design and excellent secure performance, BP860 brings simple, comprehensive, and efficient communication.

AI Noise Reduction

BP860 can accurately eliminate the background and feedback noise through its AI noise reduction and acoustic model technology.

Superheterodyne Circuit

BP860 adopts high gain superheterodyne circuit design for excellent RF performance, better reception sensitivity, and wider communication range. Its unique customized shield cover can separate interference signals and strengthen communication stability.

Single Frequency Repeater

BP860 can work as an SFR (Single Frequency Repeater) which perfectly solved the deficiencies of short distance coverage and crosstalk. Its SFR features significantly reduced the maintenance cost and improved the efficiency.

HD Display

With a 2.4-inch semi-transparent display, BP860 brings superior screen visibility even under a strong light. BP860 adopts a nine-panel grid user interface to demonstrate a clear and organized menu page, a masonry layouts to present intuitive dial group, call status, new message, sender ID, time, etc.

Multiple Encryptions

BP860 is a high secured radio that supports XOR encryption, AES256/ ARC4 encryption and optional TF card encryption for increased communication privacy.

Three Alarms

BP860 supports 3 types of alarms (lone worker/mandown/emergency alarm). In case of emergency, the alarms will be triggered manually or automatically. During the emergency period, the real positions and tracks will be sent back to the commanding center to guarantee safe and efficient rescue.

Bluetooth Technology (optional)

BP860 supports an optional built-in Bluetooth 5.0 module. Its excellent flexibility can connect to an audio device, wireless PTT, and other multiple accessories to release your hands.

GPS Positioning

BP860 can detect terminal relative distance, location, and velocity by GPS module. It can also realize the visualized commanding and dispatching based on user dynamic and behavior information from dispatching system.

Ad hoc Networking (Optional)

Ad hoc networking function of BP860 supports multi-hop repeaters and any type of networking topology. It allows BP860 fast establish communication networks for fringe areas and hazard environments.

Digital Recording (Optional)

With a built-in digital voice recording module, BP860 can support 100 hours voice recording with channel number and radio ID to help users query, play back, and analyze call histories.

Specifications

General Frequency Range(Optional) VHF:136-174MHz; UHF:400-480MHz; UHF2:450-520MHz; UHF3:350-400MHz Channel Capacity 1024 Zones 128 Channel Spacing 25 KHz/12.5KHz Working Voltage DC 7.4V (±20%) Battery Capacity Standard 2400 mAh; Optional 3350 mAh Battery Average Working Time(5/5/90) 2400mAh:(without GPS)Digital 21 hours;Analog 16 hours; 3350mAh:(without GPS)Digital 30 hours;Analog 23 hours Frequency Stability ±0.5ppm Antenna Impedance 50Ω Dimension 62(L)* 36(W)* 134(H)mm Display LCD Screen，320*240px，262000 color，2.4 inches，10line Positioning System GPS Voice Recording(optional) ≤24 Hour Bluetooth(optional) BT5.0 Weight 318.5g(battery include) Transmitter Power Output <5W 4FSK Modulation 12.5kHz(data only):7K60FXD; 12.5kHz(data and voice):7K60FXE FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16K0F3E; Modulation Limitation ±2.5kHz@12.5kHz; ±5.0kHz@25kHz FM Noise 40dB@12.5kHz/45dB@25kHz Spurious Emission -36dBm<1GHz/-30dBm>1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3 dB Audio Distortion ≤3% Digital Vocoder AMBE or NVOC Receiver Digital Sensitivity 0.22μV /BER5% Analog Sensitive 0.22uV (12dB SINAD) Intermodulation 65dB@12.5/25kHz Adjacent Channel Selection 60dB@12.5kHz/70dB@25kHz Spurious Suppression 70dB@12.5/25kHz FM Noise 40dB @ 12.5kHz;45dB @ 25kHz Frequency Response +1/-3 dB Rated Audio Power 1W Maximum Audio Power 2.5W Rated Audio Distortion ≤3% Conduction Radiation -57dBm GPS Precision Horizontal Accuracy≤2.5m(with good signal) TTFF(first location)Cold Boot <30s(with good signal) TTFF(first location)Hot Boot <1s(with good signal) Environmental Specifications Operational Temperature -30℃～+70℃ Storage Temperature -40℃—+85℃ ESD(Electrostatic Protection) IEC61000-4-2(Level 4); ±8kV(contact discharge); ±15kV(air discharge) Moisture Proof By MIL-STD-810H Standard Shock & Vibration By MIL-STD-810H Standard Dust& Water Proof IP68
