About this product
- Materials: ductile iron/steel body and Flange and retainer,EPDM sealing gasket, galvanizing steel or SS stud/nuts
- Size: DN80
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Hebei, China
About this product
- Materials: ductile iron/steel body and Flange and retainer,EPDM sealing gasket, galvanizing steel or SS stud/nuts
- Size: DN80
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Hebei, China
Product details
| Materials | ductile iron/steel body and Flange and retainer,EPDM sealing gasket, galvanizing steel or SS stud/nuts |
|---|---|
| Size | DN80 |
| Color | Blue |
Product details
| Materials | ductile iron/steel body and Flange and retainer,EPDM sealing gasket, galvanizing steel or SS stud/nuts |
|---|---|
| Size | DN80 |
| Color | Blue |
From the supplier

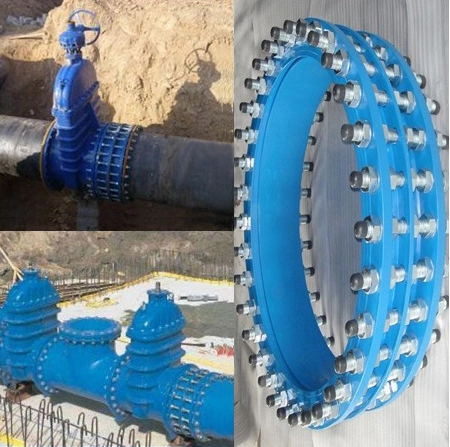

dismantling joints provide easy installation and disassembly of flanged pipework and fittings, or flanged equipment such as valves, meters and pumps. The dismantling joints compensate for axial displacement of the pipe during installation and dismantling. it simplifies future pipe work modifications and reduces downtime when changes need to be made。
Main Features:

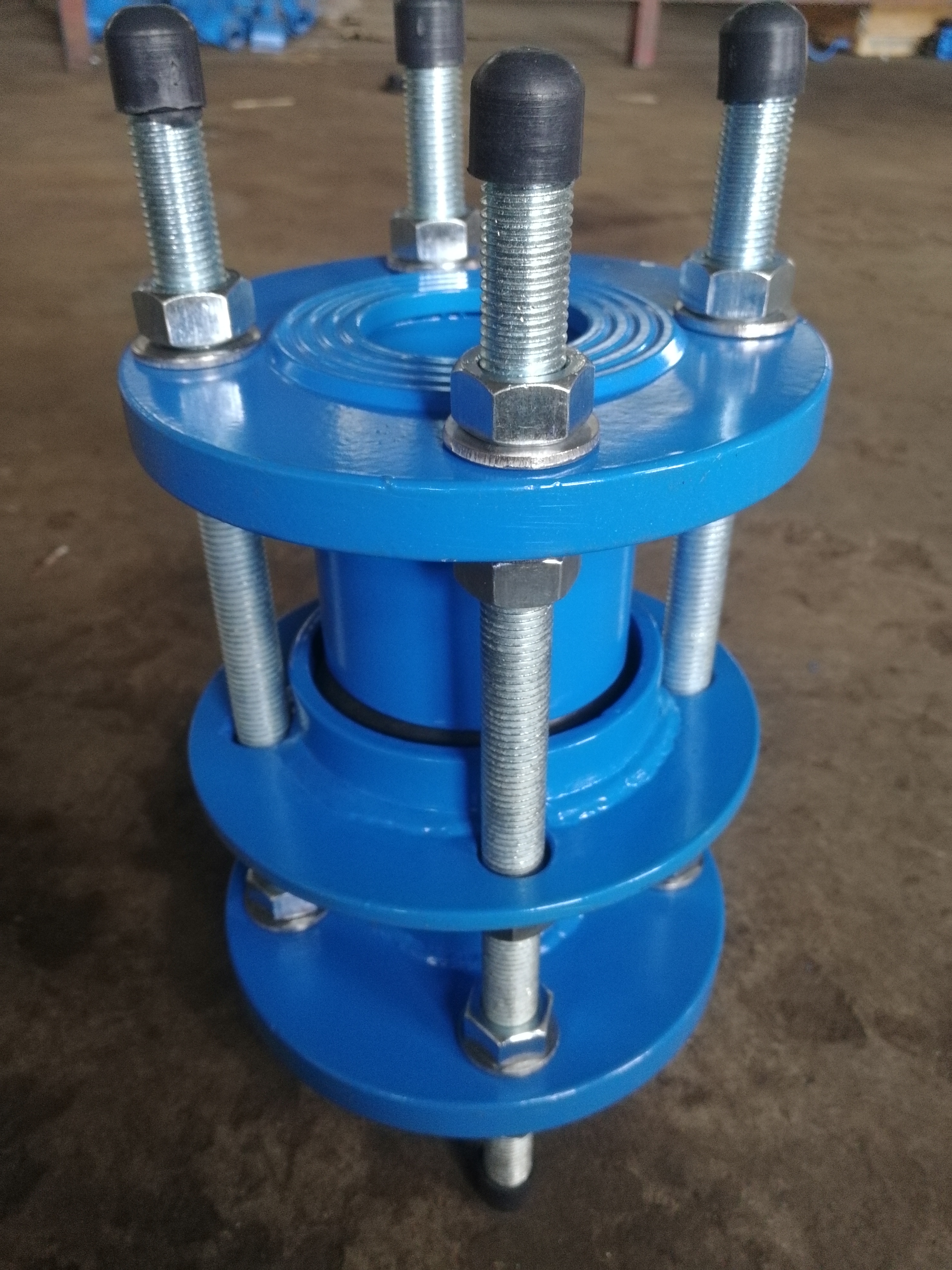

- 1. Compensates for longitudinal displacement of the pipe during installation and dismantling, as the telescopic action between the inner and outer flange body allows for longitudinal adjustment.
- 2. Designed with three flanges connected with tie-rods, and where the centre flange applies compression on the seal through the tie-rods
- 3.Standard axial adjustment of ±50 mm dependant upon product size.
- 4. Ductile iron end flanges and mild steel centre flange with fusion bonded epoxy coating,EPDM seal gasket. normally galvanizing tie bar tensile strength 6.8,SS A2/ 316 can be optional.
- 5. Flange drilling can be on request, flat or raised flange surface no problem.
- 6. Tie rod numbers can be reduced
- 7. Available sizes from DN50-DN2400, PN10-16/25/40-64
From the supplier
dismantling joints provide easy installation and disassembly of flanged pipework and fittings, or flanged equipment such as valves, meters and pumps. The dismantling joints compensate for axial displacement of the pipe during installation and dismantling. it simplifies future pipe work modifications and reduces downtime when changes need to be made。
Main Features:
- 1. Compensates for longitudinal displacement of the pipe during installation and dismantling, as the telescopic action between the inner and outer flange body allows for longitudinal adjustment.
- 2. Designed with three flanges connected with tie-rods, and where the centre flange applies compression on the seal through the tie-rods
- 3.Standard axial adjustment of ±50 mm dependant upon product size.
- 4. Ductile iron end flanges and mild steel centre flange with fusion bonded epoxy coating,EPDM seal gasket. normally galvanizing tie bar tensile strength 6.8,SS A2/ 316 can be optional.
- 5. Flange drilling can be on request, flat or raised flange surface no problem.
- 6. Tie rod numbers can be reduced
- 7. Available sizes from DN50-DN2400, PN10-16/25/40-64
