SPECIFICATIONS

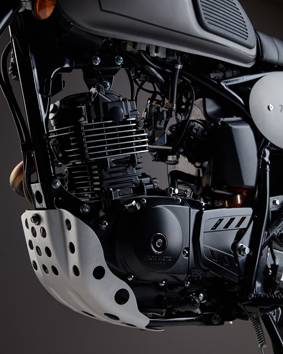

Engine

Type                                                 Suzuki model EFI 124cc, single-cylinder, 4-stroke, air- cooled

Bore x Stroke (mm)                          57 x 48.8

Compression Ratio                          9.2:1

Ignition                                             CDI

Transmission                                   5-speed gear shift

Starting system                                Electric

Max power                                       8.3kw/9500r/min

Max torque                                      8.1Nm/8500r/min

Max speed                         ≥95km/h

Drive                                                chain

 Chassis

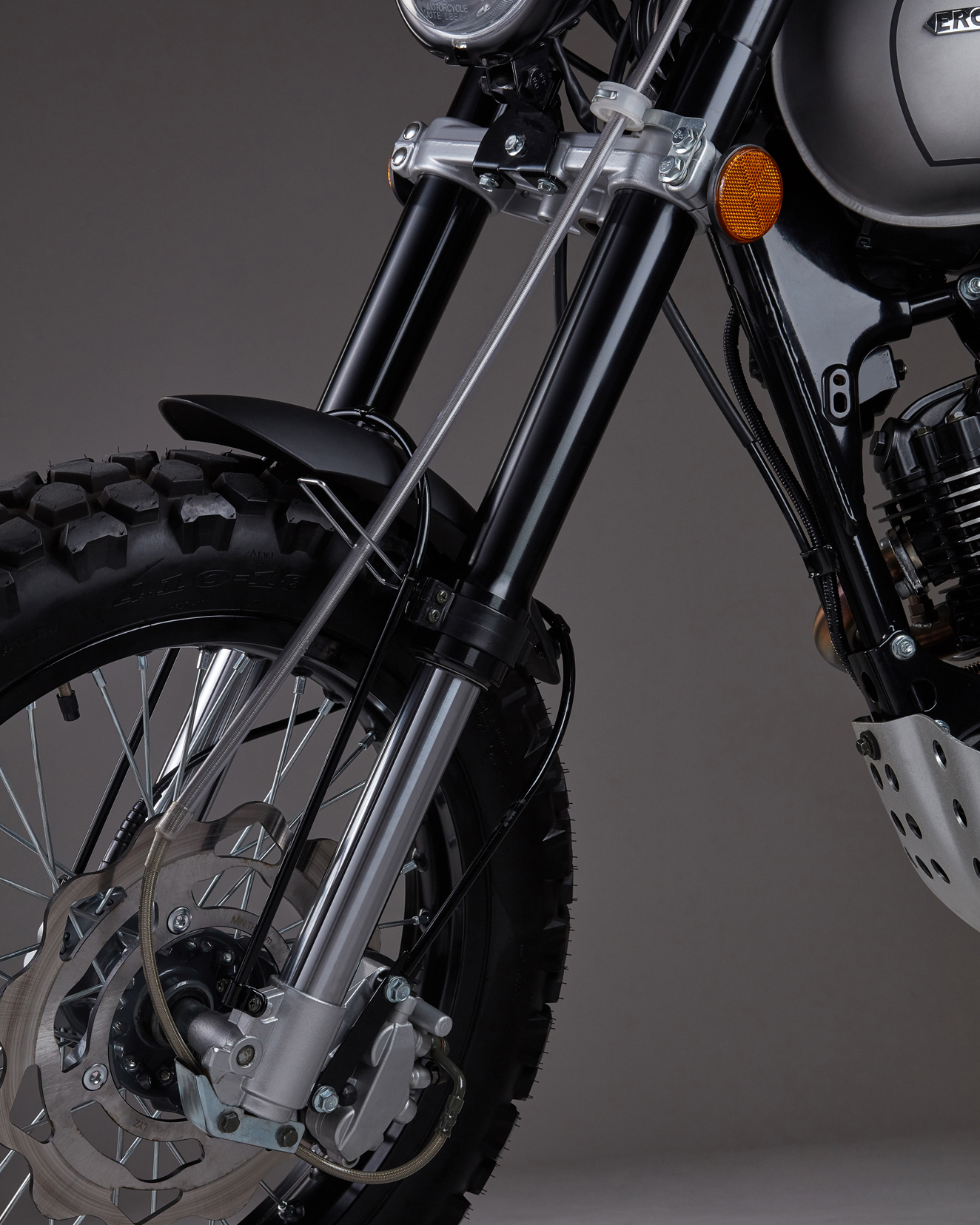

Suspension/Front                            Upside down

Suspension/Rear                             Swing-arm spring oil damper

Brakes/Front                                    Disc type (CBS)

Brakes/Rear                                     Disc type (CBS)

Tires/Front                                       4.10-18

Tires/Rear                                        4.60-17

 Dimensions

Length x Width x Height                                2040mmx915mmx1260mm (height from ground to top of rear view mirror)

2040mmx915mmx1120mm (height from ground to brake cylinder)

Wheelbase                                                    1400mm

Seat height                                                    860mm

Dry Weight                                                    118kg

Minimum ground clearance                           250mm

Minimum turning diameter                             5400mm

Steering turning angle (left, right )                 48°

Dry Weight                                                    127kg

Maximum load quality                                   170kg

Fuel Capacity                                                15L



Color Options

Bright Red, Middle Yellow, MATT Black,

Packing size:               1890*570*1050

Qty/40’-----------------------------52 units/40GP

"}
