Measuring meter
4000 Count,Auto RangeTest DC/AC Voltage,DC/AC Current,Resistance,Frequency,Capacitance,TemperatureDiode Test,Continuity,NCV,Low Battery indicator,Backlight,Data HoldSafety Rating: CATⅢ 600VDigital Multimeter SDT-22E
Specification
Range
Accuacy
DC Voltage
40m/400mV
±(0.8%+3)
4V/40V/400V/600V
±(0.5%+3)
600V
±(1.0%+3)
AC Voltage
40m/400mV
±(1.2%+3)
4V/40V/400V
±(1.0%+3)
600V
±(1.2%+5)
DC Current
400µA/4000µA/40m/400mA
±(1.2%+3)
10A
±(1.5%+5)
AC Current
400µA/4000µA/40m/400mA
±(1.2%+3)
10A
±(2.5% +5)
Resistance
400/4K/40K/400KΩ
±(1.2%+2)4M/40MΩ
±(1.8%+2)
Frequency
1Hz- 10MHz
±(1.0%+2)
Capacitance
40nF/400nF/4µF/40µF/100µF
±(4.0%+5) Temperature
(-20℃ to 1000℃)[-4℉ to 1800℉]
±(4.0%+5)
Feature
Display Count
4000
Diode Check
√Continuity Check
√
NCV
√
Low battery indicator
√
Overload indicator
√
Auto Power OFF
√
Data Hold
√
Relative Measure
√
Back Light
√
General Characteristic
Power
3V (1.5V AA x 2)
Operating Temp
0℃ to 45℃
Storage Temp
(-10℃ to 50℃)
Product Size
190x93.5x52mm
Product weight
291g
Standard Accessories
Tesat lead, Manual,Battery, Blister Card.
Safety Rating
CATIII 600V
Company IntroductionMtree is a professional instrument Manufacturer located in Songjiang National ranked Industrial Park, Shanghai, China. Founded in1987 in Wenzhou , and removed to shanghai in 2002, utill now there is long history of 32 years.
Mtree is the first Manufacturer In China to bring in and produce American inside-magnetism meter and also the first one in china toacquire UL,CE approval
Site area is about 20000㎡ ,7 production lines, production capacity is about 120,000pcs/moth, The main products includes
Analog/Digital Multimeter, Clamp Meter, Cable tester, Educational Meter, Panel Meter and other Electrical Testers, We strive globally for design innovation, higher quality, safer, durable, accurate and cost-effective techno logical products to meet customers’ needs.
As a professional manufacturer, we value each chance to cooperate with you.
4000 Count,Auto RangeTest DC/AC Voltage,DC/AC Current,Resistance,Frequency,Capacitance,TemperatureDiode Test,Continuity,NCV,Low Battery indicator,Backlight,Data HoldSafety Rating: CATⅢ 600VDigital Multimeter SDT-22E
Specification
Range
Accuacy
DC Voltage
40m/400mV
±(0.8%+3)
4V/40V/400V/600V
±(0.5%+3)
600V
±(1.0%+3)
AC Voltage
40m/400mV
±(1.2%+3)
4V/40V/400V
±(1.0%+3)
600V
±(1.2%+5)
DC Current
400µA/4000µA/40m/400mA
±(1.2%+3)
10A
±(1.5%+5)
AC Current
400µA/4000µA/40m/400mA
±(1.2%+3)
10A
±(2.5% +5)
Resistance
400/4K/40K/400KΩ
±(1.2%+2)4M/40MΩ
±(1.8%+2)
Frequency
1Hz- 10MHz
±(1.0%+2)
Capacitance
40nF/400nF/4µF/40µF/100µF
±(4.0%+5) Temperature
(-20℃ to 1000℃)[-4℉ to 1800℉]
±(4.0%+5)
Feature
Display Count
4000
Diode Check
√Continuity Check
√
NCV
√
Low battery indicator
√
Overload indicator
√
Auto Power OFF
√
Data Hold
√
Relative Measure
√
Back Light
√
General Characteristic
Power
3V (1.5V AA x 2)
Operating Temp
0℃ to 45℃
Storage Temp
(-10℃ to 50℃)
Product Size
190x93.5x52mm
Product weight
291g
Standard Accessories
Tesat lead, Manual,Battery, Blister Card.
Safety Rating
CATIII 600V
Company IntroductionMtree is a professional instrument Manufacturer located in Songjiang National ranked Industrial Park, Shanghai, China. Founded in1987 in Wenzhou , and removed to shanghai in 2002, utill now there is long history of 32 years.
Mtree is the first Manufacturer In China to bring in and produce American inside-magnetism meter and also the first one in china toacquire UL,CE approval
Site area is about 20000㎡ ,7 production lines, production capacity is about 120,000pcs/moth, The main products includes
Analog/Digital Multimeter, Clamp Meter, Cable tester, Educational Meter, Panel Meter and other Electrical Testers, We strive globally for design innovation, higher quality, safer, durable, accurate and cost-effective techno logical products to meet customers’ needs.
As a professional manufacturer, we value each chance to cooperate with you.

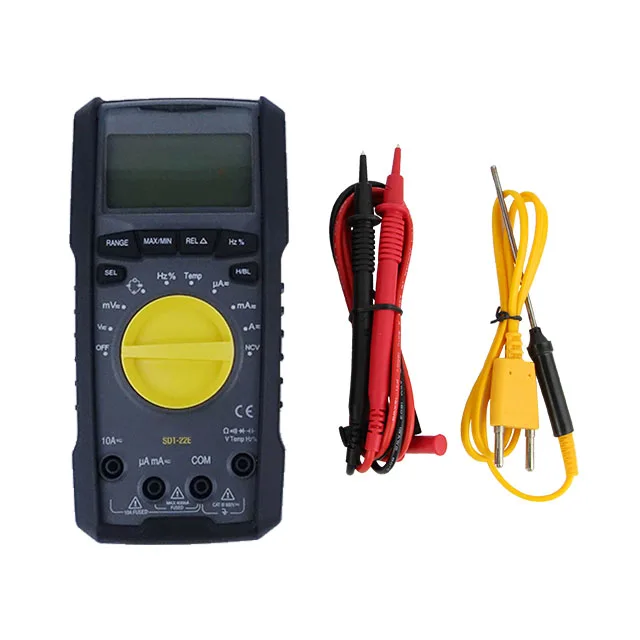

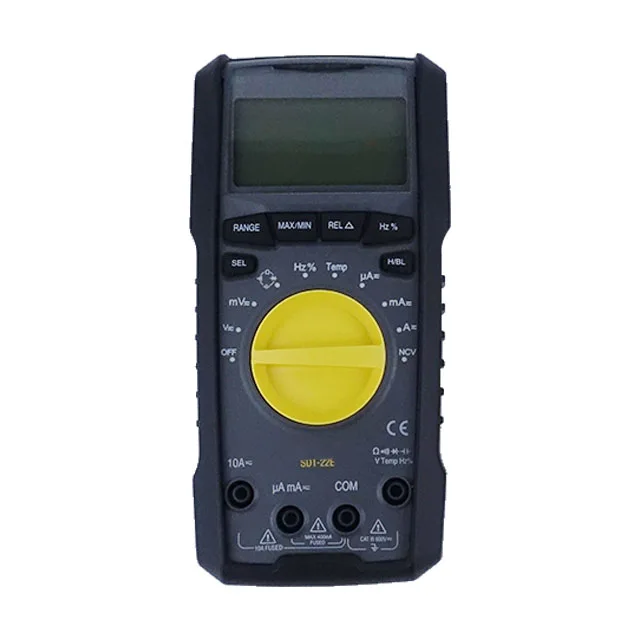

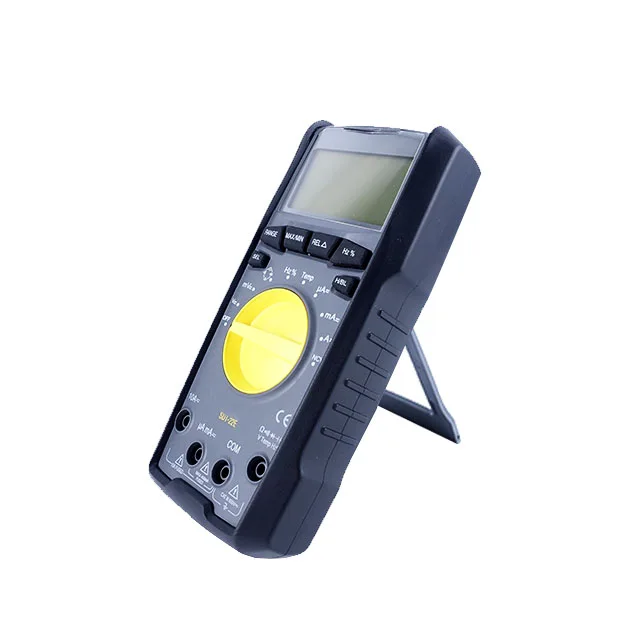

Digital multimeter
SHANGHAI MTREE INTERNATIONAL TRADE COMPANY LD.10/10 fairsForeign Trade CompanyModel SDT-22E
New for the 140th FairSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Digital multimeter
SHANGHAI MTREE INTERNATIONAL TRADE COMPANY LD.10/10 fairsForeign Trade CompanyModel SDT-22E
New for the 140th FairSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 190x93.5x52mm
- Color: Black, red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
About this product
- Size: 190x93.5x52mm
- Color: Black, red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
Product details
| Size | 190x93.5x52mm |
|---|---|
| Color | Black, red |
Product details
| Size | 190x93.5x52mm |
|---|---|
| Color | Black, red |
From the supplier
We also have various multimeter products with different functions and styles. If you want to know more about our products, please contact us.
Tel: 021-63770532 / 13321863560, Email:wanglei_shmtree@foxmail.com
