Power generators
Diesel welding generator
CHONGQING GO-GOLD POWER MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel AXC-230A
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Diesel welding generator
CHONGQING GO-GOLD POWER MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel AXC-230A
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 730x530x640mm
- Color: black
- Stroke: FourStrokes
- Cooling method: WindCooling
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 730x530x640mm
- Color: black
- Stroke: FourStrokes
- Cooling method: WindCooling
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 730x530x640mm |
|---|---|
| Color | black |
| Stroke | FourStrokes |
| Cooling method | WindCooling |
| Power source | Other |
Product details
| Size | 730x530x640mm |
|---|---|
| Color | black |
| Stroke | FourStrokes |
| Cooling method | WindCooling |
| Power source | Other |
From the supplier
Model
Model
AXC-230A
Electric Welding Machine Welding
Welding Method
Welder mode
Manual Arc Weldingmanual welding/Argon Arc Welding argon arc welding
No-Load Voltage(V)
Non-loading Voltage(V)
70-75
Working Voltage(V)
load Voltage(V)
22-30
Maximum Welding Current(A)
Max Welding Current(A)
250
Current Adjustment Range(A)
Voltage regulation range（A）
50-230
Continuous load rate
Load Duration Factor
60%
Electrode Range(φ）
Welding Rod Dia(φ)
1.6-5.0
AUX Power
Output Voltage
Output Voltage(V)
120V/220V/242V
Output Current
Output current（A）
16A/9A/8A
DCOutput Power
DC Output
DC2kw
ACOutput Power(Inverter)
AC Output (Inverter)
AC3kw
Working Status
Working condition
ContinuousContinuation
Engine
Engine Model
Engine type
192F
Fuel volume (L）
Fuel Tank Capacity(L)
12.5
Oil volume (L）
Oil Capacity(L)
1.65
Fuel Model
Fuel type
Light Diesel (0#)Light diesel（0#)
Oil type
Oil type
SAE10W30
Engine power(HP)
Engine power (HP)
11.7
Displacement(CC)
Displacement（cc)
499
Ignition Method
Ignition System
Compression Ignition compression ignition
Starting Method
Starting System
Electric Motor electric start
Others
Net Weight/Gross Weight (kg）
NW/GW [kg]
108/112
Packaging size (mm）
Overall dimension (mm)(L×W×H)
730×530×640
Units per Container
Q'ty 20"/40"/40"H
93/198/264
From the supplier
Model
Model
AXC-230A
Electric Welding Machine Welding
Welding Method
Welder mode
Manual Arc Weldingmanual welding/Argon Arc Welding argon arc welding
No-Load Voltage(V)
Non-loading Voltage(V)
70-75
Working Voltage(V)
load Voltage(V)
22-30
Maximum Welding Current(A)
Max Welding Current(A)
250
Current Adjustment Range(A)
Voltage regulation range（A）
50-230
Continuous load rate
Load Duration Factor
60%
Electrode Range(φ）
Welding Rod Dia(φ)
1.6-5.0
AUX Power
Output Voltage
Output Voltage(V)
120V/220V/242V
Output Current
Output current（A）
16A/9A/8A
DCOutput Power
DC Output
DC2kw
ACOutput Power(Inverter)
AC Output (Inverter)
AC3kw
Working Status
Working condition
ContinuousContinuation
Engine
Engine Model
Engine type
192F
Fuel volume (L）
Fuel Tank Capacity(L)
12.5
Oil volume (L）
Oil Capacity(L)
1.65
Fuel Model
Fuel type
Light Diesel (0#)Light diesel（0#)
Oil type
Oil type
SAE10W30
Engine power(HP)
Engine power (HP)
11.7
Displacement(CC)
Displacement（cc)
499
Ignition Method
Ignition System
Compression Ignition compression ignition
Starting Method
Starting System
Electric Motor electric start
Others
Net Weight/Gross Weight (kg）
NW/GW [kg]
108/112
Packaging size (mm）
Overall dimension (mm)(L×W×H)
730×530×640
Units per Container
Q'ty 20"/40"/40"H
93/198/264
About the supplier
CHONGQING GO-GOLD POWER MACHINERY CO.,LTD
Main products: Electric welding machines,Fuel engine pump,Diesel Water pump,AC motor,Other General Machinery, Small Processing Machinery and Industrial Accessories
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2016
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
60
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2016
Canton Fair booth: 17.1L29 · Power Machinery and Electric Power (140th session)
More from CHONGQING GO-GOLD POWER MACHINERY CO.,LTD
Similar products from other suppliers
New
Diesel welding generator
Price on request

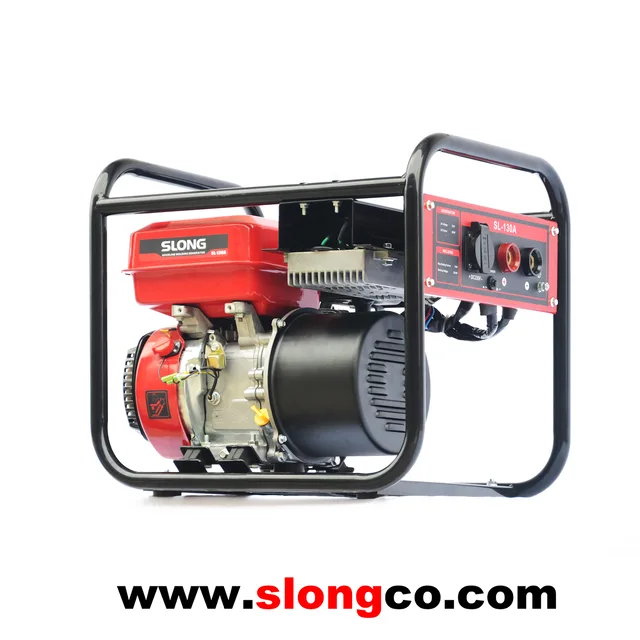

Gasloine Welding Generator Mwt200a
