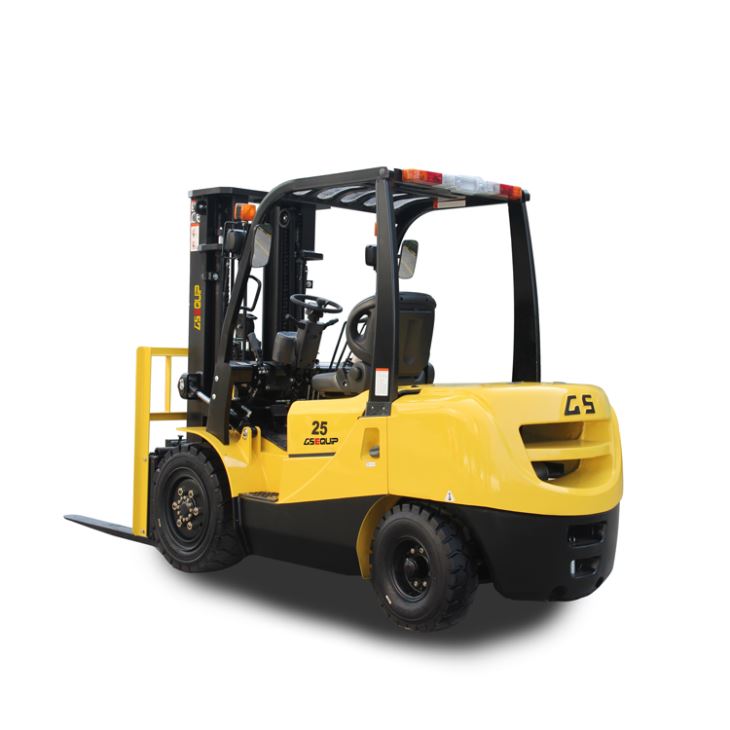

Diesel Forklift with Yanmar Engine
ANHUI GS INDUSTRY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Diesel Forklift with Yanmar Engine
ANHUI GS INDUSTRY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Steel
- Size: 2600*1150*2055mm
- Color: Yellow
- Load capacity: 1-10t
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2600*1150*2055mm
- Color: Yellow
- Load capacity: 1-10t
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2600*1150*2055mm |
| Color | Yellow |
| Load capacity | 1-10t |
| Horsepower | Other |
| Drive wheel | Other |
| Power source | Other |
| Engine capacity | Other |
| Tire certification | Other |
Product details
| Materials | Steel |
|---|---|
| Size | 2600*1150*2055mm |
| Color | Yellow |
| Load capacity | 1-10t |
| Horsepower | Other |
| Drive wheel | Other |
| Power source | Other |
| Engine capacity | Other |
| Tire certification | Other |
From the supplier
Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.
All forklift are with strong Power System. GSEQUIP forklifts are all with reliable power accessories. All accessories like engine, gear box are support by world famous brand, with high quality, reliable after-sales. We strictly follow the environmental requirement, all engines match the China Ⅲ or even higher emission standards.
And forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle,storing space, and convenient LCD panel.
Whole perspective mast and backrest, super good view, high strength overhead guard, high place security combination lamp, neutral security features, parking brake, fork lock function(optional), all for safety.
1
Model
FD25
2
Power Type
Diesel
3
Rated Capacity
kg
2500
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
1070*120*40
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang(Wheel centre to fork face)
mm
470
9
Overall Dimension
Length to face of fork (without fork)
mm
2600
10
Overall Width
mm
1150
11
Mast Lowered Height
mm
2055
12
Overhead Guard Height
mm
2070
13
Turning Radius (outside)
mm
2310
14
Min.insecting aisle
mm
2380
Performance
15
Speed
Travel (Empty load)
km/h
19
16
Lifting (Full load)
mm/s
520
17
Max.Gradeability
%
20
Chassis
18
Tire
Front
7.00-12-12PR
19
Rear
6.00-9-10PR
20
Wheelbase
mm
1600
21
Service weight
kg
3700
22
Battery
Voltage/Capacity
V/Ah
12/80
23
Engine
Model
4TNE92
24
Manufacture
YANMAR
25
Rated output/r.p.m.
kw
32.8/2450
26
Rated torque/r.p.m.
N·m
135.4-149.4/1600
27
No.of Cylinder
4
28
Bore*Stroke
mm
92×100
29
Displacement
cc
2659
30
Transmission
Type
Hydraulic
31
Stage (FWD/RVS)
1.1
32
Operating Pressure for Attachment
Mpa
17.5
From the supplier
Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.
All forklift are with strong Power System. GSEQUIP forklifts are all with reliable power accessories. All accessories like engine, gear box are support by world famous brand, with high quality, reliable after-sales. We strictly follow the environmental requirement, all engines match the China Ⅲ or even higher emission standards.
And forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle,storing space, and convenient LCD panel.
Whole perspective mast and backrest, super good view, high strength overhead guard, high place security combination lamp, neutral security features, parking brake, fork lock function(optional), all for safety.
1
Model
FD25
2
Power Type
Diesel
3
Rated Capacity
kg
2500
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
1070*120*40
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang(Wheel centre to fork face)
mm
470
9
Overall Dimension
Length to face of fork (without fork)
mm
2600
10
Overall Width
mm
1150
11
Mast Lowered Height
mm
2055
12
Overhead Guard Height
mm
2070
13
Turning Radius (outside)
mm
2310
14
Min.insecting aisle
mm
2380
Performance
15
Speed
Travel (Empty load)
km/h
19
16
Lifting (Full load)
mm/s
520
17
Max.Gradeability
%
20
Chassis
18
Tire
Front
7.00-12-12PR
19
Rear
6.00-9-10PR
20
Wheelbase
mm
1600
21
Service weight
kg
3700
22
Battery
Voltage/Capacity
V/Ah
12/80
23
Engine
Model
4TNE92
24
Manufacture
YANMAR
25
Rated output/r.p.m.
kw
32.8/2450
26
Rated torque/r.p.m.
N·m
135.4-149.4/1600
27
No.of Cylinder
4
28
Bore*Stroke
mm
92×100
29
Displacement
cc
2659
30
Transmission
Type
Hydraulic
31
Stage (FWD/RVS)
1.1
32
Operating Pressure for Attachment
Mpa
17.5
