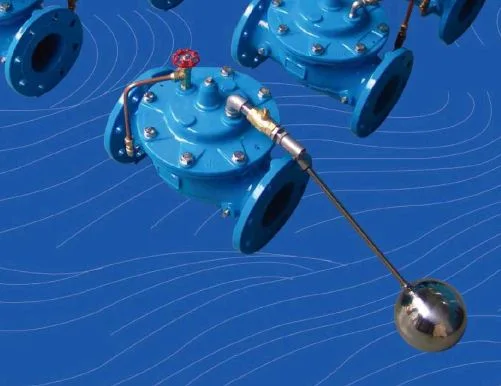

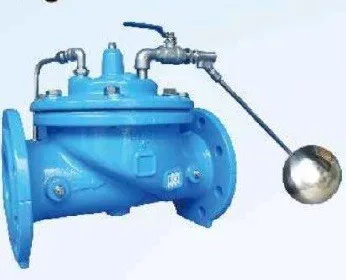

100X Diaphragm remote float control valve

Simply speaking, the principle of the float control valve is, when the water is full, buoyancy makes the float rising, and the control valve will be closed to stop water supply. When the water level drops, the float will also drop at the same time, and the control valve will open, and the water will continue supply, until the buoyancy makes the float rises again because of the water rises again, the valve will be closed to stop the water supply.

The 100X diaphragm remote float control valve is normally installed at the water inlet of a pool or elevated water tower in industrial and mining enterprises or civil buildings. When the water level reaches the set height, the main valve is controlled by the floating ball pilot valve to close the water inlet and stop water supply; when the water level falls, the main valve is controlled by the floating ball pilot valve to open the water inlet, to fill the pool to realize automatic water level control.

The 100X diaphragm remote float control valve is composed of a diaphragm main valve, a floating ball pilot valve and pipe connection system. The main valve uses diaphragm structure. The connection system is composed of float valve, ball valve and connection pipe. Light weight, simple structure and cost-effective.
