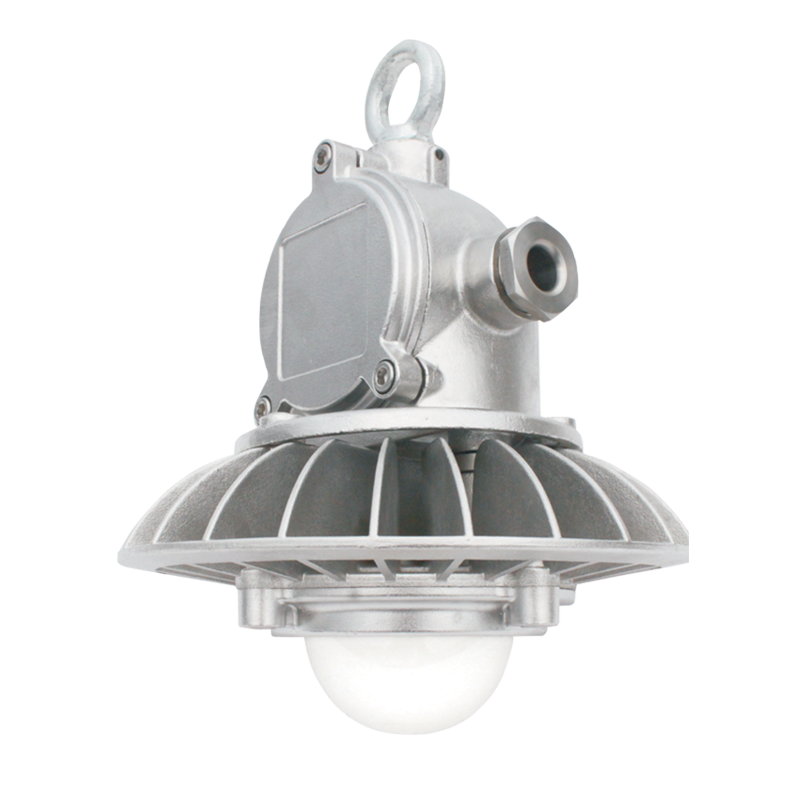

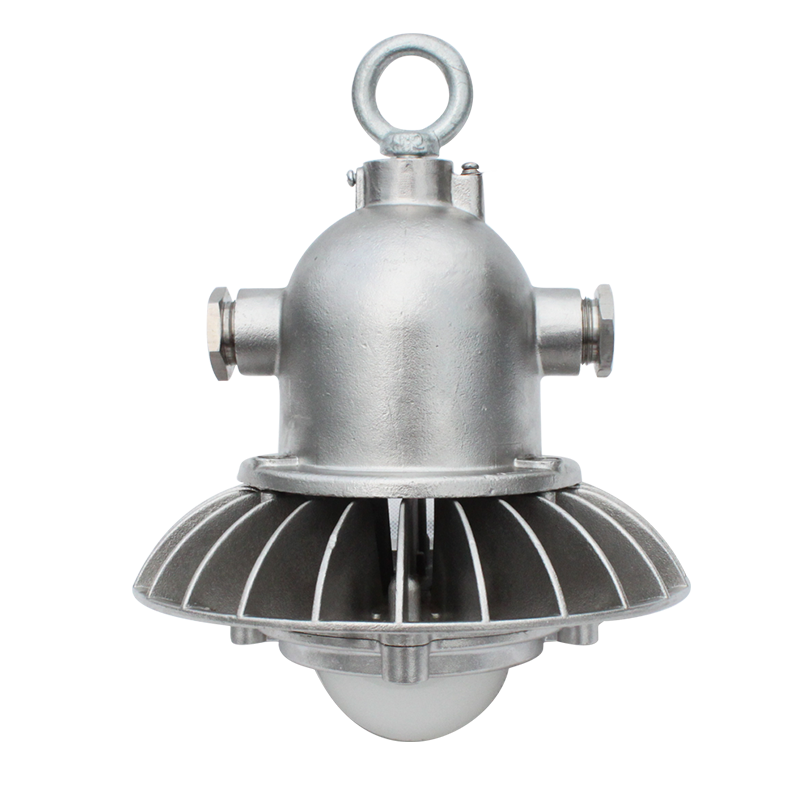

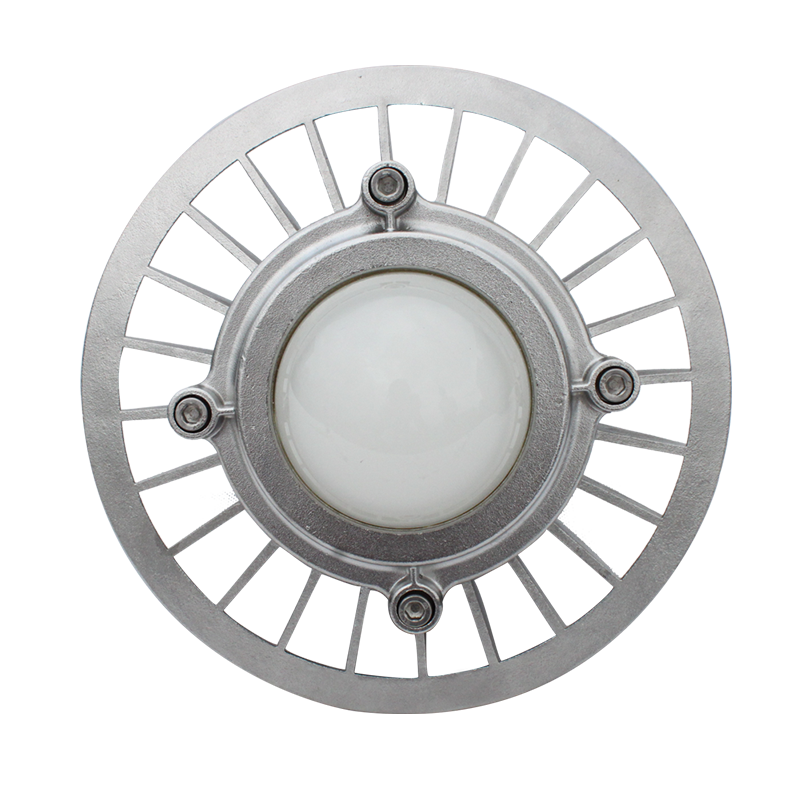

DGC30/127L(A) Stainless Steel mining light
Zhejiang TORMIN Electrical Co.,Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
DGC30/127L(A) Stainless Steel mining light
Zhejiang TORMIN Electrical Co.,Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Stainless Steel，Tempered glass
- Size: φ200* 218mm
- Color: Silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Stainless Steel，Tempered glass
- Size: φ200* 218mm
- Color: Silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Stainless Steel，Tempered glass |
|---|---|
| Size | φ200* 218mm |
| Color | Silver |
Product details
| Materials | Stainless Steel，Tempered glass |
|---|---|
| Size | φ200* 218mm |
| Color | Silver |
From the supplier
Wattage: 30W
Suitable for Mine
Ex Code: Ex d I Mb
Ambient temp.: -20℃ to +40℃
CHINA Mining Safety Certificate
Light Distribution Curve
Application
1. Widely used for Mining work.
2. Approved for safe in Tunnel with other hazardous explosive mixture of methane gas
Characteristics
1. Specially designed for mining working surface, which is made by 304 stainless steel.
2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
3. Optoelectronic integrated technology，no dark spot, no ghosting, the average light efficiency of whole lamp can reach to 100 lm/W, energy-saving is 60% more than Metal Halide Lamp.
4. Universal AC-DC, power factor above 0.98.
5. The rapid replacement of power without welding can be realized.
6. Independent wiring chamber, safe and easy installation and maintenance.
7. Designed for Roadway Layout with ring mounted which can be connected in parallel.
Main Specification
Item
Technical specification
Input voltage range
90~ 264VAC
Input frequency
50Hz/ 60Hz
Light source
LED
Service life
50000h
CRI
Ra 70(80 Optional)
CCT
5000K(3000K/4000K Optional)
Cable entry
G3/4"
Leading-in cable diameter
φ9mm~φ14mm
Dimension
φ200* 218mm
Net weight
4.4Kg
Ordering reference
Ordering
reference
Wattage
Light output
Space
height
ratio
Mounting
height
Equivalent to
High Pressure Mercury Lamp
DGC30/127(A)
30W
2600lm
1.75
3~6m
70W
Drawing of dimension (Dimensions in mm)
From the supplier
Wattage: 30W
Suitable for Mine
Ex Code: Ex d I Mb
Ambient temp.: -20℃ to +40℃
CHINA Mining Safety Certificate
Light Distribution Curve
Application
1. Widely used for Mining work.
2. Approved for safe in Tunnel with other hazardous explosive mixture of methane gas
Characteristics
1. Specially designed for mining working surface, which is made by 304 stainless steel.
2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
3. Optoelectronic integrated technology，no dark spot, no ghosting, the average light efficiency of whole lamp can reach to 100 lm/W, energy-saving is 60% more than Metal Halide Lamp.
4. Universal AC-DC, power factor above 0.98.
5. The rapid replacement of power without welding can be realized.
6. Independent wiring chamber, safe and easy installation and maintenance.
7. Designed for Roadway Layout with ring mounted which can be connected in parallel.
Main Specification
Item
Technical specification
Input voltage range
90~ 264VAC
Input frequency
50Hz/ 60Hz
Light source
LED
Service life
50000h
CRI
Ra 70(80 Optional)
CCT
5000K(3000K/4000K Optional)
Cable entry
G3/4"
Leading-in cable diameter
φ9mm~φ14mm
Dimension
φ200* 218mm
Net weight
4.4Kg
Ordering reference
Ordering
reference
Wattage
Light output
Space
height
ratio
Mounting
height
Equivalent to
High Pressure Mercury Lamp
DGC30/127(A)
30W
2600lm
1.75
3~6m
70W
Drawing of dimension (Dimensions in mm)
