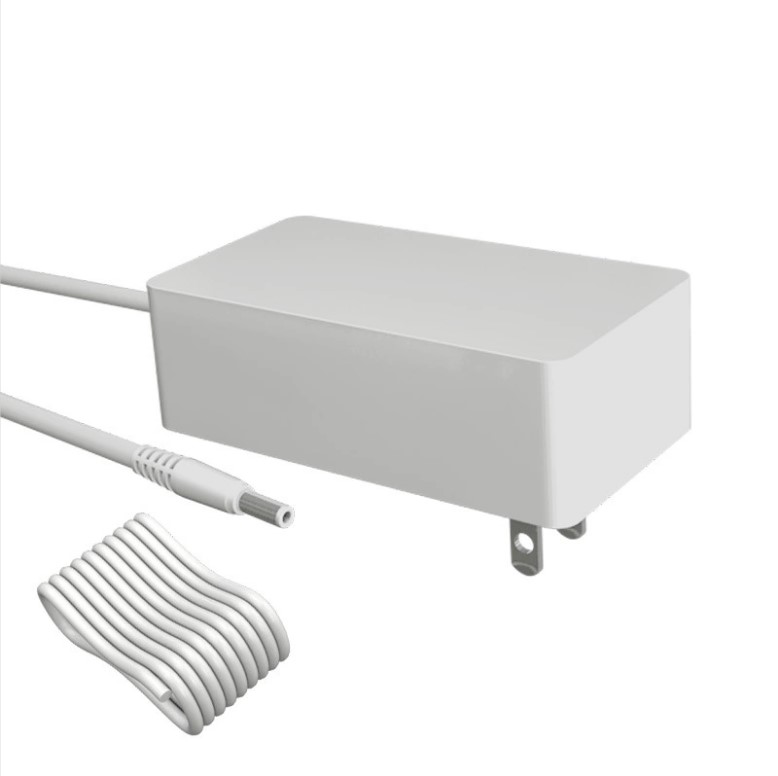

Type:

TAP40-120S300U1

Product size:

(L) 89mm× (W) 49mm× (H) 39mm

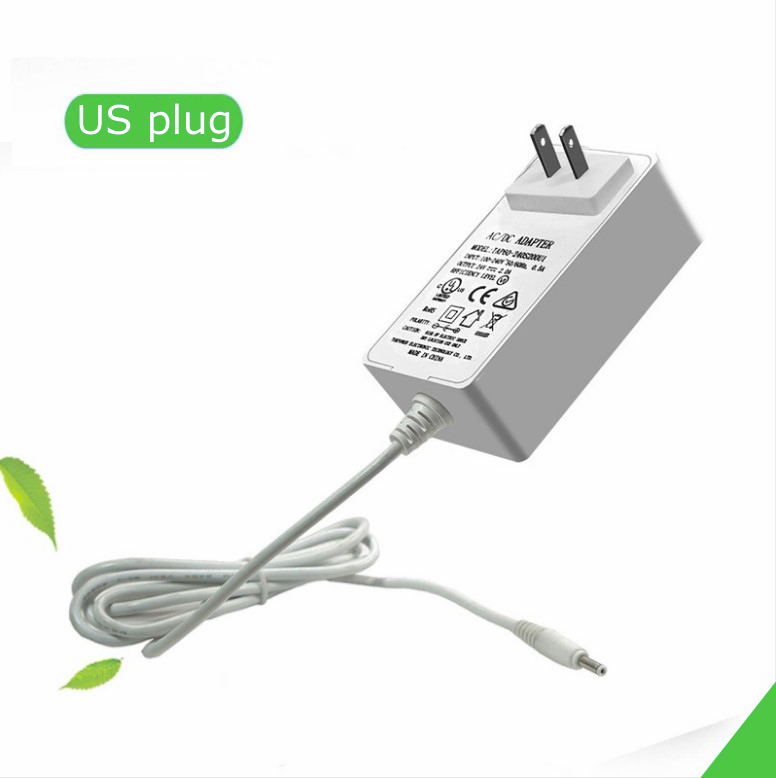

AC plug:

US standard ( EU standard, British standard, Australian standard and other optional)

The DC line:

Line length of 1.2 m. (Other lengths such as 1.5m, 1.8m and 2m can be customized)

DC plugs:

2.5 * 0.7 MM, 3.5 * 1.35 MM, 4.0 MM, 5.5 * 2.1 * 1.7 MM, 5.5 * 2.5 M, etc

I. Product features:

1. Shell material using high temperature resistant fire retardant material;

2. Constant pressure working mode;

3. Brand IC scheme design, stable and reliable performance;

4. Low loss, green energy-saving products;

Two, electrical characteristics:

1. Input voltage/frequency: AC 100 ~ 240V (90 ~ 264V), 50/60Hz (47/63Hz)

2. Output power: Max 36W

3. Output voltage: DC 12V

4. Output current: 0.1a ~3A

5. Load adjustment range: ± 5%

6. Efficiency: 80% Min

7. Pressure test: AC 3000V/Min 5mA

8. Insulation impedance: DC 500V 100M ω

Three, protection function:

1. Overcurrent protection: 120%

2. Overvoltage protection: 120%

3. Short circuit protection: automatic recovery

Iv. Reliability Test:

1. Aging test: the product should be aged at least 2 hours in an environment of 40℃±5℃ and more than 80% of rated load conditions;

2. Average interval failure time estimation: at least 50000 hours, at 25℃ and under input and full load conditions;

3. Drop test: 0.75m high, and dropped onto a hardwood thickness of 30mm, and the hardwood should be placed on a cement base or equivalent inelastic floor;

Five, environmental requirements:

1. Operating temperature: -10 ~ 40℃

2. Storage temperature: -20 ~ 85℃

3. Working humidity: 5 ~ 95%RH

Six, safety certification:

UL, CCC, CE, GS, CB, and FCC
