1. Company Information：

Anhui Wonderful-wall Color Coating Aluminium Science Technology Co.,Ltd. (Alucosuper) Established in July 2008 with registered capital of RMB200 millions and total investment of RMB430 millions, covering area of 200,000 square meters and located in Changjiang Jinggong Industry Area, Economic Development Zone, Lu'an, Anhui Province.

We have 4 roller coating lines, 2 film laminated lines, 2 solid aliminum sheet lines, 3 slitting lines and 4 cutting lines.

Our Main Products                                    Annual Capacity

★Color coating aluminium coil/sheet         60,000TONS

★Color coating steel coil/sheet                   80,000TONS

★Film laminated metal coil/sheet               40,000TONS

★Solid aluminium sheet                             1,0000,000SQM

Our main products are widely used for interior and exterior cuitain wall decoration,ceiling,roofing,rooler shutter, home appliances,food packing,EOE tab/end stocks and many other area.

2. Product Introduction

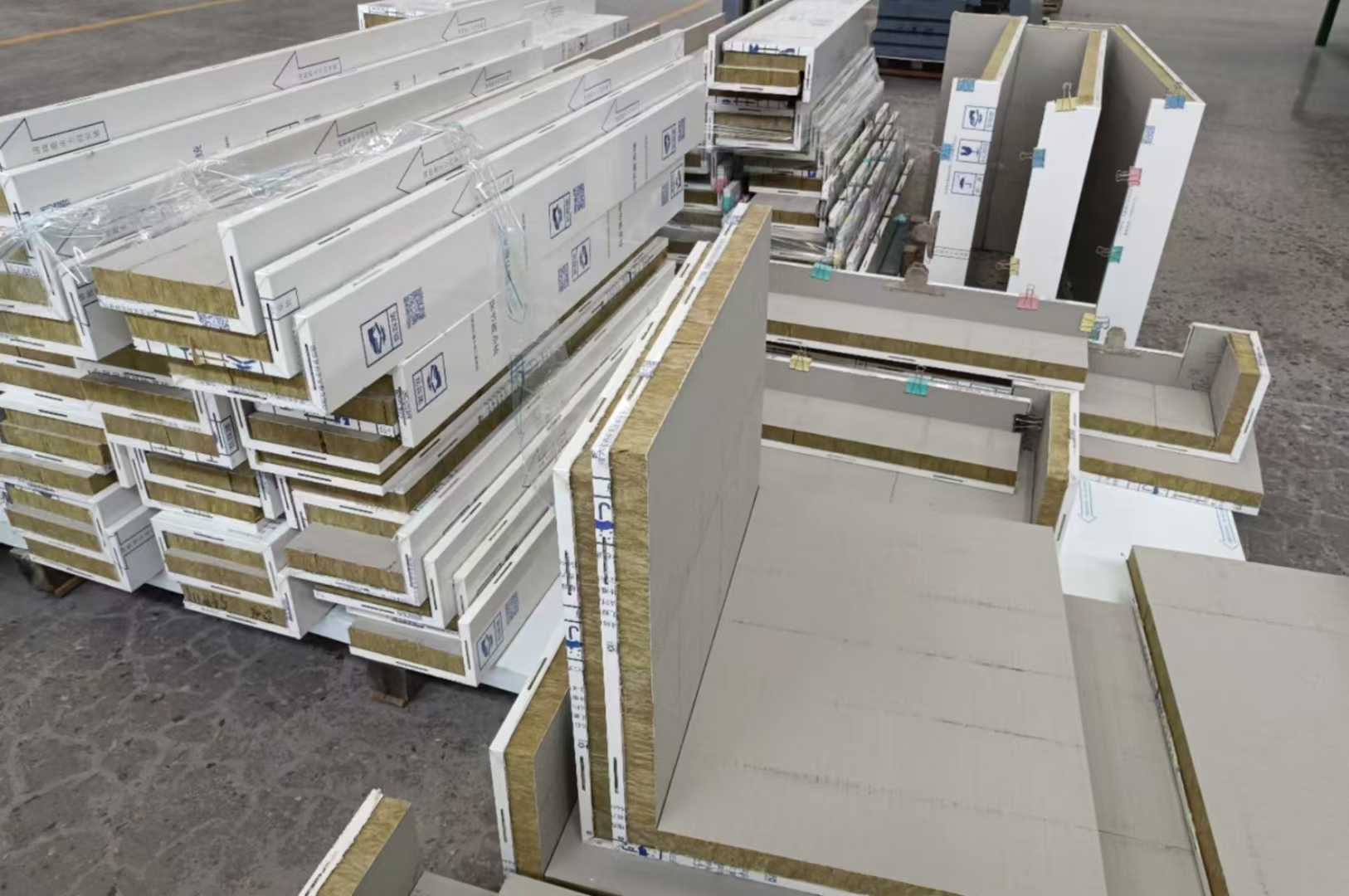

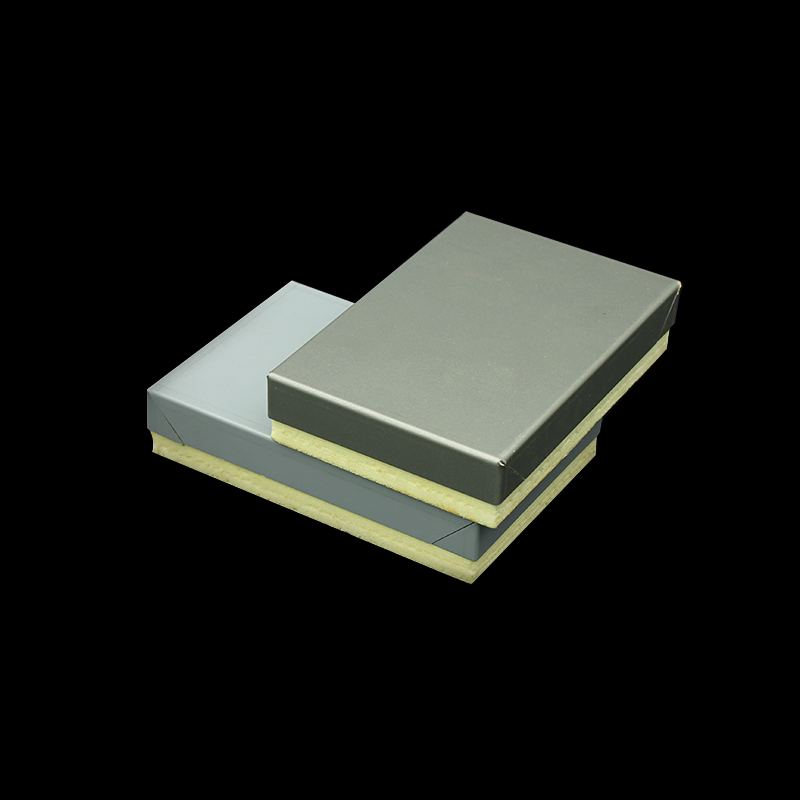

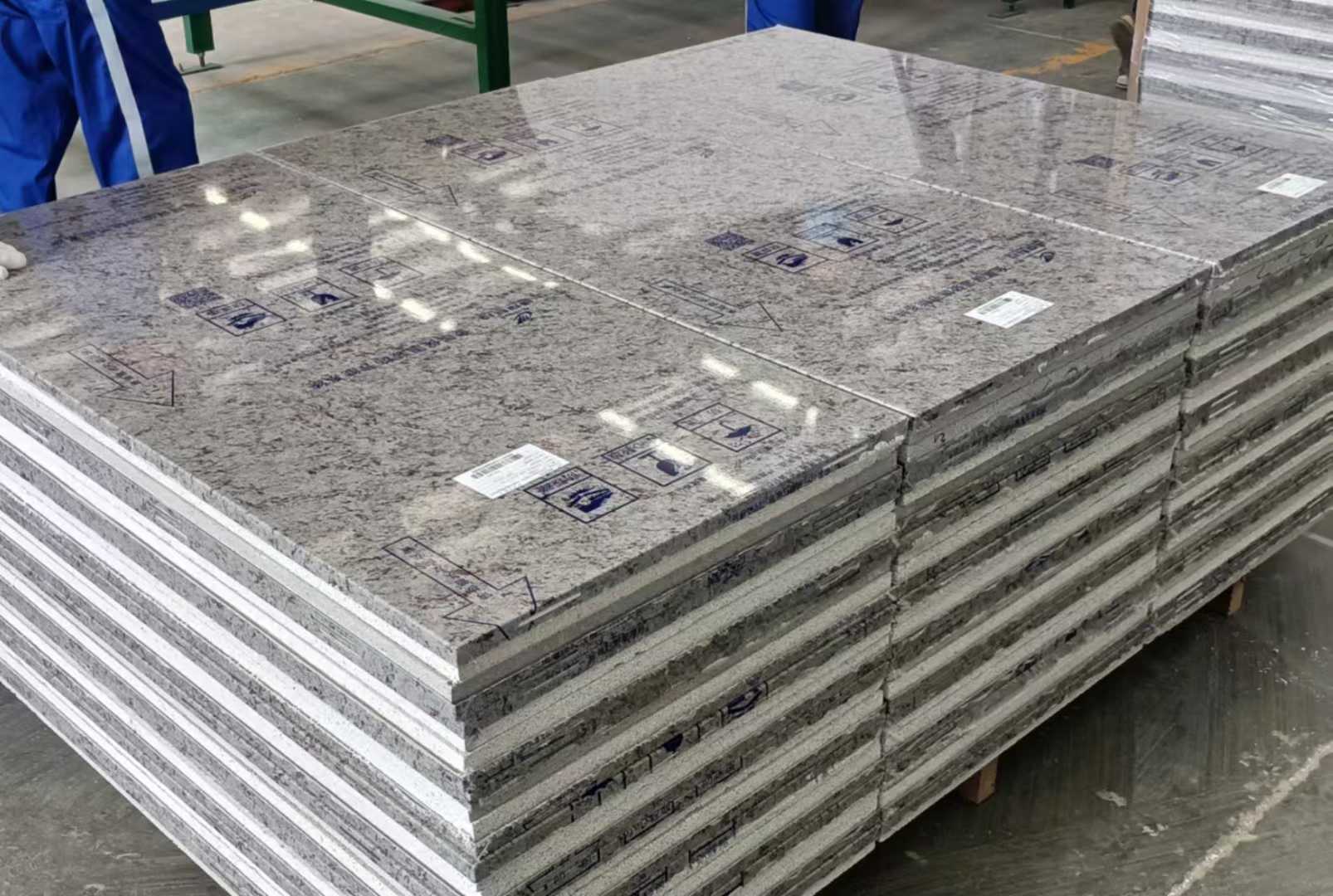

Insulation integrated cladding system is a new building material for exterior curtain wall, it is constituted by insulation core with Fireproof Grade A,higher strengthen glue, aluminum sheet or steel sheet with marble/wooden surface and heat-reflective/anti-temperature effective or nature stone thinner panel or ceramic panel. The panel is not only with good fireproof properties、anti chemical corrosive abilities, and afford wind pressure, earthquake and so on, but also it can afford a super stress change because of temperature and humidity. At the same time, there are many better features, like light weight high strength, energy save and environmental, colorful surface, high anti-weather properties, self-cleaner, easy to install and so on.

It is not only used for exterior wall insulation and decoration for new building, and also for old building energy conservation reconstruction, additionally, Interior decoration is also ok. It can not be acted by region difference.

Product structure drawing：

Decorative insulation specification:

Surface Panel

Material

GI/GL Steel Sheet

Aluminum Sheet

Thickness

0.6-0.8mm

1.0-1.5mm

Normal Size

Length：800、1200、2400mm  Width：400、600、1200mm

Core Material

Material

RW

PU

EPS

TPS

Density

≥120Kg/m³

≥35Kg/m³

≥22Kg/m³

≥30Kg/m³

Classification:

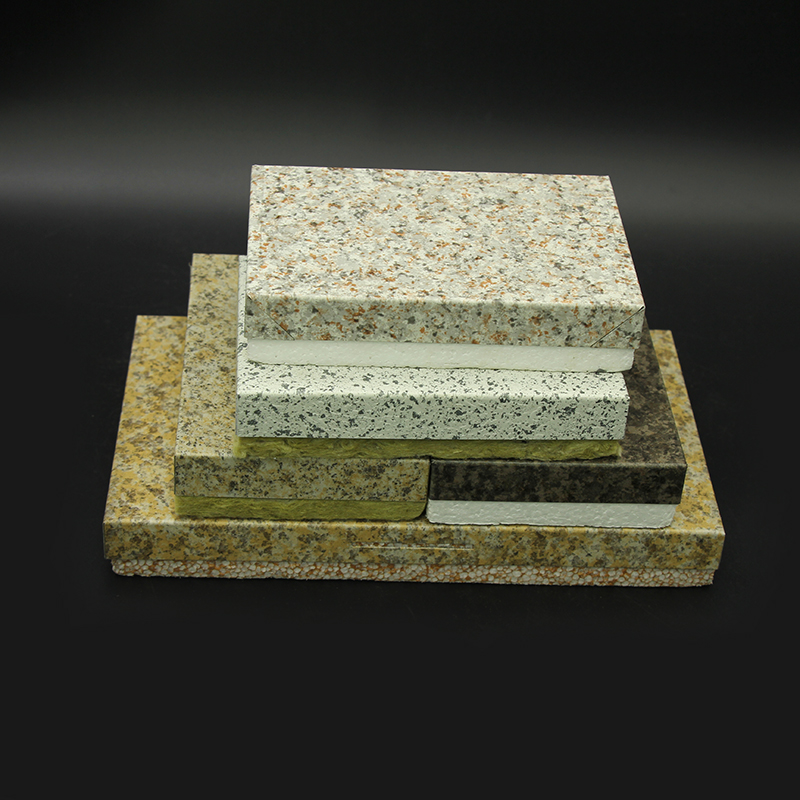

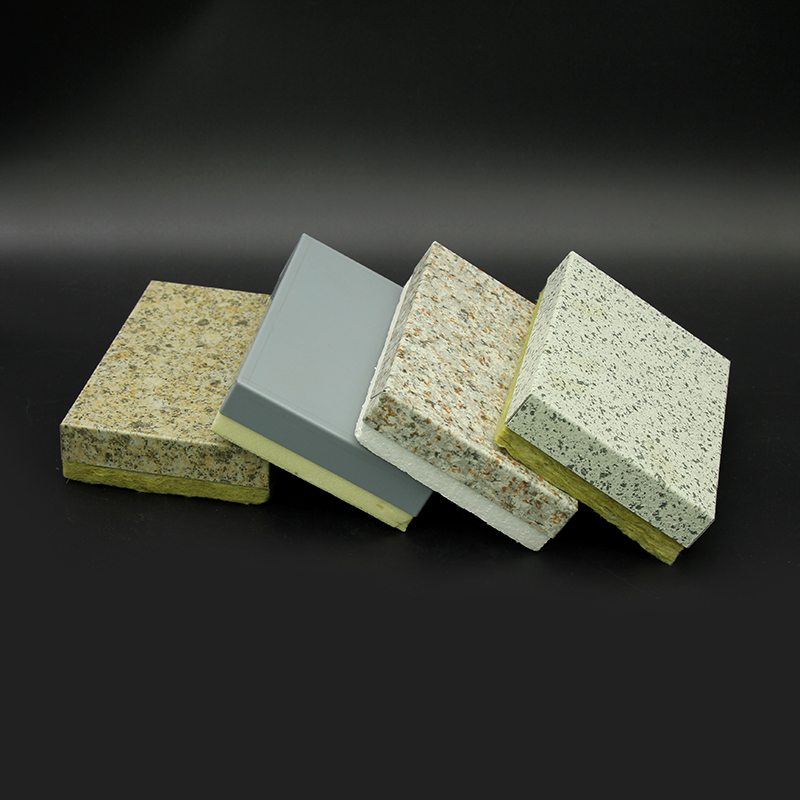

Metal sheet and insulation material can be combined freely;

Production process:

Color coating metal coil→ blanking and cutting → metal sheet forming → core material selection and cutting → adhesive deployment → bonding and sizing → hydraulic press pressing → pressure relief and dust removal → packaging → transportation

When the panel  is used as the external wall, it would be installed by bonding as the main method and anchoring as the assistant method.

For installation, the node diagram is as follows:

①--wall; ②--cement mortar leveling layer; ③--bonding mortar; ④--silicone building sealant

⑤--backing material; ⑥--one component polyurethane foam sealant; ⑦--mechanical fixed parts; ⑧--thermal insulation decorative board.

3. Company Advantages:

one of the drafters for Solid Aluminium Sheet,

the executive vice chairman of the Standing Committee

the first CTC certificated company qualified through the

National Building Materials Center.

one of the drafters for Industry Standard of PVDF Film

laminated metal sheet for building material

the best Brand in Building material brand

Grade Enterprise for Quality management
