About this product
- Materials: PA66
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: PA66
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | PA66 |
|---|---|
| Color | White |
Product details
| Materials | PA66 |
|---|---|
| Color | White |
From the supplier
- Product Introduction

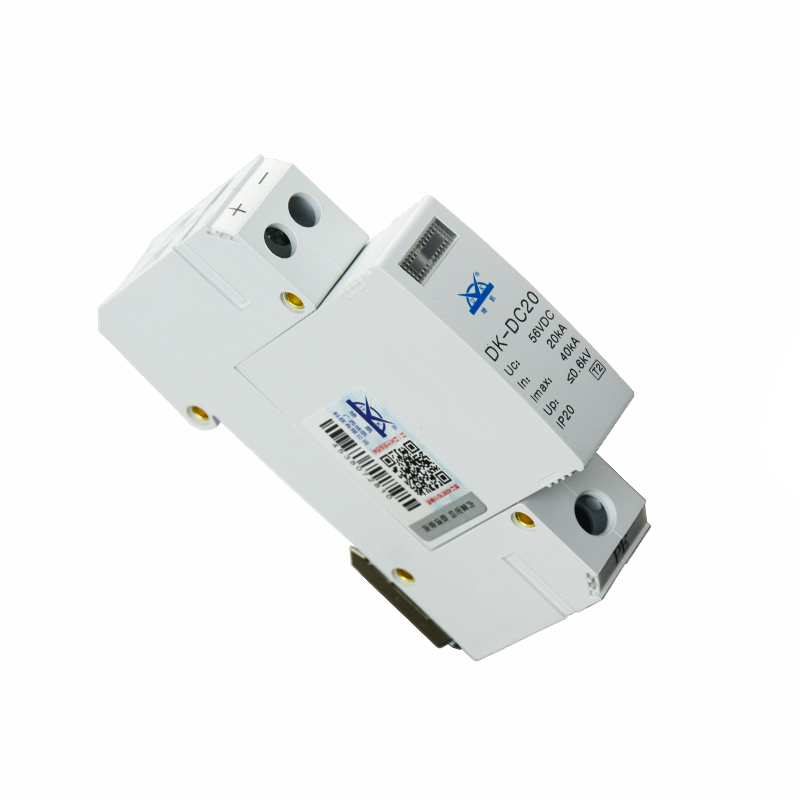

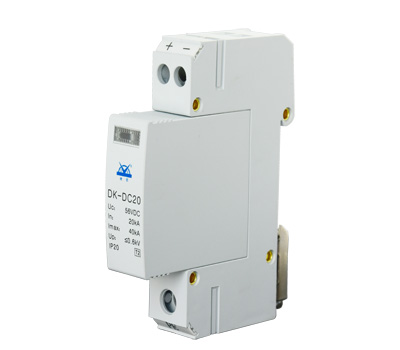

DK-DC20 modular DC power supply series surge protective device (SPD) is designed and manufactured according to IEC61643 standard. It is accordance with the criterion of surge protective devices connected to low-voltage power systems–requirements and test methods. It is designed as module and 35mm din rail mounting. With working indication window, temperature control circuit breaker and built-in over current protective circuit, it can automatically release to avoid fire danger when it breaks down. It consists of remote alarm connector for remote monitoring. It is suitable for communications, TV broadcasting, computer room, automatic control, mechanical and electric control, mechanical and electrical equipment, and related DC power equipment.
2. Technical Parameter
SPD Type
One-port SPD
Applicable Power Supply System
DC Power Supply System
Nominal Discharge Current In(8/20µs)
10kA / 20kA
Maximum Discharge Current Imax(8/20µs)
20kA / 40kA
Leakage Current
≤20uA
Respond Time tA
≤25ns
Indication Method
Indication Window, Turn Red When Malfunction
Remote Alarm Function
Optional
Maximum Connection Wire Range
BVR 35mm2 Strand Wire
Method of Installation
35mm Din Rail Mounting
Material of Shell
PC
Flame Retardant Rating of Outer Shell
UL94-V0
Protection Level of Outer Shell
IP20
Working Temperature
–25~＋70℃
Relative Humidity
≤95%RH
Dimension
91mm*70mm*18mm
Standard
IEC61643
3.Item No. Optional
Item No.
Specification
Protection Mode
Rated Voltage U0 (V)
Maximum Continuous Operating Voltage Uc
Voltage Protection Level Up
DK-DC20
24
+-PE,—-PE
DC 24V
DC56V
≤600V
48
+-PE,—-PE
DC 48V
DC65V
≤650V
110
+-PE,—-PE
DC110V
DC170V
≤700V
220
+-PE,—-PE
DC220V
DC320V
≤1300V
4.Application Scope
It is suitable for equipment of small DC power supply voltage behind LPZ2 protection zone of buildings.
From the supplier
- Product Introduction
DK-DC20 modular DC power supply series surge protective device (SPD) is designed and manufactured according to IEC61643 standard. It is accordance with the criterion of surge protective devices connected to low-voltage power systems–requirements and test methods. It is designed as module and 35mm din rail mounting. With working indication window, temperature control circuit breaker and built-in over current protective circuit, it can automatically release to avoid fire danger when it breaks down. It consists of remote alarm connector for remote monitoring. It is suitable for communications, TV broadcasting, computer room, automatic control, mechanical and electric control, mechanical and electrical equipment, and related DC power equipment.
2. Technical Parameter
SPD Type
One-port SPD
Applicable Power Supply System
DC Power Supply System
Nominal Discharge Current In(8/20µs)
10kA / 20kA
Maximum Discharge Current Imax(8/20µs)
20kA / 40kA
Leakage Current
≤20uA
Respond Time tA
≤25ns
Indication Method
Indication Window, Turn Red When Malfunction
Remote Alarm Function
Optional
Maximum Connection Wire Range
BVR 35mm2 Strand Wire
Method of Installation
35mm Din Rail Mounting
Material of Shell
PC
Flame Retardant Rating of Outer Shell
UL94-V0
Protection Level of Outer Shell
IP20
Working Temperature
–25~＋70℃
Relative Humidity
≤95%RH
Dimension
91mm*70mm*18mm
Standard
IEC61643
3.Item No. Optional
Item No.
Specification
Protection Mode
Rated Voltage U0 (V)
Maximum Continuous Operating Voltage Uc
Voltage Protection Level Up
DK-DC20
24
+-PE,—-PE
DC 24V
DC56V
≤600V
48
+-PE,—-PE
DC 48V
DC65V
≤650V
110
+-PE,—-PE
DC110V
DC170V
≤700V
220
+-PE,—-PE
DC220V
DC320V
≤1300V
4.Application Scope
It is suitable for equipment of small DC power supply voltage behind LPZ2 protection zone of buildings.
