About this product
- Materials: iron
- Size: 3*2.4*1.2m
- Color: blue
- Hot-galvanize technique: Other
- Specifications: Roll
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Hebei, China
About this product
- Materials: iron
- Size: 3*2.4*1.2m
- Color: blue
- Hot-galvanize technique: Other
- Specifications: Roll
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Hebei, China
Product details
| Materials | iron |
|---|---|
| Size | 3*2.4*1.2m |
| Color | blue |
| Hot-galvanize technique | Other |
| Specifications | Roll |
| Material | Other |
| Stamping expanded metal mesh category | ExpandedMetalMesh |
| Galvanized surface treatment | Hot-galvanizeCold-galvanizing |
| Surface treatment | Other |
| Weave characteristic | Other |
| Hole shape | Other |
| Application | Other |
| Weight | Light-weight |
| Usage | Other |
Product details
| Materials | iron |
|---|---|
| Size | 3*2.4*1.2m |
| Color | blue |
| Hot-galvanize technique | Other |
| Specifications | Roll |
| Material | Other |
| Stamping expanded metal mesh category | ExpandedMetalMesh |
| Galvanized surface treatment | Hot-galvanizeCold-galvanizing |
| Surface treatment | Other |
| Weave characteristic | Other |
| Hole shape | Other |
| Application | Other |
| Weight | Light-weight |
| Usage | Other |
From the supplier

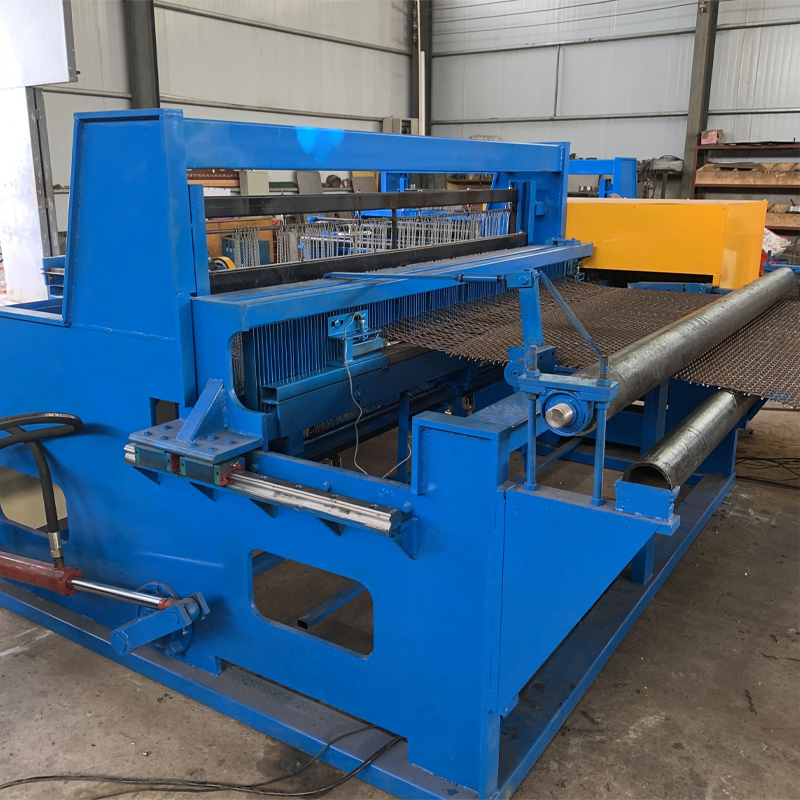

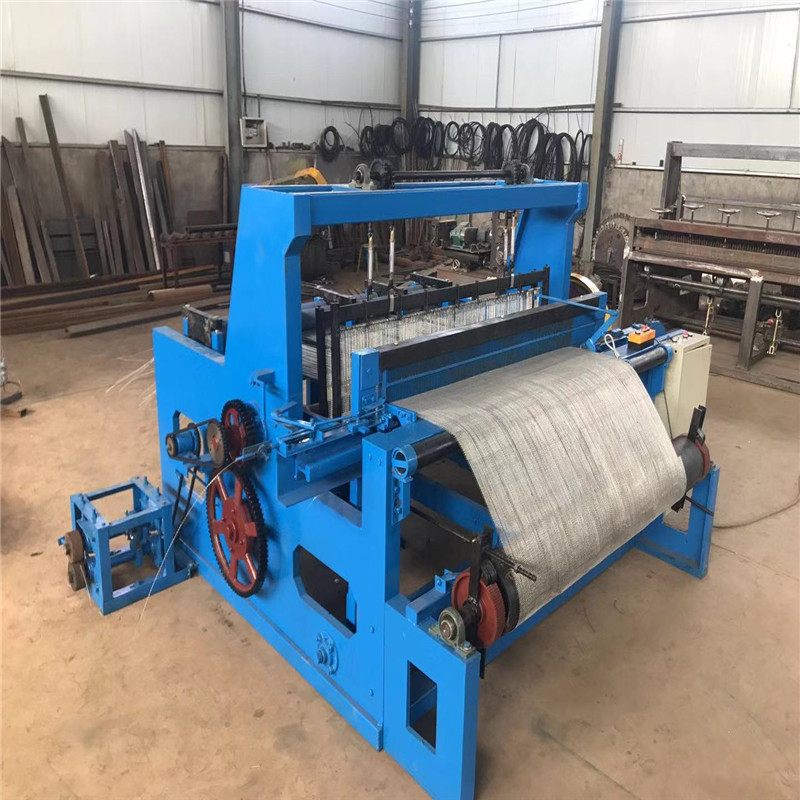

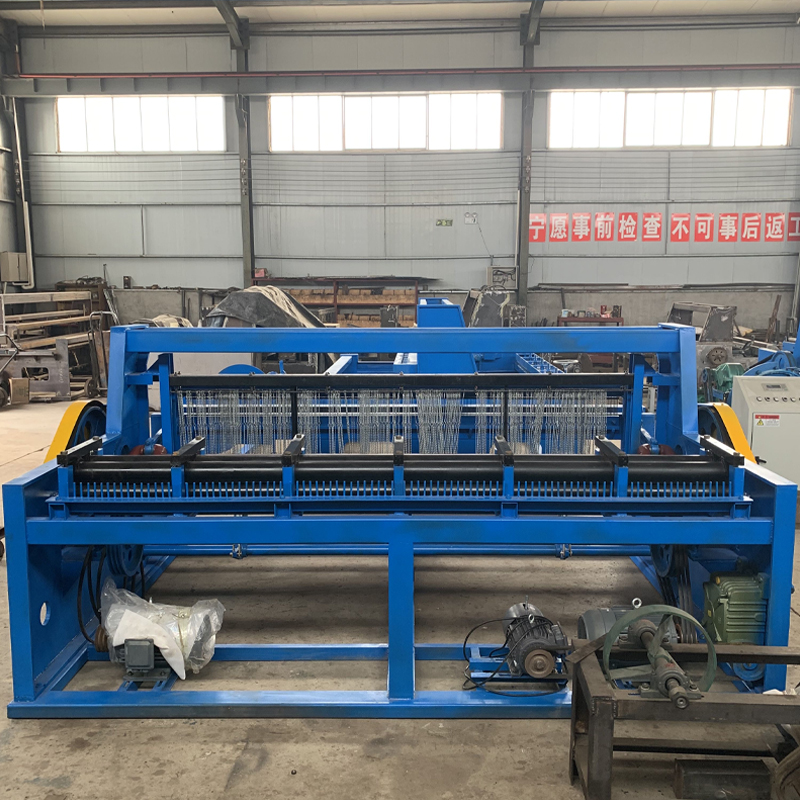

Crimped wire mesh machine
Production information
Our crimped wire mesh machine mainly can be divided into three types: full automatic, semi-automatic and hydraulic crimped wire mesh machine.
a. Full Automatic Crimped Wire Mesh Machine
Full-automatic crimped wire mesh machine mainly weaves little wire diameter. The wire diameter range is 0.4mm-2mm, this machine includes mesh weaving machine, crimped wire machine, rolling mesh part and mould. The aperture is from 1.5mm to 20mm,the cross wore can be fed automatic and not manually. It is with high speed and easy operating.
Full Automatic Crimped Wire Mesh Machine
Wire Diameter
0.4mm-2mm
Hole Size
1mm-2.5mm
Mesh Width
1.3m, other mesh width can be customized
Speed
20-60 times/min
Motor
380V/50HZ
Power
1.5Kw
Motor Quantity
one
Type
Full Automatic
Machine size
Length 2.2m,width 3.5m,height 1.5m
Machine Weight
1500Kg
b. Semi-Automatic Crimped Wire Mesh Machine
Semi-automatic crimped wire mesh machine mainly weaves a little thicker wire, the wire diameter range is 2mm-6mm, this machine also includes mesh weaving machine, crimped wire machine, rolling machine and mould. And the aperture is 3x3mm-50x50mm, the weaving width can reach 4m. The products are widely used in the mine sieving, it is also easy to operate
Semi-Automatic Crimped Wire Mesh Machine
Wire Diameter
2mm-6mm
Hole Size
0.4cm-25cm
Mesh Width
2m, other width can be also customized
Speed
15-30 times/min
Motor
380V/50HZ
Power
3KW+2.2KW
Motor Quantity
Two
Type
Semi-Automatic
Machine Size
Length 4.8m.width 2.2m.height 1.6m
Machine Weight
1600KG
c. Hydraulic Crimped Wire Mesh Machine
Hydraulic crimped wire mesh machine weaves thick wire, the wire diameter range is 6mm-12mm.
And big hole size from 6mmx6mm to 100mmx100mm. This type is also semi-automatic.
The machine includes mesh weaving machine,crimped wire machine and mould.
This type machine is widely used in screening, stone screen and so on.
Hydraulic Crimped Wire Mesh Machine
Wire Diameter
6mm-12mm
Hole Size
0.6cm-55cm
Mesh Width
2m, other mesh width can also be customized
Speed
15-30 times/min
Motor
380V/50HZ
Power
11KW
Motor Quantity
One
Type
Semi-Automatic
Machine Size
Length 3m, Width 2.4m.height 1.2m
Machine weight
1500kg
FAQ
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experience
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.Company introduction:
From the supplier
Crimped wire mesh machine
Production information
Our crimped wire mesh machine mainly can be divided into three types: full automatic, semi-automatic and hydraulic crimped wire mesh machine.
a. Full Automatic Crimped Wire Mesh Machine
Full-automatic crimped wire mesh machine mainly weaves little wire diameter. The wire diameter range is 0.4mm-2mm, this machine includes mesh weaving machine, crimped wire machine, rolling mesh part and mould. The aperture is from 1.5mm to 20mm,the cross wore can be fed automatic and not manually. It is with high speed and easy operating.
Full Automatic Crimped Wire Mesh Machine
Wire Diameter
0.4mm-2mm
Hole Size
1mm-2.5mm
Mesh Width
1.3m, other mesh width can be customized
Speed
20-60 times/min
Motor
380V/50HZ
Power
1.5Kw
Motor Quantity
one
Type
Full Automatic
Machine size
Length 2.2m,width 3.5m,height 1.5m
Machine Weight
1500Kg
b. Semi-Automatic Crimped Wire Mesh Machine
Semi-automatic crimped wire mesh machine mainly weaves a little thicker wire, the wire diameter range is 2mm-6mm, this machine also includes mesh weaving machine, crimped wire machine, rolling machine and mould. And the aperture is 3x3mm-50x50mm, the weaving width can reach 4m. The products are widely used in the mine sieving, it is also easy to operate
Semi-Automatic Crimped Wire Mesh Machine
Wire Diameter
2mm-6mm
Hole Size
0.4cm-25cm
Mesh Width
2m, other width can be also customized
Speed
15-30 times/min
Motor
380V/50HZ
Power
3KW+2.2KW
Motor Quantity
Two
Type
Semi-Automatic
Machine Size
Length 4.8m.width 2.2m.height 1.6m
Machine Weight
1600KG
c. Hydraulic Crimped Wire Mesh Machine
Hydraulic crimped wire mesh machine weaves thick wire, the wire diameter range is 6mm-12mm.
And big hole size from 6mmx6mm to 100mmx100mm. This type is also semi-automatic.
The machine includes mesh weaving machine,crimped wire machine and mould.
This type machine is widely used in screening, stone screen and so on.
Hydraulic Crimped Wire Mesh Machine
Wire Diameter
6mm-12mm
Hole Size
0.6cm-55cm
Mesh Width
2m, other mesh width can also be customized
Speed
15-30 times/min
Motor
380V/50HZ
Power
11KW
Motor Quantity
One
Type
Semi-Automatic
Machine Size
Length 3m, Width 2.4m.height 1.2m
Machine weight
1500kg
FAQ
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experience
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.Company introduction:
