From the supplier
Product Description
SRP26F Pile Driver

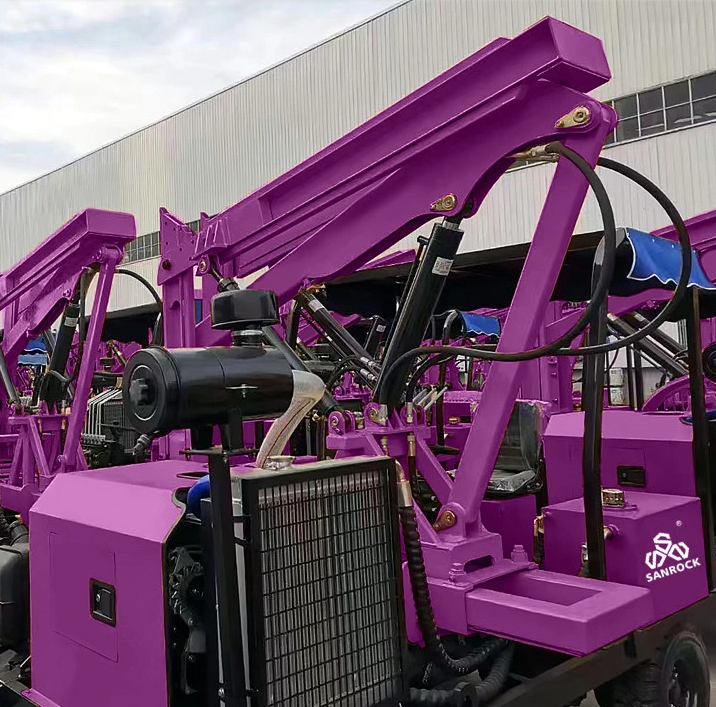

The piling machine has water and oil integration of pure aluminum radiator, usually used for excavator, which has good heat dissipation, it also has small size and good looking apperance. Model :SRP26F Working dimension(L*W*H):2700*2650*4200mm Transportation dimension(L*W*H):2700*2250*2550mm Chassis body width :1670mm Vehicle weight :2800kg Hydraulic hamner type:YC260 Workfiow of hydraulic hammer :50-90l/min Working force of hydraulic hammer :10-40Mpa Impact frequency :400-800bmp Working stroke of hydraulic harmer:700-3800mm Drill rod diameter:75/85 mm Hitting Force of Hydraulic Hammer :6-8T Piing height :3000mm/min Piling efficiency :2000mm Power of Guosan Engine (Weichai):36.8KW Rated Speed of Diesel Engine :2500r/min Diesel engine weight :270kg Maximum Torue of Walking Motor:1950 Nm Torque of Rotary Motor for Percussive Driling Tool:800-1800Nm Mast stroke :2300mm Driling depth :1700mm Borehole diameter :68-300mm Walking speed :≤8000m/h Maxmum traction speed :30000 m/h Maximum Distance of Pile Drilling Cap Center Out of Frame :980mm Maximum distance from the center of the drill to the frame :900mm Maximum Distance of Pile-pulling Brazing Cap Center Out of Frame :980mm Hydraulic oil tank (L"W"H):600*360*400mm Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
The piling machine has water and oil integration of pure aluminum radiator, usually used for excavator, which has good heat dissipation, it also has small size and good looking apperance. Model :SRP26F Working dimension(L*W*H):2700*2650*4200mm Transportation dimension(L*W*H):2700*2250*2550mm Chassis body width :1670mm Vehicle weight :2800kg Hydraulic hamner type:YC260 Workfiow of hydraulic hammer :50-90l/min Working force of hydraulic hammer :10-40Mpa Impact frequency :400-800bmp Working stroke of hydraulic harmer:700-3800mm Drill rod diameter:75/85 mm Hitting Force of Hydraulic Hammer :6-8T Piing height :3000mm/min Piling efficiency :2000mm Power of Guosan Engine (Weichai):36.8KW Rated Speed of Diesel Engine :2500r/min Diesel engine weight :270kg Maximum Torue of Walking Motor:1950 Nm Torque of Rotary Motor for Percussive Driling Tool:800-1800Nm Mast stroke :2300mm Driling depth :1700mm Borehole diameter :68-300mm Walking speed :≤8000m/h Maxmum traction speed :30000 m/h Maximum Distance of Pile Drilling Cap Center Out of Frame :980mm Maximum distance from the center of the drill to the frame :900mm Maximum Distance of Pile-pulling Brazing Cap Center Out of Frame :980mm Hydraulic oil tank (L"W"H):600*360*400mm Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
From the supplier
Product Description
SRP26F Pile Driver
The piling machine has water and oil integration of pure aluminum radiator, usually used for excavator, which has good heat dissipation, it also has small size and good looking apperance. Model :SRP26F Working dimension(L*W*H):2700*2650*4200mm Transportation dimension(L*W*H):2700*2250*2550mm Chassis body width :1670mm Vehicle weight :2800kg Hydraulic hamner type:YC260 Workfiow of hydraulic hammer :50-90l/min Working force of hydraulic hammer :10-40Mpa Impact frequency :400-800bmp Working stroke of hydraulic harmer:700-3800mm Drill rod diameter:75/85 mm Hitting Force of Hydraulic Hammer :6-8T Piing height :3000mm/min Piling efficiency :2000mm Power of Guosan Engine (Weichai):36.8KW Rated Speed of Diesel Engine :2500r/min Diesel engine weight :270kg Maximum Torue of Walking Motor:1950 Nm Torque of Rotary Motor for Percussive Driling Tool:800-1800Nm Mast stroke :2300mm Driling depth :1700mm Borehole diameter :68-300mm Walking speed :≤8000m/h Maxmum traction speed :30000 m/h Maximum Distance of Pile Drilling Cap Center Out of Frame :980mm Maximum distance from the center of the drill to the frame :900mm Maximum Distance of Pile-pulling Brazing Cap Center Out of Frame :980mm Hydraulic oil tank (L"W"H):600*360*400mm Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
The piling machine has water and oil integration of pure aluminum radiator, usually used for excavator, which has good heat dissipation, it also has small size and good looking apperance. Model :SRP26F Working dimension(L*W*H):2700*2650*4200mm Transportation dimension(L*W*H):2700*2250*2550mm Chassis body width :1670mm Vehicle weight :2800kg Hydraulic hamner type:YC260 Workfiow of hydraulic hammer :50-90l/min Working force of hydraulic hammer :10-40Mpa Impact frequency :400-800bmp Working stroke of hydraulic harmer:700-3800mm Drill rod diameter:75/85 mm Hitting Force of Hydraulic Hammer :6-8T Piing height :3000mm/min Piling efficiency :2000mm Power of Guosan Engine (Weichai):36.8KW Rated Speed of Diesel Engine :2500r/min Diesel engine weight :270kg Maximum Torue of Walking Motor:1950 Nm Torque of Rotary Motor for Percussive Driling Tool:800-1800Nm Mast stroke :2300mm Driling depth :1700mm Borehole diameter :68-300mm Walking speed :≤8000m/h Maxmum traction speed :30000 m/h Maximum Distance of Pile Drilling Cap Center Out of Frame :980mm Maximum distance from the center of the drill to the frame :900mm Maximum Distance of Pile-pulling Brazing Cap Center Out of Frame :980mm Hydraulic oil tank (L"W"H):600*360*400mm Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
