Crankshaft Grinding Machine
XI'AN AMCO MACHINE TOOLS CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Crankshaft Grinding Machine
XI'AN AMCO MACHINE TOOLS CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 5300X2200X2000
- Color: green
- Material: Other
- Automatic grade: Other
- Foldable: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
About this product
- Materials: metal
- Size: 5300X2200X2000
- Color: green
- Material: Other
- Automatic grade: Other
- Foldable: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
Product details
| Materials | metal |
|---|---|
| Size | 5300X2200X2000 |
| Color | green |
| Material | Other |
| Automatic grade | Other |
| Foldable | Other |
| Surface treatment | Polish |
Product details
| Materials | metal |
|---|---|
| Size | 5300X2200X2000 |
| Color | green |
| Material | Other |
| Automatic grade | Other |
| Foldable | Other |
| Surface treatment | Polish |
From the supplier

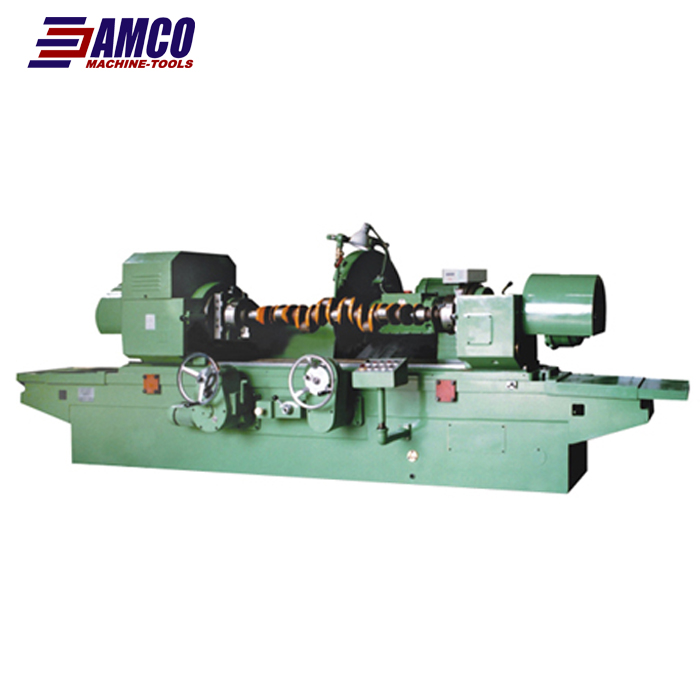

MQ8260Ax20 Crankshaft Grinding Machine

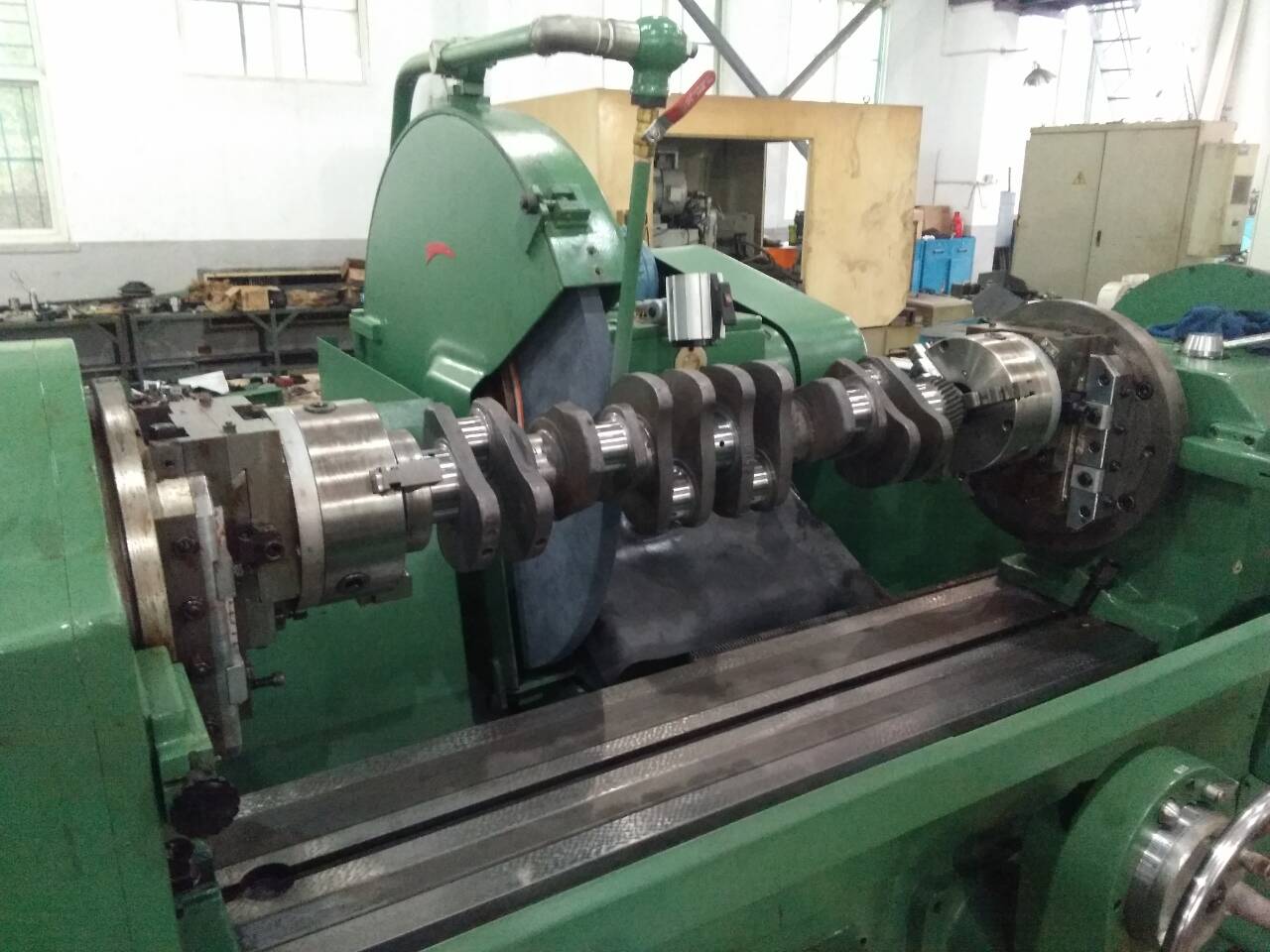

MQ8260A is modified on the base of the Model practical MQ8260A Crankshaft Grinding Machine and intended for use in the automobile, tractor, diesel engine works and their repair shops to grind the journals and crankpins of crankshafts.
Features :
-Three different work speeds are obtainable by making use of the belts in the workhead.

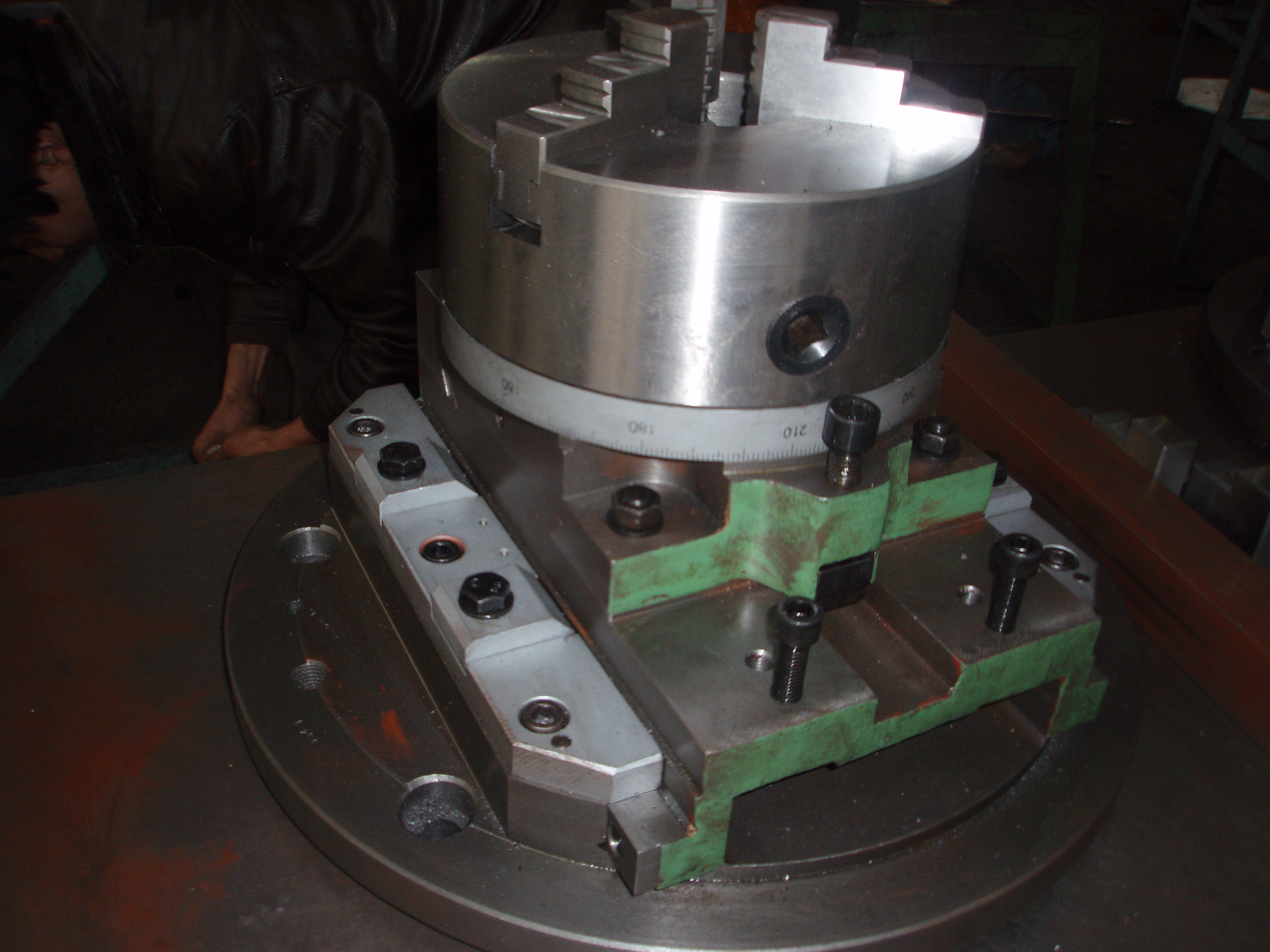

-Cross chucks are used in the headstock and tailstock.
-Friction coupling is used in the headstock transmission chain for its easy adjustment.

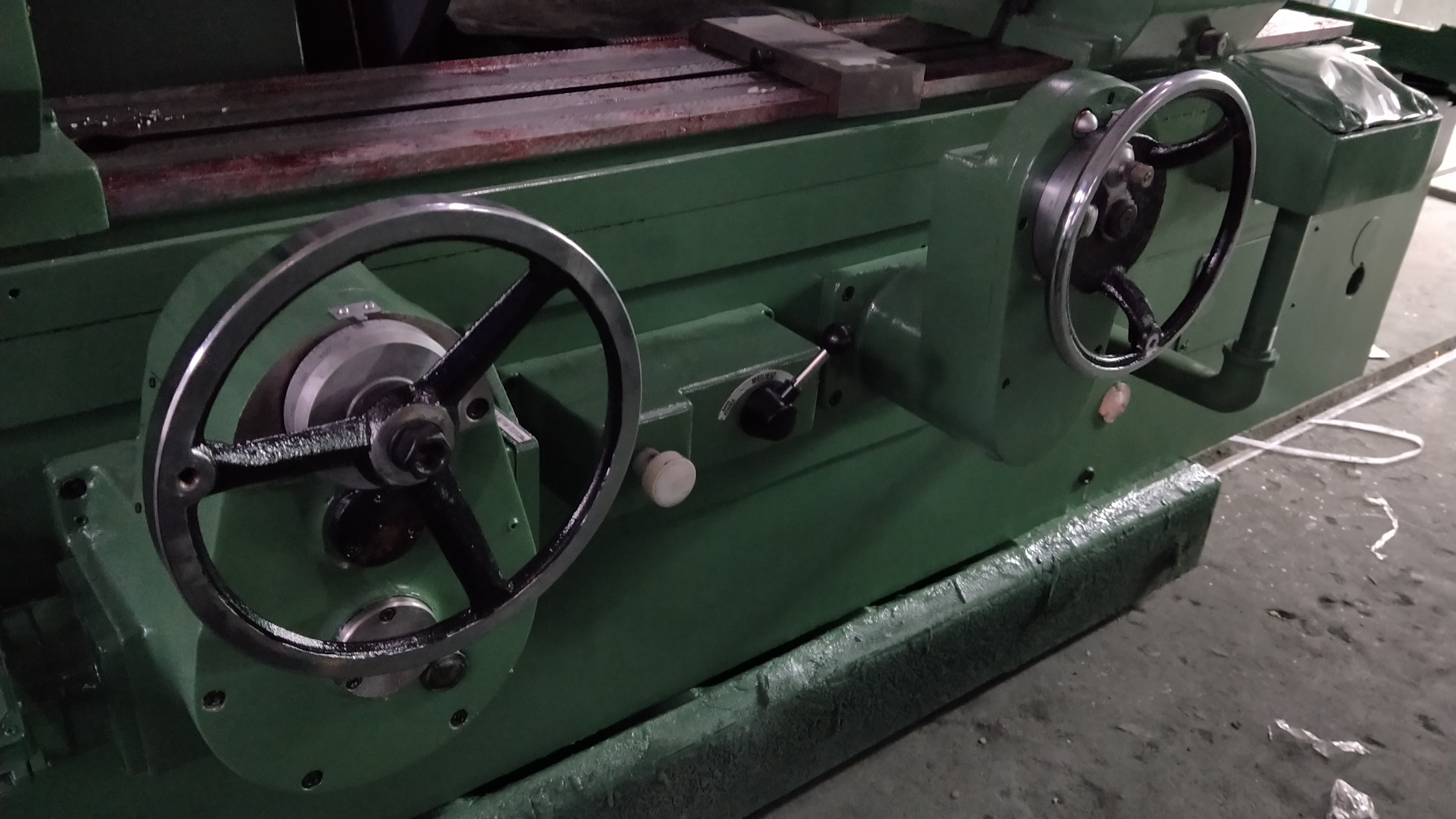

-Table traverse is operated either by hand or by power.
-Wheelhead rapid approach and withdrawal is effected through hydraulic means.
-The wheel spindle being of 80mm in diameter has good rigidity and strength.
-Use is made of roller ways for wheelhead movement.
-The bed ways and wheelhead are lubricated in an automatic cycle by means of the oil pump.
Main Specifications
Model
MQ8260Ax16
MQ8260Ax18
MQ8260Ax20
Max. work diameter × Max. length
Φ580×1600mm
Φ580×1800mm
Φ580×2000mm
Capacity
Max. swing over table
580 mm
Work diameter ground with steady rest
Φ30-100 mm
Φ50-120 mm
Throw of crankshaft
110 mm
120 mm
Max. work length ground in 3 jaw chuck
1400 mm
1600 mm
1800 mm
M ax. work length ground between centres
1600 mm
1800 mm
2000 mm
Max. work weight
120 kg
150 kg
Headstock
Centre height
300 mm
Work speed (rpm)
25,45,95
25,45,65,100
Wheelhead
Max. cross movement
185 mm
Wheelhead rapid approach & withdrawal
100 mm
Wheelhead feed per turn of cross feed handwheel
1 mm
Wheel feed per grad of cross feed handwheel
0.005 mm
Grinding wheel
Wheel spindle speed
740, 890 rpm
Wheel peripheral speed
25.6 – 35 m/sec
Wheel size
Φ900x32xΦ305 mm
Table
Table traverse per turn of handwheel coast
5.88 mm
Table traverse per turn of handwheel fine
1.68 mm
Table swivel (taper 18/100)
5°
Table swivel per grad of scale (taper 1:50)
10’
Overall capacity of motor
9.82 kw
11.2 kw
Overall dimension (LxWxH) (mm)
4166x2037x1584
4900x2037x1584
Weight
6000 kg
6200 kg
7000 kg
Working
Accuracy
Ovality (new standard)
0.005
Cylindricity
0.01
Roughness Ra
0.21
From the supplier
MQ8260Ax20 Crankshaft Grinding Machine
MQ8260A is modified on the base of the Model practical MQ8260A Crankshaft Grinding Machine and intended for use in the automobile, tractor, diesel engine works and their repair shops to grind the journals and crankpins of crankshafts.
Features :
-Three different work speeds are obtainable by making use of the belts in the workhead.
-Cross chucks are used in the headstock and tailstock.
-Friction coupling is used in the headstock transmission chain for its easy adjustment.
-Table traverse is operated either by hand or by power.
-Wheelhead rapid approach and withdrawal is effected through hydraulic means.
-The wheel spindle being of 80mm in diameter has good rigidity and strength.
-Use is made of roller ways for wheelhead movement.
-The bed ways and wheelhead are lubricated in an automatic cycle by means of the oil pump.
Main Specifications
Model
MQ8260Ax16
MQ8260Ax18
MQ8260Ax20
Max. work diameter × Max. length
Φ580×1600mm
Φ580×1800mm
Φ580×2000mm
Capacity
Max. swing over table
580 mm
Work diameter ground with steady rest
Φ30-100 mm
Φ50-120 mm
Throw of crankshaft
110 mm
120 mm
Max. work length ground in 3 jaw chuck
1400 mm
1600 mm
1800 mm
M ax. work length ground between centres
1600 mm
1800 mm
2000 mm
Max. work weight
120 kg
150 kg
Headstock
Centre height
300 mm
Work speed (rpm)
25,45,95
25,45,65,100
Wheelhead
Max. cross movement
185 mm
Wheelhead rapid approach & withdrawal
100 mm
Wheelhead feed per turn of cross feed handwheel
1 mm
Wheel feed per grad of cross feed handwheel
0.005 mm
Grinding wheel
Wheel spindle speed
740, 890 rpm
Wheel peripheral speed
25.6 – 35 m/sec
Wheel size
Φ900x32xΦ305 mm
Table
Table traverse per turn of handwheel coast
5.88 mm
Table traverse per turn of handwheel fine
1.68 mm
Table swivel (taper 18/100)
5°
Table swivel per grad of scale (taper 1:50)
10’
Overall capacity of motor
9.82 kw
11.2 kw
Overall dimension (LxWxH) (mm)
4166x2037x1584
4900x2037x1584
Weight
6000 kg
6200 kg
7000 kg
Working
Accuracy
Ovality (new standard)
0.005
Cylindricity
0.01
Roughness Ra
0.21
