About this product
- Materials: Steel
- Size: 2100X1200X1850MM
- Color: Green or produce according to clients request
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Steel
- Size: 2100X1200X1850MM
- Color: Green or produce according to clients request
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Steel |
|---|---|
| Size | 2100X1200X1850MM |
| Color | Green or produce according to clients request |
From the supplier

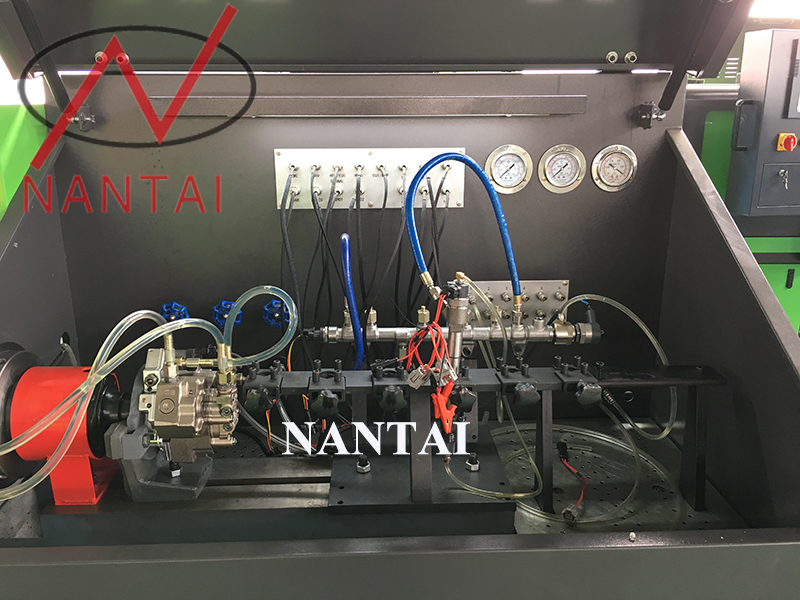

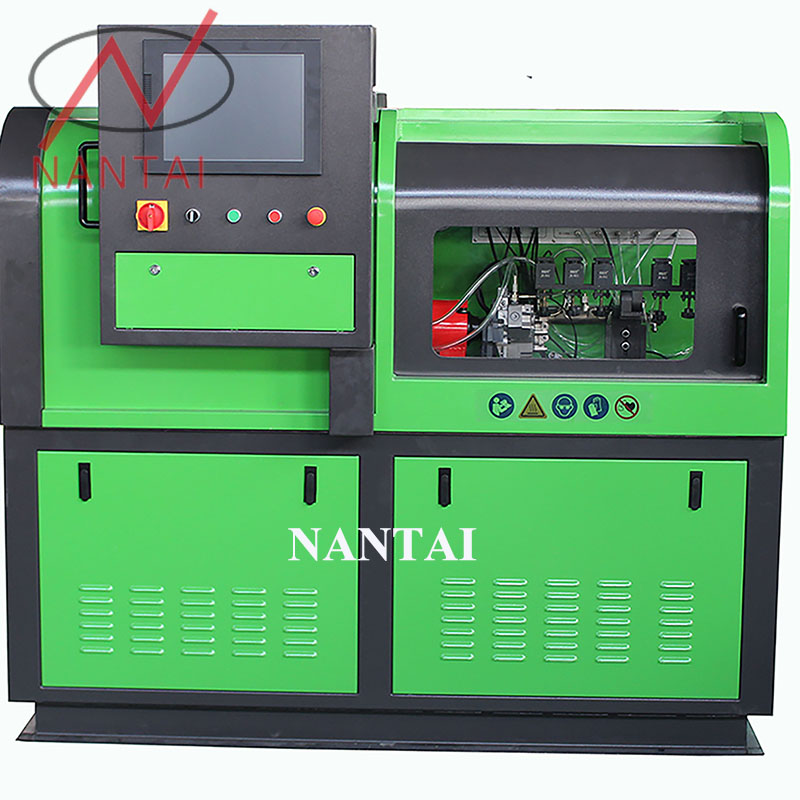

CR925 is the professional test bench which is used for common rail system testing .
The function including:

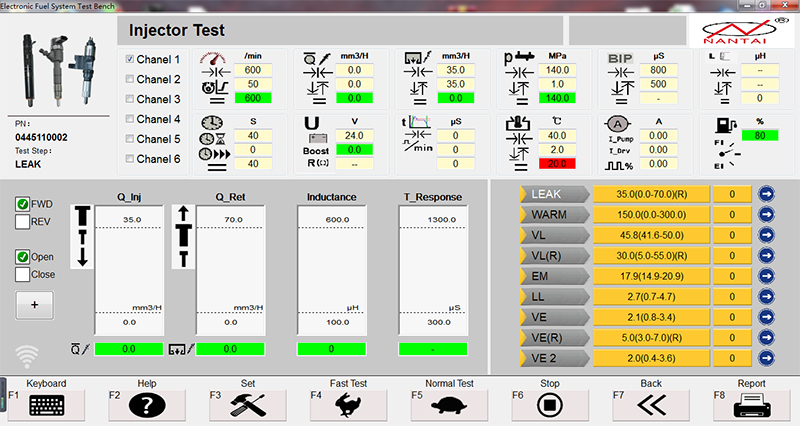

1. Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO .
2. Common rail pump testing of BOSCH DENSO DELPHI and SIEMEN S.
3. Pump delivery and HP1 HP2 HP3 HP4 pump testing .
4. Pressure sensor DRV valve testing .

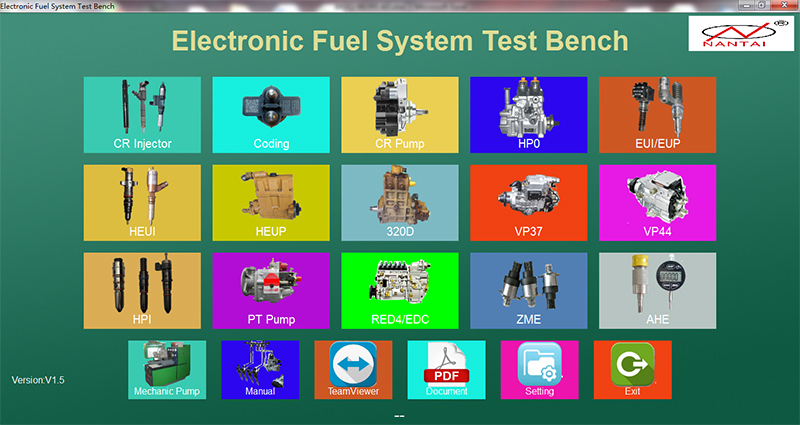

5. Support system: BOSCH DELPHI DENSO SIEMENS.
6. Testing data inside .
7. Electronic fuel delivery measuring (Automatic detection)

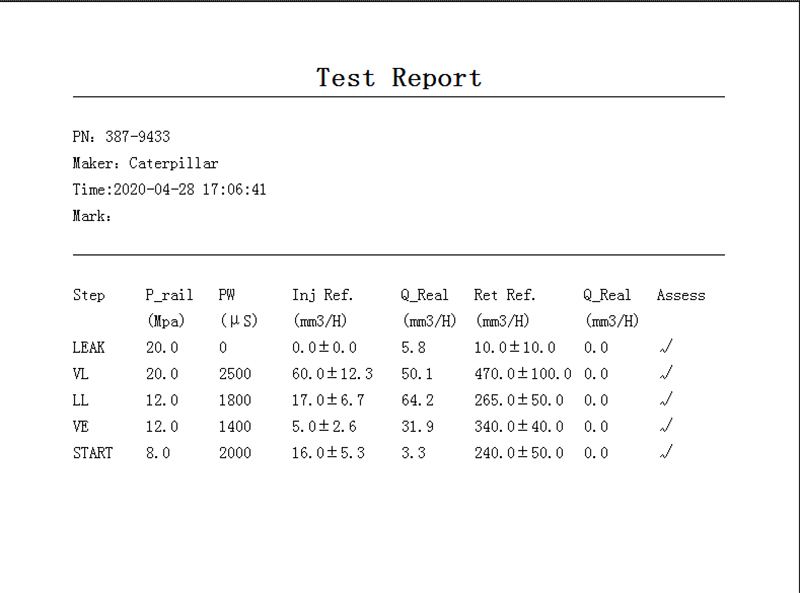

8. Data can be searched and made into database .
9. HEUI injector testing (Optional)
10. EUI EUP CAMBOX testing (Optional)
11. CAT C7/C9 pump testing (Optional)
12. CAT 320D pump testing (Optional)
13. AHE stroke testing (Optional)
14. EUI BIP testing (Optional)
15. QR/IMA coding generating function of BOSCH DENSO DELPHI VDO and CUMMINS.
Technical parameters:
1. Output power: 7.5KW, 11KW, 15KW, 18.5KW, 22KW
2. Electronic voltage: 380V 3 Phase 50Hz, 220V 3 Phase 60Hz, 220V 1 Phase 60Hz.
3. Motor speed: 0-4000RPM
4. Pressure adjustment : 0-2500bar
5. Flow testing range : 0-600ml/1000times
6. Flow measurement accuracy: 0.1ml
7. Temperature range: 40+-2
8. Cooling system: Fan or Forced cooling .
