Advance technology maize starch plant and low price corn starch making machine

Starch manufacturing is to extract the starch from plant seeds, root or tuber. The whole starch extracting process utilizes physical separation method, gradually separating cellulose, proteinand other non-starch substances, so that to get pure and white starch powder.



Maize / Corn Starch Production

Processing of corn starch:

1. Corn cleaning: By utilizing various differences between corn kernels and impurities such as grain shape, size and specific gravity to remove impurities, dust and so on, while measuring and weighing purified corn.

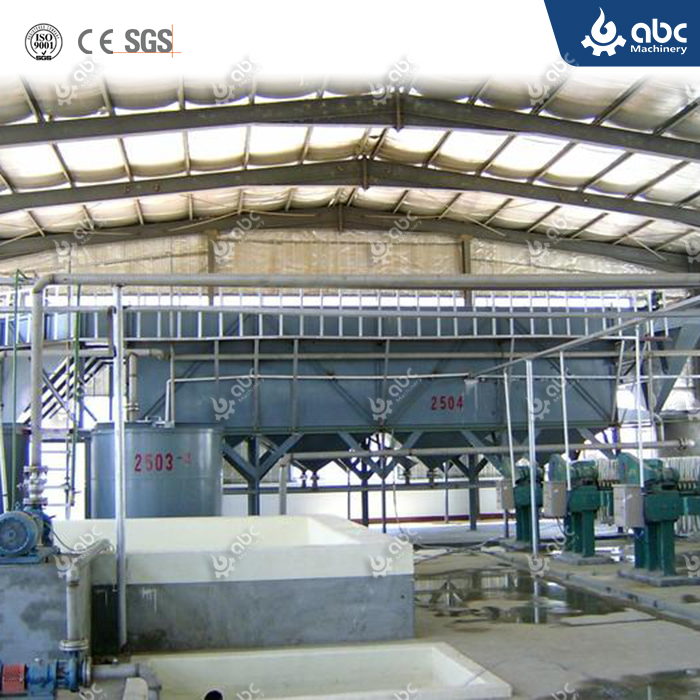

2. Steeping Utilizing H2SO3 to steep corn to destroy the connection of various components and the net of protein from germ and to segregate starch and non-starch part. Also, because of the lactic acid produced during steeping, the protein is hydrolyzing to amino acid and turning to water-soluble substances. This removes most of soluble substances that ensure the afterward process successfully to be operated.

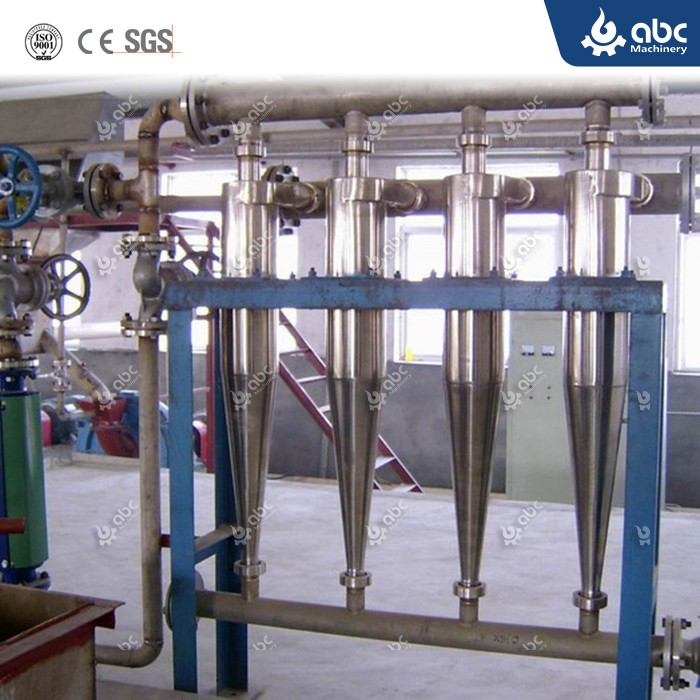

3. Corn crush and germ segregate Crushing steeped corn by using crusher to segregate whole germ and maximum dissociate starch kernels. After broken, the proportion of germ from thin slurry is about 0.96 and the proportion of starch is 1.60, according to the difference of proportion, sending it to the top cylinder of cyclone along the tangents through the pump, thus producing high-speed swirl. Under the effect of strong centrifugal force, the germ of ligCS specific gravity will stay in the center and it will discharge from top overflow hole, the proportion of starch kernels is much large and it is thrown out that outflow from the bottom through the wall to reach the destination of segregation.

4. Purifying The thin slurry after degerming is the mixture between starch and non-starch, the starch kernels are connected with protein and fiber of corn entoderm. It must be grinding by using external force, tearing it scarf-skin and destroying cell tissue, then the binding of starch kernels and other substances can be opened to segregate starch kernels as mush as possible. When the materials enter into the disc rotor center, high-speed rotated rotor will generate huge centrifugal force to let materials be pushed toward edge of rotor, By the high-speed movement of the movable needle and a fixed needle repeated impact, thefierce collision, starch, protein and fiber loose and free,because fiber themselves got less shock and it are not excessive rushed, thus the efficiency of grinding achieved a preferable level.

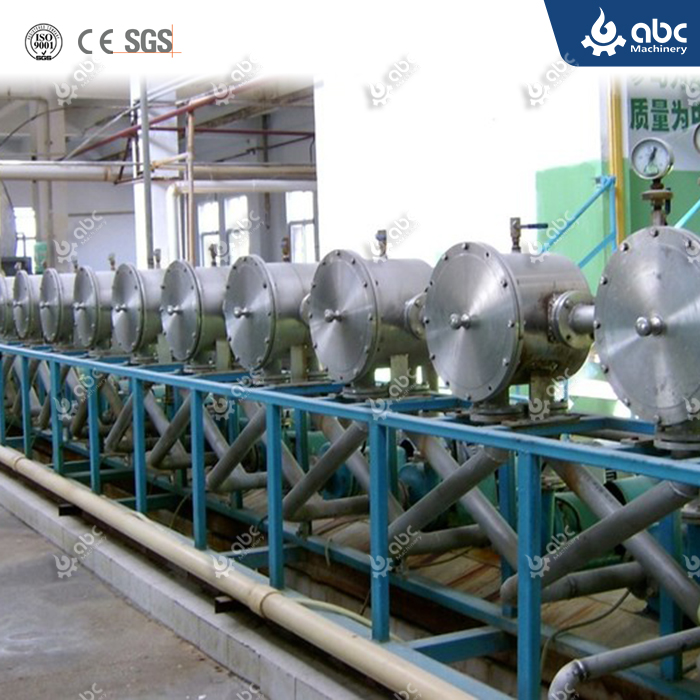

5. Fiber segregation and washing system: Utilizing screen to proceed segregation and washing, screen is the curve screen surface that constituted by various wedge bar, there are lots of long and thin screen cut on the surface, the segregated materials are spraying to the top of screen surface along with tangential direction, moving downward along with screen and being rigCS angel relationship with screen cut. After the materials entered into the screen surface, the starch milkis scraping into screen cut to drop down and discharging from bottom collecting pipe, and objects on the screen is slipping off from the bottom of screen surface under the action of gravity.

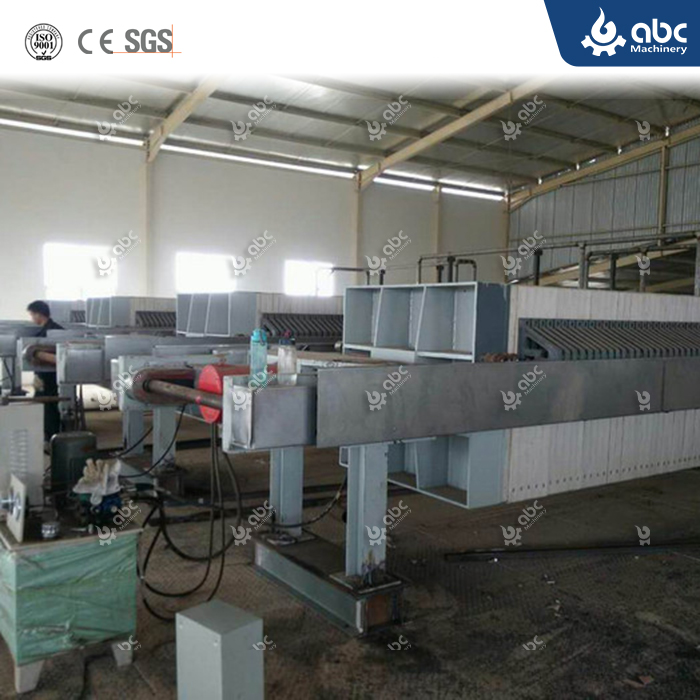

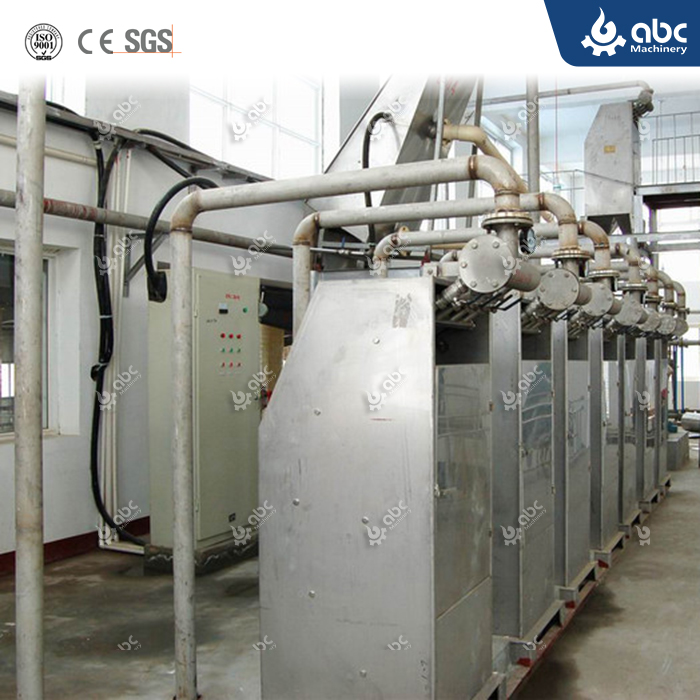

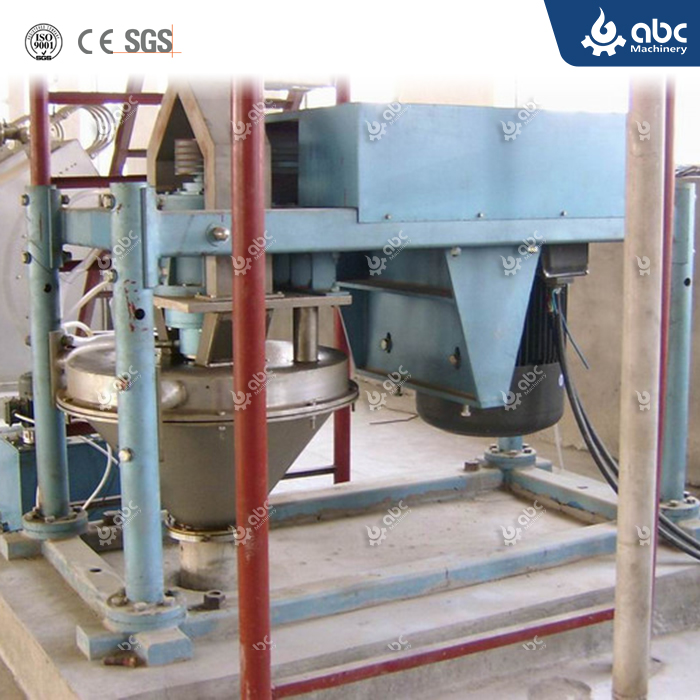

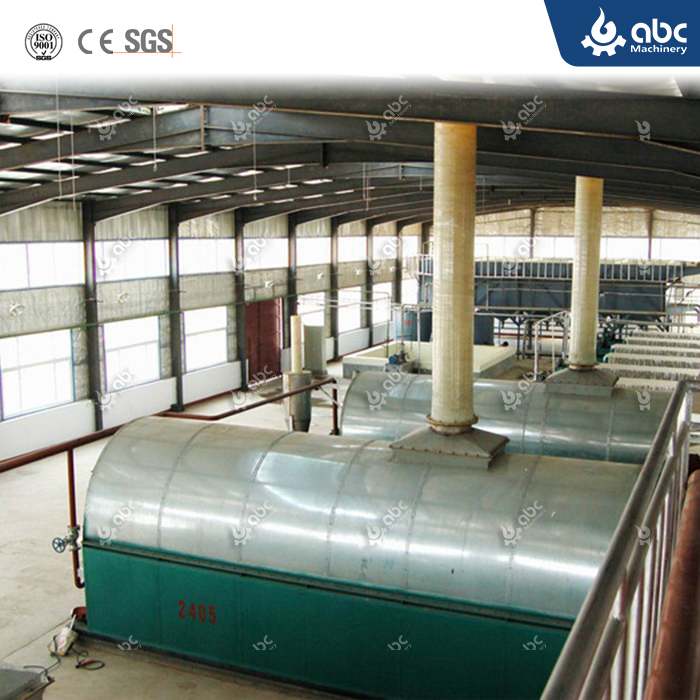

Pictures display of corn starch making machine

According to proceed fiber segregation and upstream washing by using six-level stress, it is not only saved water, but also the free starch can be maximum retrieved.

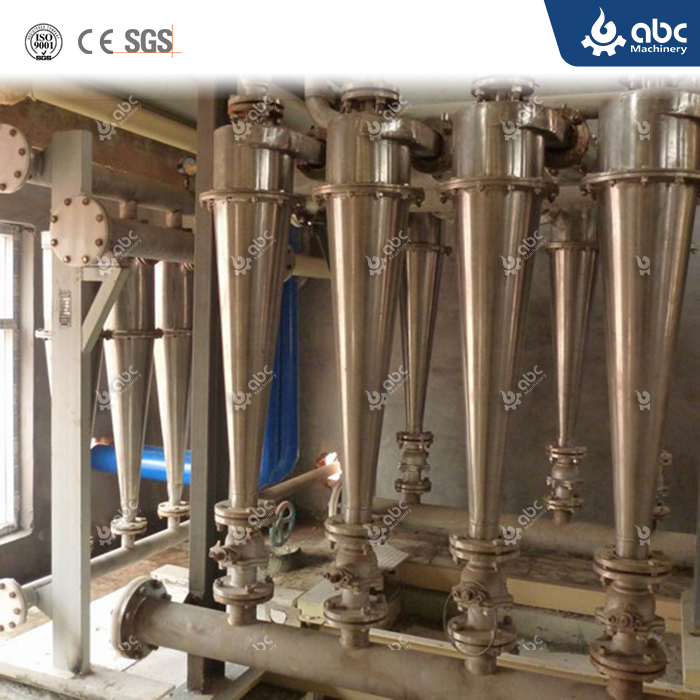

6. Starch / gluten separation Using the theory of different proportion between starch and gluten to segregate them as much as possible. When Screen underflow - starch milk is entering into the disc centrifuge from top feed inlet, the materials are distributing to several thin layers because of rotor is constituted by disc that in a state of high-speed rotating, the starch kernels of large proportion and faster settling are slipping from inside to outside under the centrifugal force, it will discharge from discharge nozzle along with the out wall of the rotor. The less proportion gluten kernels will discharge from top gluten water outlet along with the center. Accordingly, the main segregation can be achieved.7. The soluble starch washing system: The crude starch milk from disc centrifuge contains part of protein and soluble substance. Using grade 12 multi-tube cyclone to refine and wash soluble starch by utilizing the theory of the different proportion of protein and starch. TSome of the refined starch milk is used as raw materials for the glucose production line and the other part is used for dehydration.8. Dewatering and drying Sending the refined soluble starch into horizontal scraper centrifuge, and the wet starch after centrifugal dewatering is sending into starch dryer from screw transfer, the wet starch and hot air will have sufficient heat exchange in starch dryer, then the cyclone separator will separate hot and humid air and dry starch to acquire goods of starch.

Project case we had build 10-500T/D

We could offer you low price corn starch machine

Our customers and partners all over the world
