Corn Paddy Cereal Steel SiloProduct Description

Vertical corn silo, in another name is storage silos or steel grain silo, which is used for farm purpose, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the galvanized metal steel grain silo can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, pellet, wooden pellet etc.



HKB vertical corn silo provide the best quality grain storage option available. Erection of the most popular 250t, 500t, and 1,000t silos is straightforward, and can typically be completed in around 10 days per silo.



The grain silo is equipped with a ventilation temperature control system to ensure that the grain is stored in good condition and is not moldy.

Product Features

Automatic-flow unloading;

save resources and costs;

Hopper angles can be 45° and 60°;

Could be movable;

easily to be installed;

Do not need serious concrete, labor, and energy cost;

less grain residues in steel vertical corn silo;

Hopper structure prevents loss of time and money during the unloading period.

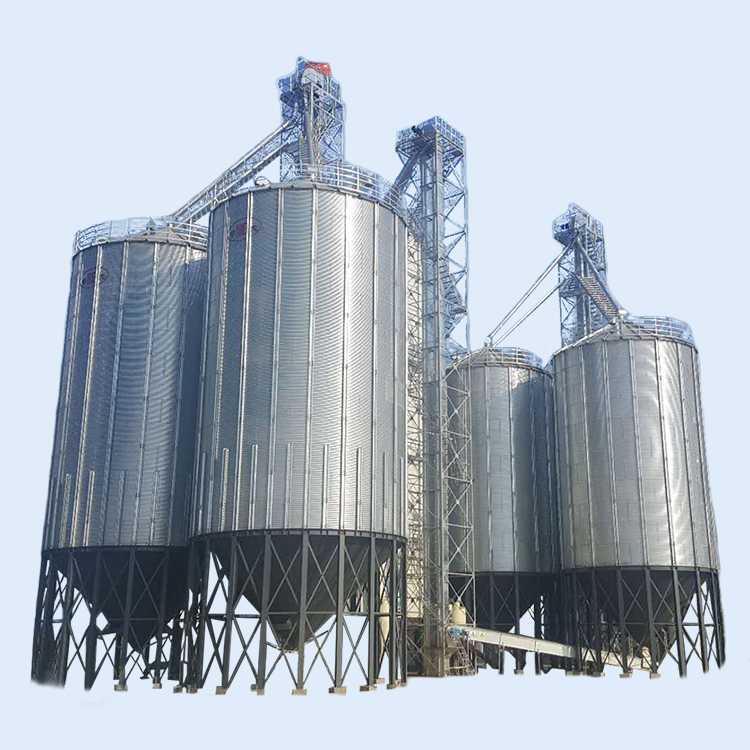

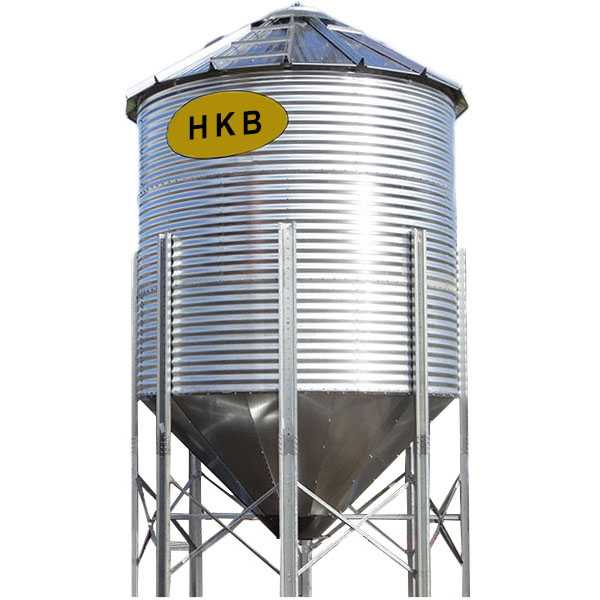

Hopper Bottom Steel Silo Technical Specifications

Capacity

50 ton

100 ton

150 ton

200 ton

300 ton

500 ton

1000 ton

1500 ton

Model

TCZK 03605

TCZK 04506

TCZK 05506

TCZK 05509

TCZK 06410

TCZK 07313

TCZK 10013

TCZK 12811

Diameter(m)

3.667

4.584

5.5

5.5

6.417

7.334

10.084

12.834

Total Height(m)

9.56

11.41

12.13

15.49

17.33

21.42

23.61

23.51

Volume(m3)

Density:0.75ton/m3

69

131

195

275

418

699

1379

2039



Flat Bottom Steel Silo Technical Specifications

Capacity

1000 ton

1500 ton

2000 ton

2500 ton

3000 ton

5000 ton

8000 ton

10000 ton

Model

TCK

10014

TCK 10015

TCK 13715

TCK 14616

TCK 15518

TCK 18321

TCK 22921

TCK 26521

Diameter(m)

10.084

11.918

13.75

14.668

15.584

18.334

22.918

26.585

Total Height(m)

18.69

20.34

20.87

22.25

24.78

28.6

29.85

30.85

Volume (m3)

Density:0.75ton/m3

1335

2009

2701

3278

4145

6693

10640

14513

Structures

1. vertical corn silo roof

Silo roof is made of galvanizing sheet.

Silo roof vent,ladder,manhole,safety handrail is set on the roof as our standard design.

2. vertical corn silo body

The grain silo bin is made of high quality hot-dip galvanizing steel sheet corrugated by special equipments, Body sheets are connected by high yeild bolts, the thickness of silo sheet is designed according to the constant strength theory. There are stiffeners fixed on the body ,which is used to bear the vertical friction force and support the grain silo body;The bolts and nuts are fixed with spherical waterproof washers. There are Aviation special waterproof rubber strip between the silo sheets. The grain silo is equipped with round door, inside and outside ladder, ladder protecting wire net and ladder platform.

3. vertical corn silo bottom fundation:

Silo bottom fundation is made of concrete. We will give you the foundation design according to your soil test and you make the foundation by yourself.

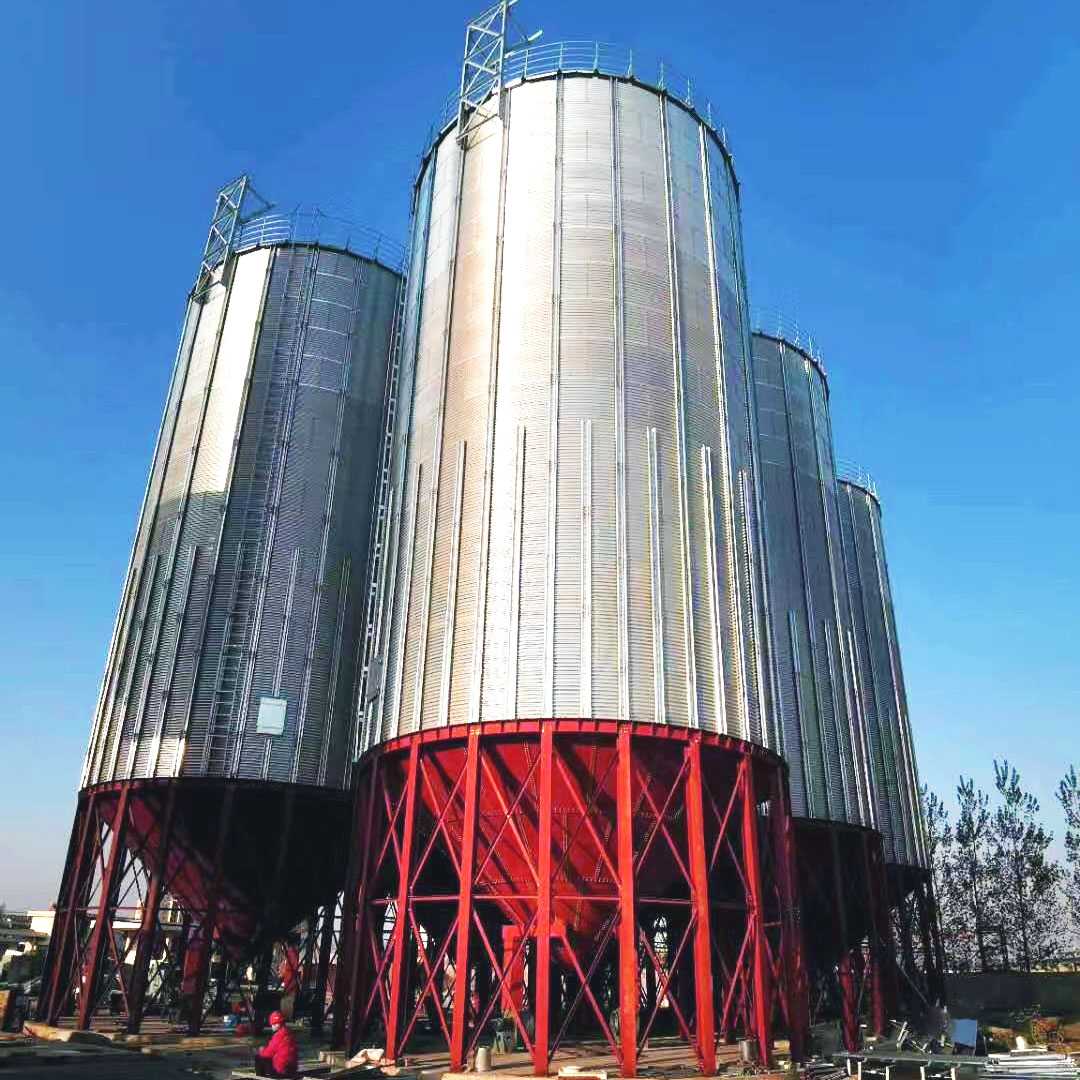

4.Wide Flange I-Beam Support Structure:

Wide flange I-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind,snow, seismic requirements.

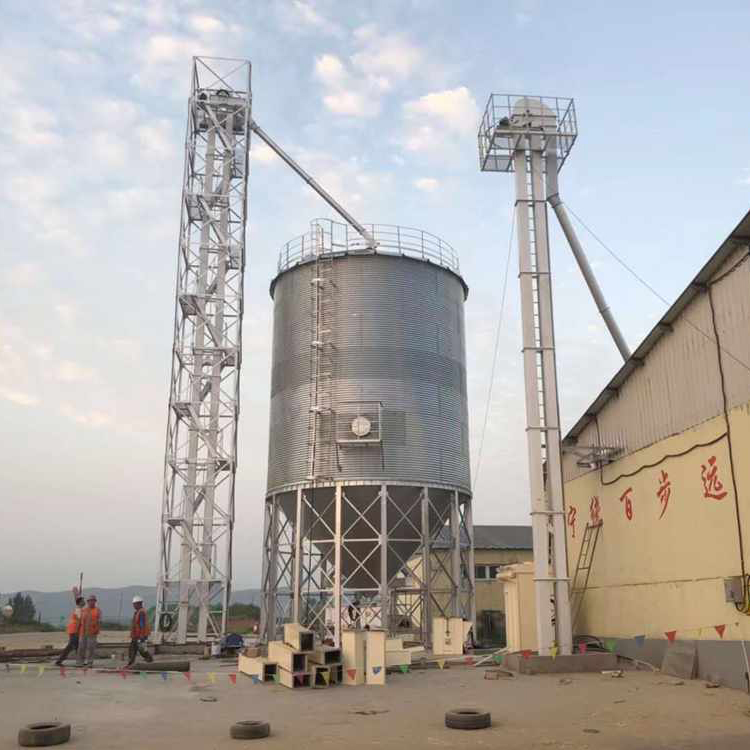

silo Installation and production process

Engineer on-site guidance installation

   Contact Supplier

success case

Henan Haokebang Machinery Equipment Co.,ltd. is a professional supplier of 100t grain silo.The production factory named HKB grain silo co.,ltd. locatd in the same city.
HKB have the agent now in South Africa, Austrilia,Bangladesh, Israel;
HKB is the real factory without any middle trading man to do the business with customer directly,
HKB has the separate research & development, project engineering, manufacturing, sales,installation and services team.
HKB provides assembly vertical corn silo  convering from 10t—10000t each,  There are the vertical corn silo used for  grain, corn,, or any type of pellets, and also HKB provies the silo for grain/corn flour,cement ,sand or any type of powder.
HKB vertical corn silos are made of hot dip galvanizing steel sheets with coating of 275g/m2,or 350g/m2,400g/m2 etc; the silos can also be made of the carbon steel Q235 for the powder silo with painting mass.
HKB vertical corn silos are made as per the Chinese national standard or Austrilian standard, American standard;
HKB grain silos have been sold to more than 50 countries, such as Argentina, Australia, America,Chile, China, Cambodia,Ethiopia, Honduras, India, Indonesia,Korea, Malaysia, Myanmar, Pakistan, South Africa, Sudan, Serbia, Thailand, Tanzania,Ukraine, Vietnam, Peru,Newzealand,Mexco,Korea,Philipine,Uganda and so on .

Customers Visiting

Company Information

1. Factory P and perfect after-sales service.

2. Alibaba Assessed Gold Supplier.

3. Detail Design Thoughtful

4. 100% QC inspection Before Shipping.

5. Cases in many countries.

6. Foreign 72 hours to provide solutions

Haokebang Machinery is a professional manufacturer in producing 50-100000 ton steel vertical corn silo. Now, Haokebang Machine has been exported Vertical corn silo to more than 50 countries.
