Products Description

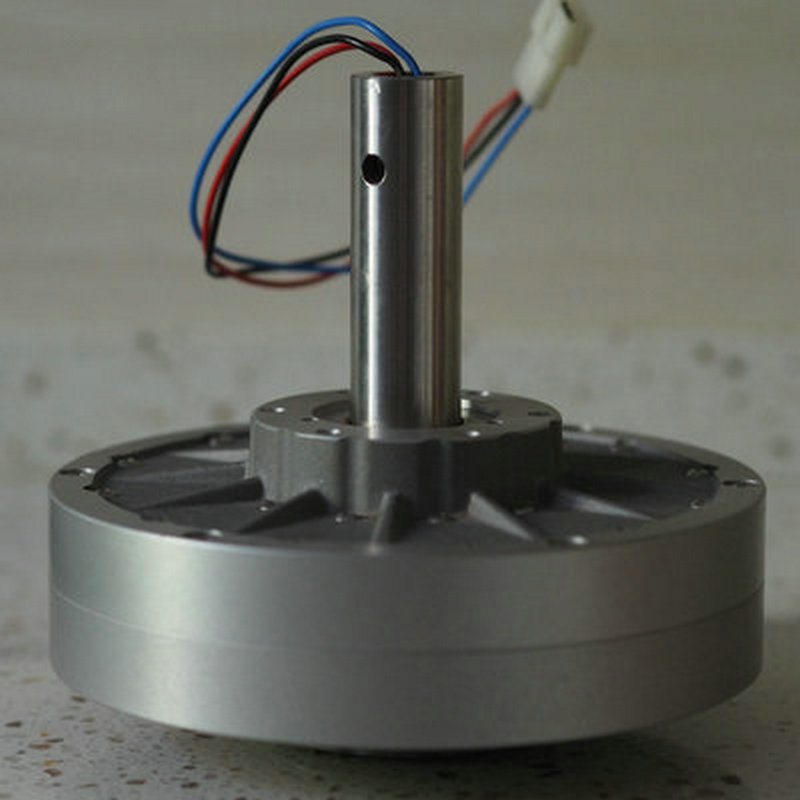

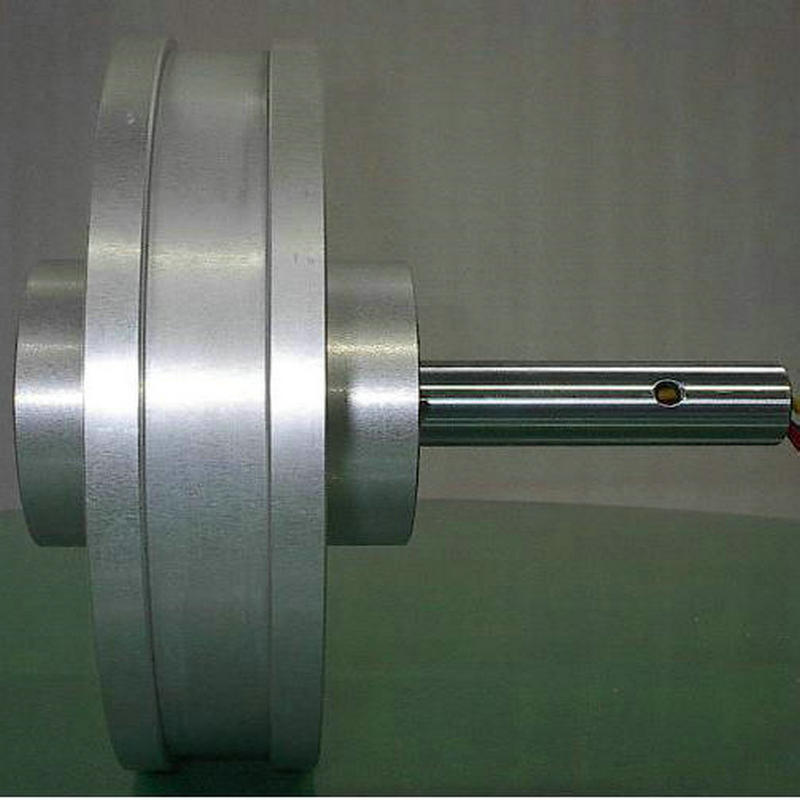

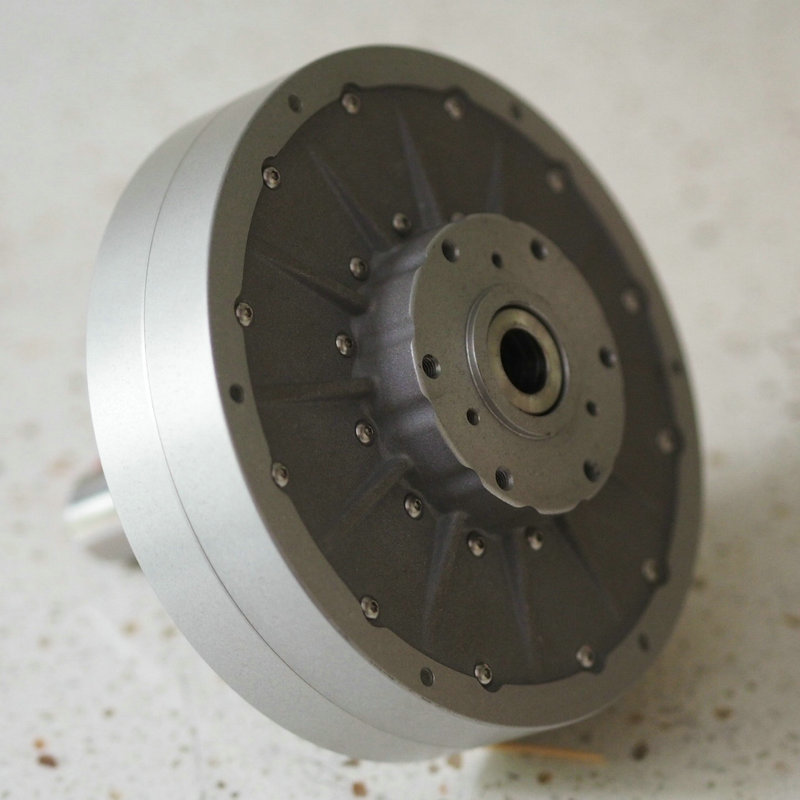

Coreless Disc Permanent Magnet Generator

Model: 95DM0301-01

200W 380rpm 28V

Products Parameters

Coreless Disc Permanent Magnetic Generator 200W 380rpm 28V

Model: 95DM0301-01

For detailed product parameters, characteristic curves and drawings, please refer to:

200W-380rpm-28V-95DM0301-01.pdf

Introduction

1.1 Outer rotor coreless multimode generator
This generator features an outer rotor structure that allows rotation of a magnet and coreless design that eliminates an iron core. The generator achieves noise-free rotation, together with extreme smoothness. Since the generator is free of electrically contacted components, there is no cause of cogging or core damage. In addition, the multimode design can generate high voltage even at minimum rotating speeds and realize high-power output and improved efficiency in the range from low to high wind or flow velocities.

1.2 The generator ensures safe operation under strong wind or flow conditions
The generator is so safety-designed that it can endure continuous braking even during high-speed rotation under strong wind or flow conditions. The pole-top bearing made of corrosion resistant aluminum alloy is designed by utilizing the unique technology used which ruggedly supports the generator shaft, providing the highest levels of safety even under strong wind or flow conditions.

1.3 The generator has a powerful brake system
The electric (electromagnetic) brake system of the generator permits trouble and wear-free operation even during continuous operation and thus ensures the highest safety. The brake system can safely decelerate the generator even when it is necessary to rapidly stop the generator while rotating at more than rated speed.

1.4 Feature
(1)Voltage tuned on customer request
(2)25 years life design,long using life
(3)NdFeB Magnets
(4)Outer rotor disc
(5) IP55 protection grade, generator completely closed, high reliability
(6) Low friction bearings,low start torque
(7) Nominal speed ~300rpm, low speed, max. speed up to 3500 rpm
(8) No cogging torque
(9)Efficiency > 90%,Low-speed and high efficient
(10)Good heat dissipation effect
(11)Low noise level.

Products Application

3.1 Wind turbine
The wind turbine using coreless disc generator is the most advanced, high-efficiency, low-noise and new style, which provides nature, clean and green power system to the city, village, road, tunnel, building, park, aquare, battalion and so on. The coreless disc generator c can make the turbine start to spin in the case of 1m/s wind speed, and almost no sound of silence. Its fully automated brakeing system can shut down the operation under strong winds to ensure the safty of the use of the product.

3.2 Hydroelectric power
In the rich of water resource area, if adopting high efficient,coreless disc generators shall make full use of local natural resources to solve people's lives, and without destroying the natural environment, meanwhile, but also beautify the environment, and become a beautiful landscape.

3.3 Aerospace
3.4 Robotics
3.5 The Drilling Tool Systems

Our Advantage

We focused on the development and application of renewable energy products, having a first-class R&D team, through "people-oriented" design concept, to strive to innovate product performance and inprove product quality continuously to satisfy the demand of the market. We can develop and produce specific products to meet the needs of different industires according to the customer's specific requirement.
