Product Application

Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.

Conductor: Single copper
Insulation:PVC ,or PE, insulation can be chosen according to customer's requirements.
Flexible material is also usual used insulation.

Product Service Conditions

Working temperature:Not more than 105°C for RV-105 model.The other no more than 70°C.

Model

Name

BV

Copper Core PVC Insulation Wire

BLV

Aluminum Core PVC Insulation Wire

BVR

Copper Core PVC Insulation Flexible Wire

BVV

Copper Core PVC Insulation PVC Sheath Round Wire

BVVB

Copper Core PVC Insulation PVC Sheath Flat Wire

BLVVB

Aluminum Core PVC Insulation PVC Sheath Flat Wire

BV-90

Copper Core Heat-resistance 105oC PVC Insulation

BV BLV(BV-90)450/750V

Nominal Section
(mm2) No/Dia.of Core
(mm) Max, O.D
(mm) Reference Weight
(kg/km) Conductor Resistance at 20oC≤(Ω/km) Copper Aluminum Aluminum Copper 1.5(A) 1/1.38 3.3 20.3 12.1 1.5(B) 7/0.52 3.5 21.6 12.1 2.5(A) 1/1.78 3.9 31.6 17 11.8 7.41 2.5(B) 7/0.68 4.2 34.8 7.41 4(A) 1/2.55 4.4 47.1 22 7.39 4.61 4(B) 7/0.85 4.8 50.3 6(A) 7/0.85 4.8 50.3 29 4.91 3.08 6(B) 7/1.04 5.4 71.2 3.08 10 7/1.35 7.0 119 62 3.08 1.83 16 7/1.70 8.0 179 78 1.91 1.15 25 27/2.04 10.0 281 118 1.20 0.727 35 27/2.52 11.5 381 156 0.868 0.524 50 19/1.78 13.0 521 215 0.641 0.387 70 19/2.14 15.0 734 282 0.443 0.268 95 19/2.52 17.5 962 385 0.320 0.193 120 37/2.03 19.0 1180 431 0.253 0.153 150 37/2.25 21.0 1470 539 0.206 0.124 185 37/2.52 23.5 1810 666 0.164 0.0991 240 61/2.25 26.5 2350 857 0.125 0.0754 300 61/2.52 29.5 2930 1070 0.100 0.0601 400 61/2.85 33.0 3870 1390 0.0778 0.0470

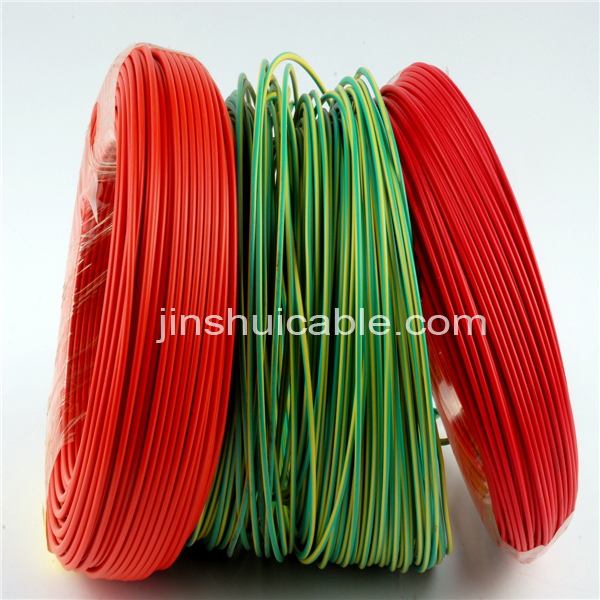

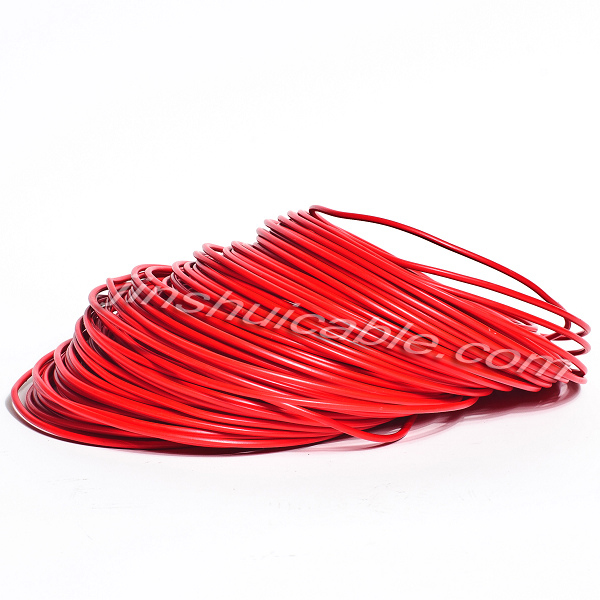

Product Detail Presentation

FAQ
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome your kind enquiry!
