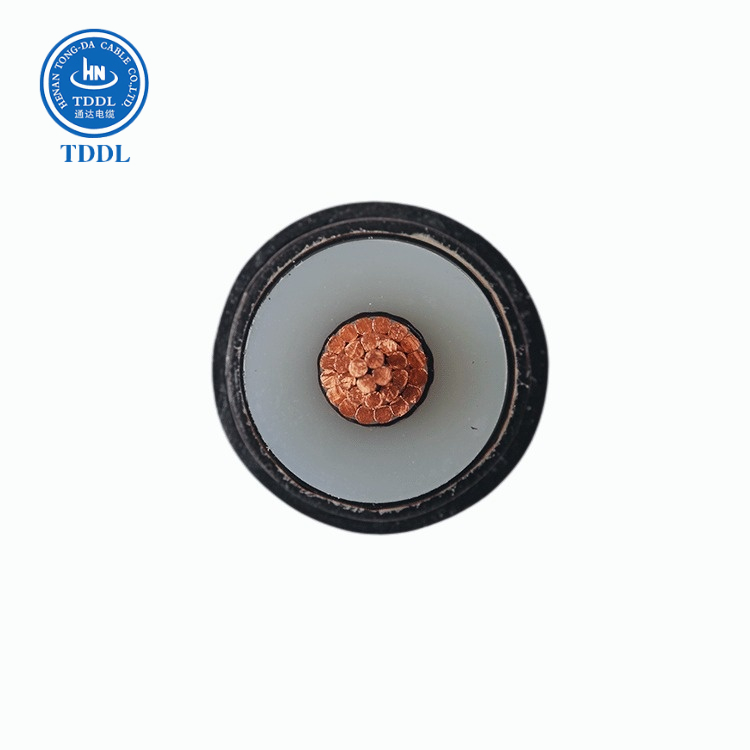

YJSV (N2XSY) Single-core  6/10kV 8.7/15kV 12/20kV 18/30kV

CU / XLPE / CWS / PVC

(Copper conductor, XLPE insulated, Copper Wire screened, PVC sheathed)

Application:

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

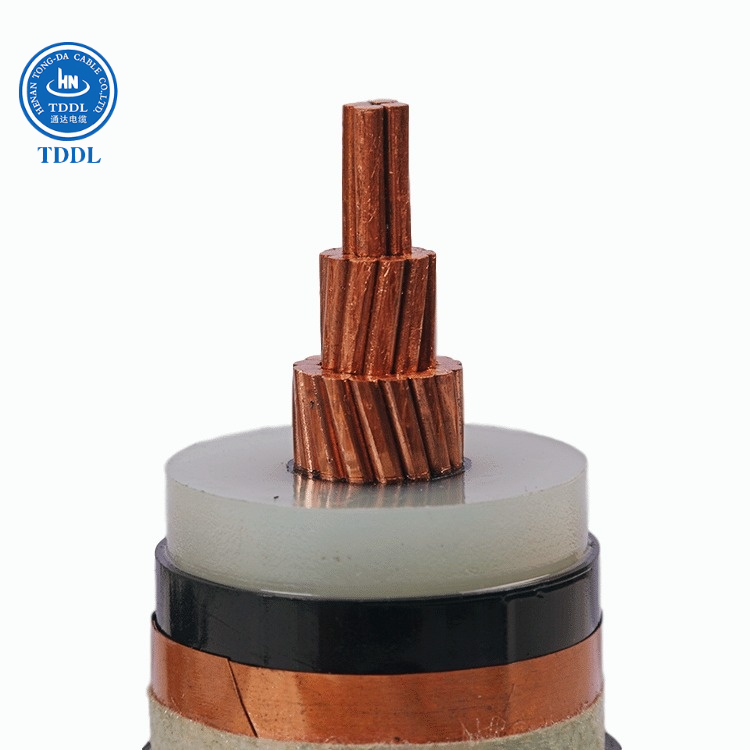

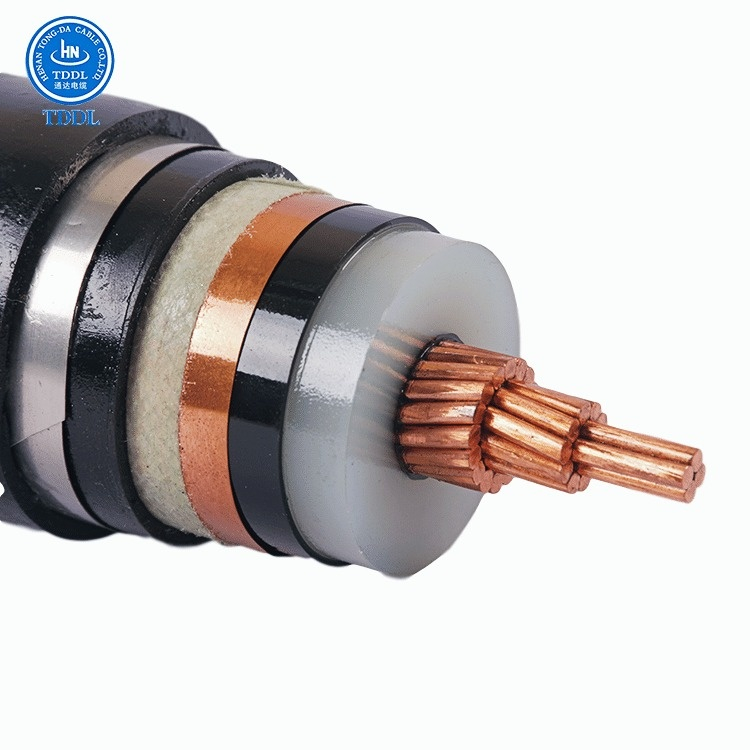

Construction ：

• 1) Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
• 2) Conductor screen: Non-metallic，semi-conducting compound
• 3) Insulation: Cross-linked polyethylene XLPE
• 4) Insulation screen: Non-metallic，semi-conducting compound
• 5) Metallic screen: Copper wire and copper tape
• 6) Oversheath: Polyvinyl chloride PVC

SPECIFICATIONS:

IEC 60228 Conductors of insulate cables

IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

No. of cores and nominal cross section

Thickness of Insulation

Cross section of Screen

Thickness of

 Sheath

Approx.

overall Diameter

Approx. weight

Max. DC resistance of conductor（20℃）

Current carrying capacity

(mm2)

(mm)

(mm2)

(mm)

(mm)

(kg/km)

(Ω/km)

In Air

(A)

In Ground

(A)

YJSV (N2XSY) - 6/10kV

1x25/16

3.4

16

1.8

21.8

720

0.727

170

155

1x35/16

3.4

16

1.8

22.9

829

0.524

197

187

1x50/16

3.4

16

1.8

24.0

969

0.387

236

220

1x70/16

3.4

16

1.8

25.7

1193

0.268

294

268

1x95/16

3.4

16

1.8

27.2

1462

0.193

358

320

1x120/16

3.4

16

1.8

28.7

1710

0.153

413

363

1x150/25

3.4

25

1.8

30.2

2060

0.124

468

405

1x185/25

3.4

25

1.9

32.0

2450

0.0991

535

456

1x240/25

3.4

25

2.0

34.7

3000

0.0754

631

526

1x300/25

3.4

25

2.1

36.9

3600

0.0601

722

591

1x400/35

3.4

35

2.2

40.2

4530

0.0470

827

662

1x500/35

3.4

35

2.3

44.1

5580

0.0366

949

744

YJSV (N2XSY) - 8.7/15kV

1x25/16

4.5

16

1.8

23.8

800

0.727

160

180

1x35/16

4.5

16

1.8

24.8

913

0.524

197

188

1x50/16

4.5

16

1.8

26.1

1057

0.387

236

221

1x70/16

4.5

16

1.8

27.8

1288

0.268

294

271

1x95/16

4.5

16

1.8

29.4

1562

0.193

358

232

1x120/16

4.5

16

1.9

31.0

1831

0.153

413

366

1x150/25

4.5

25

1.9

32.5

2192

0.124

468

407

1x185/25

4.5

25

2.0

34.4

2585

0.0991

535

460

1x240/25

4.5

25

2.1

36.8

3162

0.0754

631

531

1x300/25

4.5

25

2.1

39.0

3752

0.0601

722

597

1x400/35

4.5

35

2.3

42.4

4703

0.0470

827

670

1x500/35

4.5

35

2.3

45.3

5761

0.0366

949

745

No. of cores and nominal cross section

Thickness of Insulation

Cross section of Screen

Thickness of

 Sheath

Approx.

overall Diameter

Approx. weight

Max. DC resistance of conductor（20℃）

Current carrying capacity

(mm2)

(mm)

(mm2)

(mm)

(mm)

(kg/km)

(Ω/km)

In Air

(A)

In Ground

(A)

YJSV (N2XSY) - 12/20kV

1x35/16

5.5

16

1.8

26.86

989

0.524

225

150

1x50/16

5.5

16

1.8

28.16

1136

0.387

270

180

1x70/16

5.5

16

1.9

30.06

1385

0.268

330

220

1x95/16

5.5

16

1.9

31.66

1664

0.193

400

265

1x120/16

5.5

16

2.0

33.26

1939

0.153

460

310

1x150/25

5.5

25

2.0

34.76

2304

0.124

520

350

1x185/25

5.5

25

2.1

36.66

2703

0.0991

585

400

1x240/25

5.5

25

2.1

38.86

3270

0.0754

680

465

1x300/25

5.5

25

2.2

41.26

3884

0.0601

775

535

1x400/35

5.5

35

2.3

44.46

4826

0.0470

885

615

1x500/35

5.5

35

2.4

47.56

5913

0.0366

1000

725

YJSV (N2XSY) - 18/30kV

1x35/16

8.0

16

2.0

32.2

1255

0.524

238

172

1x50/16

8.0

16

2.0

33.4

1426

0.387

286

203

1x70/16

8.0

16

2.1

35.3

1691

0.268

356

246

1x95/16

8.0

16

2.1

37.1

2003

0.193

434

293

1x120/16

8.0

16

2.2

38.6

2286

0.153

500

332

1x150/25

8.0

25

2.2

40.6

2683

0.124

559

366

1x185/25

8.0

25

2.3

42.3

3096

0.0991

637

410

1x240/25

8.0

25

2.3

44.8

3703

0.0754

745

470

1x300/25

8.0

25

2.4

47.2

4334

0.0601

846

524

1x400/35

8.0

35

2.5

50.4

5329

0.0470

938

572

1x500/35

8.0

35

2.6

53.3

6447

0.0366

1065

725
