Ⅰ. Product Overview

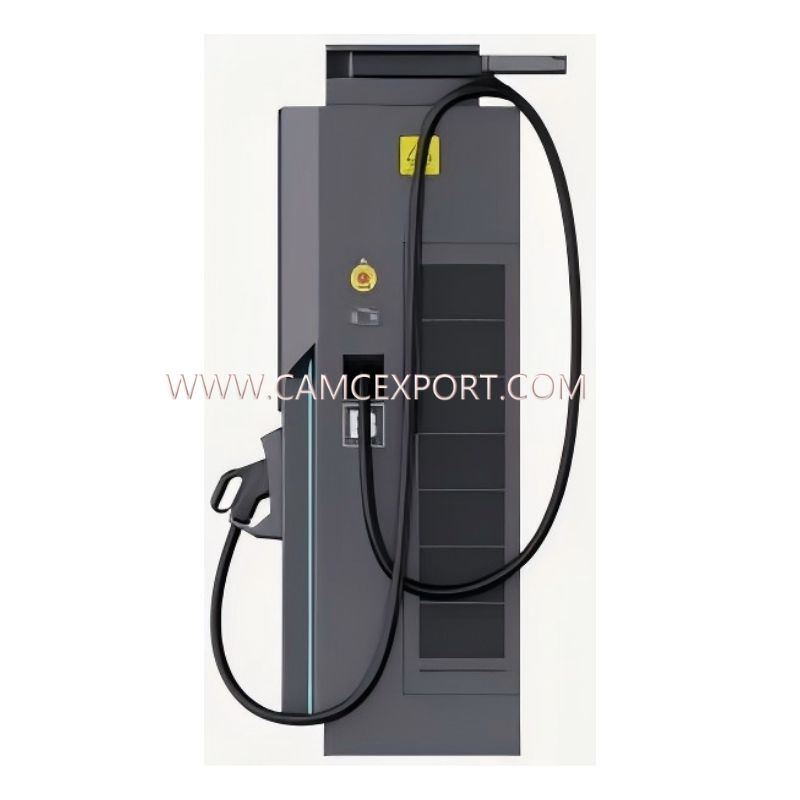

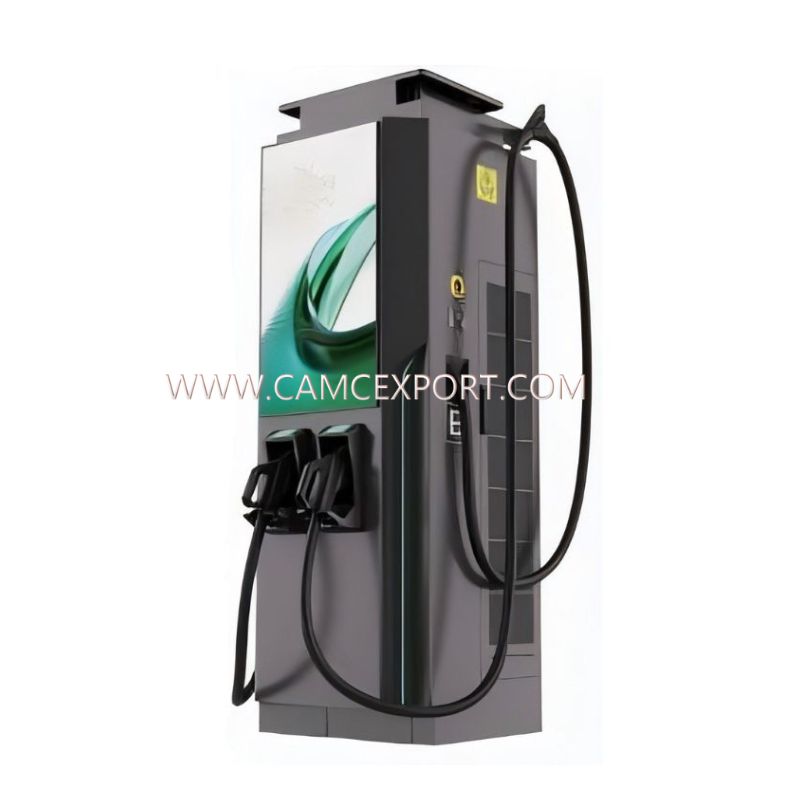

This floor-standing DC fast charger is a flagship solution built for global commercial scenarios, featuring a newly developed, sleek appearance with soft contours that support full-body color customization to align with any brand’s visual identity. The front high-definition advertising display transforms it from a utility into a powerful offline brand engagement and traffic-driving tool.

Equipped with 8 standard 20kW module slots, it can be scaled up to 240kW by installing 30kW modules, flexibly meeting the charging needs of both passenger EVs and light commercial vehicles, while delivering both practical value and commercial benefits.

Ⅱ. Core Features & Advantages

1.Customizable Appearance to Create a Brand Landmark

Full-body color and graphic customization is available, and the front HD screen can remotely display brand promotions, event posters, and more, turning the charger into a visual focal point that drives traffic and conversion.

2.Flexible Power Scaling for Long-Term Needs

The modular design allows power to be upgraded from 40kW to 240kW simply by swapping in 30kW modules, eliminating the need for full unit replacement. It supports single/dual connector modes and parallel charging for multiple vehicles.

3.Bidirectional Vehicle-Grid Interaction to Optimize Energy Costs

Supports V2G/V2L/V2H bidirectional charging, enabling energy storage during off-peak grid hours and feedback to the grid or building during peak demand, reducing operational costs and providing backup power for emergencies.

4.Comprehensive Safety Protection for Reliability

IP54 dust and water resistance, plus IK10 impact resistance, ensure durability in harsh outdoor environments. Multiple safety protections include overvoltage/undervoltage protection, ground fault detection, an emergency stop button, temperature sensors, and short-circuit output shutdown, ensuring full-link safety.

5.Intelligent O&M System to Reduce Operational Costs

FRU onboard diagnostics enable real-time status monitoring and precise fault localization. The modular design supports hot-swappable components, and OCPP 1.6J compliance allows remote firmware upgrades, significantly reducing downtime.

Ⅲ. Technical Specifications

Input Voltage: 400VAC / 480VAC (3P+N+PE) 50/60Hz

Output Range: 200–1000VDC

Single Connector Output Current: CCS1/CCS2/CHAdeMO-100A | GBT-100A

Efficiency: ≥94% at nominal output

Protection Class: IP54 | IK10

Operating Temperature: -30°C to 55°C

Humidity: ≤95% RH (non-condensing)

Dimensions (L×W×H): 630mm × 260mm × 1600mm

Weight: 100kg

Ⅳ. Application Scenarios

Ideal for overseas public charging stations, shopping mall parking lots, brand experience centers, and highway service areas. It meets EV charging needs while adding brand value through its customizable appearance and advertising screen.

Ⅴ. International Customer Reviews

Highway Service Area Operator, Germany

“We installed 6 units at our service area. The customized design blends perfectly with our location’s aesthetic, and the advertising screen displaying local tourism content increased charging volume by 28%. It’s been running flawlessly for six months with zero maintenance issues.”

Supermarket Chain Operator, USA

“The dual-gun design maximizes device utilization, and the V2G feature lets us feed power back to our stores during peak hours, saving over $4,000 on electricity bills in six months. The advertising screen also promotes our in-store promotions—win-win.”

EV Owner, Australia

“The touchscreen is smooth, and contactless payment is super convenient. A full charge takes just 25 minutes—twice as fast as my old charger. It works reliably even in rainy weather, making it a top choice for my daily needs.”

Ⅵ. FAQ

Q1: What content formats does the advertising screen support?

A: It supports images, videos, and other mainstream formats, with remote content upload and scheduling via a cloud-based platform, ideal for brand campaigns and event promotions.

Q2: Is the charger compatible with overseas EV models?

A: Yes, it works with CCS1, CCS2, CHAdeMO, and GBT connectors, covering most new energy vehicles in Europe, America, and the Asia-Pacific region.

Q3: How do I expand the power capacity?

A: Simply replace existing modules with higher-power options (e.g., 30kW modules) to reach 240kW, no full unit replacement needed. The upgrade is quick and cost-effective.

Q4: Can the device operate in extreme weather?

A: It has a wide operating temperature range of -30°C to 55°C, with a robust design that performs reliably in both freezing cold and intense heat.

Q5: Does it support multiple payment methods?

A: Yes, it comes with a built-in RFID reader and optional credit card module, and integrates with third-party payment platforms to support cash, card, and QR code payments.
