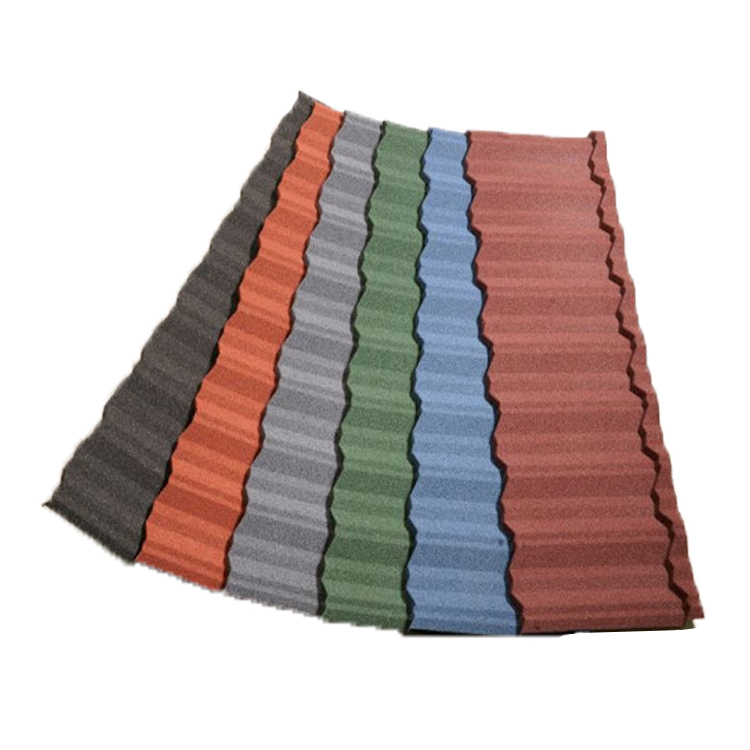

The smooth lines and unique wave design of Milano tile color stone coated roofing tile give the building a wave-like beauty. It is not necessary to remove the original roof during construction, and it can be directly operated. Due to the large surface area and light weight, the unique design and structure of the buckle and the horizontal nailing method are used to connect and fix each other firmly.

Specification

Type: Milano Tile

Size: 1340X420MM

Effective Size: 1290X370MM

Thickness of steel : 0.30MM, 0.32MM, 0.35MM, 0.38MM, 0.40MM

Steel Material: aluzinc steel sheet

Weight: 2.2 ~ 2.71 kg/PC

Color: red, blue, gray, brown, green, black

Product Features & Advantages

1. Counter batten installation

The counter battens are installed from bottom to top. The first tile bar is installed at the cornice, the second tile bar is installed 350mm away from the first tile bar, and the distance from the third tile bar to the last tile bar is greater than 368mm.

2. Color stone coated roofing tile installation

1) The tiles are installed from bottom to top. The first tile is 20mm from the eaves, and the second tile is installed in turn on the ridge. If there is excess, it needs to be cut or pulled down to a suitable position.

2) 20-25mm flat-head stainless steel or galvanized screws are required to connect the tiles to the tiles. The first tile is screwed into the groove of the tile to connect with the tile, and then the second tile covers the cover of the first tile, and then it is driven in from the groove of the lower mouth to fix the tile. A tile requires 7 screws, 3 on the bottom and 4 on the top.

3. Gutter installation

Install the gutter first, then install the color stone coated roofing tile. When installing the tiles in the gutter, pay attention to the fact that the tiles need to be folded down by 20mm. When cutting the tiles, align them evenly. It is best to pre-lay the tiles before cutting them, and then play the cutting lines and fold lines.

4. Cornice installation

The eaves should be installed first, installed on the first tile strip and fixed with screws, and then the tiles are covered on the eaves and fixed with screws.

Conventional color stone metal tile flashing board installation

5. Installation of flashing board

The flashing board should be installed later, with tiles on one side against the wall and fixed with screws on both sides. After the flooding is installed, the side close to the wall needs to be treated with waterproof sealant
