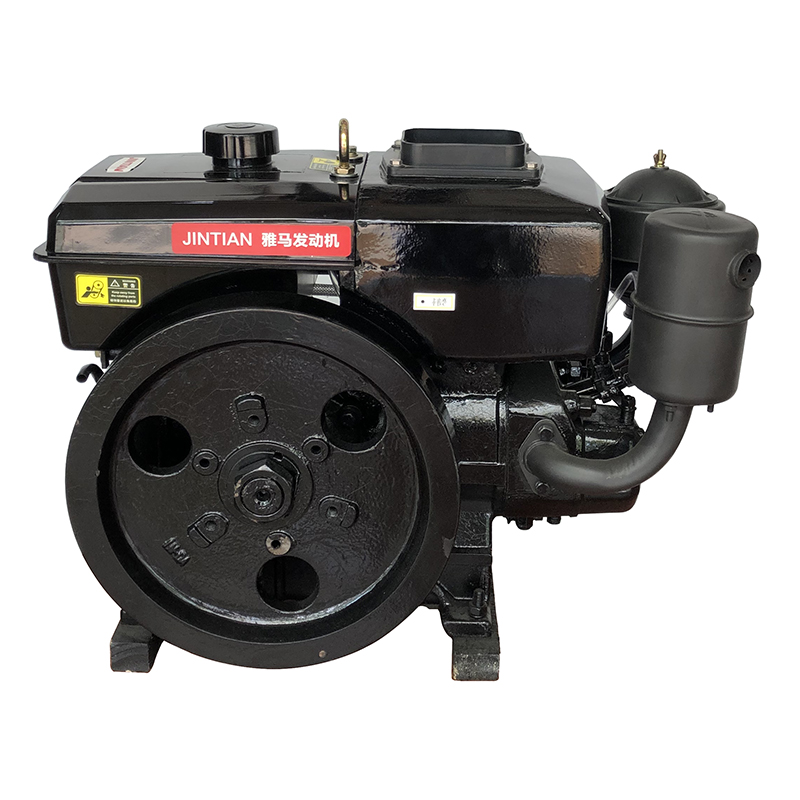

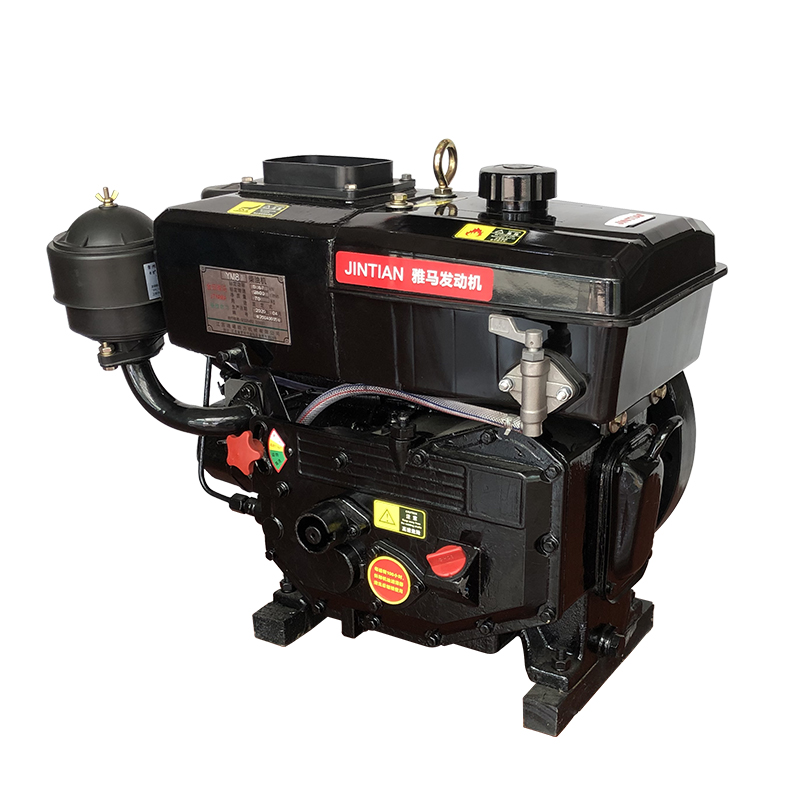

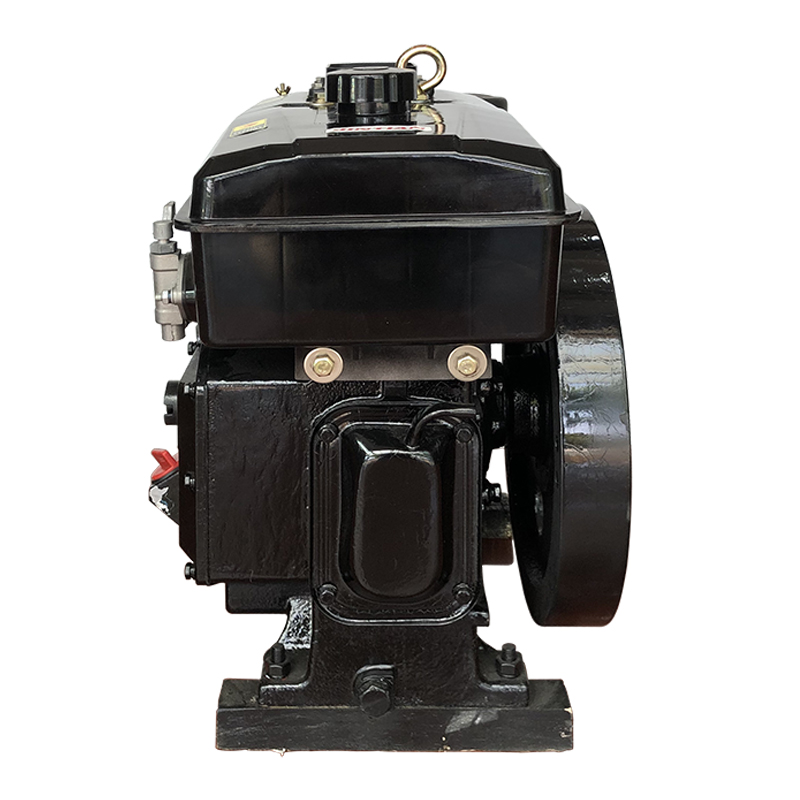

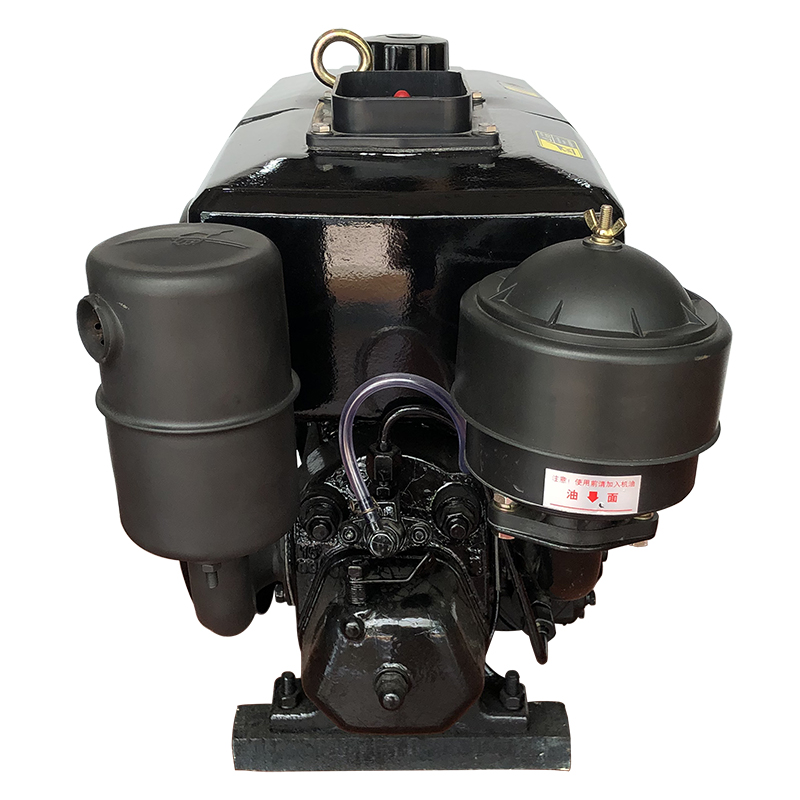

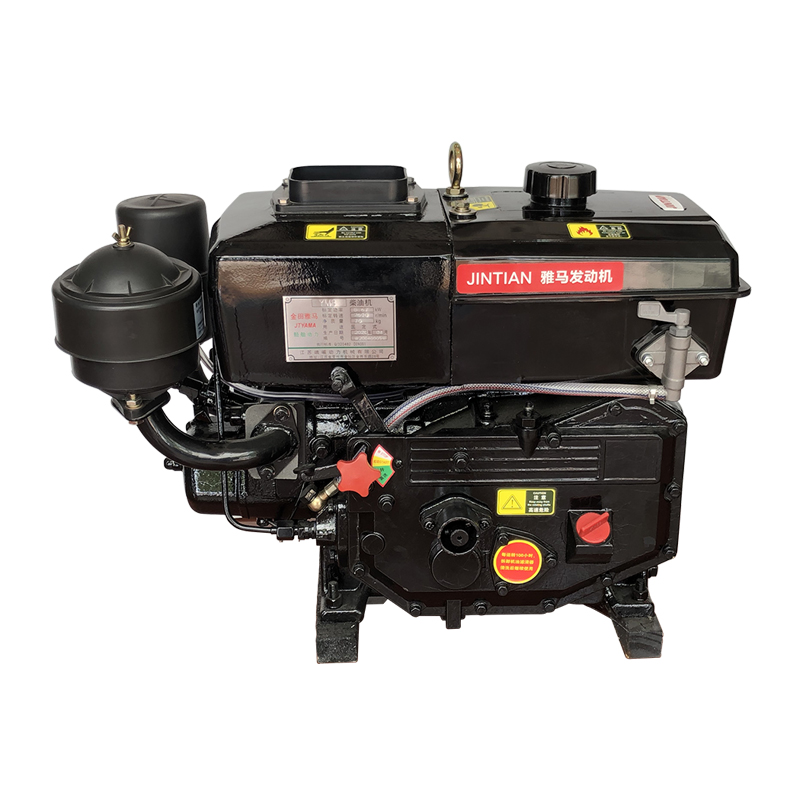

YM8 series single cylinder diesel engine, beautiful and simple appearance, reliable quality, long service life, small vibration, smooth operation.

Easy to carry, easy to operate.

Widely used: can support small tractor, generator set, water pump set and other small agricultural machinery, air compressor, mixer, vibration pump and other small construction machinery



1. The appearance is high-end and elegant
2. Adopt p-type injector to optimize the fuel system with low fuel consumption and low smoke
3. A full set of steel frame composite gasket is used for reliable sealing and anti-penetration
4. The nitriding gear made of alloy material is reliable and has low noise
5. Adopt the new structure of anti-impact cylinder cushion to improve the reliability
6. The piston ring surface is optimized by coating and heat treatment, with good bite resistance
7. Large torque reserve, more than 20% reserve rate, strong climbing ability
8. Optimized balance system, stable idle speed, low vibration and low noise
9. Using weighted flywheel, the work is stable and easy to start



ModelMODELYM8（YM8L）YM8MYM8NLYM8NMLTypeTYPESingle Cylinder, Horizontal , 4-StrokeCombustion MethodCOMBUSTION SYSTEMDIRECT INJECTIONLubrication MethodLUBRICATION METHODCombined Pressure And SplashingBore x Stroke (mm)BORExSTROKE80mm*80mmRated PowerRATED POWER5.67KW/7.7HPMaximum PowerMAX POWER6.23KW/8.5HPRated Speed r/minRATED SPEED2600RPMFuel Consumption g/kW·hFUEL CONSUMPTION265g/kW·hOil ConsumptionOIL CONSUMPTION2.82g/kW·hNet Weight kgNET WEIGHT70kg75kg70kg75kgGross Weight kgGROSS WEIGHT80kg85kg80kg85kgCooling MethodCOOLING METHODHOPPERHOPPERRADIATORRADIATORStarting MethodSTARTING METHODHAND STARTELECTRIC STARTHAND STARTELECTRIC STARTWooden Box Packaging cmWOODEN CASE SIZE60*38*55cm67*38*57cm67*38*57cm67*38*57cm20GP/FULL CONTAINER
216204204204
