Main Features

1. Able to flexibly handle various workpieces.

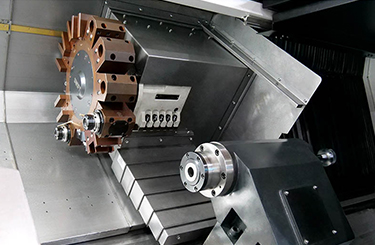

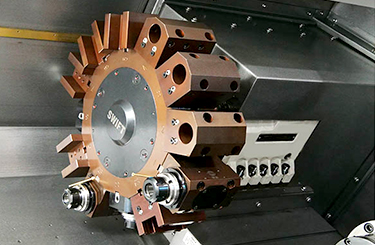

2. The 12-station power turret enables the operator to machine simple to complex workpieces with one easy setup operation.
3. These models also feature a Direct Drive Spindle ( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.
4. WMTCNC Turning center have a heavy-duty cast base with "True Align" bed design.
5. This design feature reduces heat build-up and resulting thermal expansion.
6. Cylindrical type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
7. With a very low coefficient of friction, they consume less power and do not require adjustment.

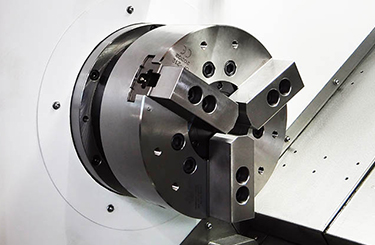

Specifications Specification TX500EY Capacity Hydraulic chuck 8",*10" Max. swing dia. over bed φ600 mm Max. turning diameter φ320 mm Max. length of workpiece 650,*1000,*1500 mm Max. swing dia. over silde φ430 mm Spindle Dia. of spindle bore φ66 mm,*φ75mm Max. dia. of. through-hole φ52 mm,*φ65mm Spindle nose A2-6,*A2-8 Max. spindle speed 4000 rpm,*3000rpm Main motor power 22/30 kw, *11.0/ 15.0kW Sub Spindle Hydraulic chuck N/A Dia. of spindle bore N/A Max. dia. of. through-hole N/A Spindle nose N/A Max. spindle speed N/A Main motor power N/A Axis X axis travel 250 mm Z axis travel 650,*1000,*1500 mm
(8" chuck) Z1/Z2 axis travel N/A Y axis travel 100(±50),*140(±70) mm X axis rapid traverse 20 m/min Z axis rapid traverse 20 m/min Y axis rapid traverse 12 m/min,*7m/ min Turret Type of turret BMT45,*BMT55 No. of tool 12 position OD tool shank size 20×20, *25×25 mm Boring tool shank size φ32 mm,*φ40 mm Max. speed of live tooling 4000,*5000 rpm Boring depth of sub spindle N/A Structure Slant bed degree 35° Guideway type LM Tailstock Type of tailstock SST,*SPT Taper of tailstock quill MT3 (spindle unit type) Travel of tailstock 100-650 mm Others Overal dimension (L×W×H) 3000×1780×2050 mm Machine weight 4800 kg Machine Details
