About this product
- Materials: Metal
- Size: 2750×1950×2200mm
- Color: black&white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2750×1950×2200mm
- Color: black&white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2750×1950×2200mm |
| Color | black&white |
From the supplier
Main Features
1. 3-Axis Turning Centers TX500 is a turning center able to flexibly handle various workpieces.

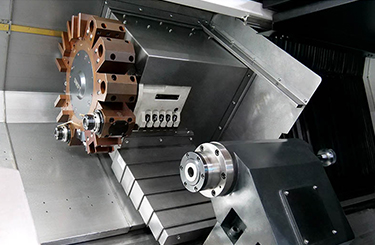

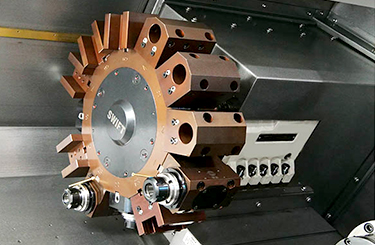

2. The 12-station Power Turret enables the operator to machine simple to complex workpieces with one easy setup operation.
3. These models also feature a Direct Drive Spindle (Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.
4. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.
5. Turning center have a heavy-duty cast base with "True Align"Slant bed design.
6. The machine bed, head stock, turret and tailstock are aligned on the same plane.
7. This Unique design feature reduces heat build-up and resulting thermal expansion.
8. Cylindrical Roller type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
9. With a very low coefficient of friction, they consume less power and do not require adjustment.
10. The tailstock body is positioned by hydraulic traction bar on roller linear guideway.
11. Tremendous reduction in set up, compared to hydraulic sleeve type manual tailstock.
Specifications

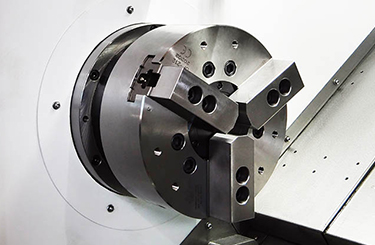

Specification TX500 Capacity Hydraulic chuck 8" Max. swing dia. over bed φ550 mm Max. turning diameter N/A Max. length of workpiece 370*470 Max. swing dia. over silde φ320 mm Spindle Dia. of spindle bore φ66 mm Max. dia. of. through-hole φ52 mm Spindle nose A2-6 Max. spindle speed 4000 rpm Main motor power 22/30 kw Sub Spindle Hydraulic chuck N/A Dia. of spindle bore N/A Max. dia. of. through-hole N/A Spindle nose N/A Max. spindle speed N/A Main motor power N/A Axis X axis travel 260 mm Z axis travel 400,*500mm Z1/Z2 axis travel N/A Y axis travel N/A X axis rapid traverse 20 m/min Z axis rapid traverse 20 m/min Y axis rapid traverse N/A Turret Type of turret VDI30,*BMT45 No. of tool 12 position OD tool shank size 20X20 mm Boring tool shank size φ32 mm Max. speed of live tooling 4000,*5000 rpm Boring depth of sub spindle N/A Structure Slant bed degree 35° Guideway type LM Tailstock Type of tailstock Hydraulic,*HPT Taper of tailstock quill MT4 Travel of tailstock 100-370 mm,*470 mm Others Overal dimension (L×W×H) 2750×1950×2200mm Machine weight 4600 kgMachine Details
