CNC Slant-bed Lathe CK50L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
CNC Slant-bed Lathe CK50L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Metal
- Size: 2950x1780x1850mm
- Color: blue&white&black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2950x1780x1850mm
- Color: blue&white&black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2950x1780x1850mm |
| Color | blue&white&black |
Product details
| Materials | Metal |
|---|---|
| Size | 2950x1780x1850mm |
| Color | blue&white&black |
From the supplier
Main Features
1.High precision slant CNC lathe with Taiwan screw & linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.

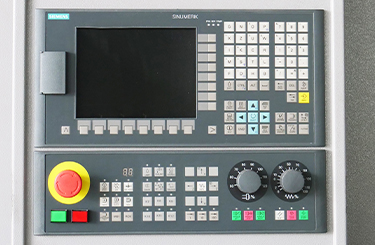

4. Siemens, Fanus, Syntec, Fagor controller as optional.

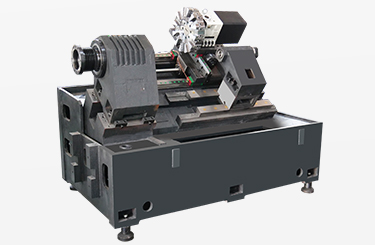

5. Monoblock cast iron of the whole machine ensure high rigidity.
Specifications

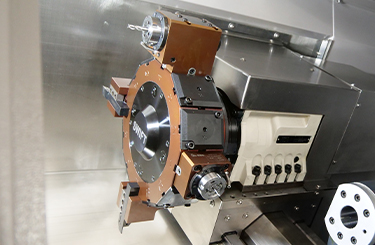

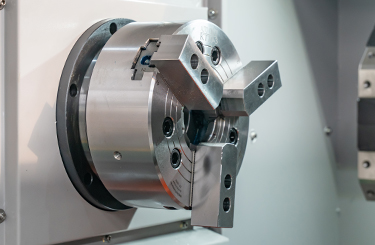

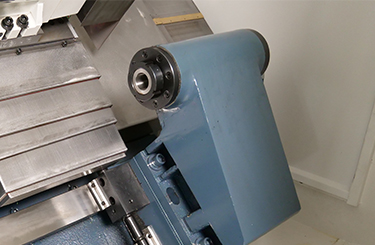

Specification CK50L Capacity Max. swing dia. over bed φ550mm Max. length of workpiece 750mm Max. swing dia. over slide φ250mm Spindle Spindle speed range 4000rpm,*3000rpm Spindle bore φ66mm,*φ86mm Max. dia. of through-hole φ50mm,*φ70mm Spindle nose A2-6,*A2-8 Chuck size φ200mm,*φ250mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 280mm Z axis travel 750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret,*Power turret No. of tool stations 8,*12 position Tool shank size 25x25,*20x20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ90mm Travel of tailstock quill 120mm Taper of tailstock quill MT5 Motor Spindle motor power 7.5kw,*11kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2950x1780x1850mm Packing size(L×W×H) 3300x2270x2280mm Net/Gross weight 4200/4500kgMachine Details
From the supplier
Main Features
1.High precision slant CNC lathe with Taiwan screw & linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
4. Siemens, Fanus, Syntec, Fagor controller as optional.
5. Monoblock cast iron of the whole machine ensure high rigidity.
Specifications
Specification CK50L Capacity Max. swing dia. over bed φ550mm Max. length of workpiece 750mm Max. swing dia. over slide φ250mm Spindle Spindle speed range 4000rpm,*3000rpm Spindle bore φ66mm,*φ86mm Max. dia. of through-hole φ50mm,*φ70mm Spindle nose A2-6,*A2-8 Chuck size φ200mm,*φ250mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 280mm Z axis travel 750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret,*Power turret No. of tool stations 8,*12 position Tool shank size 25x25,*20x20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ90mm Travel of tailstock quill 120mm Taper of tailstock quill MT5 Motor Spindle motor power 7.5kw,*11kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2950x1780x1850mm Packing size(L×W×H) 3300x2270x2280mm Net/Gross weight 4200/4500kgMachine Details
