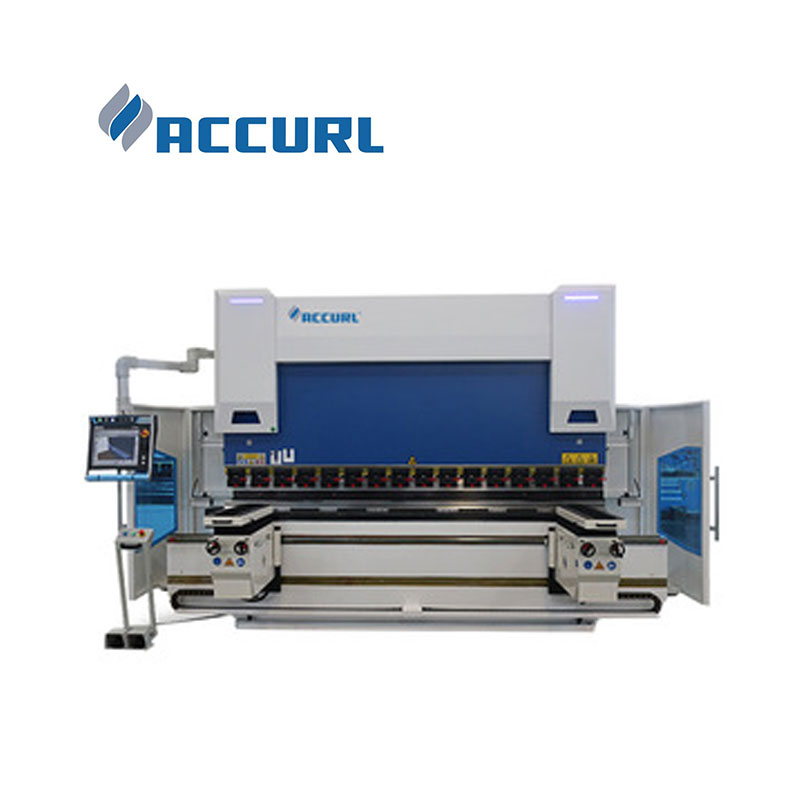

CNC Hydraulic Press Brake 300ton, 4000mm, 6+1 Axis DA66T Controller with Back gauge and High Precision Fast Clamping
ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO.LTD
See what’s includedHide breakdown
- FOB goods (100)
- $10,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $355,250
- Section 301 tariff (25.0%)
- $2,537,500
- Customs fees (MPF/HMF)
- $13,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $10,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $355,250
- Section 301 tariff (25.0%)
- $2,537,500
- Customs fees (MPF/HMF)
- $13,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CNC Hydraulic Press Brake 300ton, 4000mm, 6+1 Axis DA66T Controller with Back gauge and High Precision Fast Clamping
ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO.LTDSee what’s includedHide breakdown
- FOB goods (100)
- $10,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $355,250
- Section 301 tariff (25.0%)
- $2,537,500
- Customs fees (MPF/HMF)
- $13,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $10,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $355,250
- Section 301 tariff (25.0%)
- $2,537,500
- Customs fees (MPF/HMF)
- $13,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Stainless Steel
- Size: 4960*3180*2020
- Color: customizable
- Waterproof rating: IPX-8
- Warranty: 1-year2-year3-year
- Suitable for: AluminumOther
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
About this product
- Materials: Stainless Steel
- Size: 4960*3180*2020
- Color: customizable
- Waterproof rating: IPX-8
- Warranty: 1-year2-year3-year
- Suitable for: AluminumOther
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
Product details
| Materials | Stainless Steel |
|---|---|
| Size | 4960*3180*2020 |
| Color | customizable |
| Waterproof rating | IPX-8 |
| Warranty | 1-year2-year3-year |
| Suitable for | AluminumOther |
| Automatic grade | Other |
Product details
| Materials | Stainless Steel |
|---|---|
| Size | 4960*3180*2020 |
| Color | customizable |
| Waterproof rating | IPX-8 |
| Warranty | 1-year2-year3-year |
| Suitable for | AluminumOther |
| Automatic grade | Other |
From the supplier
CNC Hydraulic Press Brake 300ton, 4000mm, 6+1 Axis DA66T Controller with Back gauge and High Precision Fast Clamping
ACCURL® EURO-PRO Series press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of PRO Series machines.
The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.
System
DELEM DA66T 3D CNC System
DA66T software maximises machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.
ADVANTAGES
• High energy-saving potential
• Decreased operating costs
• Clearly reduced cooling effort
• System safety
• Future-oriented technology
• Remarkable noise reduction
• Fewer secondary measures
• Compliance with EU CE Directives
• Decrease in the number of expensive machine failures
EURO PRO Series One step beyond
Robustness, Energy-efficient, reliability, precision
and performance make Euro-PRO an election model.
STANDARD EQUIPMENT
• DELEM DA-66T CNC control unit with 2D graphics
• 5 axis CNC:
• Y1, Y2 precision ram positioning

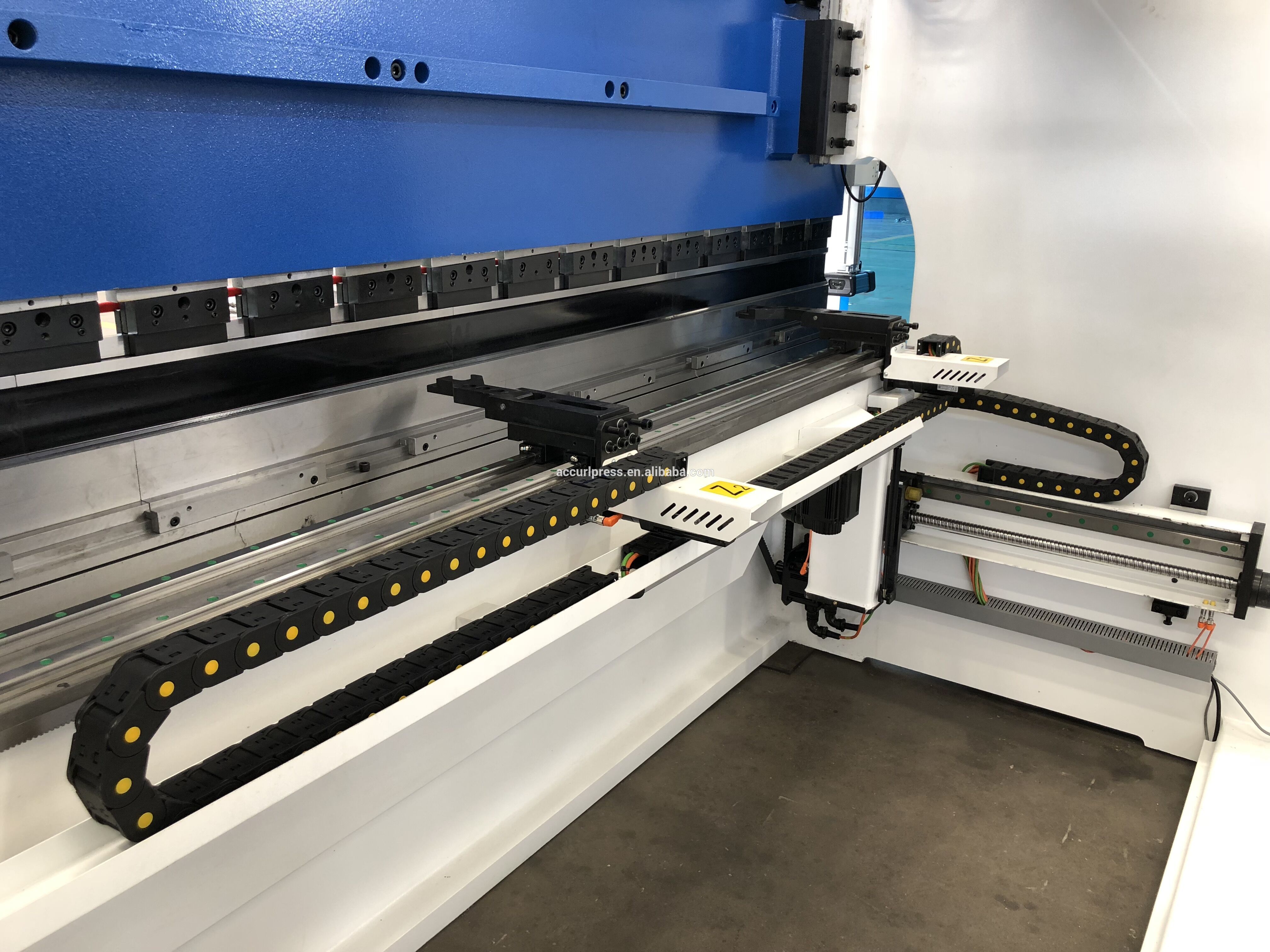

• Standard BGA-2 for X, R-axis ( X=800mm,R=200mm
• CNC motorized wave crowning
• Large trio of value:
• Large open height
• Large stroke
• Large throat depth
• HOERBIGER hydraulic valve block, pump and valves
• High Siemens efficiency motor– class IE3
• Stand By Function for energy-saving drive.
• Rear cover: Safety barriers (Category IV)
• Sheet metal frontal supports
• Front and rear lighting
• Offline software Delem Profile-TL
• Front cover: AKAS LC-II F safety laser (Category IV) or DSP safety.
OPTIONAL EQUIPMENT
• Control unit – DELEM DA69T or ModEva Premium
• CE Defender LazerSafe LZS004 + safety covers with switch
• CE F. AKAS-LC II AKAS-3 M Motorized + FPSC (safety PLC)
• BGA-4 for X ,R , Z1, Z2 axis
• BGA-6 for X 1, X2, R 1 , R2 ,Z1, Z2 axis
• Delta X5 axis ± 125 mm with CNC Controlled
• X axis = 1000 mm – light barrier back protection
• AP3-AP4 sheet following system
• Height adjustable laser angle measurement system

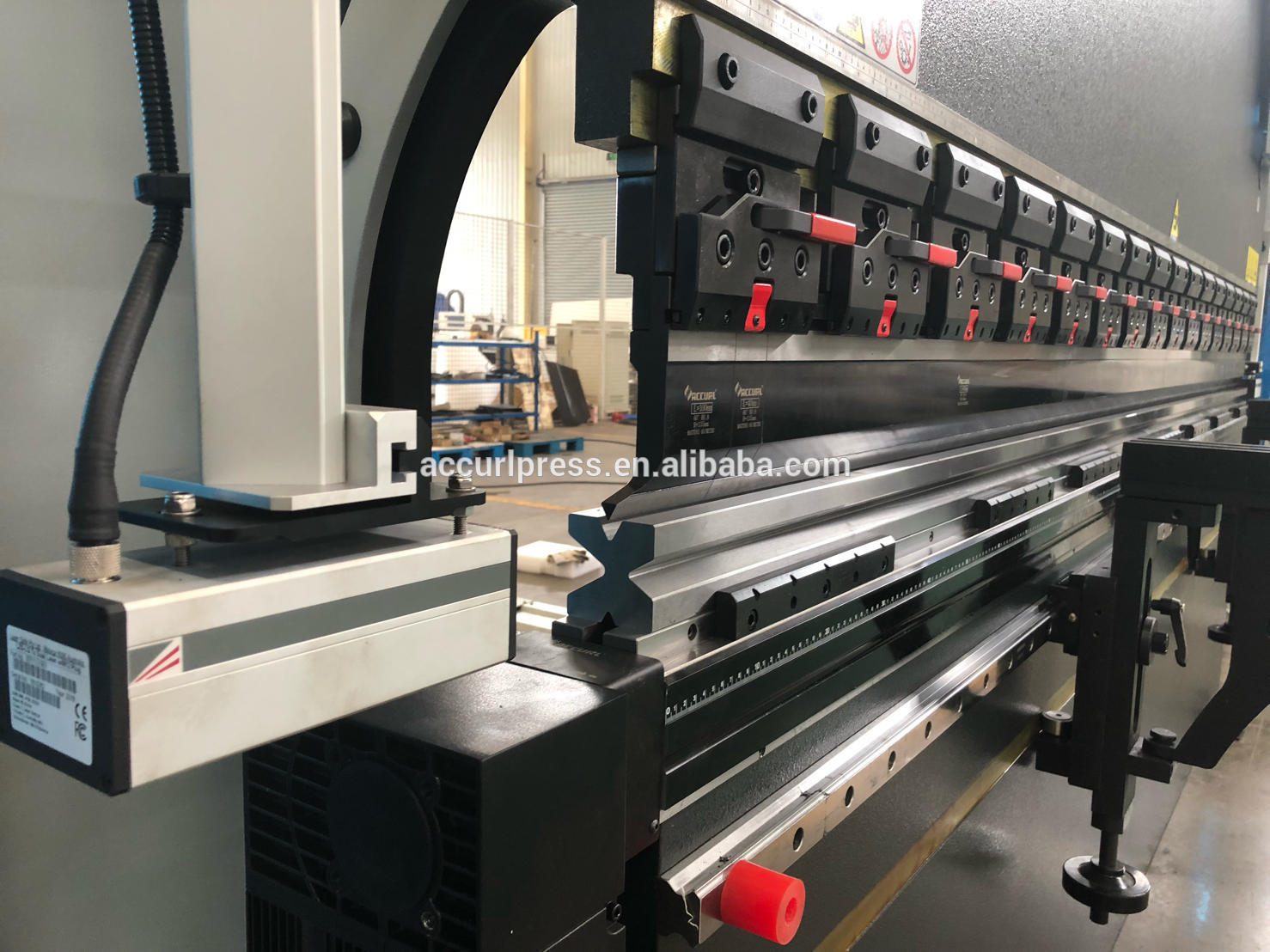

• Hydraulic and pneumatic tool clamping systems
• Additional back gauge finger and sliding front support arms.
SPECIFICATIONS
From the supplier
CNC Hydraulic Press Brake 300ton, 4000mm, 6+1 Axis DA66T Controller with Back gauge and High Precision Fast Clamping
ACCURL® EURO-PRO Series press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of PRO Series machines.
The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.
System
DELEM DA66T 3D CNC System
DA66T software maximises machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.
ADVANTAGES
• High energy-saving potential
• Decreased operating costs
• Clearly reduced cooling effort
• System safety
• Future-oriented technology
• Remarkable noise reduction
• Fewer secondary measures
• Compliance with EU CE Directives
• Decrease in the number of expensive machine failures
EURO PRO Series One step beyond
Robustness, Energy-efficient, reliability, precision
and performance make Euro-PRO an election model.
STANDARD EQUIPMENT
• DELEM DA-66T CNC control unit with 2D graphics
• 5 axis CNC:
• Y1, Y2 precision ram positioning
• Standard BGA-2 for X, R-axis ( X=800mm,R=200mm
• CNC motorized wave crowning
• Large trio of value:
• Large open height
• Large stroke
• Large throat depth
• HOERBIGER hydraulic valve block, pump and valves
• High Siemens efficiency motor– class IE3
• Stand By Function for energy-saving drive.
• Rear cover: Safety barriers (Category IV)
• Sheet metal frontal supports
• Front and rear lighting
• Offline software Delem Profile-TL
• Front cover: AKAS LC-II F safety laser (Category IV) or DSP safety.
OPTIONAL EQUIPMENT
• Control unit – DELEM DA69T or ModEva Premium
• CE Defender LazerSafe LZS004 + safety covers with switch
• CE F. AKAS-LC II AKAS-3 M Motorized + FPSC (safety PLC)
• BGA-4 for X ,R , Z1, Z2 axis
• BGA-6 for X 1, X2, R 1 , R2 ,Z1, Z2 axis
• Delta X5 axis ± 125 mm with CNC Controlled
• X axis = 1000 mm – light barrier back protection
• AP3-AP4 sheet following system
• Height adjustable laser angle measurement system
• Hydraulic and pneumatic tool clamping systems
• Additional back gauge finger and sliding front support arms.
SPECIFICATIONS
