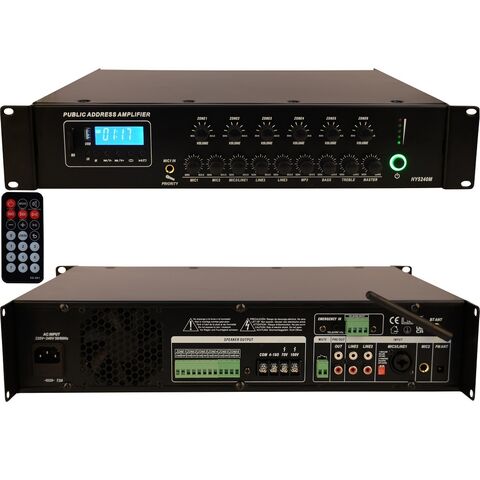

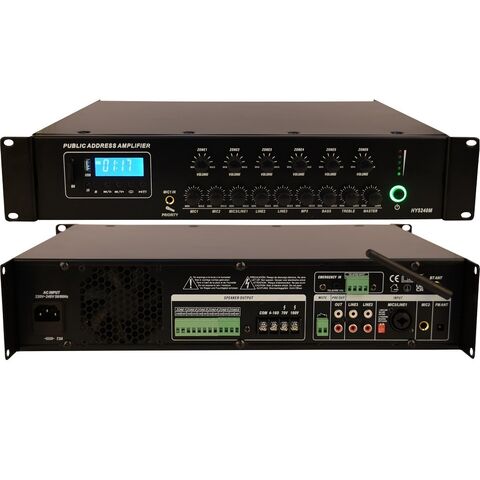

Product name：Hifi Amplifiers Professional Class D Rack Pa Amplifier

The HY5***MB series is a powerful and versatile audio system that is specifically designed for use in a variety of public spaces. With multiple zones of control, built-in Bluetooth connectivity, USB/SD audio playback capabilities, and dual microphone inputs, this system ensures that any event or gathering has high-quality audio that can be easily controlled and managed.

One of the key features of the HY5***MB series is its multi-zone partition control. This allows users to easily control the audio output in different areas or sections of a room or space, making it ideal for use in large venues such as conference halls, event spaces, and hotels. With this feature, users can adjust the volume and tone of the audio in each zone separately, making it easy to cater to the specific needs of the event or gathering.

Another standout feature of the HY5MBseries is its built-in Bluetooth module. This enables seamless audio streaming and playback from any Bluetooth-enabled device, such as a smartphone or tablet. Users can easily connect their device to the system and stream music or other audio content directly, making it easy to provide entertainment or background music in any space.

In addition to Bluetooth connectivity, the HY5***MB series also offers USB and SD audio playback. This allows users to play audio files from any USB or SD device, such as a flash drive or memory card, making it easy to share and play audio content at any event or gathering.

The HY5***MB series also features dual microphone inputs, making it ideal for use in presentations, speeches, or other events that require the use of microphones. This feature allows users to connect two microphones to the system at once, making it easy to switch between different speakers or presenters without any interruption or delay.

Finally, the HY5***MB series offers independent control and audio output, allowing users to control the tone, volume, and other aspects of the audio output for each individual zone. This means that users can tailor the audio output to meet the specific needs of each area or section of the space, ensuring that the audio is always clear, crisp, and easy to hear.

In conclusion, the HY5***MB series is a powerful and versatile audio system that is designed for use in a wide range of public spaces. With its multiple zones of control, built-in Bluetooth connectivity, USB/SD audio playback capabilities, and dual microphone inputs, it provides a high-quality audio experience that is easy to manage and control. Whether you are hosting a conference, event, or other gathering, the HY5MBseries has everything you need to ensure that your audio is always clear, crisp, and easy to hear.

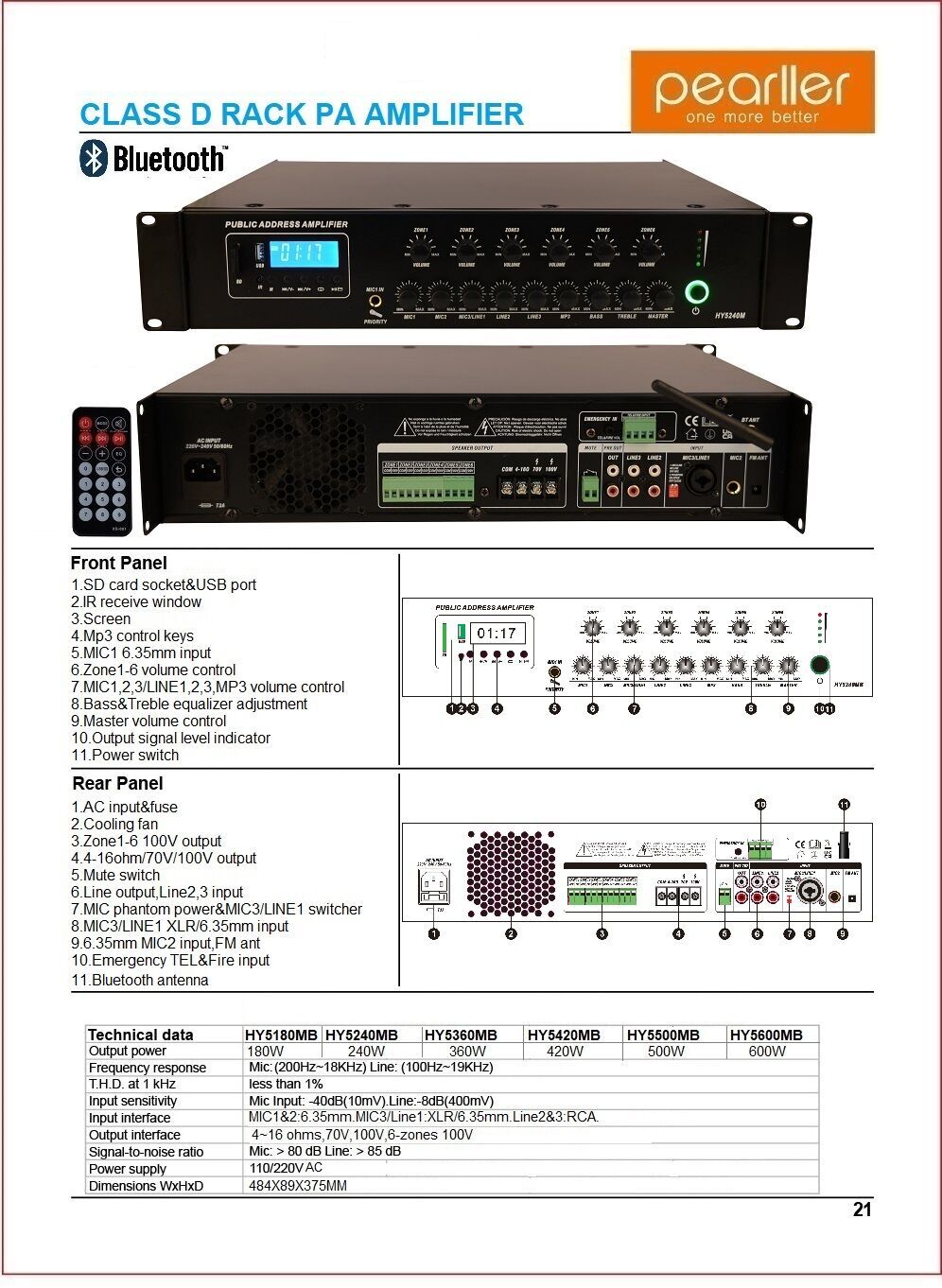

FrontPanel:
1.SD card socket&USB port
2.IR receive window
3.Screen
4.Mp3 control keys
5.MIC1 6.35mm input
6.MIC1,2,3/LINE1,2,3,MP3 volume control
7.Bass&Treble equalizer adjustment
8.Master volume control
9.Output signal level indicator
10.Power switch

RealPanel:
1.AC input&fuse
2.Cooling fan
3.4-16ohm/70V/100V output
4.Mute switch
5.Line output,Line2,3 input
6.MIC phantom power&MIC3/LINE1 switcher
7.MIC3/LINE1 XLR/6.35mm input
8.6.35mm MIC2 input,FM ant
9.Bluetooth antenna

Input interface:MIC1&2:6.35mm.MIC3/Line1:XLR/6.35mm.Line2&3:RCA.
Output interface:4~16 ohms,70V,100V,6-zones 100V
