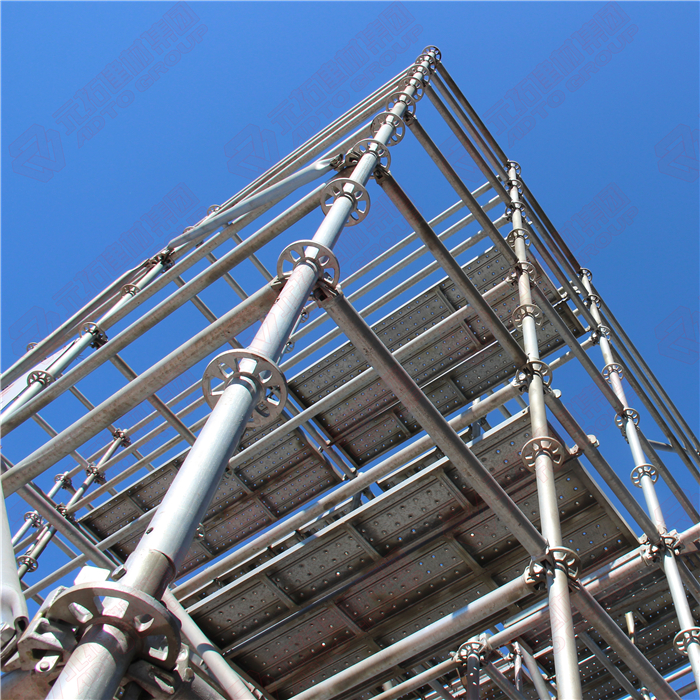

ADTO Ringlock is a modular system scaffold which enables users to quickly and efficiently erect, use and dismantle temporary work structures. The ADTO Ringlock system conforms to European standards BS EN12810 and AS/NZS standard 1576

All of ADTO Ringlock products are engineered to meet the highest quality standards

MATERIAL We only use the highest quality steel in our products. Our steel is

certified and tested, it conforms to or exceeds industry standards no matter the location or climate.

FINISH Where applicable, our products are finished and protected by hotdipped zinc galvanizing. This method of finishing maximizes the utilization and extends the product life.

For additional information on Ringlock system components please contact us.

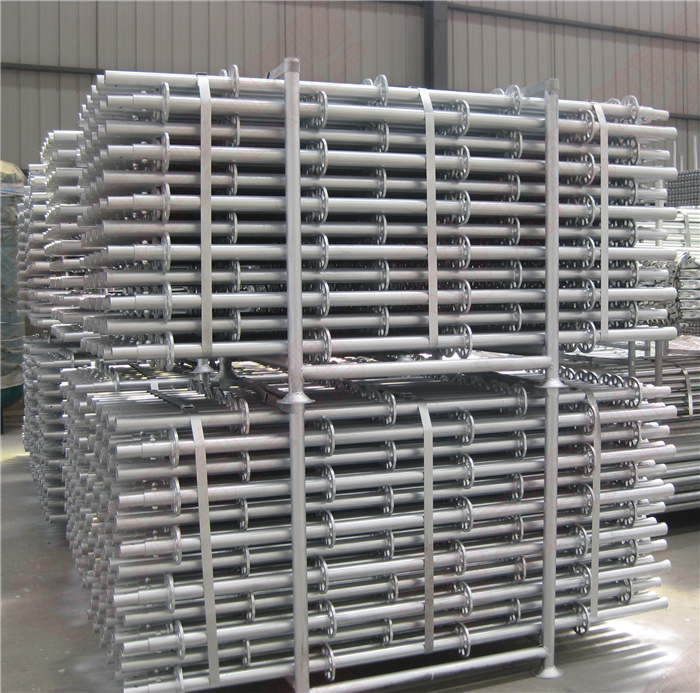

C Standards are the vertical members of Ringlock scaffolding. The standard provides the vertical support for scaffolding. The spigot is permanently fixed in place.

ITEM CODE

LENGTH(M)

YPSD050

0.5

YPSD100

1.0

YPSD150

1.5

YPSD200

2.0

YPSD250

2.5

YPSD300

3.0

YPSD400

4.0

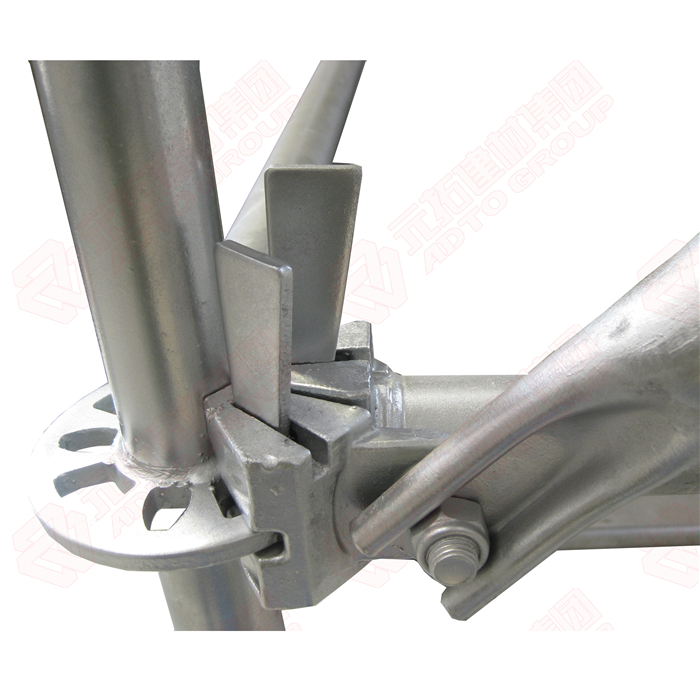

CLedgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guar d rails.

O Ledger

U tranom

ITEM CODE

LENGTH(M)

ITEM CODE

LENGTH(M)

ITEM CODE

LENGTH(M)

YPLO073

0.73

YPPT030

0.6

YPLU073

0.73

YPLO109

1.09

YPPT060

0.6

YPLU109

1.09

YPLO140

1.4

YPPT090

0.9

YPLU140

1.4

YPLO157

1.57

YPPT120

1.2

YPLU157

1.57

YPLO207

2.07

YPPT150

1.5

YPLU207

2.07

YPLO257

2.57

YPPT180

1.8

YPLU257

2.57

YPLO307

3.07

YPPT200

2

YPLU307

3.07

Other size is available

CDiagonal Bay Braces are used for the lateral bracing of Ringlock scaffolds. They can also be used as compression and tension members for cantilevers/spurs where they transmit loads back into the main scaffold structure. Diagonal/ Bay Braces are also used for handrails in the Ringlock Steel Stair System.

LXH(M)

LXH(M)

LXH(M)

LXH(M)

0.73X2.0

0.73X1.5

0.3X2.0

0.3X1.5

1.09X2.0

1.09X1.5

0.6X2.0

0.6X1.5

1.40X2.0

1.40X1.5

0.9X2.0

0.9X1.5

1.57X2.0

1.57X1.5

1.2X2.0

1.2X1.5

2.07X2.0

2.07X1.5

1.5X2.0

1.5X1.5

2.57X2.0

2.57X1.5

1.8X2.0

1.8X1.5

3.07X2.0

3.07X1.5

2.0X2.0

2.0X1.5

Other size is available

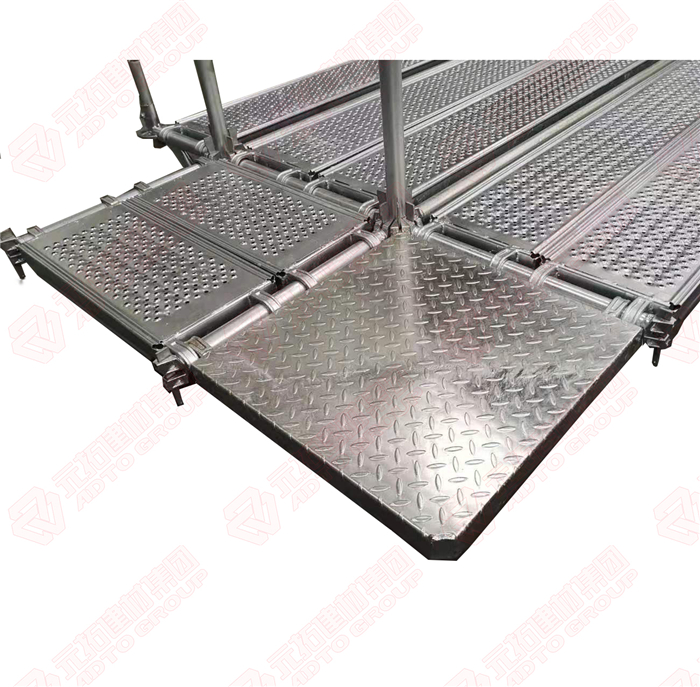

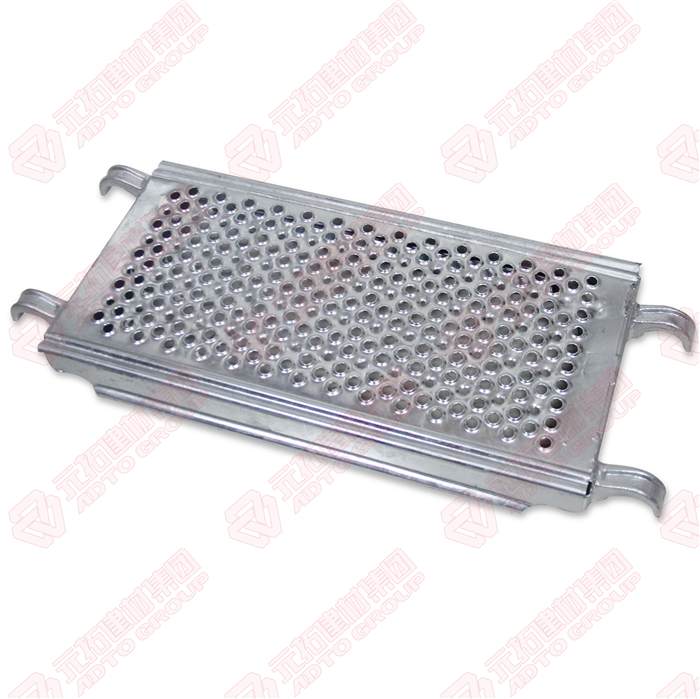

CSteel Planks are laid side by side to form the working platform. They span the length of the bay and hook onto the suppor ting Ledger/Transom. There is an antilock system to prevent uplift in adverse conditions.

Option A-Heavy Duty Plank

Option B-Normal Plank

WXL(M)

WXL(M)

Width(MM)

Length (MM)

"O" hook

"U" hook

240/250/300/320/

420/450/480/500

600

900

0.32X0.73

0.32X0.73

914

0.32X1.09

0.32X1.09

1200

0.32X1.40

0.32X1.40

1219

0.32X1.57

0.32X1.57

1500

0.32X2.07

0.32X2.07

1800

0.32X2.57

0.32X2.57

1829

0.32X3.07

0.32X3.07

2000

Other Size is Available

More products we can make except ringlock, such as frame scaffolding, cuplock scaffolding, kwikstage scaffolding, tubes and couplers, formwork, props etc.

Certificates:

With more than 20 years experience in construction field, ADTO GROUP know the local and oversea market requirements very well. Our ringlock scaffodling was tested by lad in different standard. Herewith please find the pictures of report for your review.
