Centre shaft roaster
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Centre shaft roaster
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Stainless steel, iron
- Size: 2055*900*1000
- Color: orange
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: Stainless steel, iron
- Size: 2055*900*1000
- Color: orange
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | Stainless steel, iron |
|---|---|
| Size | 2055*900*1000 |
| Color | orange |
Product details
| Materials | Stainless steel, iron |
|---|---|
| Size | 2055*900*1000 |
| Color | orange |
From the supplier

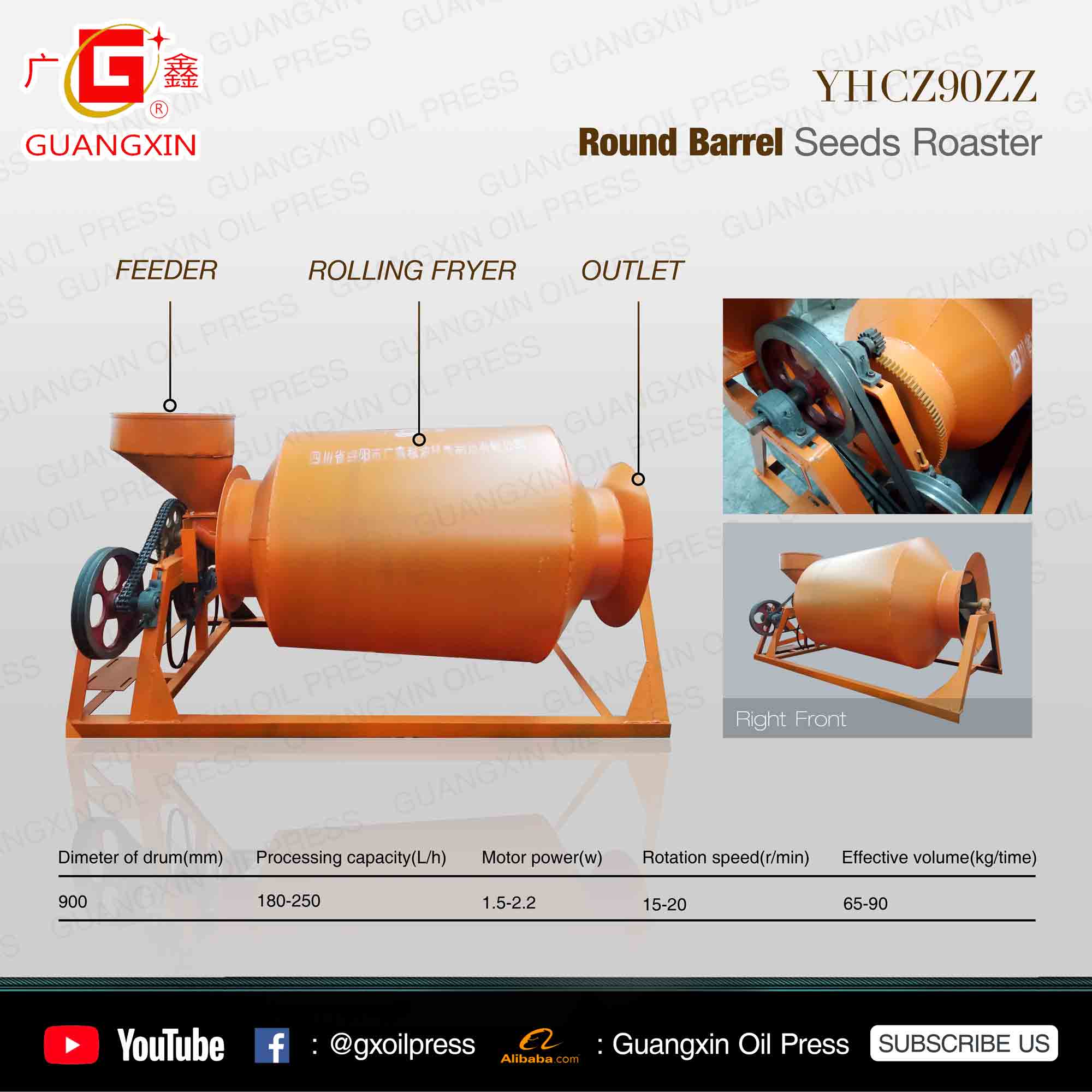

The YHCZ series centre shaft roaster is suitable for pretreatment of kinds of oil seeds before hot pressing process. It is the main auxiliary equipment for screw press, also used for food bake industry. The main features are compact structure, good material moisturizing effect and easy to observe.
Working principle：
Using solid fuel (coal, coke or firewood) direct flame heating and heat transfer to oil seeds. Temperature and plasticity of seeds gradually increasing during continuous rotary turning of drum. And moisture is evaporated, protein is denaturated, oil viscosity is reduced and exposed, which makes it more conducive for oil extraction.
Specifications：
ModelYHCZ80ZZYHCZ90ZZYHCZ100ZZYHCZ110ZZYHCZ130ZZDiameter Of Cylinder
（mm）
800900100011001300Capacity（kg/h）150-200180-250270-350330-450750-1000Power(kw)1.51.52.22.23.0Rotating Speed（r/min）15-2515-2515-2515-2515-18Effective Volume(kg/time)50-7065-9090-120110-150260-350Measurements (mm)2055*900*10002055*900*10002488*1100*11202488*1100*11203215*1300*1380From the supplier
The YHCZ series centre shaft roaster is suitable for pretreatment of kinds of oil seeds before hot pressing process. It is the main auxiliary equipment for screw press, also used for food bake industry. The main features are compact structure, good material moisturizing effect and easy to observe.
Working principle：
Using solid fuel (coal, coke or firewood) direct flame heating and heat transfer to oil seeds. Temperature and plasticity of seeds gradually increasing during continuous rotary turning of drum. And moisture is evaporated, protein is denaturated, oil viscosity is reduced and exposed, which makes it more conducive for oil extraction.
Specifications：
ModelYHCZ80ZZYHCZ90ZZYHCZ100ZZYHCZ110ZZYHCZ130ZZDiameter Of Cylinder
（mm）
800900100011001300Capacity（kg/h）150-200180-250270-350330-450750-1000Power(kw)1.51.52.22.23.0Rotating Speed（r/min）15-2515-2515-2515-2515-18Effective Volume(kg/time)50-7065-9090-120110-150260-350Measurements (mm)2055*900*10002055*900*10002488*1100*11202488*1100*11203215*1300*1380About the supplier
