Ceiling speaker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Ceiling speaker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: steel
- Size: 102, (63)mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: steel
- Size: 102, (63)mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | steel |
|---|---|
| Size | 102, (63)mm |
| Color | white |
Product details
| Materials | steel |
|---|---|
| Size | 102, (63)mm |
| Color | white |
From the supplier

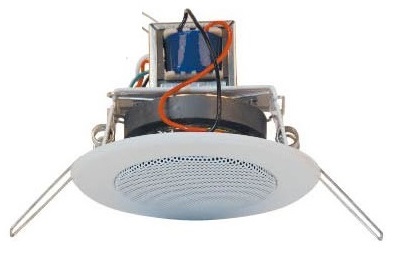

This ceiling speaker needs to match with amplifier to use.
For example, we use above amplifier to show how to use:
1. First we use “com” terminal on amplifier connect with speaker “com” line.
2. Second: (two ways to option)
l Amplifier 100V output terminal can connect with speaker’s 50V/70V/100V Line (The red / white/ green Line)
l Amplifier 8Ω output terminal only can connect with speaker’s 8Ωline (red Line)
Technical data
HSR122T
Load rating
6 W
Transformer tappings at 100 V
6 W
Transformer tappings at 70 V
6-3W
Transformer tappings at 50 V
6-3-1.5 W
Frequency range
150-15KHz
SPL(@1W/m)
85dB
Speaker unit size
2.5 inch
Dimension OD, Install depth(max.)
OD 102, (63)mm
Material , Color
Steel , white
From the supplier
This ceiling speaker needs to match with amplifier to use.
For example, we use above amplifier to show how to use:
1. First we use “com” terminal on amplifier connect with speaker “com” line.
2. Second: (two ways to option)
l Amplifier 100V output terminal can connect with speaker’s 50V/70V/100V Line (The red / white/ green Line)
l Amplifier 8Ω output terminal only can connect with speaker’s 8Ωline (red Line)
Technical data
HSR122T
Load rating
6 W
Transformer tappings at 100 V
6 W
Transformer tappings at 70 V
6-3W
Transformer tappings at 50 V
6-3-1.5 W
Frequency range
150-15KHz
SPL(@1W/m)
85dB
Speaker unit size
2.5 inch
Dimension OD, Install depth(max.)
OD 102, (63)mm
Material , Color
Steel , white
