From the supplier

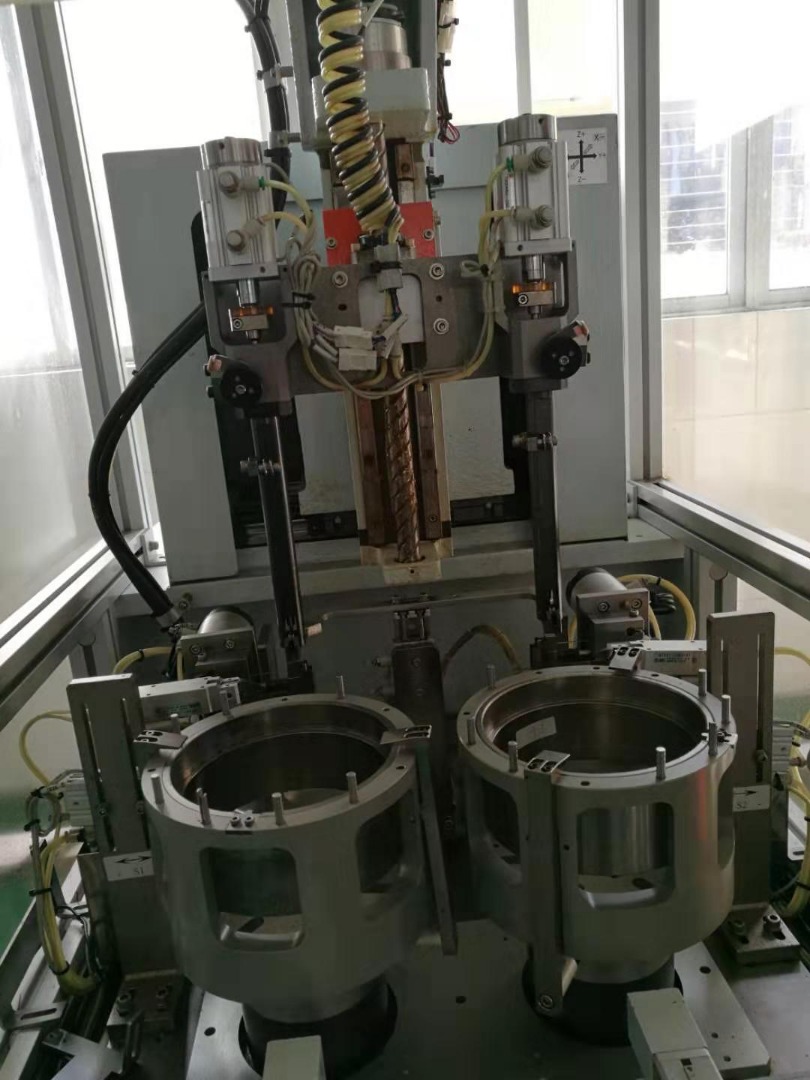

Automatic Fan Stator Coil Winding Machine
I Description

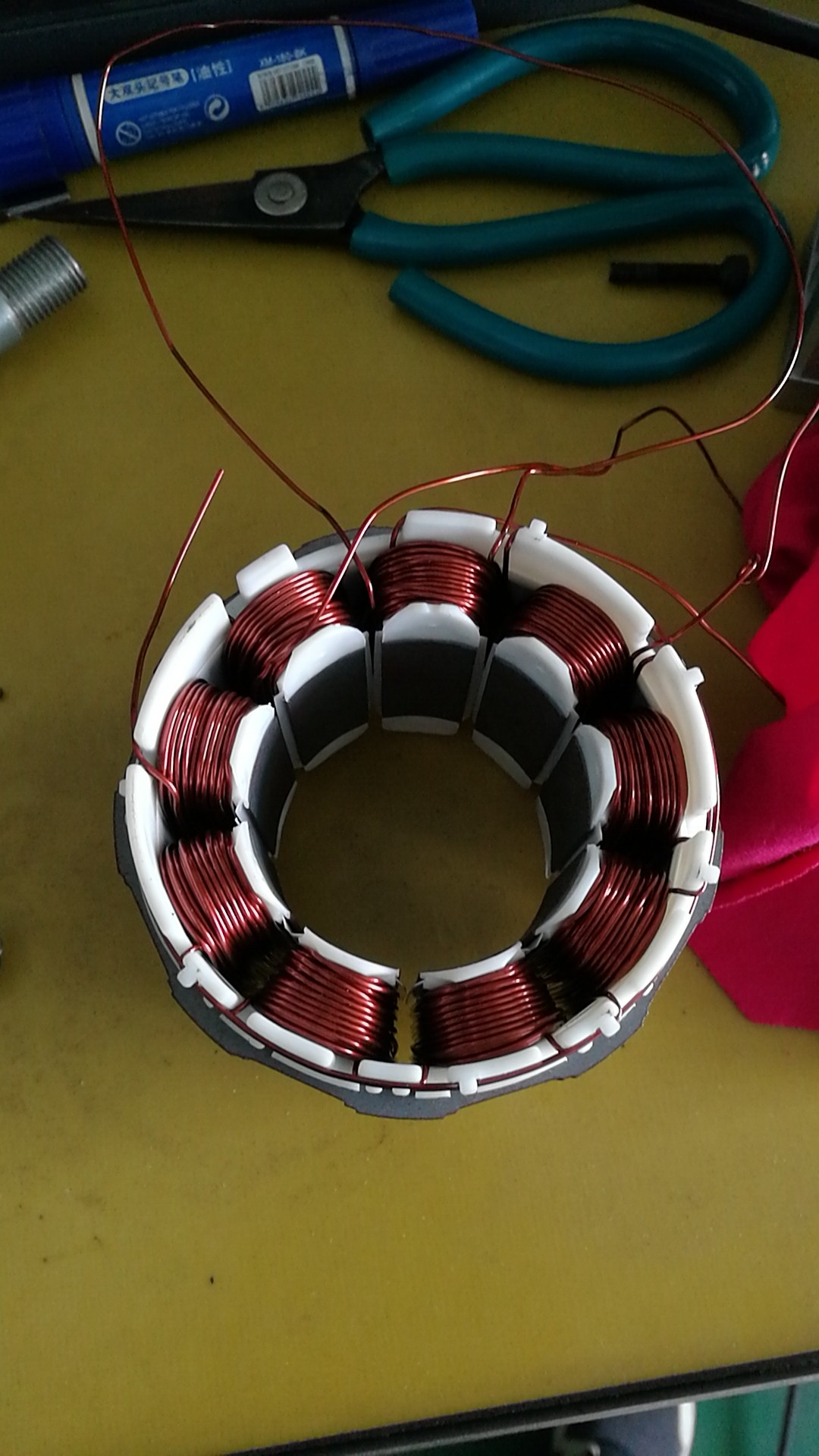

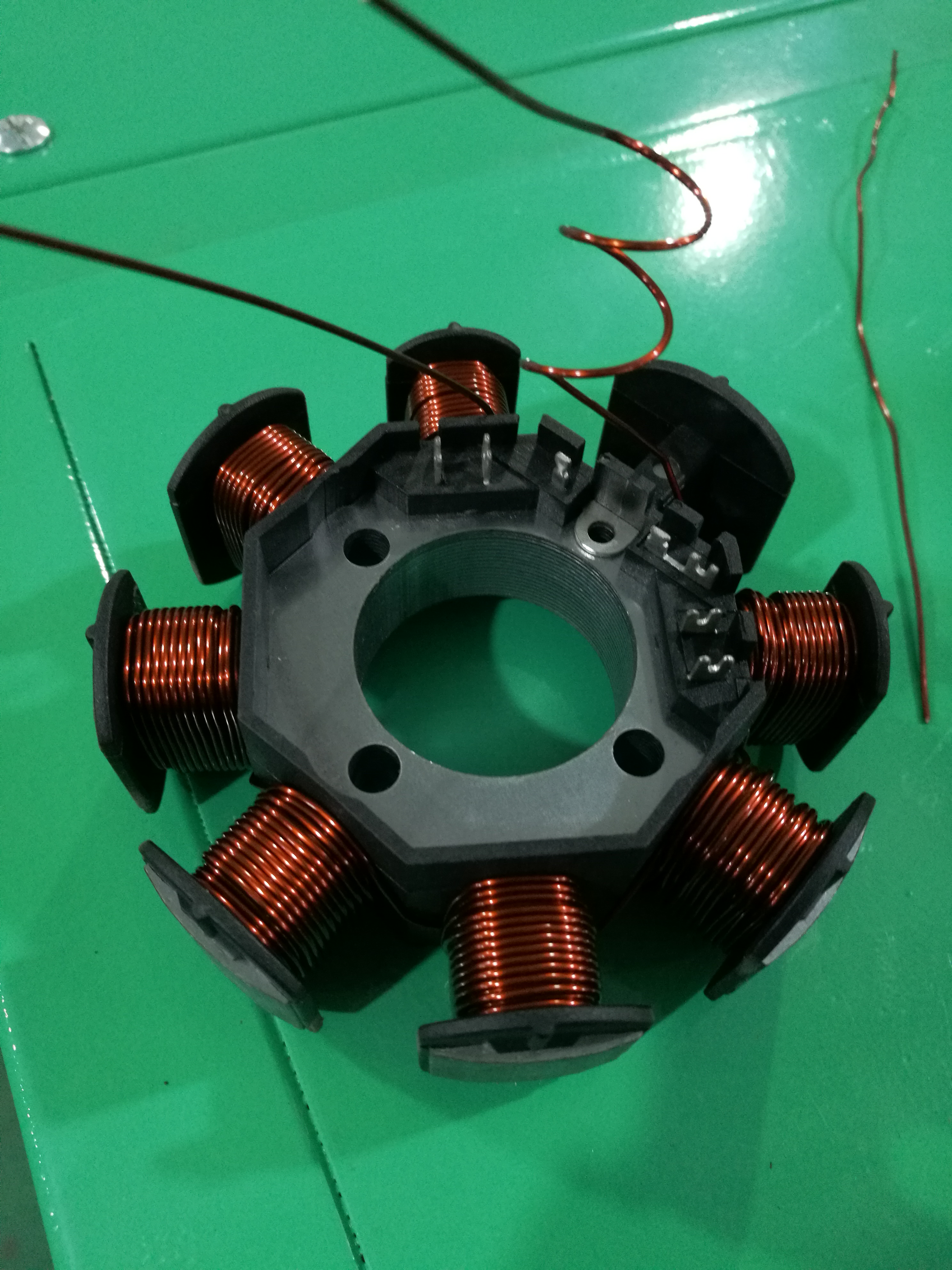

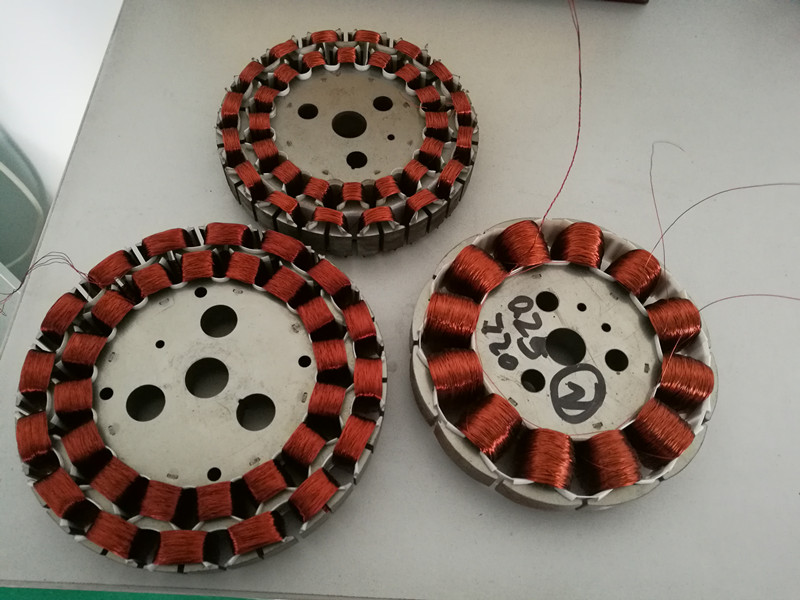

This machine is suitable for ceiling fan stators.
It has winding displacement function, stepless motor control.
II Main technical data
Machine code
YC-RX-002
Suitable for wires
0.2-0.7mm
Thickness of winding
8-40mm
Power
0.75kW x 2
Output
250-300pcs/8hours
Electric supply
AC, 220V, Single phase, 50Hz
Machine dimension
1300 x 800 x 1250mm
Machine weight
350kg
Video link
href="https://youtu.be/ZFoEZE4CXzk" https://youtu.be/ZFoEZE4CXzk
Automatic Fan Stator Insulation Paper Insertion Machine
I Description
- 1- Automatic process, excluding loading and unloading
- 2- Fast speed and good quality
- 3- Suitable many kinds of models with different molds
- 4- Folding width of insulation papers can be adjusted
II Main technical data
Machine code
YC-CZ-003
Suitable O.D
60-220mm
Suitable slots
8-36 slots
Suitable stack
8-160mm
Output
0.5-1.0 seconds/slot
Motor power
1HP
Electric supply
AC, 220V, Single phase, 50Hz
Machine dimension
About 900 x 600 x 1000mm
Machine weight
About 450kg
Automatic Fan Stator Insulation Sheet Insertion Machine
I Description
- 5- Automatic process, excluding loading and unloading
- 6- Fast speed and good quality
- 7- Suitable many kinds of models with different molds
II Main technical data
Machine code
YC-CZ-004
Suitable O.D
60-220mm
Suitable slots
8-36 slots
Suitable stack
8-160mm
Output
0.5-1.0 seconds/slot
Motor power
1HP
Electric supply
AC, 220V, Single phase, 50Hz
Machine dimension
About 900 x 600 x 1000mm
Machine weight
About 450kg
