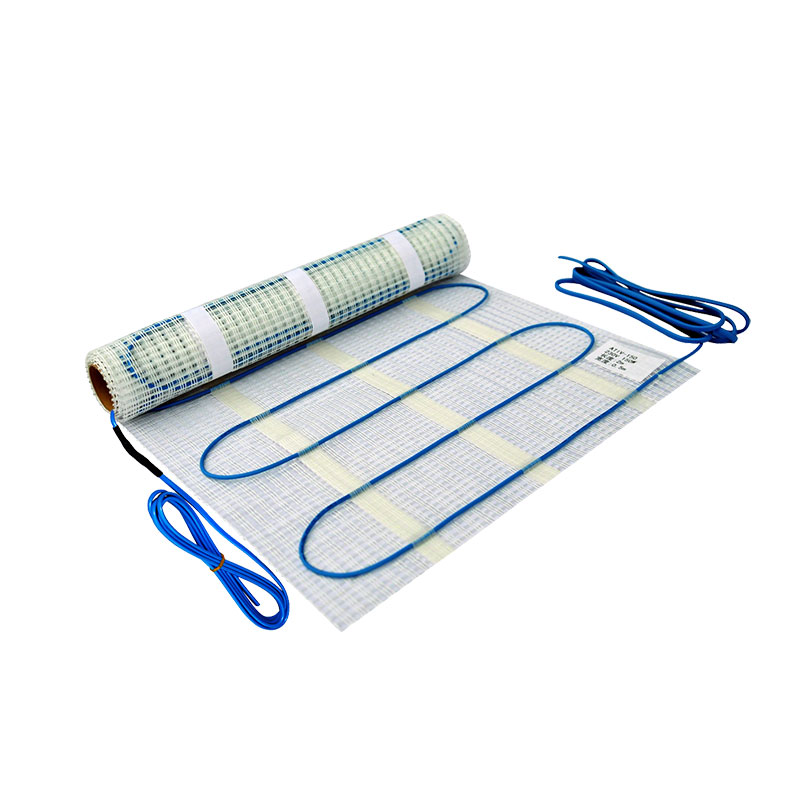

CE-listed Underfloor Heating Mat

Undefloor Heating mat tile warm is suited to generate heat under tile, marble or laminate floors in bathrooms, kitchens, entry-ways and sun rooms.The ease of installation makes them an ideal “Do-it-Yourself” DIY kit without requirements of technicians for planning their layouts.

Key Benefits:

1. Durability

2. Highest heating outputs

3 .Easy Installation

4.Flexible

ATIV underfloor Heating Mat Specification:

Construction

Technical data

Twin wire core

Area load 150W/㎡

FEP insulation which can resist high temperature

Power from 75W to 1800W

PVC jacket which can resist corrosion and be antiflaming

Cable linear power:12w/m,15w/m,18w/m

Cable space:80mm,100mm,125mm

Max.temperature energized,outer jacket:90℃

Grounded tined copper wire is much more safer

Average line diameter:3.8mm

Shielding line and aluminum foil shield to ellminate
 electromagnetic field,which is more healthy

Toleranze on conductor resistance:-5%/+10%

300g/m2 glass fiber net that can resist high temperature

Rated voltage:220Vac or 230Vac

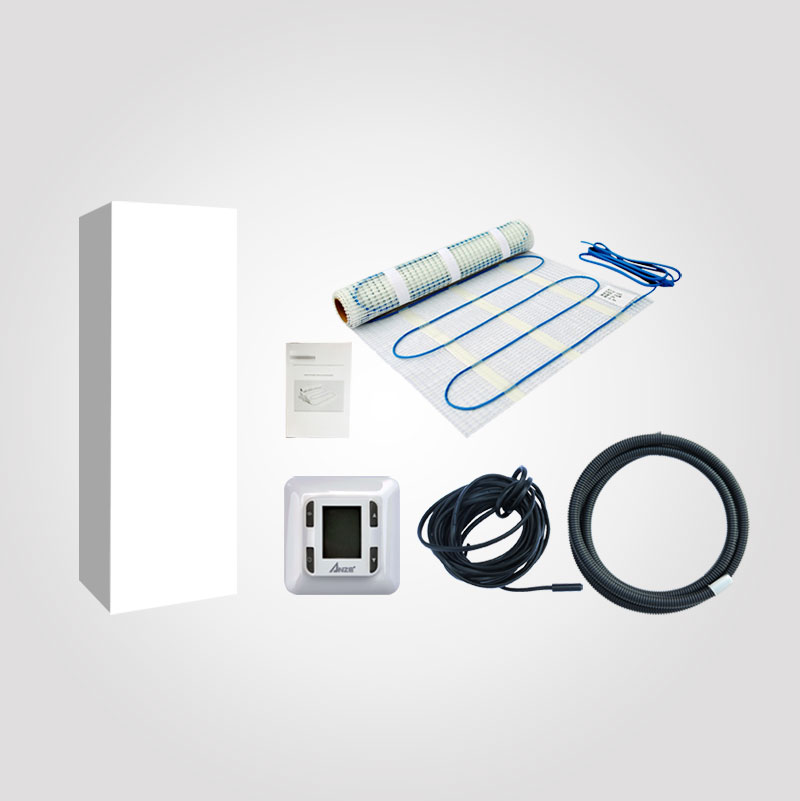

ATIV underfloor Heating Mat Installation system:

ATIV underfloor Heating Mat Size Guide:

Code
 (Twin)

Watt(W)

 Resistance
 (Ω)

Cable length(m)

Length of mat (m)

Square meter       (m2)

ATIV-150

75

705.3

6

1

0.5

ATIV-150

150

352.7

13

2

1

ATIV-150

225

235.1

19

3

1.5

ATIV-150

300

176.3

25

4

2

ATIV-150

375

141.1

31

5

2.5

ATIV-150

450

117.6

30

6

3

ATIV-150

525

100.8

35

7

3.5

ATIV-150

600

88.2

40

8

4

ATIV-150

750

70.5

50

10

5

ATIV-150

900

58.8

50

12

6

ATIV-150

1050

50.4

58

14

7

ATIV-150

1200

44.1

67

16

8

ATIV-150

1350

39.2

75

18

9

ATIV-150

1500

35.3

83

20

10

ATIV-150

1650

32.1

92

22

11

ATIV-150

1800

29.4

100

24

12
