• Spec:
• 1. Conductor use pure copper(99.99%)-low resistance, signals attenuation, fast speed, high transmission rate and so on;
• 2. Insulation material used HDPE(high density polyethylene), product by the high communication degree wiredrawing and annealing in-line machine;

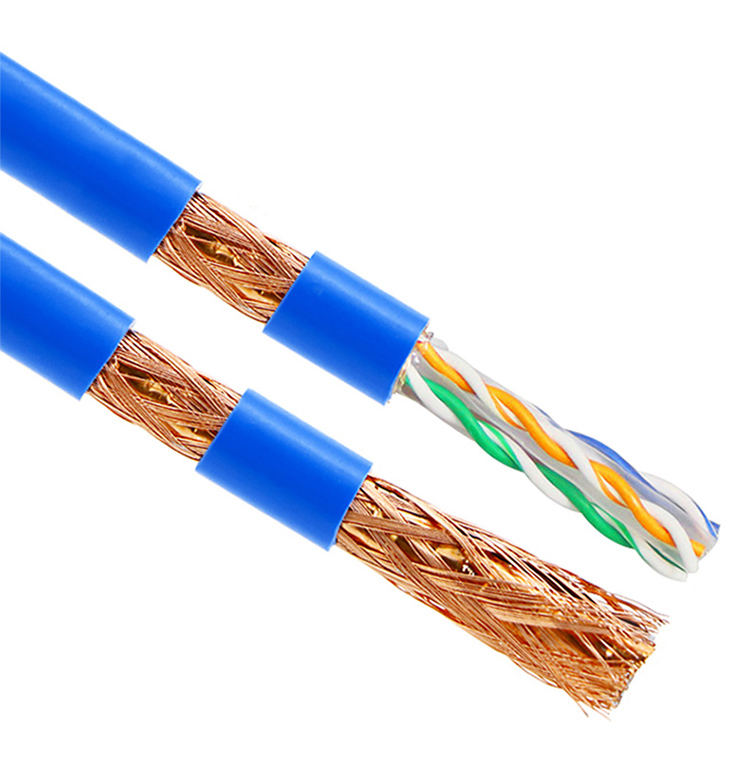

• 3. Shielded material adopt conductive aluminum foil, prevent signals attenuation decrease and the disturbing from the outer signals.

This product is widely apply to variety of network cabling and transmission media, such as audio, digital communication, images, video and other high-speed, large-capacity and security, high privacy at local area network environment.

Product pramater

Model

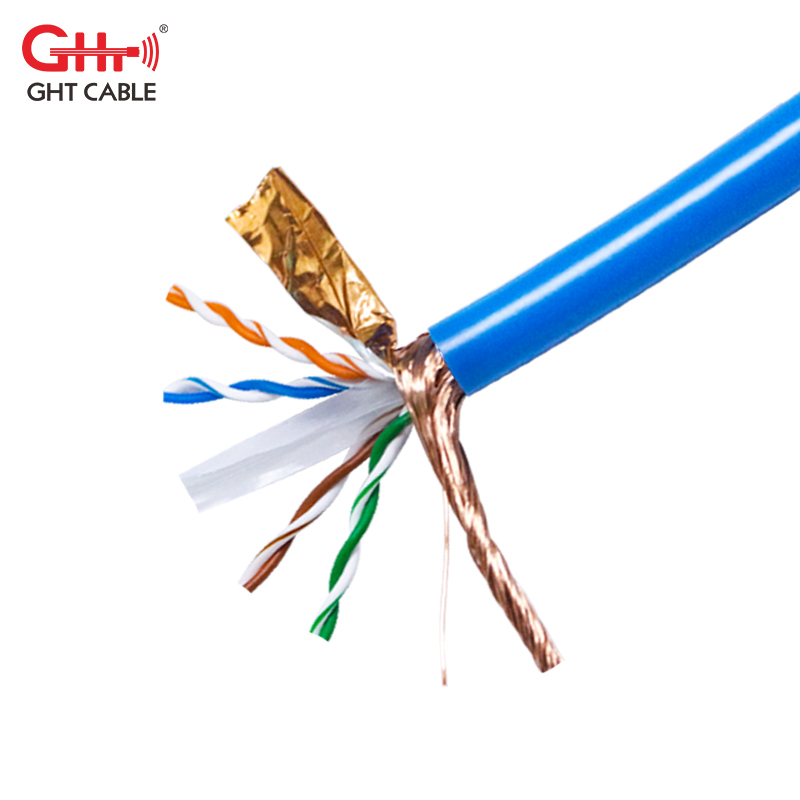

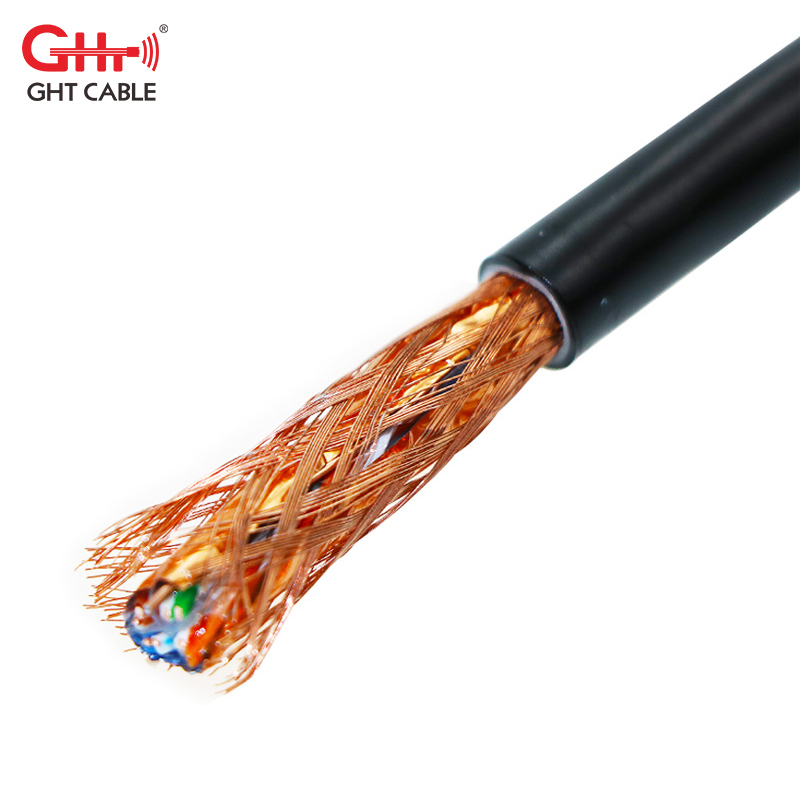

Cat 6 SFTP  Cable

Conductor Size

23AWG, 24AWG

Stranded 7x0.12mm/7x0.16mm/7x0.20mm

Conductor Material

BC/CCA/CCS

Number Of Conductor

4P

Shielded

UTP/FTP/STP/SFTP /SSTP

Flammability Grade:

CMX,CM,MP,CMG,MPG,CMR,MPR

Indoor / Outdoor

Single jacket(PVC) / Double jacket(PVC+PE)

Insulation Material

PE , HDPE

Insulation Thickness

0.55mm

Number of pairs: 4 pairs

Pair1: Orange/White Orange

Pair2: Blue/ White Blue

Pair3: Green/ White Green

Pair4: Brown/White Brown

Jacket Material

PVC, ROHS PVC, LSZH PVC

Jacket Thickness

0.92-0.95mm

DC Resistance(Max.)

9.5Ω/100m

DC Resistance Imbalance

2.50%

Working Capacitance(Max.)

5.4nF/100m

Insulation Resistance

10000MΩ.km

Transmission Velocity

65%

Operating Temperature

-20 °C - +75 °C

PVC Jacket Color

As client’s request.

FAQ

1, What’s the MOQ?

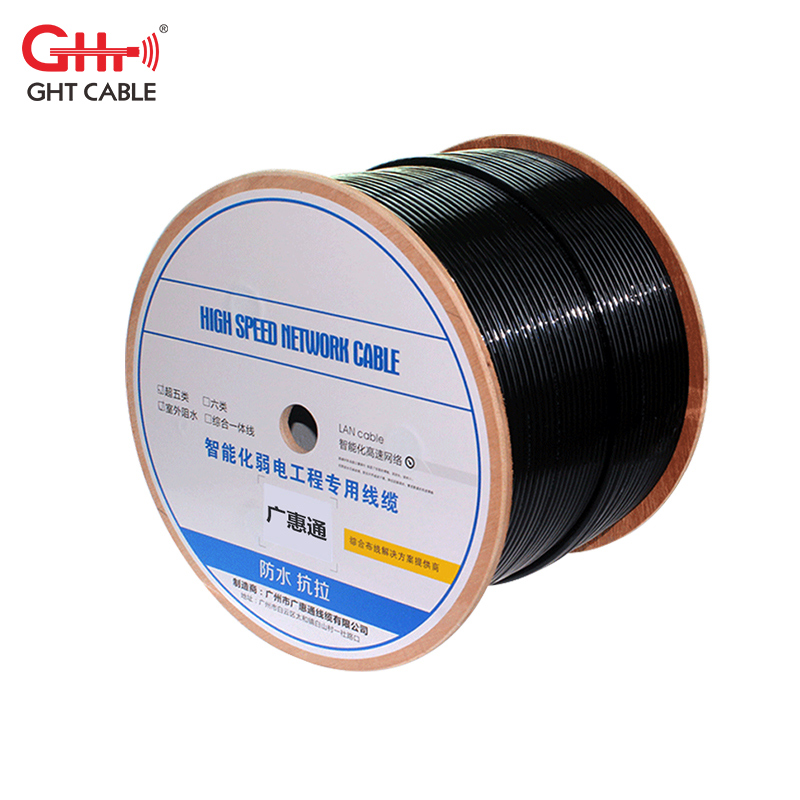

30000Meters. 100M/305M/500M/Roll.

2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.

3, What’s the payment terms?
TT, LC, DP, Western Union and Paypal etc are available.

4, What’s the delivery date?
Most of the commonly used products are in Stock. We are a manufacturer with two factories. We can arrange it within 3-5 days.
Also the delivery date as your requirement while the Bulk Production.
