●Pet Dry Food and Aquatic Feed Project:

We can offer the FULL solutions for one customer who wants to build one new plant to making

the pet dry and semi wet food, Floating or sinking aqua feed. Anyone who want to expand their

small capacity factory.

From the workshop design suggestion, to the FLOW CHART design suggestion. And how to choose the right equipment for maximum economic benefit.

This processing one is special for Pet dry pellet food and aqua feed processing. Use twin screw extruder to pelleting. And small capacity line from 100kg/h -500kg/h. High capacity line from 1t/h to 5t/h. So please think about which capacity is suitable for your factory.

●Pet food/Aquatic feed processing line MAIN SYSTEMS:

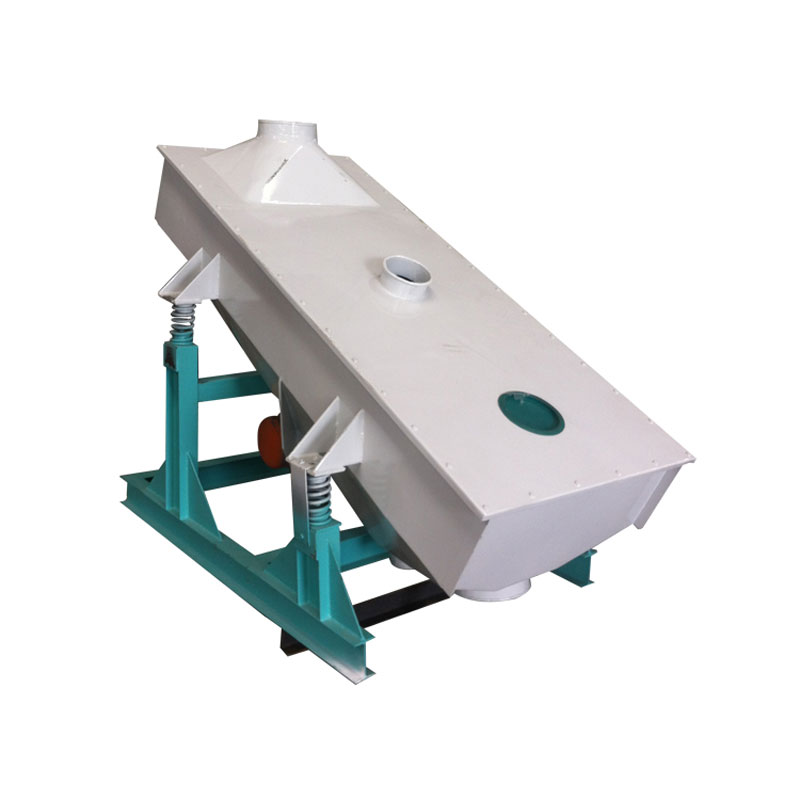

1. Raw Material Receiving ,Cleaning and Proportioning system,
2. Raw Material Milling system
3. Material Mixing system
4. Extrusion and Pelleting system
5. Drying system

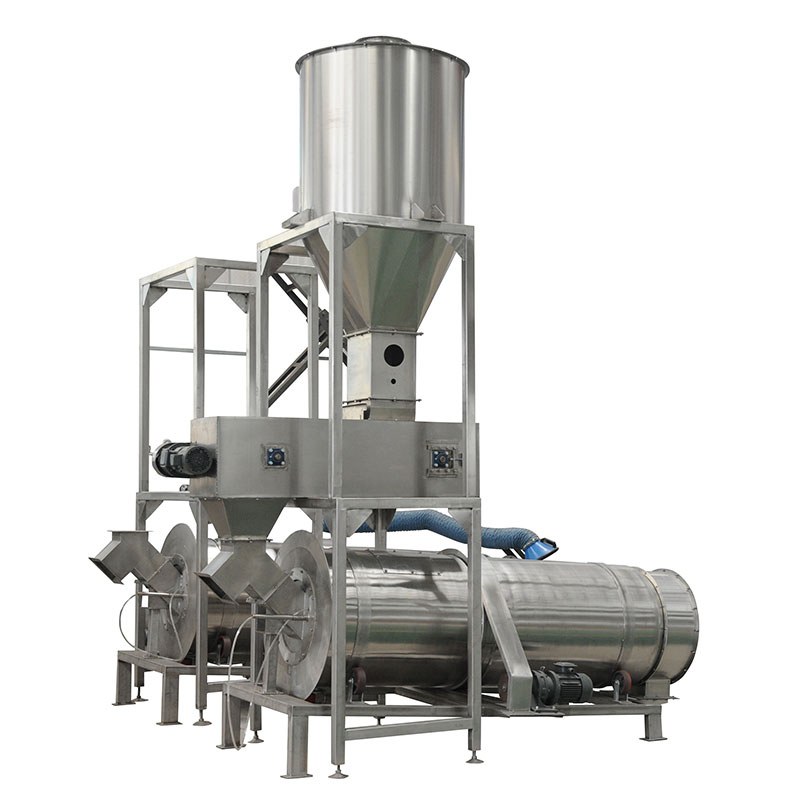

6. Coating/spraying/seasoning system

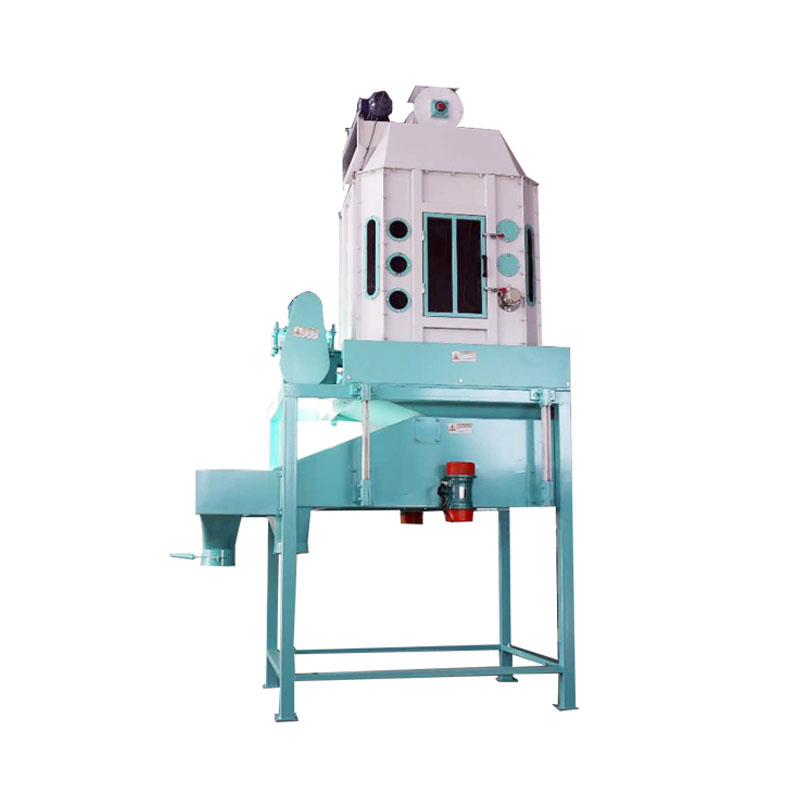

7. Cooling system
8. Final Products Storage system
9. Products Packing system

●Pet food/Aquatic feed processing line MAIN EQUIPMENTS:

1) Weight Scale

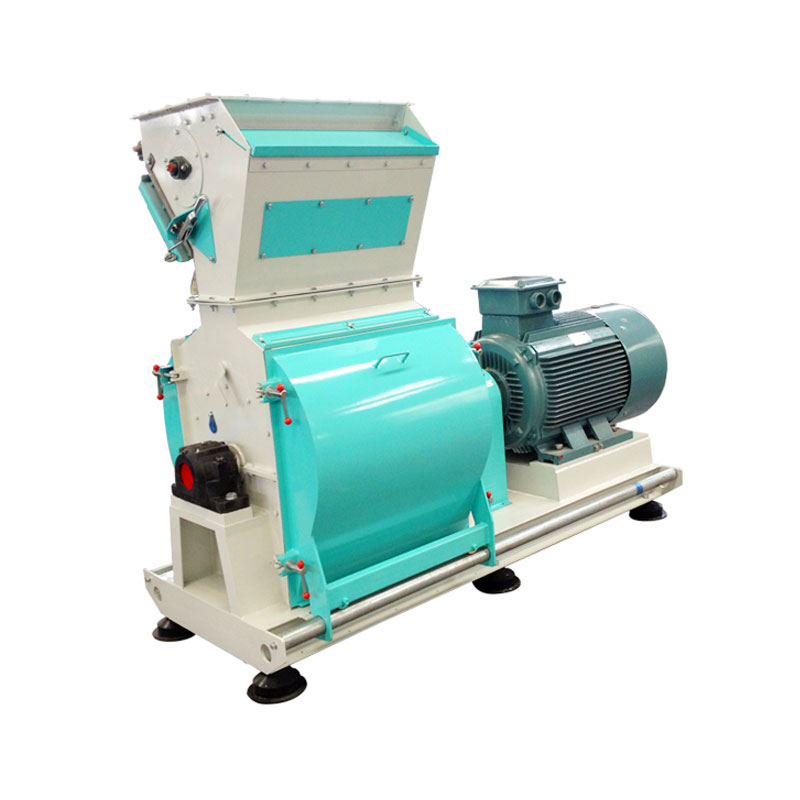

2) Miller

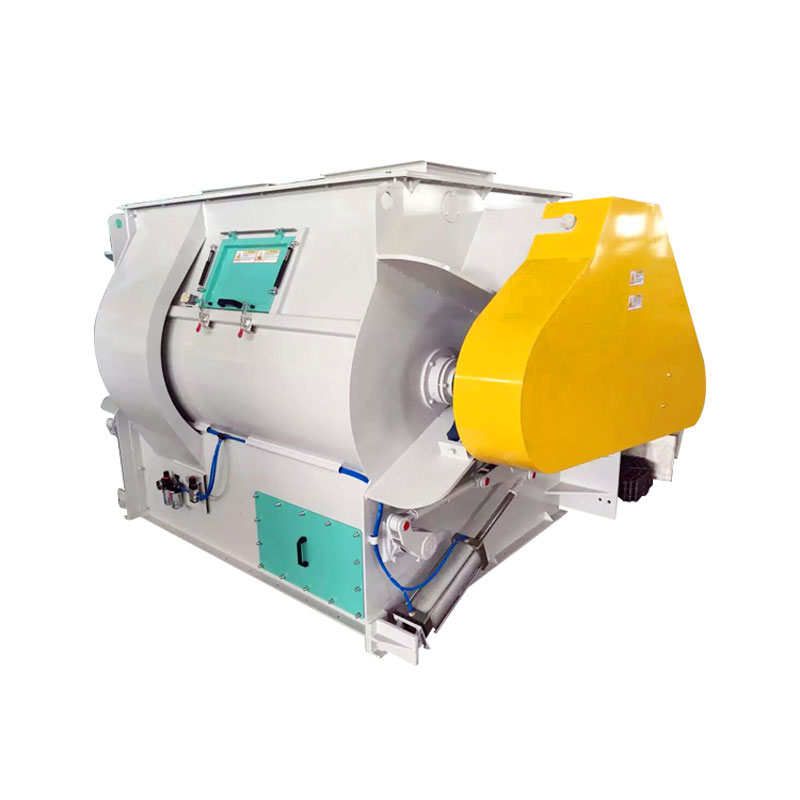

3) Mixer

4) Twin Screw Extruder

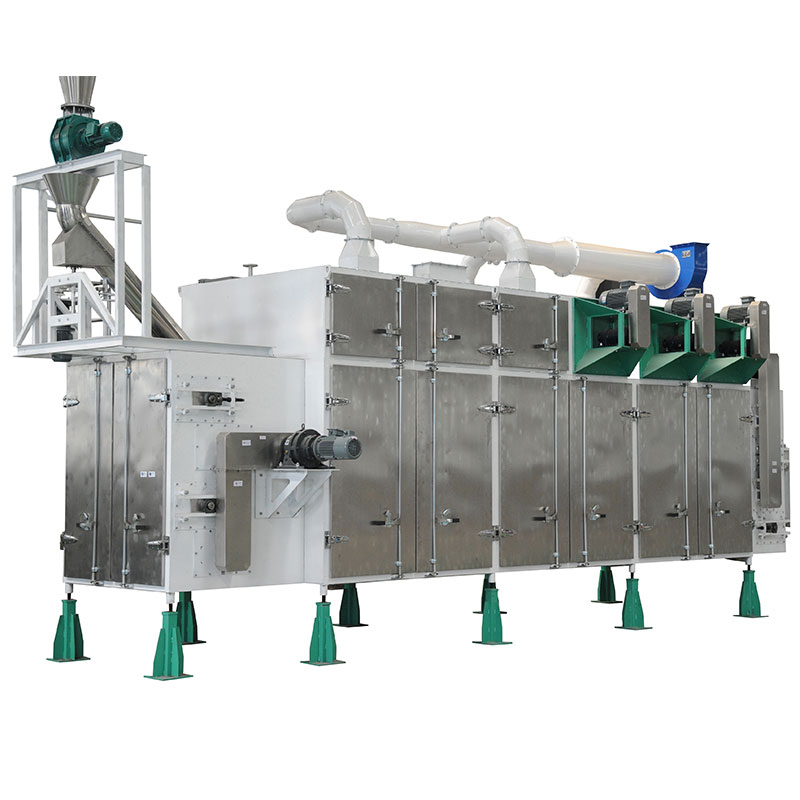

5) Dryer

6) Coater

7) Packing Machine

●Pet food/Aquatic feed processing line KEY EQUIPMENTS:

1) Twin Screw Extruder

2) Drying Machine

3) Coating Machine

4) Packing machine

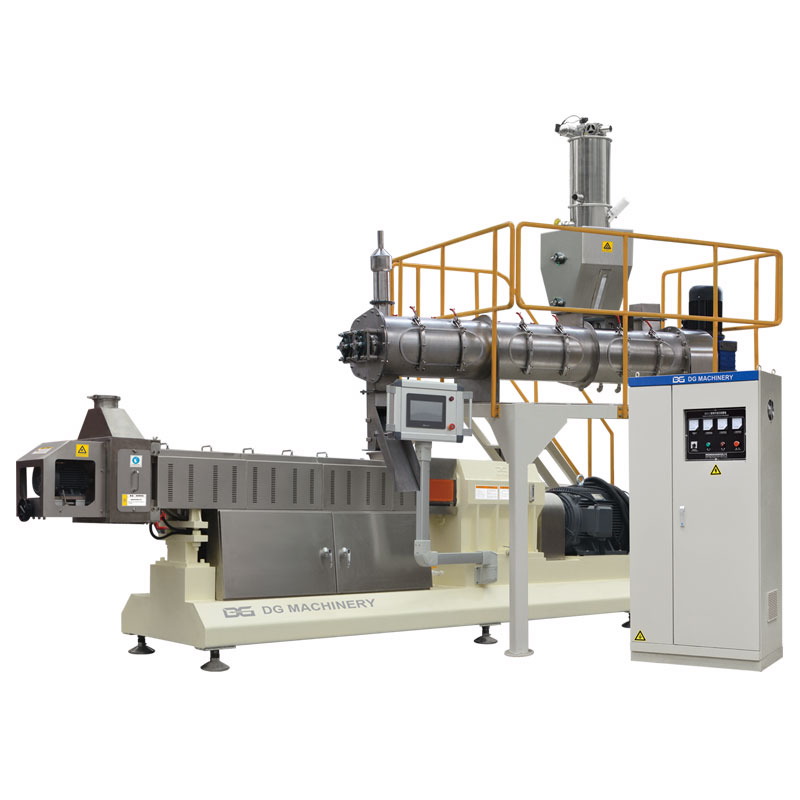

●Twin Screw Extruder applications:

DG Series Twin screw extruder applies to: pet dry food pellet, fish feed pellet, soy protein textured products, modify starch, extrusion snacks and other food products.

●Our Twin Screw Extruder Performance and Advantages:

(1)Main Motor, feeder motor, pre-conditioner motor is use frequency inverter; guarantee the feeding uniform, let the machine more powerful and operation smoothly.

(2)Main gear box is equipped with forced cooling gear pump and automatic lubrication system, double screw extrusion pumping institutions and biaxial extended differential modulator (wet host equipped), make sufficient material aging degree and the material of the gelatinization degree of more than 98%. As for high grade extruder we can offer 3years guarantees.

(3)Widely applicable raw materials sort feed formula containing fat by more than 12%. Increase after the double helix steam conditioning, fresh content as high as 35% to satisfy the customer higher content of fresh meat products manufacturing.

(4)The screw has excellent self-cleaning ability. Or the replacement of materials don't need to clean up the machine when the species the reboot boring and screw. Host adopts frequency control of motor speed control to adapt to the different varieties of raw materials, the material cutting knife, frequency control of motor speed control to adjust the length, thickness and shape.

(5)Screw use special high quality alloy steel, wear-resistant set for double metal alloy material (options), cavity by the train track with the use kind of steel with high hardness, more resistant to wear and tear, longer life and bigger pressure bear.

(6)Pet food/aquatic feed in high temperature and high pressure sterilization process, to ensure the health and safety of feed products.

(7)Discharging mode cylindrical pore diameter d = 0.8 mm - 10 mm, and other special shape die (which can be produced according to customer requirements).

(8)Suitable for processing pet food pellet, fish/aquaculture puffing material (floating, sinking and slow sinking feed pellet) which in water stability within 24 hours.

●Specification of Our Twin Screw Extruder:

Model

Type

安装功率

Installation Power

功耗Consumed Power

主机功率

Main Motor

产量Capacity    Dia4-10mm

产量Capacity      Dia1—4mm

安装尺寸Dimension

DG-65

35KW

22-30KW

22KW

100-200KG

80-150KG

15*2.5*4M

DG -70

35KW

22-30KW

30KW

150-300KG

100-200KG

16*2.5*4M

DG -75

45KW

32-40KW

45KW

250-400KG

200-300KG

27*2.5*4.5M

DG -90

105KW

80-95KW

75KW

1000-2000KG

800-1500KG

39*2.5*5M

DG -100

200KW

128-150KW

110KW

2000-3000KG

1500-2500KG

43*2.5*6M

DG -130

280KW

200-240KW

200KW

3000-5000KG

3000-4000KG

50*6*8M
