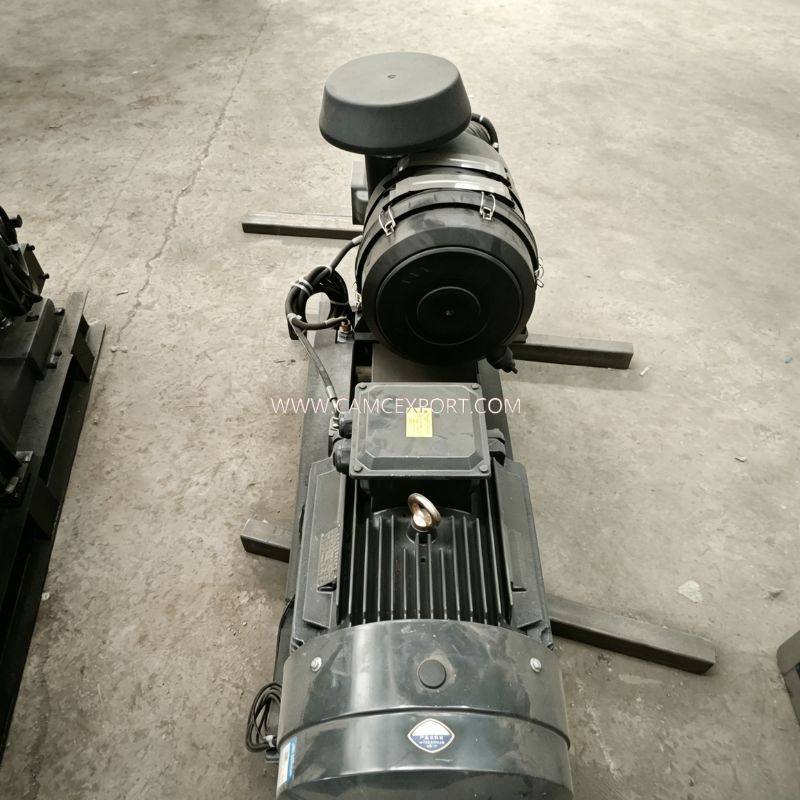

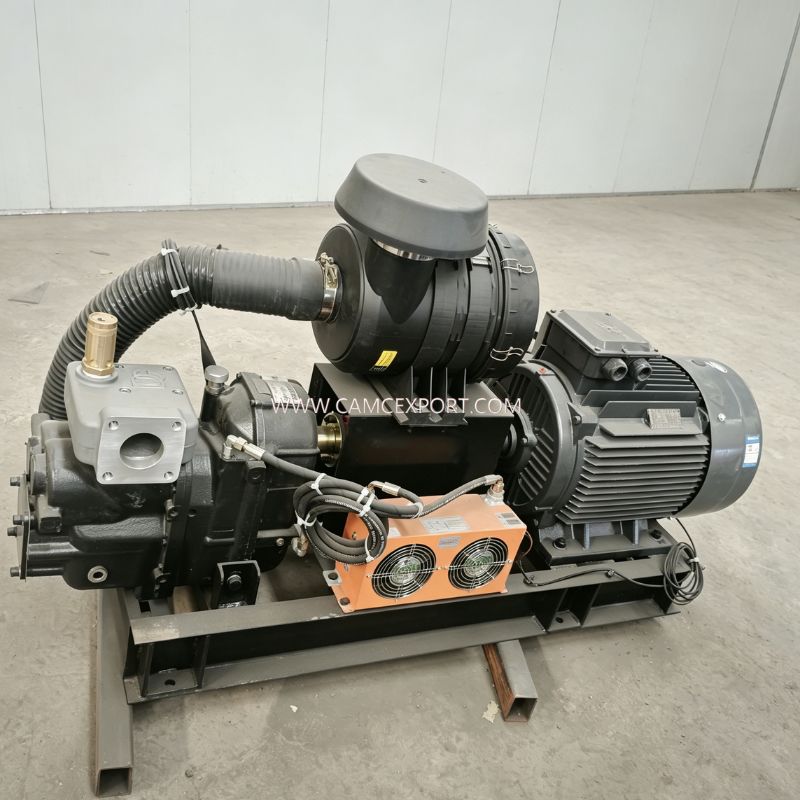

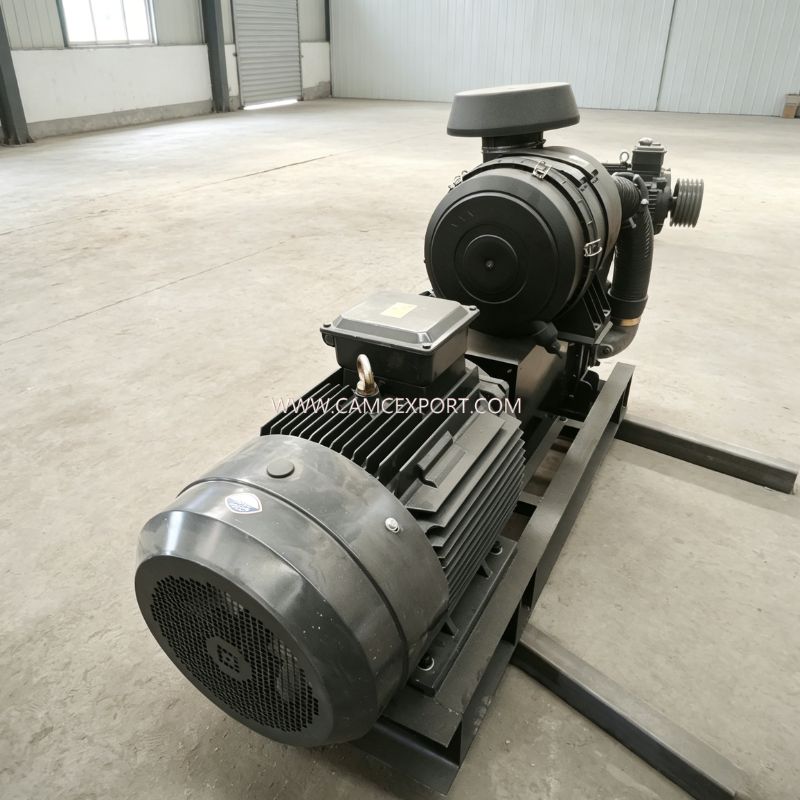

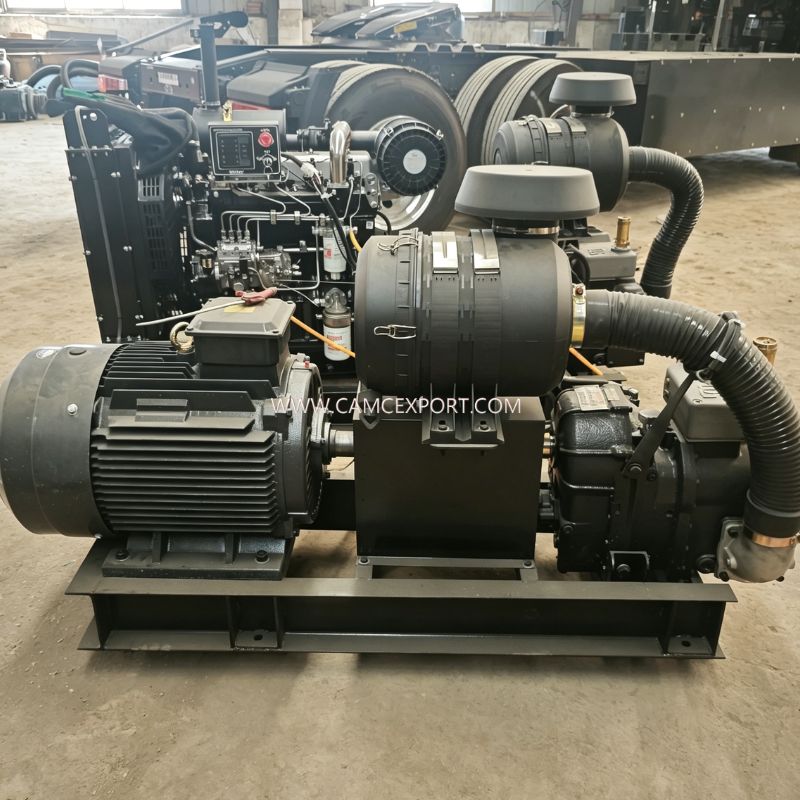

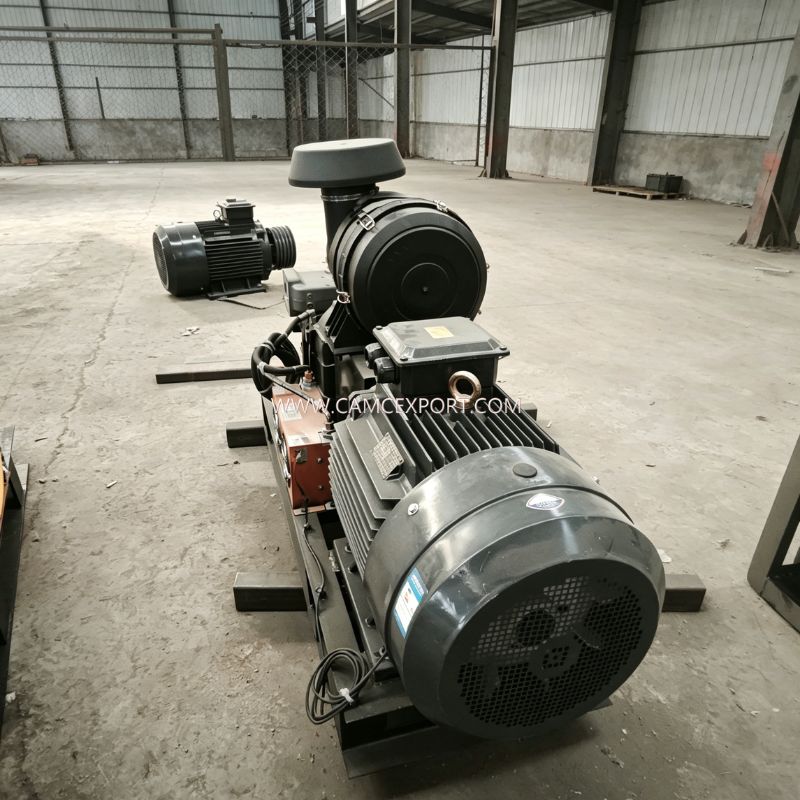

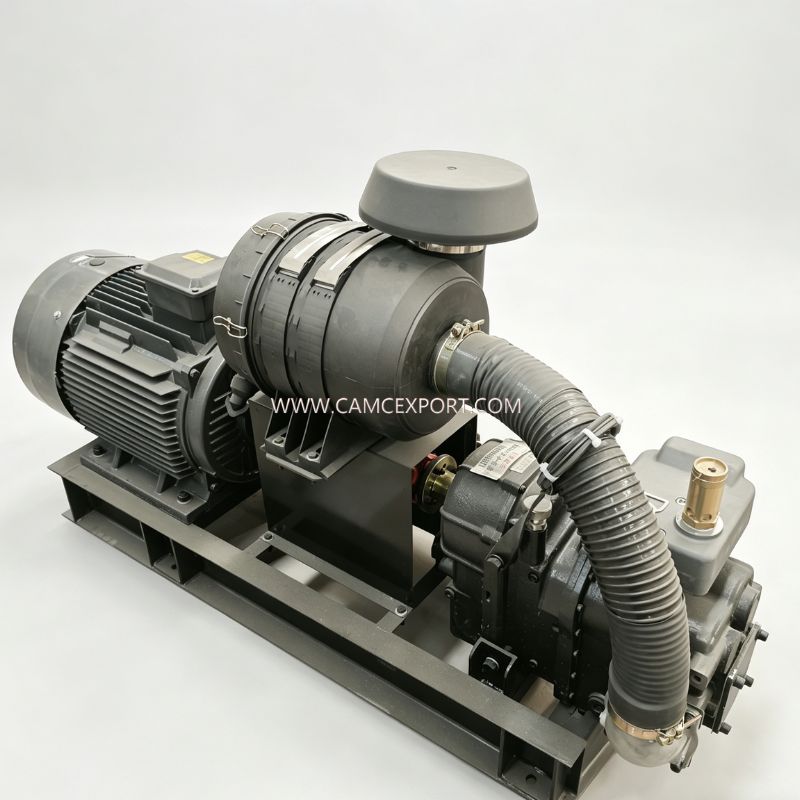

The CAMC HL12-DS90A Electric Direct-Drive Screw Air Compressor Unit is a high-efficiency air supply device specially designed by CAMC for fixed industrial scenarios.

It is equipped with the DS90A screw air end and YE3-225M-4 high-efficiency energy-saving motor, adopting a direct-drive transmission structure with zero power loss, providing stable and clean low-pressure compressed air for production lines, workshops and construction sites.

Inheriting CAMC exquisite manufacturing technology, the machine features a compact structure and stable operation, which is widely suitable for industrial pneumatic tools, material conveying, powder conveying, low-pressure process air supply and other scenarios.

The model of this CAMC electric air compressor unit is HL12-DS90A, the matching air compressor body model is DS90A, and it is adapted to the YE3-225M-4 high-efficiency energy-saving motor.

The standard exhaust displacement reaches 12 cubic meters per minute, the rated exhaust pressure is 0.2 MPa, the rated operating speed of the air compressor is 1500 revolutions per minute, and the shaft power of the air compressor is up to 40 kilowatts.

The total weight of the whole machine is 500 kilograms, and the overall dimension is 1900×610×1000 millimeters, with standard specifications and leading performance parameters in the industry.

High Efficiency & Stable Power Output

Adopting CAMC direct-drive transmission structure to eliminate belt drive loss fundamentally, paired with YE3 series high-efficiency energy-saving motor for higher power transmission efficiency and lower energy consumption than the industry average.

The screw air end and motor are precisely matched, running stably at a constant speed of 1500 RPM, maintaining a stable air displacement of 12m³/min continuously with tiny air pressure fluctuation. It supports all-weather long-term uninterrupted operation with excellent stability.

Compact Structure & Easy Installation

Optimized structural layout designed by CAMC, the machine owns compact overall size and light weight. No complicated fixing and installation are required, it can be put into use only with basic fixation.

It can be quickly deployed in workshops, factories and temporary industrial sites, adapting to narrow working spaces and meeting the demand for fixed air supply in multiple scenarios.

Exquisite Quality & Adaptable to Continuous Industrial Conditions

Equipped with CAMC industrial-grade thickened screw air end and high-efficiency motor, fitted with multi-stage air filtration system, it can easily adapt to industrial environments with high dust and continuous operation in workshops.

Core components are reinforced with anti-corrosion, anti-rust and anti-vibration treatment, featuring strong impact resistance, longer service life and lower long-term use cost.

Low Noise & Low Consumption, Easy Daily Maintenance

With CAMC professional fluid research and development technology, the intake and exhaust air ducts and cooling system are optimized to effectively reduce operating noise, providing a quiet working environment for the workshop.

Standard universal maintenance ports are reserved on the machine. Replacement of wearing parts and daily maintenance do not require professional equipment and complex operation, greatly saving later maintenance time and cost.

Multiple Protection & Safe Operation

CAMC equips this air compressor with full-dimensional intelligent protection system, with intelligent monitoring functions such as over pressure, over-temperature, motor overload and abnormal current.

Once potential faults are detected, the machine will automatically alarm and stop to avoid component damage, ensuring the safety of operators and equipment.

This CAMC electric screw air compressor is widely applied in industrial pneumatic tool air supply, powder material conveying, low-pressure process system air supply, workshop centralized air supply, light industry production line supporting, low-pressure pneumatic equipment driving at engineering sites and other scenarios.

We supply full range of CAMC industrial air compressors and supporting power equipment. Relying on mature production technology and strict quality control system, we provide high-quality overall compressed air solutions for global foreign trade customers.

All CAMC products comply with international industry manufacturing standards. Customization on parameters and models is available, together with professional full-process technical after-sales support.
