• High-quality Sound: The speaker delivers professional sound quality with a frequency range of 100Hz-16kHz, ensuring a clear and crisp audio experience for any event or setting, ensuring a powerful and immersive audio experience.
• Versatile Applications: The outdoor and concert-ready PA system is designed for a variety of applications, making it suitable for both indoor and outdoor events such as concerts, parties, and public addresses.
• Robust Construction: The speaker is built with a ABS shell, providing durability and protection against potential damage, making it ideal for frequent use in various environments.
• Easy Connection: The speaker features a simple electric wire connection type, allowing for quick and hassle-free setup. It also comes with 1-year warranty, providing peace of mind for customers.
• Customization Options Available: As an OEM service provider, we can work with you to tailor the product to your specific needs and preferences, including color, design, and other custom requirements (user input).
• Compliant with Safety Standards: Ensuring compliance with European safety standards, providing peace of mind for users in the EU and other regions.

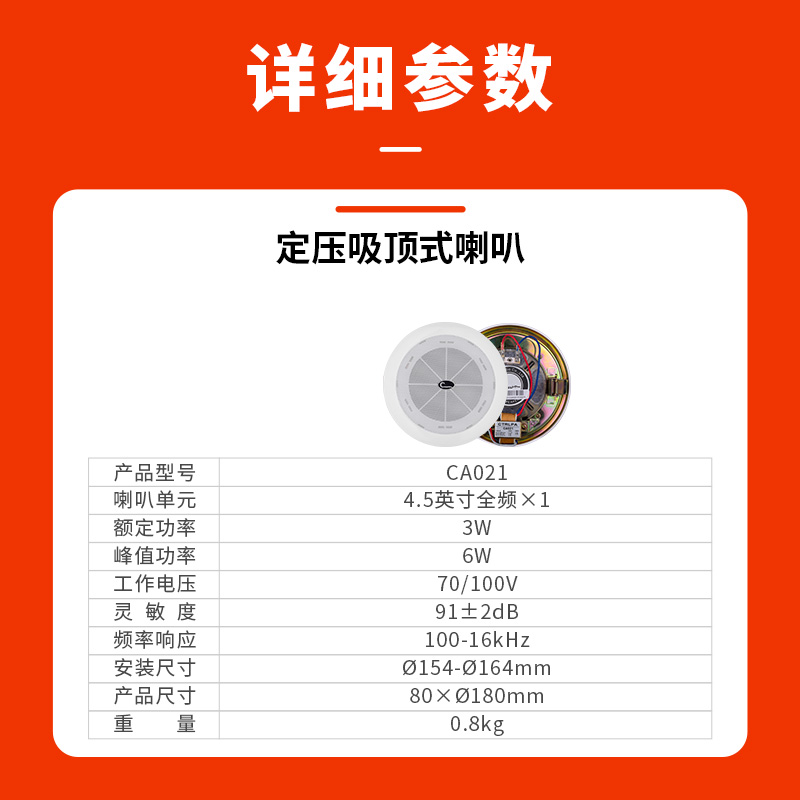

Specifications Model CA021 Rated power 3W Peak power 6W Frequency response 100Hz-16kHz Sensitivity 91±2dB Maximum Sound Pressure Level 96±2dB Speaker unit 4.5" speaker *1 Hole cutout size 154-164mm/6.06Inch-6.46Inch Product overall size 180mm/7.09Inch Product mounting depth 80mm/3.15Inch

Installation Steps:

Step1: Cut the Speaker Hole to 154-164mm/6.06Inch-6.46Inch.

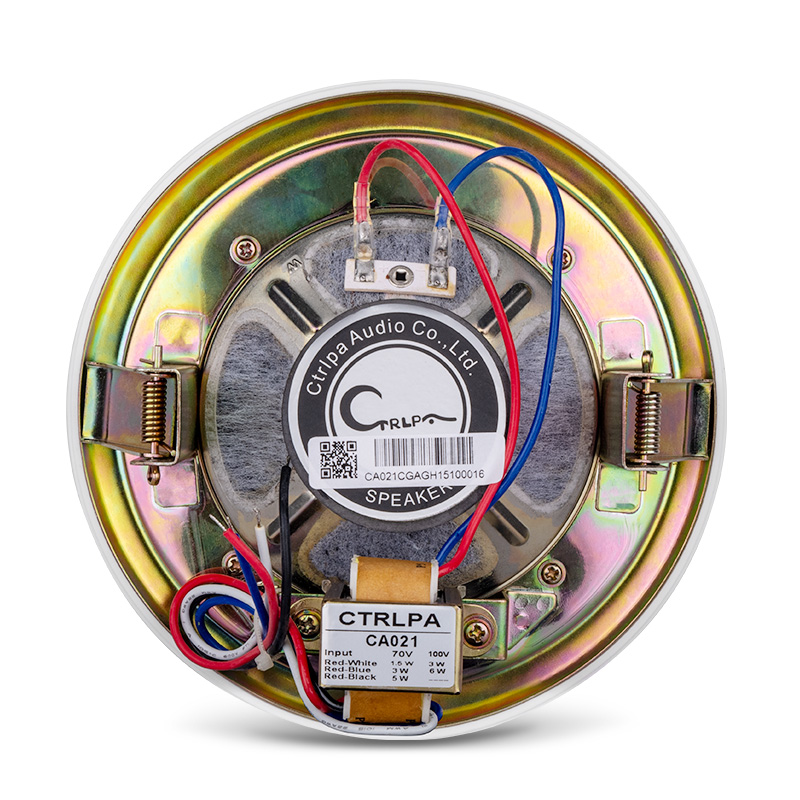

Step2: Wire the Speaker. (Blue/White wire: positive pole Red wire: negative pole)
Input 70V 100V Red-White 1.5W 3W Red-Blue 3W 6W Red-Black 5W ___

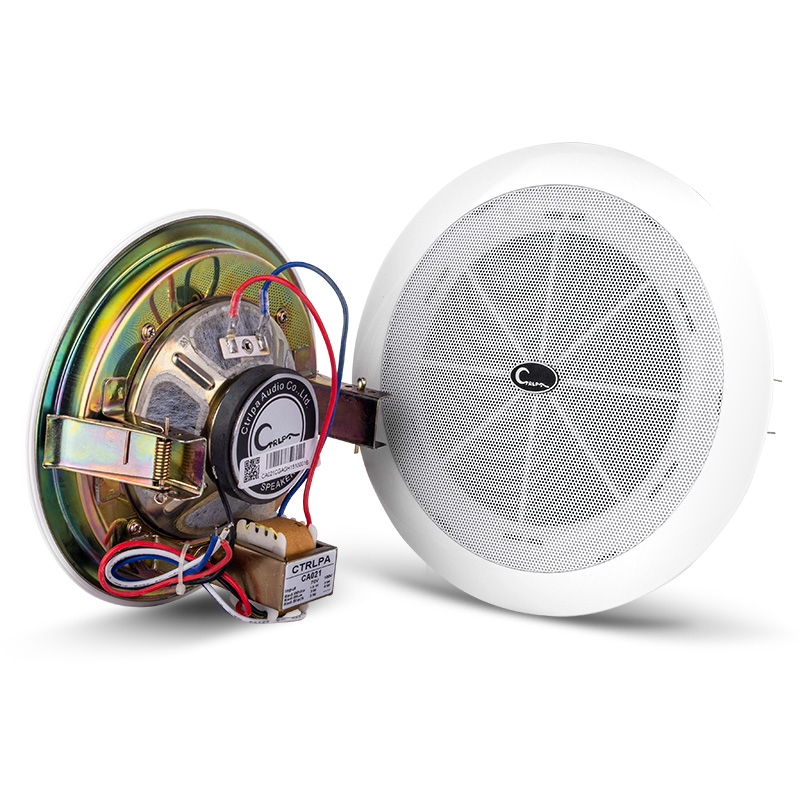

Step3: Flip up the spring clips on both sides of the speaker and insert them into the mounting holes. Then release your hand and gently push the speaker to embed it into the ceiling (see the figure below). To avoid being injured by the spring clips, it is recommended to wear work gloves when performing this operation.
